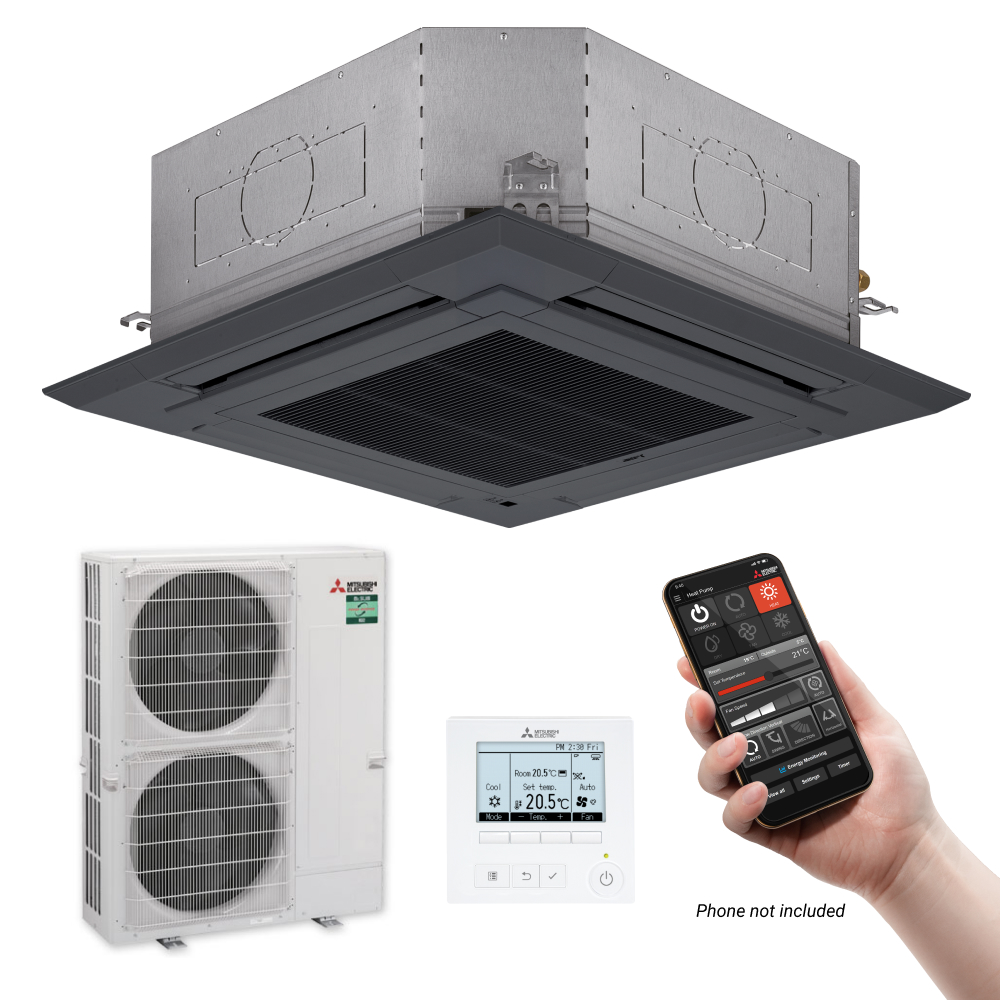

PLA-M100 Wired Deluxe 4 Way Large Casette with Black Grille and Wi-Fi Interface

Large Room System // PLA-M100 WIRED + MAC-588IF-E

The large capacity PLA100 4-Way Cassette, with wide airflow, independent vane direction setting and a new sleek design, provides consistent temperatures throughout the space you need to heat or cool. Perfect for residential rooms or office spaces. The Wired Grille in Matte Black has the same sleek bevelled design as the White colour option. Upgraded with a Wi-Fi Interface, your heating and cooling can be controlled no matter where you are - so you'll always arrive home to total comfort.

Cooling Capacity10.0 kW
Heating Capacity11.2 kW
Select a Size
Select a Controller
Optional Outdoor Performance

Features

Next Generation R32 Technology

R32 is a refrigerant with just one-third the global warming potential of R410A and has zero ozone depletion potential. R32 offers increased energy efficiency, and is said to be the next generation of refrigerants.

Sleek, Square Design

Available in Matte Black, the PLA features a sleek, square grille design with bevelled edges that provide a compact and modern finish.

Optimum Airflow

With the ability to independently control each wide vane’s airflow, these units are perfect for both residential and office environments, providing controlled airflow to all corners of the space you need to heat or cool. Advanced control of the vanes called “Swing Airflow” provides even greater heat distribution, periodically moving vanes up and down.

Auto Air Speed Adjustment

This setting automatically adjusts the air-speed to match the conditions of the room. At the start of heating/cooling, the airflow is set to high-speed to quickly heat or cool the room and once the desired temperature is reached, it decreases for efficient operation.

High and Low Ceiling Modes

Our PLA Cassettes are equipped to adjust the airflow volume to match the room height. This ensures that you get comfortable temperature control throughout the room no matter how high your ceiling.

Wi-Fi Control Interface

Locally developed to suit the busy lifestyles of New Zealanders, award-winning Wi-Fi Control unlocks the door to smarter heating. This innovative technology allows you to control or monitor your heat pump from anywhere via your smartphone, tablet or online account. Wi-Fi Control allows you to control your system remotely, develop operating rules, and set minimum and maximum room temperatures for healthy and comfortable living.

Read more and try a demonstration

Features:

Specifications

PLA-M100 WIRED + MAC-588IF-E // PLA-M100 Wired Deluxe 4 Way Large Casette with Black Grille and Wi-Fi Interface System

· Function: Cooling/Heating · Type: Single Split, Inverter
Rated
· Capacity - Cooling: 10.0 kW · Capacity - Heating: 11.2 kW
· Capacity - Cooling (min. - max.): 4.9 - 11.4 kW · Capacity - Heating (min. - max.): 4.5 - 14.0 kW
· Power input - Cooling: 2.43 kW · Power input - Heating: 2.94 kW
· Current - Cooling [In+Outdoor] (Rated): 10.49 A · Current - Heating [In+Outdoor] (Rated): 12.84 A
Energy Rating Residential
· ZERL - Cooling (Cold/Mixed/Hot): 2.5 / 2.5 / 3 · ZERL - Heating (Cold/Mixed/Hot): 2 / 2.5 / 3
· TCSPF (Cold/Mixed/Hot): 4.06 / 4.14 / 4.94 · HSPF (Cold/Mixed/Hot): 3.63 / 4.28 / 4.93
· EER / COP: 4.11 / 3.8 · AEER / ACOP: 3.95 / 3.68
Energy Rating Commercial
· TCSPF (Cold/Mixed/Hot): 5.41 / 5.20 / 5.38 · HSPF (Cold/Mixed/Hot): 3.99 / 4.55 / 4.94
Performance
· Operation Range - Cooling: -5 / +52 degC · Operation Range - Heating: -20 / +21 degC

PLA-M100EA2-A.TH - 4-Way Cassette Heat Pump

· Function: Cooling/Heating · Type: Single Split, Inverter
Nominal Capacity
· Capacity - Cooling: 10.0 kW · Capacity - Heating: 11.2 kW
· Sound Level - Cooling (Low - Super High, dB(A)): 31 / 34 / 37 / 40 · Sound Level - Heating (Low - Super High, dB(A)): 31 / 34 / 37 / 40
· Air Volume - Cooling (Super High, Litre/sec): 483 · Air Volume - Heating (Super High, Litre/sec): 483
· Refrigerant: R32 · Liquid pipe size (OD, mm): 9.52
· Gas pipe size (OD, mm): 15.88 · Max. pipe length (m): 75
· Max. pipe height (m): 30 · Power supply: 230V / Single Phase / 50 Hz
· Dimensions (WxDxH, mm): 840 x 840 x 298 · Weight: 24.0 kg
· Panel Dimensions (WxDxH, mm): 950 x 950 x 40 · Panel Weight: 5 kg

PUZ-ZM100VKA-A - R32 Inverter Outdoor Unit

· Function: Cooling/Heating · Type: Single Split, Standard Inverter
· Operation Range - Cooling: -5 / +52 degC · Operation Range - Heating: -20 / +21 degC
· Sound Level - Cooling (dB(A)): 49 · Sound Level - Heating (dB(A)): 51
· Air Volume - Cooling (Litre/sec): 1833 · Air Volume - Heating (Litre/sec): 1833
· Power Supply: Single phase, 230 V, 50Hz · Refrigerant: R32
· Liquid Pipe Size (OD, mm): 9.52 · Gas Pipe Size (OD, mm): 15.88
· Max. Pipe Length (m): 75 · Max. Pipe Height (m): 30
· Dimensions (WxDxH, mm): 1050 x 330 x 1338 · Weight: 113 kg

·  Rating Conditions (AS / NZS 3823):
   Cooling – Indoor: 27°C DB, 19°C WB. Outdoor: 35°C DB.     Heating – Indoor: 20°C DB, Outdoor: 7°C DB, 6°C WB.

·  Sensible Cooling Conditions, Indoor: 27°C DB, 20°C WB. Outdoor: 35°C DB.

·  Dry function will not work when the room temperature is below 13°C.

·  Colour: Heat pump units shown may not be colour accurate, please ensure you view an actual unit for colour matching.

·  Maximum length is inclusive of height differential. i.e. (20m length/12m high) means the pipe can be 12m high and 8m across for a total length of 20m.

·  Measure of Energy Efficency: A calculated measurement of energy efficiency for both heating and cooling using the ratio of kW input to kW output.
   EER = Energy Efficiency Ratio
   COP = Coefficient of Performance
   AEER# = Annual Energy Efficiency Ratio
   ACOP# = Annual Coefficient of Performance
   #These include standby power in the rating calculation

·  Star Ratings based on the Seasonal Energy Rating standard for New Zealand - cold zone [GEMS 2019]
