PLA 4-Way Cassette Black Heat Pumps

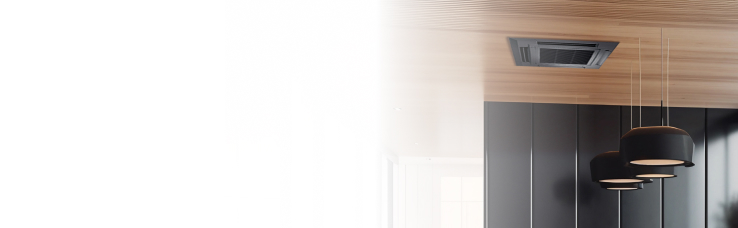

For a bold, modern aesthetic, the PLA Cassette with Black Matte Grille combines advanced airflow features with independent vane direction control for tailored indoor comfort. Perfect for larger residential and commercial environments, it provides efficient, consistent climate control in a stylish, contemporary design.
New Wired Black Grille
In addition to the Wired and Wireless grille options in Pure White, a Wired option in Black will be available from late 2023. The Wired grille in Black will have the same sleek bevelled design as the Wired and Wireless White colour options.
*Black Wired Grille does not include 3D i-Sensor functionality.
Next Generation R32 Technology
The large capacity PLA 4-Way Cassette range features the latest in super-efficient and more environmentally friendly R32 refrigerant. With a global warming potential that is 30% lower compared to older refrigerants such as R410A, next-generation R32 refrigerant has a much lower environmental impact. Furthermore, zero ozone-depleting R32 is easier to reuse and recycle.
Benefits of R32 compared to R410A
- 66% lower GWP of 675
- More environmentally friendly
- 20% less refrigerant volume requirement
- Overall higher systems efficiency
- Easy to handle, reuse and recycle
* When PLA-M Series is connected to PUZ-ZM71 to 140VKA R32 Outdoor Units
Replace technology has been incorporated into the R32 Mr Slim P-Series*
Replacing an R22 or an R410a system with an R32 equivalent system while retaining the existing pipe work can be easily achieved while keeping the product warranty intact.
HAB oil and scroll compressor technology improvements allows this unique feature to apply to this product.
* When PLA-M Series is connected to PUZ-ZM71 to 140VKA R32 Outdoor Units
Horizontal Airflow
The Horizontal Airflow function prevents both cold draughts and/or heating airflow from striking occupants directly, thereby keeping people from becoming over-chilled/over-heated.
Wave Airflow Mode for Heating
Advanced control of vanes, called Wave Airflow, provides even greater heat distribution by periodically moving vanes up and down to provide a consistent temperature throughout the room.
Wide Airflow
PLA Series Cassettes utilise wide-angle outlets to distribute airflow to all corners of the room, ensuring the room is cooled/heated in an even manner. Both horizontal airflow and fan speed have been reduced by 20% compared to conventional models, contributing to increased comfort for occupants.
Optional Automatic Grille Lowering Function
An Automatic Grille Lowering function capable of stopping at eight different heights is available to simplify filter maintenance.- The packaged elevating (up/down) controller in the grille* can be used when outdoor unit is either PUZ Series or SUZ Series.
- Wired Remote Controller (PAR) has Automatic Grille Lowering function. This function is only available when indoor unit connects with PUZ Series.
* PLA-M Series uses grille PLP-6EAJ and PLA-RP Series uses grille PLP-6BAJ.
Sleek, Compact Design
The PLA features a sleek, square design with bevelled edges that provide a compact and modern finish.
Auto Fan Speed Mode
The fan speed on Deluxe PLA Series Cassettes is adjusted automatically, maintaining a comfortable environment at all times. At the start of operation, a high fan speed achieves quick heating/cooling of the room. Once the desired temperature is reached, the fan speed is reduced for stable, more efficient heating/cooling and greater comfort.
Independent Vane Direction Setting*
With the ability to independently control each vane’s airflow pattern, Deluxe PLA Series Cassettes are perfect for both residential and office/commercial environments.
*P Series Outdoor only
Deluxe Wireless Controller
With a backlit screen for easy viewing, and advanced feature controls, the Deluxe Wireless Controller offers the ultimate in customised comfort
Deluxe PAR Weekly Controller Available (Optional)
This attractive full dot liquid crystal display incorporates a large backlit screen and simple menus for easy operation. You can set up to 8 temperature and airflow patterns per day for seven days, allowing you to reduce your energy consumption when needed, saving you both time and money. Perfect for the busy home and office or retail store.
Wi-Fi Control Upgrade
With the addition of award-winning Mitsubishi Electric Wi-Fi Control, you can control and monitor your heat pump from absolutely anywhere via your smartphone, tablet or online account.

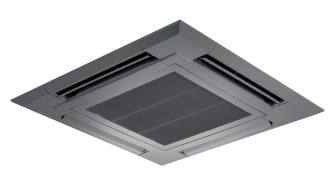

Black Grille
