PLA 4-Way Cassette Elevating Grille Heat Pumps
Experience the ultimate convenience with the Elevating Grille, which features an Automatic Lowering intake grille function for easy maintenance. Combined with advanced airflow capabilities, 3D i-See Sensor and independent vane direction control, this innovative design ensures reliable comfort and consistent climate control in larger residential or office spaces.
Automatic Grille Lowering Function

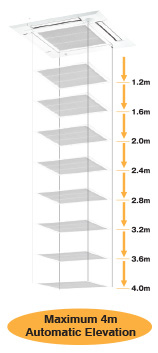

An Automatic Grille Lowering function capable of stopping at eight different heights is available to simplify filter maintenance.- The packaged elevating (up/down) controller in the grille* can be used when outdoor unit is either PUZ Series or SUZ Series.
- Wired Remote Controller (PAR) has Automatic Grille Lowering function. This function is only available when indoor unit connects with PUZ Series.
* PLA-M Series uses grille PLP-6EAJ and PLA-RP Series uses grille PLP-6BAJ.
3D i-See Sensor*

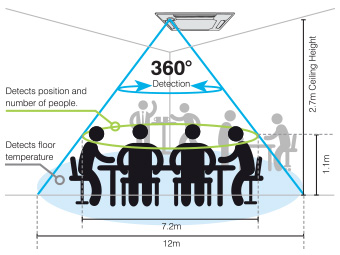

The 3D i-See Sensor works to detect the floor temperature and how many people are present in the room automatically switching to the optimal operating mode. With a total of eight sensors which rotate a full 360º in 3 minute intervals, it is able to detect people’s position in the room to provide direct or indirect airflow as preferred.
* The PLA-M Series comes standard with 3D i-See Sensor Technology and optional for PLA-RP Series.
Next Generation R32 Technology
The large capacity PLA 4-Way Cassette range features the latest in super-efficient and more environmentally friendly R32 refrigerant. With a global warming potential that is 30% lower compared to older refrigerants such as R410A, next-generation R32 refrigerant has a much lower environmental impact. Furthermore, zero ozone-depleting R32 is easier to reuse and recycle.
Benefits of R32 compared to R410A
- 66% lower GWP of 675
- More environmentally friendly
- 20% less refrigerant volume requirement
- Overall higher systems efficiency
- Easy to handle, reuse and recycle
* When PLA-M Series is connected to PUZ-ZM71 to 140VKA R32 Outdoor Units
Replace technology has been incorporated into the R32 Mr Slim P-Series*
Replacing an R22 or an R410a system with an R32 equivalent system while retaining the existing pipe work can be easily achieved while keeping the product warranty intact.
HAB oil and scroll compressor technology improvements allows this unique feature to apply to this product.
* When PLA-M Series is connected to PUZ-ZM71 to 140VKA R32 Outdoor Units
Horizontal Airflow
The Horizontal Airflow function prevents both cold draughts and/or heating airflow from striking occupants directly, thereby keeping people from becoming over-chilled/over-heated.
Wave Airflow Mode for Heating
Advanced control of vanes, called Wave Airflow, provides even greater heat distribution by periodically moving vanes up and down to provide a consistent temperature throughout the room.
Wide Airflow
PLA Series Cassettes utilise wide-angle outlets to distribute airflow to all corners of the room, ensuring the room is cooled/heated in an even manner. Both horizontal airflow and fan speed have been reduced by 20% compared to conventional models, contributing to increased comfort for occupants.
Sleek, Compact Design
The PLA features a sleek, square design with bevelled edges that provide a compact and modern finish.
Auto Fan Speed Mode
The fan speed on Deluxe PLA Series Cassettes is adjusted automatically, maintaining a comfortable environment at all times. At the start of operation, a high fan speed achieves quick heating/cooling of the room. Once the desired temperature is reached, the fan speed is reduced for stable, more efficient heating/cooling and greater comfort.
Independent Vane Direction Setting*
With the ability to independently control each vane’s airflow pattern, Deluxe PLA Series Cassettes are perfect for both residential and office/commercial environments.
*P Series Outdoor only
Deluxe Wireless Controller
With a backlit screen for easy viewing, and advanced feature controls, the Deluxe Wireless Controller offers the ultimate in customised comfort
Deluxe PAR Weekly Controller Available (Optional)
This attractive full dot liquid crystal display incorporates a large backlit screen and simple menus for easy operation. You can set up to 8 temperature and airflow patterns per day for seven days, allowing you to reduce your energy consumption when needed, saving you both time and money. Perfect for the busy home and office or retail store.
Wi-Fi Control Upgrade
With the addition of award-winning Mitsubishi Electric Wi-Fi Control, you can control and monitor your heat pump from absolutely anywhere via your smartphone, tablet or online account.
Elevating Grille
