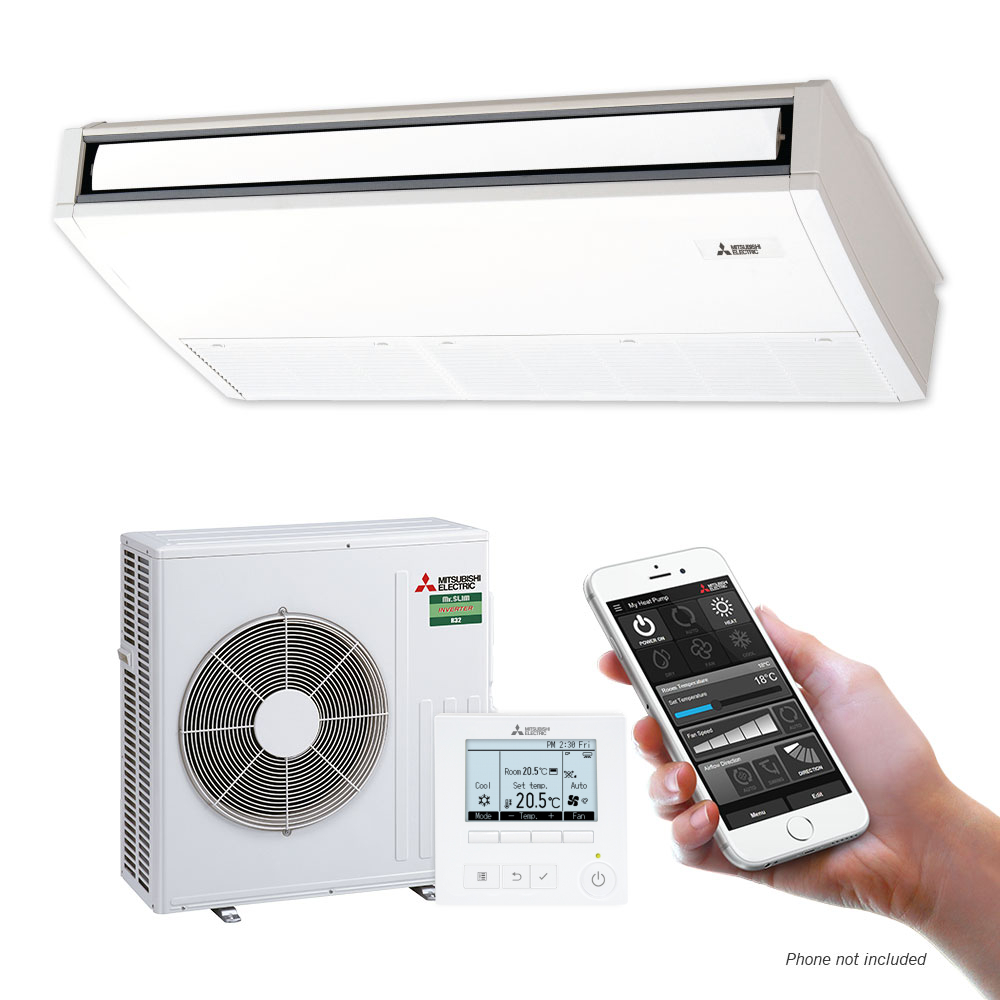

Suspended PCA71 Heat Pump with Wi-Fi

Large Room System // PCA-M71KA-S + MAC-568IF-E

Our Suspended PCA71 standard power heat pump is designed for style and efficiency. With four speed settings and auto air-speed adjustment it is ideal for larger areas. Upgraded with a Wi-Fi Interface, your heating and cooling can be controlled no matter where you are - so you'll always arrive home to total comfort.

Cooling Capacity7.1 kW
Heating Capacity8.0 kW
Select a Size - R32 Refrigerant
Select a Controller
Optional Outdoor Performance

Features

Stylish Design

Sharp, clean lines make this unit blend in more easily with your ceiling, providing low-profile heating or cooling.

Next-Generation R32 Technology

R32 is a refrigerant with just one-third the global warming potential of R410A and has zero ozone depletion potential. R32 offers increased energy efficiency, and is said to be the next generation of refrigerants.

Automatic Air Speed Adjustment

In addition to the conventional 4-speed setting, our suspended units are now equipped with an automatic air-speed adjustment mode. This setting automatically adjusts the air speed to match the room environment. At the start of heating or cooling operation, the airflow is set to high-speed to quickly heat or cool the room. When the room temperature reaches your desired setting, the airflow speed is decreased automatically for stable comfortable heating or cooling operation.

Fresh Air Intake Option

Units are equipped with an opening that enables the induction of fresh outside air.

Wi-Fi Control Interface

Locally developed to suit the busy lifestyles of New Zealanders, award-winning Wi-Fi Control unlocks the door to smarter heating. This innovative technology allows you to control or monitor your heat pump from anywhere via your smartphone, tablet or online account. Wi-Fi Control allows you to control your system remotely, develop operating rules, and set minimum and maximum room temperatures for healthy and comfortable living.

Read more and try a demonstration

High and Low Ceiling Modes

Units are equipped with high and low ceiling operation modes that make it possible to switch the airflow volume to match room height. The ability to choose the optimum airflow volume makes it possible to optimise the breezy sensation felt throughout the room.

Features:

Specifications

PCA-M71KA-S + MAC-568IF-E // Suspended PCA71 Heat Pump with Wi-Fi System

· Function: Cooling/Heating · Type: Single Split, Inverter
Rated
· Capacity - Cooling: 7.1 kW · Capacity - Heating: 8.0 kW
· Capacity - Cooling (min. - max.): 2.8 - 8.1 kW · Capacity - Heating (min. - max.): 2.6 - 10.2 kW
· Power Input - Cooling: 1.98 kW · Power Input - Heating: 2.24 kW
· Star rating - Cooling: NA · Star rating - Heating: NA
· EER / COP: 3.58 / 3.57 · AEER / ACOP: 3.53 / 3.52
· Current - Cooling [In+Outdoor] Rated / Max: 8.70 A · Current - Heating [In+Outdoor] (Rated): 9.80 A
· Current (Max.): 14.80 A
Performance
· Operation Range - Cooling: -5 / +52 degC · Operation Range - Heating: -15 / +24 degC

PCA-M71KA - Ceiling Suspended Indoor Unit

· Function: Cooling/Heating · Type: Single Split, Inverter
Nominal Capacity
· Capacity - Cooling: 7.1 kW · Capacity - Heating: 8.0 kW
· Sound Level - Cooling (Low - Super High, dB(A)): 35 / 37 / 39 / 41 · Sound Level - Heating (Low - Super High, dB(A)): 35 / 37 / 39 / 41
· Air Volume - Cooling (Super High, Litre/sec): 333 · Air Volume - Heating (Super High, Litre/sec): 333
· Refrigerant: R32 · Liquid Pipe Size (OD, mm): 9.52
· Gas Pipe Size (OD, mm): 15.88 · Max. Pipe Length (m): 50
· Max. Pipe Height (m): 30 · Power Supply: 230V / Single Phase / 50 Hz
· Dimensions (WxDxH, mm): 1280 x 680 x 230 · Weight: 32.0 kg

SUZ-M71VAD-A.TH - DC Inverter Outdoor Unit

· Function: Cooling/Heating · Type: Single Split, Standard Inverter
· Operation Range - Cooling: -15 / +52 degC · Operation Range - Heating: -15 / +24 degC
· Sound Level - Cooling (dB(A)): 49 · Sound Level - Heating (dB(A)): 51
· Air Volume - Cooling (Litre/sec): 835 · Air Volume - Heating (Litre/sec): 835
· Power Supply: 230V +/- 10% / Single Phase / 50 Hz · Refrigerant: R32
· Liquid Pipe Size (OD, mm): 9.52 · Gas Pipe Size (OD, mm): 15.88
· Max. Pipe Length (m): 30 · Max. Pipe Height (m): 30
· Dimensions (WxDxH, mm): 840 x 330 x 880 · Weight: 55 kg

·  Rating Conditions (AS / NZS 3823):
   Cooling – Indoor: 27°C DB, 19°C WB. Outdoor: 35°C DB.     Heating – Indoor: 20°C DB, Outdoor: 7°C DB, 6°C WB.

·  Sensible Cooling Conditions, Indoor: 27°C DB, 20°C WB. Outdoor: 35°C DB.

·  Dry function will not work when the room temperature is below 13°C.

·  Colour: Heat pump units shown may not be colour accurate, please ensure you view an actual unit for colour matching.

·  Maximum length is inclusive of height differential. i.e. (20m length/12m high) means the pipe can be 12m high and 8m across for a total length of 20m.

·  Measure of Energy Efficency: A calculated measurement of energy efficiency for both heating and cooling using the ratio of kW input to kW output.
   EER = Energy Efficiency Ratio
   COP = Coefficient of Performance
   AEER# = Annual Energy Efficiency Ratio
   ACOP# = Annual Coefficient of Performance
   #These include standby power in the rating calculation

·  Star Ratings based on the Seasonal Energy Rating standard for New Zealand - cold zone [GEMS 2019]
