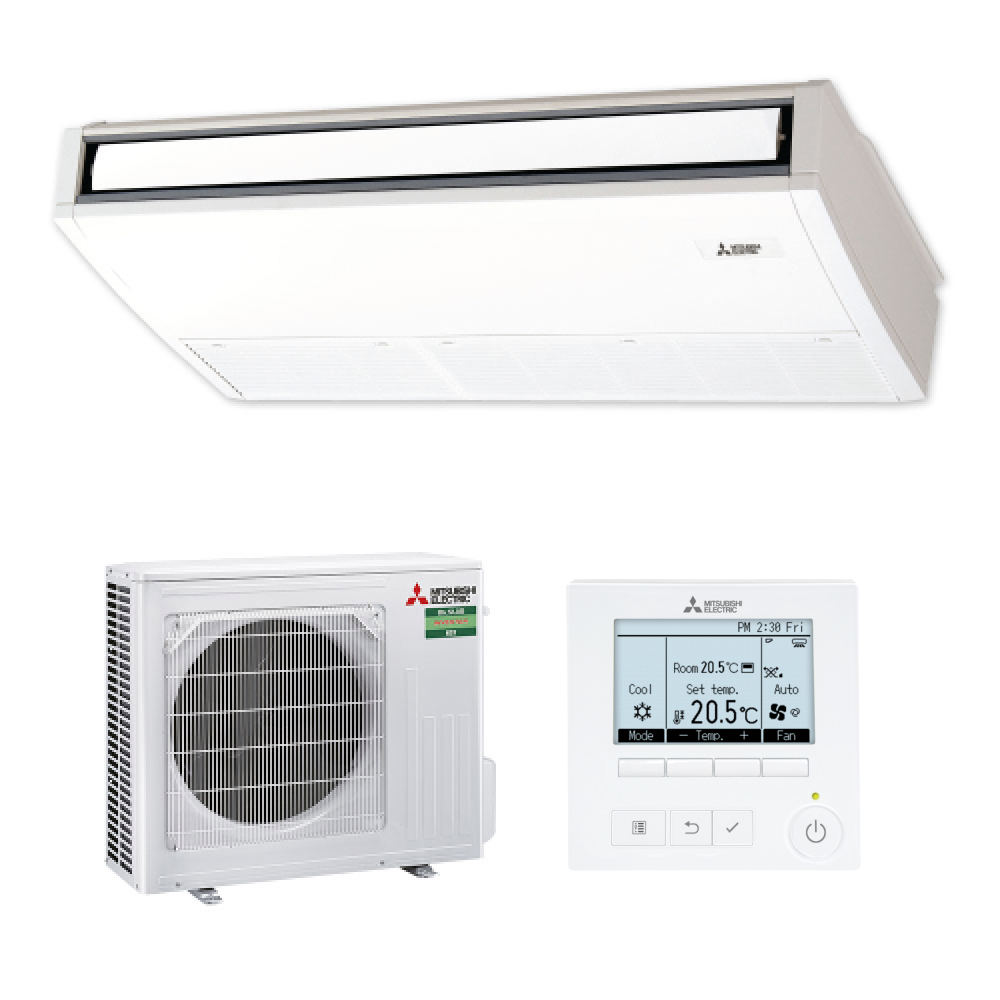

Suspended PCA50 Heat Pump

Medium Room System // PCA-M50KA

Our Suspended PCA50 standard power heat pump is designed for style and efficiency. With four speed settings and auto air-speed adjustment it is ideal for larger areas. Upgraded with a Deluxe PAR wired Controller, with backlit LCD display and user friendly menus. With the PAR Controller you are able to precisely control power consumption and temperature, setting up to eight patterns per day.

Cooling Capacity5.0 kW
Heating Capacity6.0 kW
Select a Size - R32 Refrigerant
Select a Controller

Features

Stylish Design

Sharp, clean lines make this unit blend in more easily with your ceiling, providing low-profile heating or cooling.

Next-Generation R32 Technology

R32 is a refrigerant with just one-third the global warming potential of R410A and has zero ozone depletion potential. R32 offers increased energy efficiency, and is said to be the next generation of refrigerants.

Automatic Air Speed Adjustment

In addition to the conventional 4-speed setting, our suspended units are now equipped with an automatic air-speed adjustment mode. This setting automatically adjusts the air speed to match the room environment. At the start of heating or cooling operation, the airflow is set to high-speed to quickly heat or cool the room. When the room temperature reaches your desired setting, the airflow speed is decreased automatically for stable comfortable heating or cooling operation.

Fresh Air Intake Option

Units are equipped with an opening that enables the induction of fresh outside air.

Deluxe PAR Weekly Controller

This attractive full dot liquid crystal display incorporates a large backlit screen and simple menus for easy operation.
You can set up to 8 temperature and airflow patterns per day for seven days, allowing you to reduce your energy consumption when needed, saving you both time and money. Perfect for the busy home and office or retail store.

Click here to find out more

High and Low Ceiling Modes

Units are equipped with high and low ceiling operation modes that make it possible to switch the airflow volume to match room height. The ability to choose the optimum airflow volume makes it possible to optimise the breezy sensation felt throughout the room.

Features:

Specifications

PCA-M50KA // Suspended PCA50 Heat Pump System

· Function: Cooling/Heating · Type: Single Split, Inverter
Rated
· Capacity - Cooling: 5.0 kW · Capacity - Heating: 6.0 kW
· Capacity - Cooling (min. - max.): 2.3 - 6.0 kW · Capacity - Heating (min. - max.): 1.7 - 7.0 kW
· Power Input - Cooling: 1.28 kW · Power Input - Heating: 1.65 kW
· Star rating - Cooling: NA · Star rating - Heating: NA
· EER / COP: 3.90 / 3.84 · AEER / ACOP: 3.63 / 3.59
· Current - Cooling [In+Outdoor] Rated / Max: 5.80 A · Current - Heating [In+Outdoor] (Rated): 7.30 A
· Current (Max.): 13.50 A
Performance
· Operation Range - Cooling: -15 / +52 degC · Operation Range - Heating: -15 / +24 degC

SUZ-M50VAD-A.TH - DC Inverter Outdoor Unit

· Function: Cooling/Heating · Type: Single Split, Standard Inverter
· Operation Range - Cooling: -15 / +52 degC · Operation Range - Heating: -15 / +24 degC
· Sound Level - Cooling (dB(A)): 48 · Sound Level - Heating (dB(A)): 49
· Air Volume - Cooling (Litre/sec): 763 · Air Volume - Heating (Litre/sec): 728
· Power Supply: 230V +/- 10% / Single Phase / 50 Hz · Refrigerant: R32
· Liquid Pipe Size (OD, mm): 6.35 · Gas Pipe Size (OD, mm): 12.7
· Max. Pipe Length (m): 30 · Max. Pipe Height (m): 30
· Dimensions (WxDxH, mm): 800 x 285 x 714 · Weight: 41 kg

·  Rating Conditions (AS / NZS 3823):
   Cooling – Indoor: 27°C DB, 19°C WB. Outdoor: 35°C DB.     Heating – Indoor: 20°C DB, Outdoor: 7°C DB, 6°C WB.

·  Sensible Cooling Conditions, Indoor: 27°C DB, 20°C WB. Outdoor: 35°C DB.

·  Dry function will not work when the room temperature is below 13°C.

·  Colour: Heat pump units shown may not be colour accurate, please ensure you view an actual unit for colour matching.

·  Maximum length is inclusive of height differential. i.e. (20m length/12m high) means the pipe can be 12m high and 8m across for a total length of 20m.

·  Measure of Energy Efficency: A calculated measurement of energy efficiency for both heating and cooling using the ratio of kW input to kW output.
   EER = Energy Efficiency Ratio
   COP = Coefficient of Performance
   AEER# = Annual Energy Efficiency Ratio
   ACOP# = Annual Coefficient of Performance
   #These include standby power in the rating calculation

·  Star Ratings based on the Seasonal Energy Rating standard for New Zealand - cold zone [GEMS 2019]
