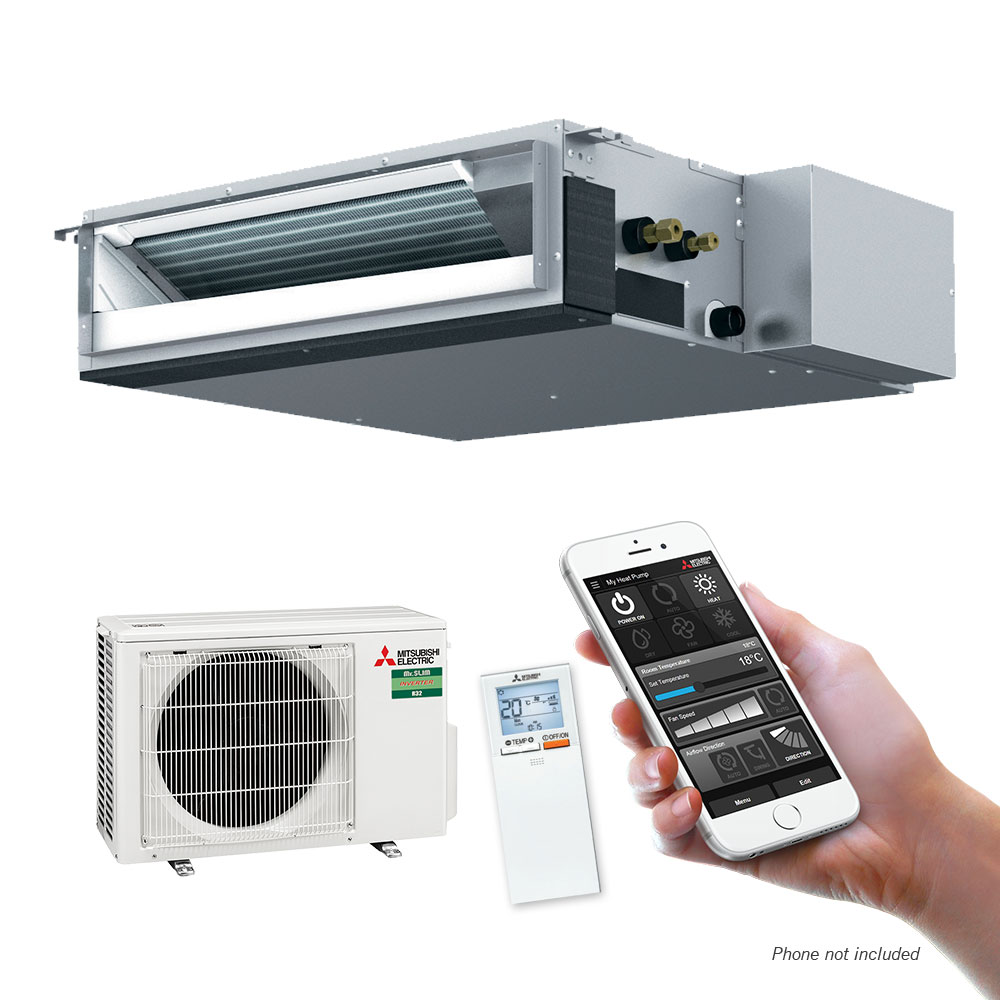

Concealed SEZ-M35 Heat Pump with Wi-Fi

Small Room System // SEZ-M35DA + MAC-588IF-E

Our Concealed SEZ-M35 heat pump unit is conveniently hidden in the ceiling cavity with only the grilles visible. Perfect if you have a bulkhead or lowered ceiling. This unit is ideal if you are looking to discreetly heat a smaller room. Includes PAR wired Controller. The Wi-Fi range comes equipped with a Wi-Fi Control Interface (supplied separately) allows you to control and monitor your heat pump from anywhere via your smartphone, tablet or online account.

Cooling Capacity3.5 kW
Heating Capacity4.0 kW
Select a Size - R32 Refrigerant
Select a Controller

Features

Compact Design

Our ceiling concealed unit is a slim 200mm in height, making it ideal for tight installation spaces.

Includes the Wi-Fi Control Adaptor

Locally developed to suit the busy lifestyles of New Zealanders, award-winning Wi-Fi Control unlocks the door to smarter heating. This innovative technology allows you to control or monitor your heat pump from anywhere via your smartphone, tablet or online account. Wi-Fi Control allows you to control your system remotely, develop operating rules, and set minimum and maximum room temperatures for healthy and comfortable living.

Read more and try a demonstration

Next-Generation R32 Technology

R32 is a refrigerant with just one-third the global warming potential of R410A and has zero ozone depletion potential. R32 offers increased energy efficiency, and is said to be the next generation of refrigerants.

Impressively Quiet

Our ceiling concealed SEZ series offers whisper quiet operation starting at a hushed 23dB. This ensures a calm and comfortable environment. They’re so quiet that you’ll find yourself checking to see if they’re on!

Energy Saving

With low electricity consumption, our ceiling concealed SEZ Series is the key to cost-effective room comfort.

Air Cleaning Filter

This built-in filter removes dust and other particulates, keeping the air clean all the time. Maintenance is as simple as vacuuming.

Deluxe PAR Weekly Controller

This attractive full dot liquid crystal display incorporates a large backlit screen and simple menus for easy operation.
You can set up to 8 temperature and airflow patterns per day for seven days, allowing you to reduce your energy consumption when needed, saving you both time and money. Perfect for the busy home and office or retail store.

Click here to find out more

Optional Plasma Quad Connect for Healthier Air

Designed to integrate with your existing Heat Pump, this high-performance two-stage advanced air filtration module, cleans and minimises dust and other allergens for better indoor air quality, all year round.

Learn more

Features:

Specifications

SEZ-M35DA + MAC-588IF-E // Concealed SEZ-M35 Heat Pump with Wi-Fi System

· Function: Cooling/Heating · Type: Single Split, Inverter
Rated
· Capacity - Cooling: 3.5 kW · Capacity - Heating: 4.0 kW
· Capacity - Cooling (min. - max.): 1.5 - 4.0 kW · Capacity - Heating (min. - max.): 1.3 - 5.0 kW
· Power Input - Cooling: 1.01 kW · Power Input - Heating: 1.11 kW
· Star rating - Cooling: NA · Star rating - Heating: NA
· EER / COP: 3.46 / 3.60 · AEER / ACOP: 3.39 / 3.53
· Current - Cooling [In+Outdoor] (Rated): 4.70 A · Current - Heating [In+Outdoor] (Rated): 5.00 A
Performance
· Operation Range - Cooling: -10 / +52 degC · Operation Range - Heating: -10 / +24 degC

SEZ-M35DA.TH - DC Inverter Ceiling Concealed Indoor Unit

· Function: Cooling/Heating · Type: Single Split, Inverter
Nominal Capacity
· Capacity - Cooling: 3.50 kW · Capacity - Heating: 4.00 kW
· Sound Level - Cooling (Low - Super High, dB(A)): 23 - 28 - 33 · Sound Level - Heating (Low - Super High, dB(A)): 23 - 28 - 33
· Air Volume - Cooling (Super High, Litre/sec): 183 · Air Volume - Heating (Super High, Litre/sec): 183
· Refrigerant: R32 · Liquid Pipe Size (OD, mm): 6.35
· Gas Pipe Size (OD, mm): 9.52 · Max. Pipe Length (m): 20
· Max. Pipe Height (m): 12 · Power Supply: 230V / Single Phase / 50 Hz
· Dimensions (WxDxH, mm): 990 x 700 x 200 · Weight: 21 kg

SUZ-M35VAD-A.TH - DC Inverter Outdoor Unit

· Function: Cooling/Heating · Type: Single Split, Standard Inverter
· Operation Range - Cooling: -10 / +52 degC · Operation Range - Heating: -10 / +24 degC
· Sound Level - Cooling (dB(A)): 48 · Sound Level - Heating (dB(A)): 48
· Air Volume - Cooling (Litre/sec): 572 · Air Volume - Heating (Litre/sec): 545
· Power Supply: 230V +/- 10% / Single Phase / 50 Hz · Refrigerant: R32
· Liquid Pipe Size (OD, mm): 6.35 · Gas Pipe Size (OD, mm): 9.52
· Max. Pipe Length (m): 20 · Max. Pipe Height (m): 12
· Dimensions (WxDxH, mm): 800 x 285 x 550 · Weight: 35 kg

·  Rating Conditions (AS / NZS 3823):
   Cooling – Indoor: 27°C DB, 19°C WB. Outdoor: 35°C DB.     Heating – Indoor: 20°C DB, Outdoor: 7°C DB, 6°C WB.

·  Sensible Cooling Conditions, Indoor: 27°C DB, 20°C WB. Outdoor: 35°C DB.

·  Dry function will not work when the room temperature is below 13°C.

·  Colour: Heat pump units shown may not be colour accurate, please ensure you view an actual unit for colour matching.

·  Maximum length is inclusive of height differential. i.e. (20m length/12m high) means the pipe can be 12m high and 8m across for a total length of 20m.

·  Measure of Energy Efficency: A calculated measurement of energy efficiency for both heating and cooling using the ratio of kW input to kW output.
   EER = Energy Efficiency Ratio
   COP = Coefficient of Performance
   AEER# = Annual Energy Efficiency Ratio
   ACOP# = Annual Coefficient of Performance
   #These include standby power in the rating calculation

·  Star Ratings based on the Seasonal Energy Rating standard for New Zealand - cold zone [GEMS 2019]
