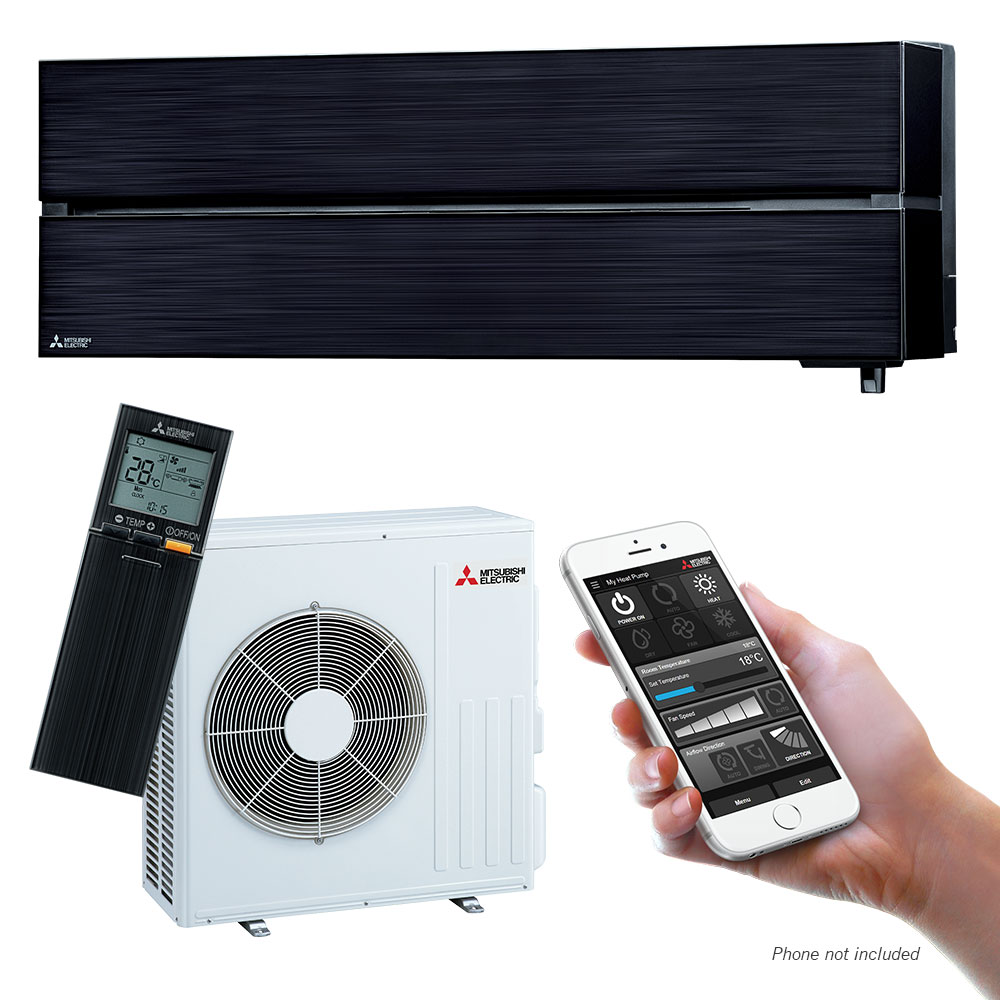

Black Diamond LN60 High Wall Heat Pump

Large Room System // MSZ-LN60VGB

The LN60 Deluxe High Wall sets a new standard in unparalleled design and customised home comfort; with advanced features such as 3D i-See Sensor technology, patented Dual Barrier Coating, Plasma Quad Plus Filtration and Dual Split Vane Technology. Boasting improved energy efficiency with R32 refrigerant and a sleek, premium finish, the LN Deluxe Series truly redefines the heat pump.

Cooling Capacity6.1 kW
Heating Capacity6.8 kW
Select a Size
Select a Colour
Select a Controller

Features

3D i-See Sensor

The unique 3D i-See Sensor continuously analyses the temperature profile of your room, detecting exactly where you and your family are located based on your unique body heat signatures. With this thermal data, it then directs the perfect amount of heating or cooling towards those who need it most.

Dual Barrier Coating

The patented and world’s first Dual Barrier Coating from Mitsubishi Electric prevents dust and dirt from accumulating on the inner surface of the indoor unit; keeping your heat pump clean year-round. Keeping key internal components like the heat exchanger, fan and internal duct clean is important for both home comfort and efficiency. Not only does dust and dirt build-up typically create unpleasant odours, it also forces a heat pump to work harder, which can result in significantly impaired energy efficiency.

Plasma Quad Plus Filtration

The new Plasma Quad Plus Filter effectively removes six types of air pollutants including bacteria, allergens, airborne contaminants, mould, dust and micro particles with up to 99.7% efficiency; for a cleaner, healthier living space.

Dual Split Vane Technology

With the ability to create various airflow patterns, both horizontal and vertical, every person in a room can be comfortable.

R32 Refrigerant

R32 is a refrigerant with just one-third the global warming potential of R410A and has zero ozone depletion potential. R32 offers increased energy efficiency, and is said to be the next generation of refrigerants

Premium Coloured Finish

The Black Diamond LN Series comes in a range of stunning colour options including White Diamond, Red Diamond and Black Diamond, in a premium gloss finish. The matching wireless controller adds a cohesive, stylish touch to your interior design.

Built-in Wi-Fi

For the ultimate in aesthetics and heat pump control no matter where you are, this unit comes equipped with a Wi-Fi Interface inside a hidden pocket in the indoor unit.

Features:

Specifications

MSZ-LN60VGB // Black Diamond LN60 High Wall Heat Pump System

· Function: Cooling/Heating · Type: Single Split, Inverter
Rated
· Capacity - Cooling: 6.1 kW · Capacity - Heating: 6.8 kW
· Capacity - Cooling (min. - max.): 1.4 - 6.9 kW · Capacity - Heating (min. - max.): 1.8 - 9.8 kW
· Power Input - Cooling: 1.73 kW · Power Input - Heating: 1.80 kW
· Star rating - Cooling: 2.5 · Star rating - Heating: 3.0
· EER / COP: 3.53 / 3.78 · AEER / ACOP: 3.52 / 3.77
· Sensible - Cooling: 4.58 kW · Dry Mode (Moisture Removal, Litre/hr): 2.20
· Current - Cooling [In+Outdoor] (Rated): 7.80 A · Current - Heating [In+Outdoor] (Rated): 7.90 A
Performance
· Operation Range - Cooling: -10 / +46 degC · Operation Range - Heating: -15 / +24 degC

MSZ-LN60VG3B-A1 - Wall Mounted Indoor Unit - Black

· Function: Cooling/Heating · Type: Single Split, Inverter
Nominal Capacity
· Capacity - Cooling: 6.1 kW · Capacity - Heating: 6.8 kW
· Sound Level - Cooling (Low - Super High, dB(A)): 29 / 37 / 41 / 45 / 49 · Sound Level - Heating (Low - Super High, dB(A)): 29 / 37 / 41 / 45 / 49
· Air Volume - Cooling (Super High, Litre/sec): 262 · Air Volume - Heating (Super High, Litre/sec): 263
· Refrigerant: R32 · Liquid Pipe Size (OD, mm): 6.35
· Gas Pipe Size (OD, mm): 12.7 · Max. Pipe Length (m): 30
· Max. Pipe Height (m): 15 · Power Supply: 230V / Single Phase / 50 Hz
· Dimensions (WxDxH, mm): 890 x 233 x 307 · Weight: 16 kg

MUZ-LN60VG2-A1 - DC Inverter Outdoor Unit

· Function: Cooling/Heating · Type: Single Split, Standard Inverter
· Operation Range - Cooling: -10 / +46 degC · Operation Range - Heating: -15 / +24 degC
· Sound Level - Cooling (dB(A)): 55(65) · Sound Level - Heating (dB(A)): 55(69)
· Air Volume - Cooling (Litre/sec): 118-262 · Air Volume - Heating (Litre/sec): 110-263
· Power Supply: Single phase, 230 V, 50Hz · Refrigerant: R32
· Liquid Pipe Size (OD, mm): 6.35 · Gas Pipe Size (OD, mm): 12.7
· Max. Pipe Length (m): 30 · Max. Pipe Height (m): 15
· Dimensions (WxDxH, mm): 840 x 330 x 880 · Weight: 55 kg

·  Rating Conditions (AS / NZS 3823):
   Cooling – Indoor: 27°C DB, 19°C WB. Outdoor: 35°C DB.     Heating – Indoor: 20°C DB, Outdoor: 7°C DB, 6°C WB.

·  Sensible Cooling Conditions, Indoor: 27°C DB, 20°C WB. Outdoor: 35°C DB.

·  Dry function will not work when the room temperature is below 13°C.

·  Colour: Heat pump units shown may not be colour accurate, please ensure you view an actual unit for colour matching.

·  Maximum length is inclusive of height differential. i.e. (20m length/12m high) means the pipe can be 12m high and 8m across for a total length of 20m.

·  Measure of Energy Efficency: A calculated measurement of energy efficiency for both heating and cooling using the ratio of kW input to kW output.
   EER = Energy Efficiency Ratio
   COP = Coefficient of Performance
   AEER# = Annual Energy Efficiency Ratio
   ACOP# = Annual Coefficient of Performance
   #These include standby power in the rating calculation

·  Star Ratings based on the Seasonal Energy Rating standard for New Zealand - cold zone [GEMS 2019]

Downloads

Support

Optional

Optional Accessories

PAR-Controller :: Deluxe PAR Controller
Our PAR wired seven day controller with backlit LCD screen allows you to program up to eight separate start/stop patterns per day over a week.
MAC-333IF-E :: Interface Unit
MA, M-NET and Contact Terminal Interface. Has remote on/off, prohibit/permit control and run/error outputs - all outputs require an independent external 12VDC power supply. Used to connect PAR-21 / PAR-31 to; MSZ-GE/FB/EF, MFZ-KA/FB & SLZ-KA~VAL indoor units or a Central / Schedule Controller to each indoor unit connected to a M or S-Series outdoor unit.

Black Diamond LN Brochure (5,829 KB).pdf
(5,829 KB)
*Please note that due to the reflective and multilayered finish of the Black Diamond Series indoor units, the colours shown within this brochure are indicative only. While every effort has been made to display the units as they appear in person, due to variables such as lighting and positioning affecting the appearance, we recommend viewing the Black Diamond Series at your nearest showroom.
Black Diamond LN Series
