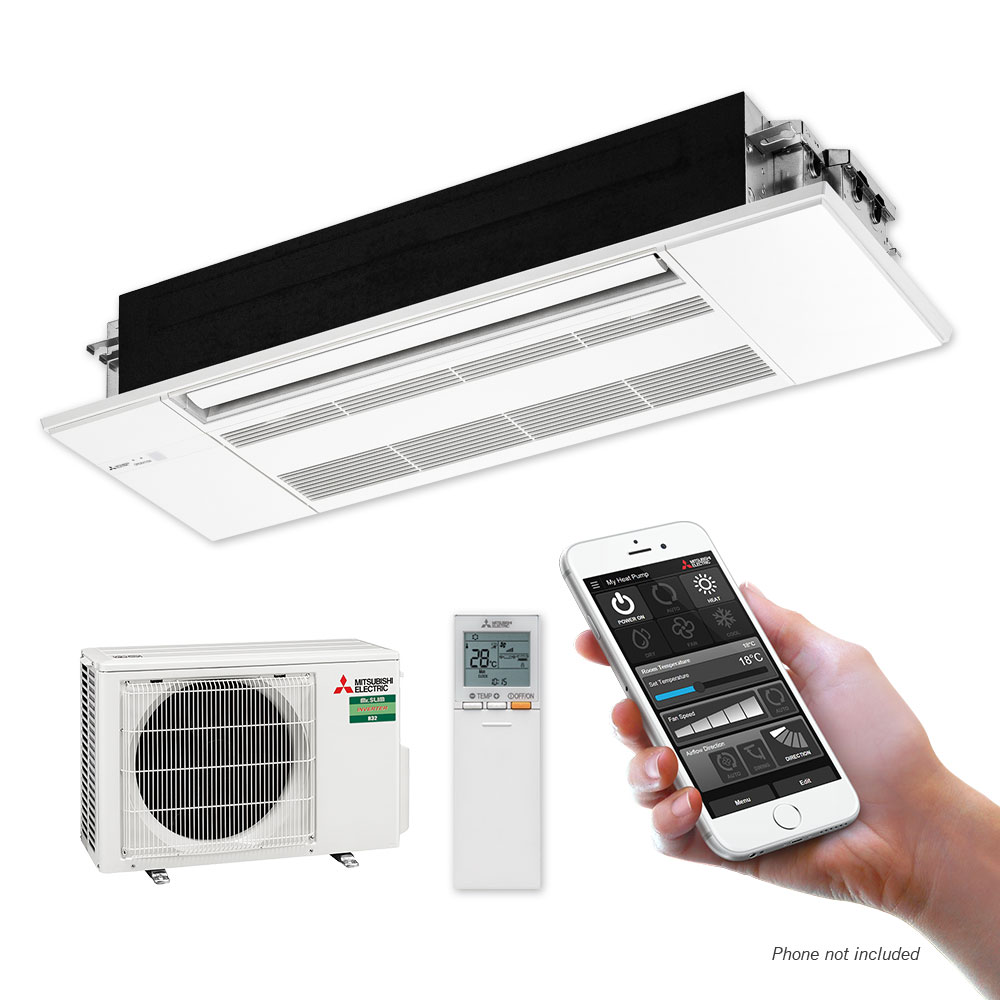

One-Way MLZ-35 Cassette Heat Pump with WI-FI

Small Room System // MLZ-KP35VF-A1 + MAC-588IF-E

The MLZ-35 One-Way Cassette Series offer a compact and streamlined ceiling-mounted solution for unobtrusive comfort. Featuring a new design combined with advanced airflow options, the MLZ Series is ideal for both home and office applications. The Wi-Fi range comes equipped with a Wi-Fi Control Interface (supplied separately), allowing you to control and monitor your heat pump from anywhere via your smartphone, tablet or online account.

Cooling Capacity3.5 kW
Heating Capacity4.1 kW
Select a Size
Select a Controller

Features

Auto Vane Control

Outlet vanes can be moved left and right when in Econo Cool mode, and up and down, using the remote controller; elimating draughts and enhancing room comfort.

One-way Airflow

Ideal for rooms where one-way air distribution is required, and a solution for spaces where lighting fixtures are installed in the centre of a room, one-way airflow provides a comofrtable environment with no draughts.

Includes the Wi-Fi Control Adaptor

Locally developed to suit the busy lifestyles of New Zealanders, award-winning Wi-Fi Control unlocks the door to smarter heating. This innovative technology allows you to control or monitor your heat pump from anywhere via your smartphone, tablet or online account. Wi-Fi Control allows you to control your system remotely, develop operating rules, and set minimum and maximum room temperatures for healthy and comfortable living.

Read more and try a demonstration

Compact Design

Our ceiling cassettes are New Zealand’s favourite. With the lightweight unit sitting in your ceiling space, only the grille is visible providing easy, discreet installation into your home or office.

Horizontal Airflow

Advanced horizontal airflow eliminates uncomfortable draughts and improves airflow control. Six different discharge angles provide a lateral airflow advantage; ensuring air is evenly distributed across your entire room.

Quiet Operation

Starting from a hushed 26dBA, our MLZ Cassette Series is the perfect solution for quiet comfort; allowing you to feel the warmth, not hear it.

Air Purifying Filter

This built-in filter removes dust and other particles, keeping the air clean all the time. Maintenance is as simple as vacuuming.

Specifications

MLZ-KP35VF-A1 + MAC-588IF-E // One-Way MLZ-35 Cassette Heat Pump with WI-FI System

· Function: Cooling/Heating · Type: Single Split, Inverter
Rated
· Capacity - Cooling: 3.5 kW · Capacity - Heating: 4.1 kW
· Capacity - Cooling (min. - max.): 1.5 - 4.1 kW · Capacity - Heating (min. - max.): 1.3 - 4.7 kW
· Power Input - Cooling: 0.90 kW · Power Input - Heating: 1.13 kW
· Star rating - Cooling: 3 · Star rating - Heating: 2.5
· EER / COP: 3.88 / 3.62 · AEER / ACOP: 3.80 / 3.56
· Current - Cooling [In+Outdoor] (Rated): 4.20 A · Current - Heating [In+Outdoor] (Rated): 5.00 A
Performance
· Operation Range - Cooling: -10 / +52 degC · Operation Range - Heating: -10 / +24 degC

MLZ-KP35VF-A1 - One-way MLZ-KP35 Cassette

· Function: Cooling/Heating · Type: Single Split, Inverter
Nominal Capacity
· Capacity - Cooling: 3.5 kW · Capacity - Heating: 4.1 kW
· Sound Level - Cooling (Low - Super High, dB(A)): 27 / 32 / 36 / 40 · Sound Level - Heating (Low - Super High, dB(A)): 26 / 32 / 36 / 40
· Air Volume - Cooling (Super High, Litre/sec): 157 · Air Volume - Heating (Super High, Litre/sec): 165
· Refrigerant: R32 · Liquid Pipe Size (OD, mm): 6.35
· Gas Pipe Size (OD, mm): 9.52 · Max. Pipe Length (m): 20
· Max. Pipe Height (m): 12 · Power Supply: 230V / Single Phase / 50 Hz
· Dimensions (WxDxH, mm): 1102 x 360 x 185 · Weight: 15.5 kg
· Panel Dimensions (WxDxH, mm): 1200 x 424 x 10 · Panel Weight: 3.5kg

SUZ-M35VAD-A.TH - DC Inverter Outdoor Unit

· Function: Cooling/Heating · Type: Single Split, Standard Inverter
· Operation Range - Cooling: -10 / +52 degC · Operation Range - Heating: -10 / +24 degC
· Sound Level - Cooling (dB(A)): 48 · Sound Level - Heating (dB(A)): 48
· Air Volume - Cooling (Litre/sec): 572 · Air Volume - Heating (Litre/sec): 545
· Power Supply: 230V +/- 10% / Single Phase / 50 Hz · Refrigerant: R32
· Liquid Pipe Size (OD, mm): 6.35 · Gas Pipe Size (OD, mm): 9.52
· Max. Pipe Length (m): 20 · Max. Pipe Height (m): 12
· Dimensions (WxDxH, mm): 800 x 285 x 550 · Weight: 35 kg

·  Rating Conditions (AS / NZS 3823):
   Cooling – Indoor: 27°C DB, 19°C WB. Outdoor: 35°C DB.     Heating – Indoor: 20°C DB, Outdoor: 7°C DB, 6°C WB.

·  Sensible Cooling Conditions, Indoor: 27°C DB, 20°C WB. Outdoor: 35°C DB.

·  Dry function will not work when the room temperature is below 13°C.

·  Colour: Heat pump units shown may not be colour accurate, please ensure you view an actual unit for colour matching.

·  Maximum length is inclusive of height differential. i.e. (20m length/12m high) means the pipe can be 12m high and 8m across for a total length of 20m.

·  Measure of Energy Efficency: A calculated measurement of energy efficiency for both heating and cooling using the ratio of kW input to kW output.
   EER = Energy Efficiency Ratio
   COP = Coefficient of Performance
   AEER# = Annual Energy Efficiency Ratio
   ACOP# = Annual Coefficient of Performance
   #These include standby power in the rating calculation

·  Star Ratings based on the Seasonal Energy Rating standard for New Zealand - cold zone [GEMS 2019]
