Mitsubishi Electric Wi-Fi Heat Pump Control

Never return to a cold home again.

With Mitsubishi Electric Wi-Fi Control you can pre-heat or cool a room no matter where you are. On the way home, running late, coming home early, or even when you're in a different country, with Wi-Fi Control you'll always arrive home to total comfort regardless of what New Zealand's unpredictable weather is doing outside!

Wi-Fi Heat Pump Control requires a Mitsubishi Electric Wi-Fi Interface (optional upgrade), compatible WPA2-AES capable router with 2.4GHz band enabled, (WPS enabled for MAC-559IF-E / MAC-558IF-E), and active Internet connection. For a list of compatible heat pump models and for full system requirements click here.

Book a free consultation Your local heat pump expert will be in contact within 2 business days about the best solution.

Try the demonstration mode See what the Wi-Fi Control can do for you.

Features
Wi-Fi Product
Support
Requirements
Download App
Web Version

Features

Smart Customised Control and Monitoring

Award-winning, innovative Mitsubishi Electric Wi-Fi Control opens the door to superior customisation and smart control, a first for high wall and floor console heat pumps in New Zealand. Developed by New Zealanders for New Zealanders, Wi-Fi Heat Pump Control gives you the freedom to tailor your heat pump system to suit your lifestyle where ever you are.

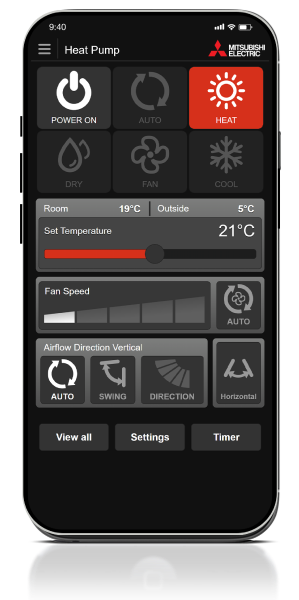

The Wi-Fi Heat Pump Control allows users to:

Turn Heat Pumps On/Off

Ensures superior control over heat pump systems by allowing you to turn your heat pump on/off.

Change Temperature

Displays actual room temperature information allowing you to adjust your heat pump settings to suit the conditions.

Change Modes

Choose from the five operating modes available: auto, heat, dry, fan, and cool. This feature allows you to customise your system to meet your needs.

Change Fan Speeds

Specify a fan speed between one and five or allow the system to automatically adjust to the requirements of the area.

Change Airflow Direction

Vane positions provide directional control of airflow from the indoor unit. Choose auto, swing, or set a specific direction to target key areas in the room.

Develop Operating Rules

Programme your system to automatically turn on/off at specific times, change settings, and develop temperature rules to ensure superior comfort day after day.

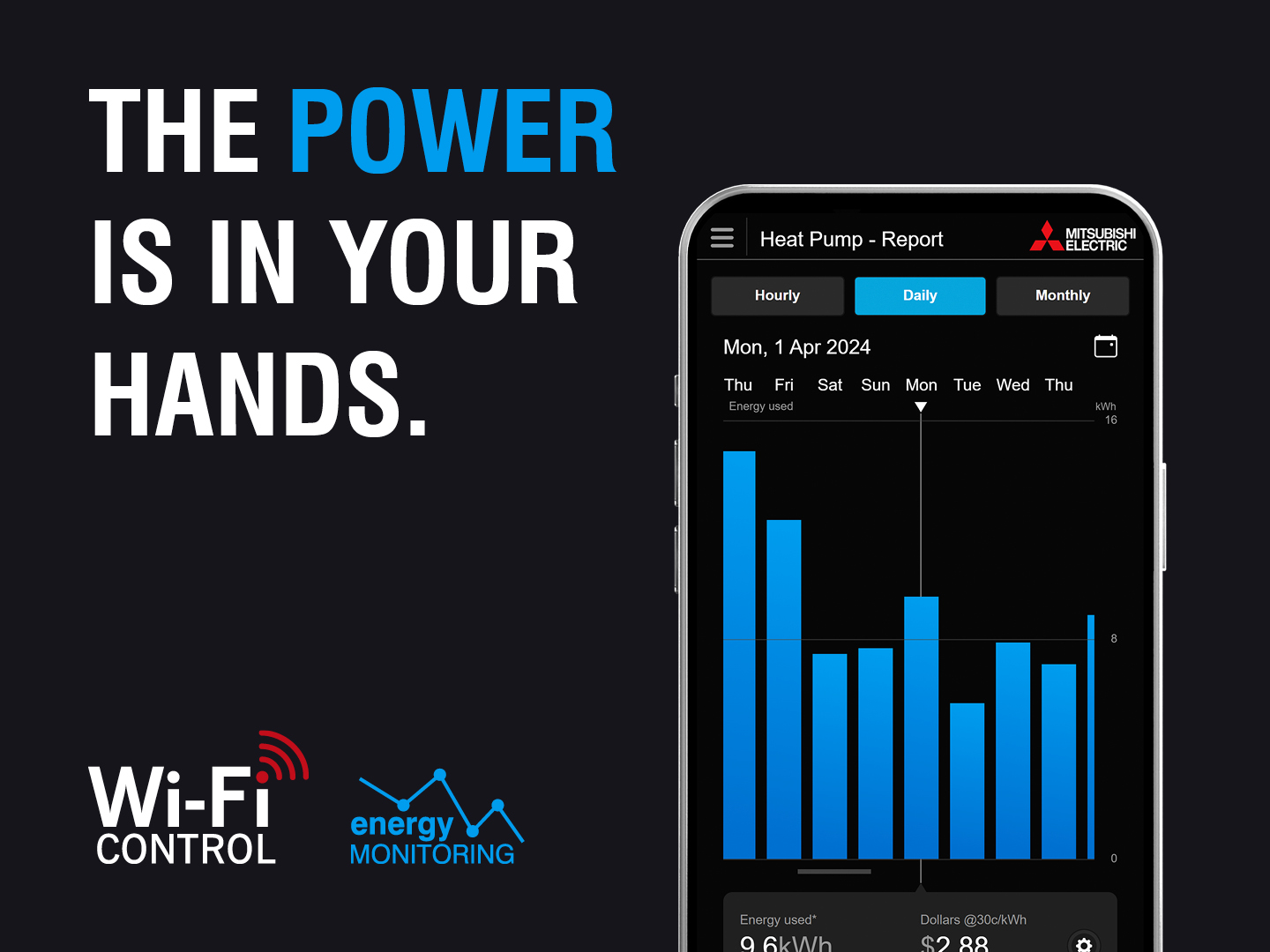

Smart Monitoring for Efficient Heating and Cooling All Year Round

Mitsubishi Electric Wi-Fi Heat Pump Energy Monitoring truly puts the power in your hands and gives you and your family the visibility to make more energy efficient choices when heating and cooling your home. Now, you can monitor the indicative energy use of a compatible Mitsubishi Electric Heat Pump^* connected with built-in or optional Wi-Fi Control, using the Mitsubishi Electric App.

Explore our new Energy Monitoring feature in its beta stage.

Starting with 'Enhanced Energy View' units, data will be tested and analysed to identify and correct any issues. Other units, referred to as 'Indicative Energy View', will be phased in as their accuracy is analysed.

^*Learn more about Energy Monitoring

Now Voice Control Compatible

Whether as an optional upgrade or built-in, Mitsubishi Electric Wi‑Fi Control is now Amazon Alexa and Google Home enabled.

Take your comfort to the next level and enjoy hands-free heat pump control.

Cooking dinner or playing with the kids? Now you can control your heat pump without the need to lift a finger, allowing you to focus on the more important things.

Learn more about voice control

* For voice control you will need a Smart Speaker/Display/Assistant compatible with Amazon Alexa or Google Home.

Not Just When You're Away

Mitsubishi Electric Wi-Fi Control offers more than being able to simply preheat or precool rooms before you arrive home. Wi-Fi Control opens up a new world of truly personalised comfort. Effectively replacing your traditional heat pump remote, Wi-Fi Control gives you the freedom to manage your home environment regardless of where you are.

A Warm Wake-up on Frosty Mornings

Wi-Fi Control is also great for pre-heating your living room before you have to get up in the morning. It will make those early frosty morning starts just that bit easier to face.

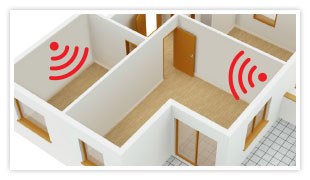

Intelligent Central Control
for Multiple Rooms.

Mitsubishi Electric Wi-Fi Control is not limited to only managing one heat pump at a time. It truly is an intelligent multi tasker. With the purchase of additional interfaces, multiple indoor units can now be seamlessly monitored and controlled. Simple, yet effective centralised control at your fingertips.

Much More Than a 7 Day Controller

Advanced Temperature Management

Because Wi-Fi Control reflects real time room temperature any time, the unique rule setting functionality allows you to customise a minimum and maximum temperature range. So it maintains the perfect temperature, for total comfort all night long.

This makes Wi-Fi Control ideal for families with children. You no longer need to physically walk down to each individual bedroom to check the temperature and turn a heat pump on or off using the hand held remotes, potentially interrupting the sleep of children. Simply apply a min/max temperature rule and let Wi-Fi Control do the rest.

Try Wi-Fi Control now

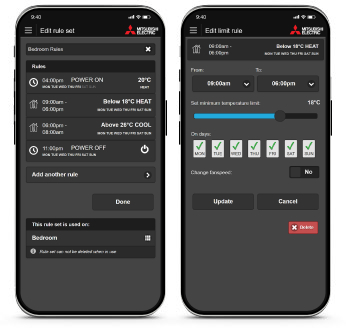

1. Either choose to edit an existing rule or create a new one.
2. Customise to make your heat pump work as you want it to.

Room Temperature Limits

Minimum Room Temperature

The minimum room temperature feature enables your family to enjoy a happy and healthy home. Using advanced technology, the heat pump senses when the room temperature drops below the set minimum temperature and automatically turns on to ensure the minimum temperature is maintained. Ideal for children’s bedrooms, you can rest assured your family will stay warm this winter.

Maximum Room Temperature

The maximum room temperature feature enables you to comfortably enjoy the summer heat. Using advanced technology, your heat pump will automatically turn on when it reaches the set maximum temperature, cooling the air and allowing you to enjoy the warm seasons in ultimate comfort.

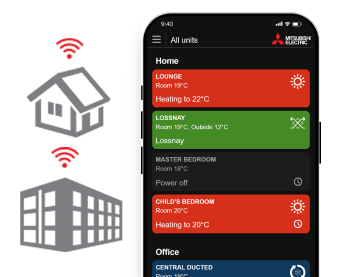

Multiple Units, One App

Mitsubishi Electric Wi-Fi Control gives you the ability to control the heating and cooling needs of multiple units not just in the same home or building, but across a number of different locations. Your own home, a holiday home and the office – it can all be controlled and customised through one app. Furthermore, you can now group and team control multiple units all at once for consistent comfort.

Be Smart, Be Efficient

Forgot to turn off your heat pump? Heat pumps mistakenly left running can quickly be identified at a glance and simply turned off, no matter where you are, saving you from nasty surprises on your power bill!

Not Just Residential, Commercial Too

Mitsubishi Electric Wi-Fi Control has been successfully integrated in numerous commercial buildings including offices, motels, and hotels. The ability to provide seamless real time centralised heat pump control as well as unlocking the potential to more energy efficient operation are key drivers for building managers to embrace this new technology.

Award Winning Across the Range

Awarded the Canstar Innovation Award 2014, Mitsubishi Electric Wi-Fi Control has been recognised as a game changing technology that has the potential to significantly change people's lives. Wi-Fi Control is compatible with all Mitsubishi Electric domestic High Wall, Floor Console and Ducted Systems.

Developed in New Zealand,
For New Zealand

Mitsubishi Electric Wi-Fi Control is designed and engineered right here in New Zealand, With a locally-based and dedicated support team, new features and functionalities are continuously in development and added to the Wi-Fi Control App, based on what New Zealanders really want. Support when you need it is only a phone call away!

Find out more

Wi-Fi Product

Support

Requirements

Wi-Fi Control minimum requirements for operation.

Compatible WPA2-AES capable router with 2.4GHz band enabled. Wireless network coverage including the heat pump installation location. Full list
(MAC-559IF-E / MAC-558IF-E also requires router to be WPS enabled.)
A PC/Tablet/Smartphone that is iOS/Android/Windows compatible Full list
A compatible Mitsubishi Electric Wi-Fi Interface (MAC-588IF-E / MAC-578IF-E / MAC-568IF-E / MAC-559IF-E / MAC-558IF-E) More info
A compatible Mitsubishi Electric Heat Pump Full list
Energy Monitoring Full list

1. Compatible Router

MAC-588IF-E / MAC-578IF-E / MAC-568IF-E:

You will need a compatible WPA2-AES capable router with 2.4GHz band enabled.

MAC-559IF-E / MAC-558IF-E:

You will need a compatible WPA2-AES capable router with both WPS and 2.4GHz band enabled to use the Wi-Fi Control. Most WPS capable routers will be compatible with the Wi-Fi Interface. Every router has its own way of enabling WPS, and some routers have it disabled by default. Due to the large number of routers available, knowing how to activate WPS on your router is not something we or our installers are able to assist with, but is generally easily available in your router instruction manual. If your router is not compatible, it is possible to resolve this by plugging in an additional compatible router to your existing router.

Take note

For instruction about how to enable WPS on your wireless router please refer to the router’s user manual as this process may differ for each router.
Be careful when pressing the WPS button because if you hold the WPS button for a long time, on some wireless routers it will trigger a reset.

WPA2-AES routers we have tested

Apple - A1409
Asus - RT-N16
Asus - RT-N66U
Edimax - BR-6428nS
Edimax - AR-7267WnA
Huawei - HG630b
Micronet - SP916NE
SMC - SMC7904WBRA-N2
TP-LINK - TD-W8960N
Vodafone - SHG1500 (WPS is enabled from menu)
Technicolor brand routers (May not be compatible with earlier versions of the Wi-Fi Interface)

Non-compatible

ASUS RT-AC88U

Note: Not all routers are Wi-Fi alliance compliant.

2. Compatible Devices and Browsers

The Wi-Fi Heat Pump Control application can only be downloaded from the New Zealand and Australian Apple App Store or Google Play store. Just search for “Mitsubishi Wi-Fi Control”.

Mobile Operating Systems (App Version)

Android versions 7.0+
Apple iOS 11.0+

Compatible Internet Browsers (Web Version only)

The latest version of Chrome, Edge, Firefox or Safari

All Devices and Browsers

Must have Javascript, Cookies and Local Storage enabled.

Please Note:
This is not definitive list of all compatible devices, other similar devices which use supported Operating Systems or Internet Browsers should also work either via dedicated Apps or via Web Browser / Web Client options.
Please note that user experience may vary slightly depending on hardware and software combination.

3. Compatible Wi-Fi Interface

To use the Wi-Fi Control Service a compatible Mitsubishi Electric Wi-Fi Interface (MAC-588IF-E / MAC-578IF-E / MAC-568IF-E / MAC-559IF-E / MAC-558IF-E) is required to be installed into each of the compatible Mitsubishi Electric Heat Pump indoor models.

4. Compatible Systems

The following Mitsubishi Electric models can be connected to the Wi-Fi Control Service via a compatible Wi-Fi Interface (MAC-588IF-E / MAC-578IF-E / MAC-568IF-E / MAC-559IF-E / MAC-558IF-E).

Lossnay ventilation models:

VL-250/350/500 Vertical
LGH-15/25/35/35/50/65/80/100/150/200RVX-E-1
LGH-15/25/35/35/50/65/80/100/160/200RVX3-E
LGH-50/80/100RVS-E

Heat pump indoor models:

High Walls

MSZ-AP15/20VGD
MSZ-AP25/35/42/50/60/71/80VGD(2)
MSZ-AP25/35/42/50/60/71/80VGKD(2) has Wi-Fi built in
MSZ-EF25/35/42/50VGK(B/S/W) has Wi-Fi built in
MSZ-LN25/35/50/60VG(2/3)(R/V/B) has Wi-Fi built in
MSZ-AS90VGD-A1
PKA-M71/100KAL
MSZ-GS25/35/42/50/60/71/80VGD
MSZ-LN25/35/50/60VG(R/V/B)
MSZ-EF22/25/35/42/50VE(2)(B/S/W)
MSZ-GL22/25/35/42/50/60/71/80VGD
MSZ-GE22/25/35/42/50VAD2
MSZ-GE22/25/33/35/42/50/60/71/80VAD
MSZ-GE22/25/33/35/42/50/60/71/80VA*
MSZ-FH25/35/50VE(HZ)
MSZ-FB35/50VA(H)
PKA-RP71/100KAL

Floor Consoles

MFZ-KW25/35/42/50/60VG(HZ)
MFXZ-KW25/35/50VG
MFZ-KJ25/35/50/60VE(HZ)
MFZ-KA25/35/50VA
MFZ-FB50VAH

Ducted Systems and Zone Controller

PEAD-M50/60/71/100/125/140JAA
PEA-M100/125/140GAA
PEA-M100/125/140/160HAA
PEA-M180/200/250LAA
PEAD-RP71/100/125/140JAA
PEA-RP71/100/125/140EAQ
PEA-RP100/125/140GAA
PEA-RP170/200WJA
PEA-RP250WHA
PAC-ZC40/80

Concealed Systems

SEZ-M35/50/60/71VAD
SEZ-KD35/50/60/71VAQ

Ceiling Cassettes

MLZ-KP25/35/50VF
SLZ-M25/35/50/60FA
PLA-M71/100/125/140EA(2)
SLZ-KF25/35/50/60VA3
PLA-RP60/71/100/125/140BA

Ceiling Suspended

PCA-M50/60/71/100/125/140KA(2)
PCA-RP50/60/71/100/125/140KAQ

* Note: When a Wi-Fi Interface is retrofitted to older indoor models a set of safe defaults may be used. Which are minimum and maximum temperatures (cooling: 19-30 / heating: 17-28 / auto: 19-28)

5. Energy Monitoring

Not all connected Wi-Fi Interface's or Heat Pumps provide Energy Monitoring, the below have been tested.

The Energy Monitoring feature is in its beta stage. Starting with 'Enhanced Energy View' units, data will be tested and analysed to identify and correct any issues. Other units, referred to as 'Indicative Energy View', will be phased in as their accuracy is analysed.

Compatible Single Split Heat Pumps* connected to a compatible Wi-Fi Interface

MSZ-GS25/35/42/50/60VFD
MSZ-GS71/80VFD-A2/3^*1
MSZ-AP20VGD
MSZ-AP25/35/42/50/60/71/80VGD(2)
MSZ-AP25/35/42/50/60/71/80VGKD(2) has Wi-Fi built in
MSZ-AS90VGD
MSZ-EF25/35/42/50VGK(D)(B/S/W) has Wi-Fi built in
MSZ-LN25/35/50/60VG(2/3)(R/V/B) has Wi-Fi built in

* Note: Single Split Heat Pumps refers to a system consisting of 1x indoor and 1x outdoor unit only.
^*1 Not compatible with MSZ-GS71/80VFD-A1 High Walls
