Hybrid: PEFY-WP VMS1-E

Low static bulkhead with ultra low profile height of 200 mm allows for installation in tight spaces, such as ceiling cavities or drop-ceilings.

Models

PEFY-WP10VMS1-E

1.2kW / 1.4kW

PEFY-WP15VMS1-E

1.7kW / 1.9kW

PEFY-WP20VMS1-E

2.2kW / 2.5kW

PEFY-WP25VMS1-E

2.8kW / 3.2kW

PEFY-WP32VMS1-E

3.6kW / 4.0kW

PEFY-WP40VMS1-E

4.5kW / 5.0kW

PEFY-WP50VMS1-E

5.6kW / 6.3kW

Note: Above capacity ratings are all nominal rated.

Features

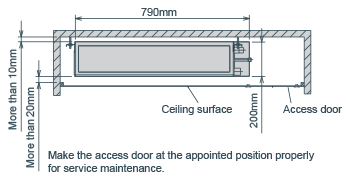

Ultra low profile height of 200 mm allows for installation in tight spaces

Can be installed easily in tight spaces, such as ceiling cavities or drop-ceilings.

Selectable low static pressure

The unit is suitable for a variety of applications through the availability of four static pressure settings (5, 15, 35, 50 Pa)

Changeable air flow rate

Low, middle and high fan speed settings deliver precise comfort.

Filter is attached as standard

Washable PP honeycomb fabric filter is supplied as standard.

Exclusively to HVRF Hybrid Systems

Hybrid 2 pipe heat recovery

The Hybrid VRF is a world first simultaneous heating and cooling 2-pipe system that uses refrigerant between the outdoor unit and the HBC (Hybrid BC controller), and water between the HBC and the indoor units. HBC is the most unique part in this system and allows heat exchange between refrigerant and water.

Learn more about Hybrid heat recovery
