11.2kW 200L Ecodan Split Cylinder System

PUHZ-SHW112VAA-C200

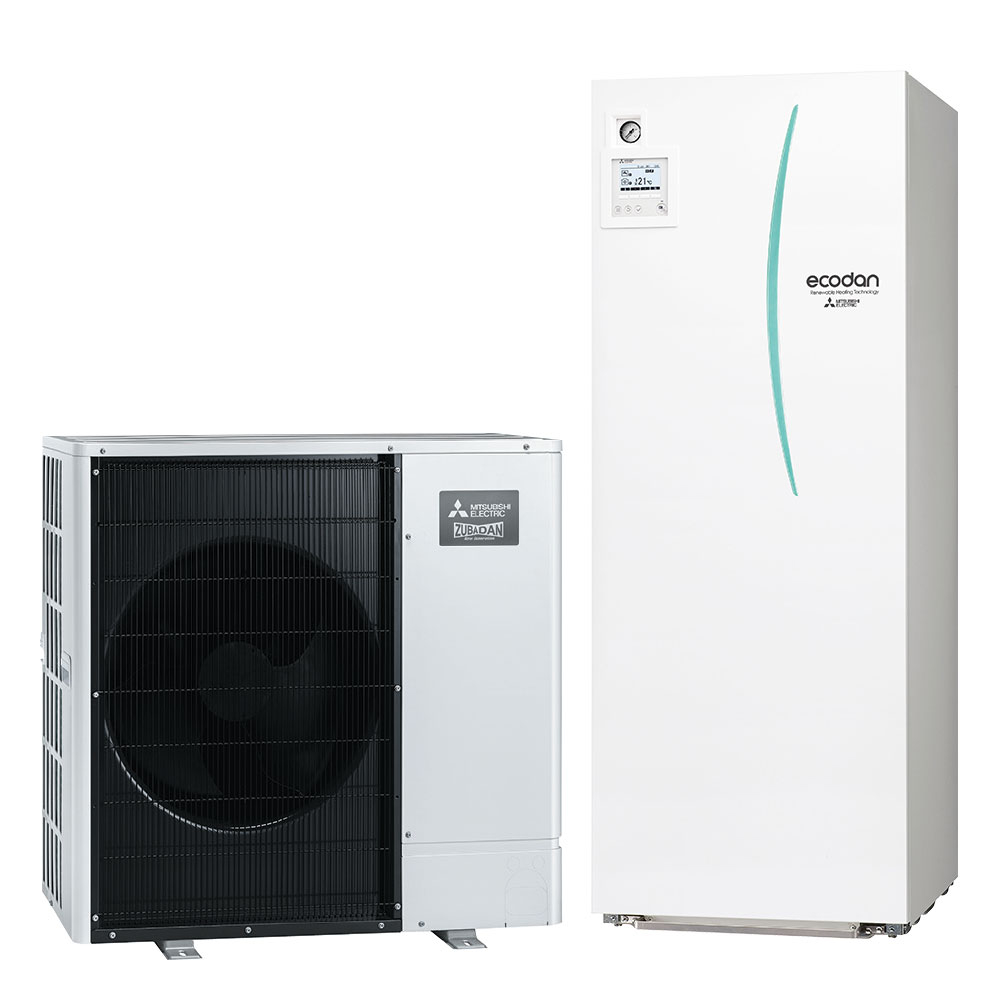

The 200L cylinder offers a highly adaptable heating solution for retrofit or new builds. Designed specifically by Mitsubishi Electric to integrate with the Ecodan Split Air Source Hot Water Heat Pump Range, the cylinder provides high performance and fast heat-up times using intelligent control, the latest Plate Heat Exchanger Technology and the Zubadan Flash Injection Circuit. This system comprises of the 11.2kW PUHZ-SHW112VAA-BS Zubadan Outdoor Split Unit, the ERST20C-VM2CR2 200L Cylinder and FTC5 Controller. With Zubadan Technology, the rated heating capacity is maintained even in outdoor temperatures as low as -15°C, guaranteeing total home comfort when you need it most.

Heating Capacity11.2 kW
Cylinder200 Litre
Select with a 200L Cylinder - R410A
Select with a 300L Cylinder - R410A

Features

Key Features

  • Split unit allowing water connections to be made internally
  • No need for gas supply, flues or ventilation
  • Single phase power supply with a low starting current
  • Low maintenance and quiet operation
  • Operates with outside temperatures as low as -25ºC with Zubadan
  • 2-Zone Energy Efficient Space Heating Control
  • Energy monitoring as standard
Domestic Applications
Domestic Applications
  • Heating and hot water
  • The vast majority of NZ homes
Commercial Applications
  • Small retail outlets
  • Health clinics
  • Public sector and commercial buildings

Zubadan Inverter Technology

New generation Zubadan Inverter Technology provides powerful heating in cold regions where heat pump performance can diminish. With Zubadan, rated heating capacity is maintained even in outdoor temperatures as low as -15°C, with guaranteed heating operation at -25°C. Zubadan guarantees a warm, comfortable home when you need it most. Furthermore, Zubadan can provide even faster tank heat-up times in low ambient temperatures.

FTC5 Controller – With Energy Monitoring

The Mitsubishi Electric Fifth Generation Controller (FTC5) includes intelligent room temperature control as standard. This together with advanced weather compensation ensures the system delivers efficient, comfortable heating regardless of the season. FTC5 now also includes energy monitoring, showing consumed and produced energy.

2-Zone Control Allows you to Simultaneously Control Two Different Temperature Zones

Using Ecodan, it is possible to control two different flow temperatures, thereby managing two different heating load requirements. The system can adjust and maintain two flow temperatures when different temperatures are required for different rooms; for example, controlling a flow temperature of 40°C for the bedroom radiators and another flow temperature of 30°C for the living room underfloor heating.

Specifications

ERST20C-VM2C - FTC5 Packaged Cylinder for Reversible Split Units

Type: FTC5 Packaged Cylinder for Split Units
Operating Ambient Temperature: 0 ~ +35°C (RH<80%)
Sound Pressure Level At 1m (dBA): 28
WATER DATA
Liquid / Gas Pipe (mm): 9.52 / 15.88
Max Flow Rate (l/min): 27.7
Primary Pump: Grundfos UPM2K 15 - 75 130
Outdoor Unit Liquid / Gas Connection [mm]: 9.52 / 15.88
Sanitary Hot Water Pump: Grundfos UPSO 15 - 60 130 CIL2
Connection Size (mm) Heating / DHW: 28 / 22
Nominal Hot Water Volume (Litres): 200
Primary Expansion Vessel (Litres): 12
Charge Pressure (MPa (Bar)): 0.1 (1)
WATER SAFTEY DEVICES - Water Circuit
Control Thermistor (°C): 1 - 80
Pressure Relief Valve (MPa (Bar)): 0.3 (3)
Flow Sensor (Minimum Flow 5L/min): Supplied
WATER SAFTEY DEVICES - DHW Cylinder
Control Thermistor (°C): 40 - 70
Temp and Pressure Relief Valve (°C / MPa (Bar)): 90 / 1.0 (10)
ELECTRICAL DATA - Control Board (Optionally Powered by Outdoor Unit)
Power Supply: 230-240V / Single Phase / 50 Hz
Breaker (A): 10
ELECTRICAL DATA - Booster Heat
Power Supply: 230-240V / Single Phase / 50 Hz
Capacity (kW): 2
Maximum Current (A): 9
Breaker (A): 16
GENERAL
Dimensions (WxDxH, mm): 595 x 680 x 1600
Weight (Empty / Full) (kg): 110 / 320

PUHZ-SHW112VAA-BS - 11.2kW Ecodan Split Air Source Hot Water Heat Pump

Function: Hot Water Heating
Type: Split Air Source Heat Pump
Refrigerant Type: R410A
HEATING (A7/W35)*¹
Capacity [kW]: 11.2
Power Input [kW]: 2.51
COP: 4.46
HEATING (A2/W35)*²
Capacity [kW]: 11.2
Power Input [kW]: 3.48
COP: 3.22
COOLING (A35/W7)*3
Capacity [kW]: 10.00
Power Input [kW]: 3.53
EER: 2.83
COOLING (A35/W18)*4
Capacity [kW]: 10.00
Power Input [kW]: 2.11
EER: 4.74
OPERATING RANGE
Heating Operation Ambient Temperature [°C DB]: -28 ~ +21
Cooling Operation Ambient Temperature [°C DB]: +10 ~ +46
DHW Operation Ambient Temperature [°C DB]: -28 ~ +35
OPERATING CHARACTERISTICS
Sound Pressure Level at 1m [dBA]*¹: 47
Flow Rate [L/min]: 14.4 - 32.1
ELECTRICAL DATA
Power Supply: 230V / Single Phase / 50 Hz
Maximum Current / Fuse Rating [A]: 28.0 / 32
GENERAL
Unit Connections (Liquid / Gas) [mm]: 9.52 (3/8) / 15.88 (5/8) flared connections
Min Pipe Length [m]: 2
Max Pipe Length [m]: 75
Max Height Difference [m]: 30
Dimensions (WxDxH) [mm]: 1050 x 480 x 1020
Weight [kg]: 116
Notes

*1 Under normal heating conditions at outdoor temp: 7°CDB / 6°CDB, outlet water temp 35°C, inlet water temp 30°C as tested to BS EN14511.
*2 Under normal heating conditions at outdoor temp: 2°CDB / 1°CDB, outlet water temp 35°C, inlet water temp 30°C as t
