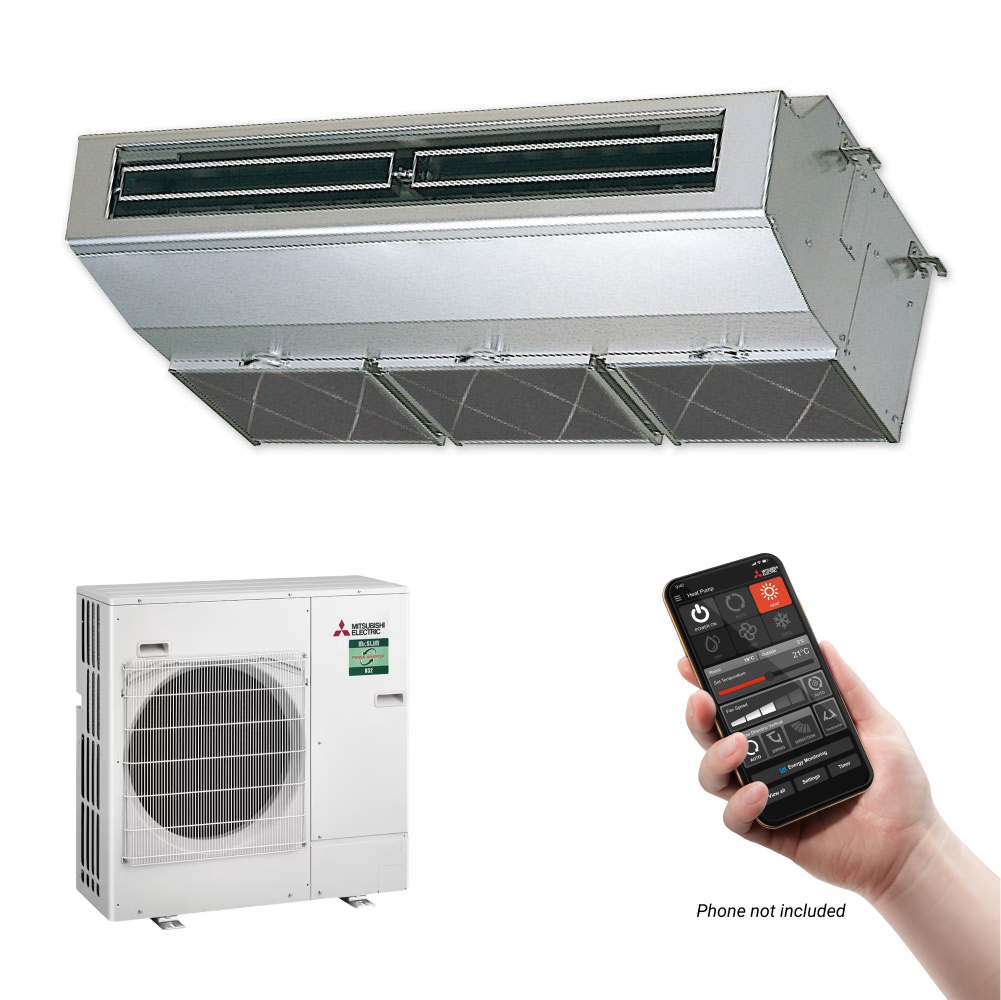

Our Suspended PCA71 stainless steel high performance heat pump is designed with professional kitchens in mind. Durable with high performance oil mist filters, it is low maintenance and easy to clean. Upgraded with a Wi-Fi Control Interface, your heating and cooling can be centrally controlled from anywhere.
A durable stainless steel casing that is resistant to oil and grease is provided to protect the surface of the body. Grimy dirt and stains are removed easily, enabling the unit to be kept clean at all times.
A high performance heavy duty oil mist filter is included as standard equipment. The filtering system is 1.5-times more efficient than conventional filters, thereby effectively reducing the oily smoke entering the air conditioner. The filter is disposable to further simplify trouble free cleaning and maintenance.
A separate fan casing that can be disassembled in sections allows for easy fan cleaning. Drain pan cleaning onsite is also easy due to the use of a pipe connector that can be quickly removed.
The rear panel has an opening that can be used to bring fresh air into the unit. This helps to improve ventilation in the kitchen for greater comfort.
R32 is a refrigerant with just one-third the global warming potential of R410A and has zero ozone depletion potential. R32 offers increased energy efficiency, and is said to be the next generation of refrigerants.
This attractive full dot liquid crystal display incorporates a large backlit screen and simple menus for easy operation.
You can set up to 8 temperature and airflow patterns per day for seven days, allowing you to reduce your energy consumption when needed, saving you both time and money. Perfect for the busy home, workplace or retail store.
Click here to find out more
Locally developed to suit the busy lifestyles of New Zealanders, award-winning Wi-Fi Control unlocks the door to smarter heating. This innovative technology allows you to control or monitor your heat pump from anywhere via your smartphone, tablet or online account. Wi-Fi Control allows you to control your system remotely, develop operating rules, and set minimum and maximum room temperatures for healthy and comfortable living.
Read more and try a demonstration
| · | Function: Cooling/Heating | · | Type: Single Split, Inverter |
| Rated | |||
| · | Capacity - Cooling: 7.1 kW | · | Capacity - Heating: 7.6 kW |
| · | Capacity - Cooling (min. - max.): 3.3 - 8.1 kW | · | Capacity - Heating (min. - max.): 3.5 - 10.2 kW |
| · | Power input - Cooling: 2.02 kW | · | Power input - Heating: 2.17 kW |
| · | Current - Cooling [In+Outdoor] (Rated): 8.90 A | · | Current - Heating [In+Outdoor] (Rated): 8.72 A |
| Energy Rating Residential | |||
| · | ZERL - Cooling (Cold/Mixed/Hot): 2 / 2 / 2.5 | · | ZERL - Heating (Cold/Mixed/Hot): 2 / 2.5 / 3 |
| · | TCSPF (Cold/Mixed/Hot): 3.78 / 3.80 / 4.49 | · | HSPF (Cold/Mixed/Hot): 3.63 / 4.04 / 4.57 |
| · | EER / COP: 3.51 / 3.50 | · | AEER / ACOP: 3.34 / 3.34 |
| Energy Rating Commercial | |||
| · | TCSPF (Cold/Mixed/Hot): 5.04 / 4.8 / 4.90 | · | HSPF (Cold/Mixed/Hot): 3.90 / 4.27 / 4.59 |
| Performance | |||
| · | Operation Range - Cooling: -5 (-15*) / +52 degC | · | Operation Range - Heating: -20 / +21 degC |
| · | [*]: -15°C in cooling when using an optional outdoor Air Protect Guide PAC-SH95AG-E. | ||
| · | Function: Cooling/Heating | · | Type: Single Split, Inverter |
| Nominal Capacity | |||
| · | Capacity - Cooling: 7.1 kW | · | Capacity - Heating: 7.6 kW |
| · | Sound Level - Cooling (Low - Super High, dB(A)): 37-39 | · | Sound Level - Heating (Low - Super High, dB(A)): 37-39 |
| · | Air Volume - Cooling (High, Litre/sec): 300 | · | Air Volume - Heating (High, Litre/sec): 300 |
| · | Refrigerant: R32 | · | Liquid pipe size (OD, mm): 9.52 |
| · | Gas Pipe Size (OD, mm): 15.88 | · | Max. pipe length (m): 50 |
| · | Max. Pipe Height (m): 30 | · | Power supply: 230V / Single Phase / 50 Hz |
| · | Dimensions (WxDxH, mm): 280 x 1136 x 650 | · | Weight: 42 kg |
| · | Function: Cooling/Heating | · | Type: Single Split, Standard Inverter |
| · | Operation Range - Cooling: -5(-15) / +52 degC | · | Operation Range - Heating: -20 / +21 degC |
| · | Sound Level - Cooling (dB(A)): 47 | · | Sound Level - Heating (dB(A)): 51 |
| · | Air Volume - Cooling (Litre/sec): 916 | · | Air Volume - Heating (Litre/sec): 916 |
| · | Power Supply: Single phase, 230 V, 50Hz | · | Refrigerant: R32 |
| · | Liquid Pipe Size (OD, mm): 9.52 | · | Gas Pipe Size (OD, mm): 15.88 |
| · | Max. Pipe Length (m): 50 | · | Max. Pipe Height (m): 30 |
| · | Dimensions (WxDxH, mm): 950 x 330 (+25) x 943 | · | Weight: 70 kg |
