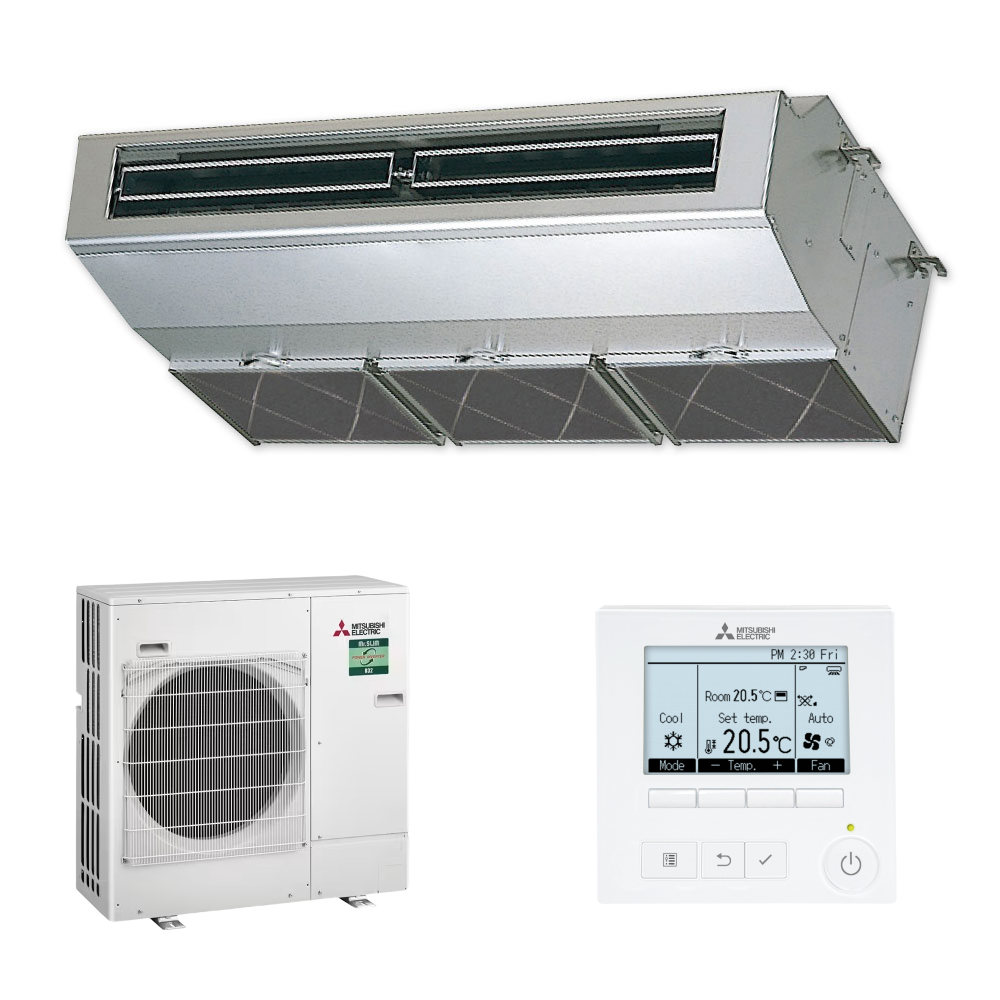

Kitchen Suspended PCA-M71HA2 Stainless Steel Heat Pump

Large Room System // PCA-M71HA2

Our Suspended PCA-M71 stainless steel high performance heat pump is designed with professional kitchens in mind. Durable with high performance oil mist filters, it is low maintenance and easy to clean. Upgraded with a Deluxe PAR Wired Controller, with backlit LCD display and user-friendly menus. With the PAR Controller you are able to precisely control power consumption and temperature, setting up to eight patterns per day.

Cooling Capacity7.1 kW

Heating Capacity7.6 kW

Select a Size

7.1 / 7.6 kW Large Room

Select a Controller

Wired Weekly ControllerAdvanced Wi-Fi Control

Features
Specifications
Downloads
Support

Features

Ideal for Professional Kitchens

A durable stainless steel casing that is resistant to oil and grease is provided to protect the surface of the body. Grimy dirt and stains are removed easily, enabling the unit to be kept clean at all times.

High Performance Filtration

A high performance heavy duty oil mist filter is included as standard equipment. The filtering system is 1.5-times more efficient than conventional filters, thereby effectively reducing the oily smoke entering the air conditioner. The filter is disposable to further simplify trouble free cleaning and maintenance.

Easy Maintenance

A separate fan casing that can be disassembled in sections allows for easy fan cleaning. Drain pan cleaning onsite is also easy due to the use of a pipe connector that can be quickly removed.

Optional Fresh Air Intake

The rear panel has an opening that can be used to bring fresh air into the unit. This helps to improve ventilation in the kitchen for greater comfort.

Next Generation R32 Technology

R32 is a refrigerant with just one-third the global warming potential of R410A and has zero ozone depletion potential. R32 offers increased energy efficiency, and is said to be the next generation of refrigerants.

Deluxe PAR Weekly Controller

This attractive full dot liquid crystal display incorporates a large backlit screen and simple menus for easy operation.
You can set up to 8 temperature and airflow patterns per day for seven days, allowing you to reduce your energy consumption when needed, saving you both time and money. Perfect for the busy home, workplace or retail store.

Click here to find out more

Features:

Ideal for Professional Kitchens High Performance Filtration Easy Maintenance Optional Fresh Air Intake Next Generation R32 Technology Deluxe PAR Weekly Controller Optional: Cosmetic Front & Hanging Fixture Covers

Specifications

PCA-M71HA2 // Kitchen Suspended PCA-M71HA2 Stainless Steel Heat Pump System


·	Function: Cooling/Heating	·	Type: Single Split, Inverter
Rated
·	Capacity - Cooling: 7.1 kW	·	Capacity - Heating: 7.6 kW
·	Capacity - Cooling (min. - max.): 3.3 - 8.1 kW	·	Capacity - Heating (min. - max.): 3.5 - 10.2 kW
·	Power input - Cooling: 2.02 kW	·	Power input - Heating: 2.17 kW
·	Current - Cooling [In+Outdoor] (Rated): 8.90 A	·	Current - Heating [In+Outdoor] (Rated): 8.72 A
Energy Rating Residential
·	ZERL - Cooling (Cold/Mixed/Hot): 2 / 2 / 2.5	·	ZERL - Heating (Cold/Mixed/Hot): 2 / 2.5 / 3
·	TCSPF (Cold/Mixed/Hot): 3.78 / 3.80 / 4.49	·	HSPF (Cold/Mixed/Hot): 3.63 / 4.04 / 4.57
·	EER / COP: 3.51 / 3.50	·	AEER / ACOP: 3.34 / 3.34
Energy Rating Commercial
·	TCSPF (Cold/Mixed/Hot): 5.04 / 4.8 / 4.90	·	HSPF (Cold/Mixed/Hot): 3.90 / 4.27 / 4.59
Performance
·	Operation Range - Cooling: *-5 (-15) / +52 degC**	·	Operation Range - Heating: -20 / +21 degC
·	[]: -15°C in cooling when using an optional outdoor Air Protect Guide PAC-SH95AG-E.*

PCA-M71HA2 - Kitchen Suspended Stainless Steel Series


·	Function: Cooling/Heating	·	Type: Single Split, Inverter
Nominal Capacity
·	Capacity - Cooling: 7.1 kW	·	Capacity - Heating: 7.6 kW

·	Sound Level - Cooling (Low - Super High, dB(A)): 37-39	·	Sound Level - Heating (Low - Super High, dB(A)): 37-39
·	Air Volume - Cooling (High, Litre/sec): 300	·	Air Volume - Heating (High, Litre/sec): 300
·	Refrigerant: R32	·	Liquid pipe size (OD, mm): 9.52
·	Gas Pipe Size (OD, mm): 15.88	·	Max. pipe length (m): 50
·	Max. Pipe Height (m): 30	·	Power supply: 230V / Single Phase / 50 Hz
·	Dimensions (WxDxH, mm): 280 x 1136 x 650	·	Weight: 42 kg

PUZ-ZM71VHA2-A - R32 Inverter Outdoor Unit


·	Function: Cooling/Heating	·	Type: Single Split, Standard Inverter

·	Operation Range - Cooling: -5(-15) / +52 degC	·	Operation Range - Heating: -20 / +21 degC
·	Sound Level - Cooling (dB(A)): 47	·	Sound Level - Heating (dB(A)): 51
·	Air Volume - Cooling (Litre/sec): 916	·	Air Volume - Heating (Litre/sec): 916
·	Power Supply: Single phase, 230 V, 50Hz	·	Refrigerant: R32
·	Liquid Pipe Size (OD, mm): 9.52	·	Gas Pipe Size (OD, mm): 15.88
·	Max. Pipe Length (m): 50	·	Max. Pipe Height (m): 30
·	Dimensions (WxDxH, mm): 950 x 330 (+25) x 943	·	Weight: 70 kg

· Rating Conditions (AS / NZS 3823):
Cooling – Indoor: 27°C DB, 19°C WB. Outdoor: 35°C DB. Heating – Indoor: 20°C DB, Outdoor: 7°C DB, 6°C WB.

· Sensible Cooling Conditions, Indoor: 27°C DB, 20°C WB. Outdoor: 35°C DB.

· Dry function will not work when the room temperature is below 13°C.

· Colour: Heat pump units shown may not be colour accurate, please ensure you view an actual unit for colour matching.

· Maximum length is inclusive of height differential. i.e. (20m length/12m high) means the pipe can be 12m high and 8m across for a total length of 20m.

· Measure of Energy Efficency: A calculated measurement of energy efficiency for both heating and cooling using the ratio of kW input to kW output.
   EER = Energy Efficiency Ratio
   COP = Coefficient of Performance
   AEER# = Annual Energy Efficiency Ratio
   ACOP# = Annual Coefficient of Performance
   #These include standby power in the rating calculation

· Star Ratings based on the Seasonal Energy Rating standard for New Zealand - cold zone [GEMS 2019]
