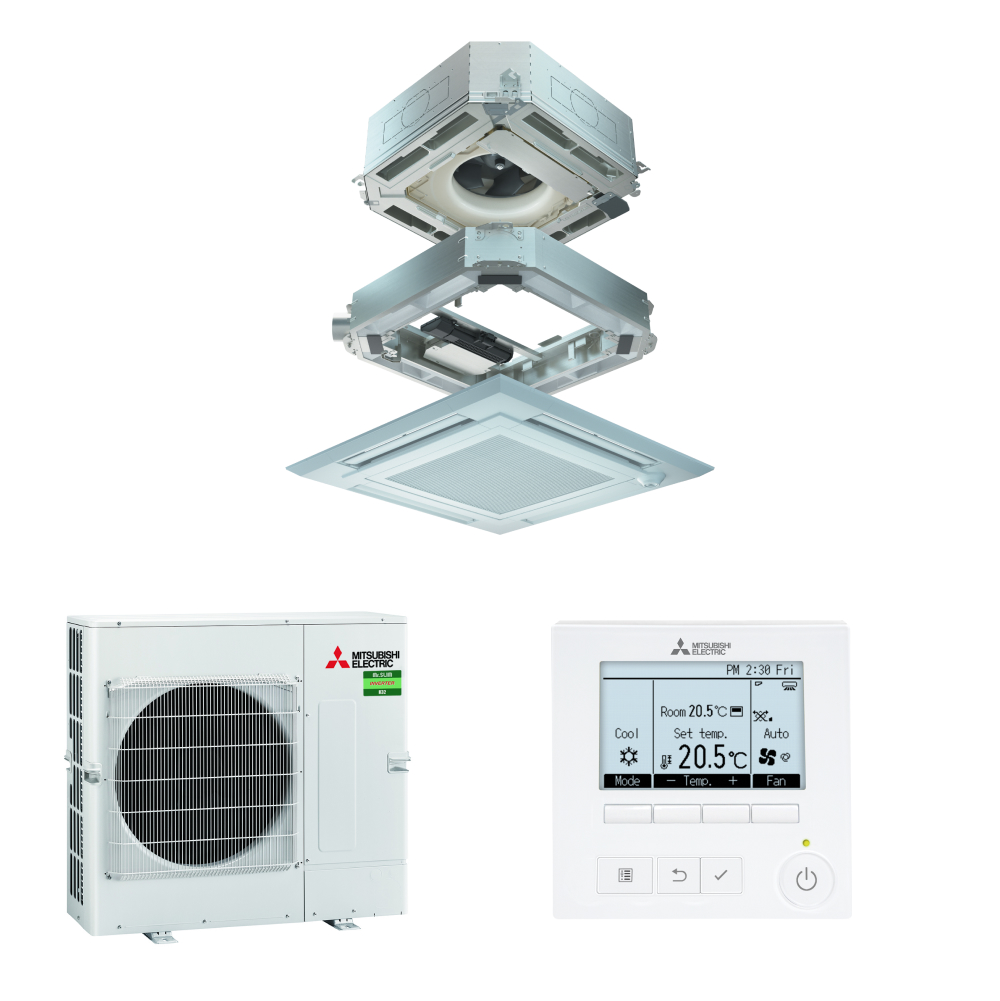

PLA-M100 Wired Deluxe 4 Way Large Cassette with 3D Harmony

Large Room System // PLA-M100

The large-capacity PLA-M100 3D Harmony Cassette is the ultimate in comfort, delivering 360° airflow in conjunction with Mitsubishi Electric’s unique 3D i-See Sensor. The 3D Harmony Series prevents draughts and short-cycling while offering fully customisable airflow to suit any room layout and occupant position. It is ideal for larger residential rooms and office spaces. Upgraded with a Deluxe PAR Wired Controller featuring a backlit LCD display and user-friendly menus, the system allows precise control of power consumption and temperature, with the ability to set up to eight patterns per day.

Cooling Capacity10.0 kW
Heating Capacity11.2 kW
Select a Size
Select a Controller
Optional Outdoor Performance

Features

3D Harmony

The combination of 4 outlets from the adoption of the horizontal louver unit delivers 360° airflow control around the entire circumference.

3D i-See Sensor

This PLA model comes standard with 3D i-See Sensor technology, able to detect the number people in the room, their positions and temperatures. In turn, the 3D i-See Sensor is able to provide the ideal temperature and airflow settings.

Next Generation R32 Technology

R32 is a refrigerant with just one-third the global warming potential of R410A and has zero ozone depletion potential. R32 offers increased energy efficiency, and is said to be the next generation of refrigerants.

Sleek,Square Design

The PLA features a sleek, square grille design with bevelled edges that provide a compact and modern finish.

Optimum Airflow

With the ability to independently control each wide vane’s airflow, these units are perfect for both residential and office environments, providing controlled airflow to all corners of the space you need to heat or cool. Advanced control of the vanes called “Swing Airflow” provides even greater heat distribution, periodically moving vanes up and down.

Auto Air Speed Adjustment

This setting automatically adjusts the air-speed to match the conditions of the room. At the start of heating/cooling, the airflow is set to high-speed to quickly heat or cool the room and once the desired temperature is reached, it decreases for efficient operation.

High and Low Ceiling Modes

Our PLA Cassettes are equipped to adjust the airflow volume to match the room height. This ensures that you get comfortable temperature control throughout the room no matter how high your ceiling.

Features:

Specifications

PLA-M100 // PLA-M100 Wired Deluxe 4 Way Large Cassette with 3D Harmony System

· Function: Cooling/Heating · Type: Single Split, Inverter
Rated
· Capacity - Cooling: 10.0 kW · Capacity - Heating: 11.2 kW
· Capacity - Cooling (min. - max.): 4.9 - 11.4 kW · Capacity - Heating (min. - max.): 4.5 - 14.0 kW
· Power Input - Cooling: 2.43 kW · Power Input- Heating: 2.94 kW
· Current - Cooling [In+Outdoor] (Rated): 11.10 A · Current - Heating [In+Outdoor] (Rated): 14.02 A
Energy Rating Residential
· ZERL - Cooling (Cold/Mixed/Hot): 2.5 / 2.5 / 3 · ZERL - Heating (Cold/Mixed/Hot): 2 / 2.5 / 3
· TCSPF (Cold/Mixed/Hot): 4.06 / 4.14 / 4.94 · HSPF (Cold/Mixed/Hot): 3.63 / 4.28 / 4.93
· EER / COP: 4.11 / 3.8 · AEER / ACOP: 3.95 / 3.68
Energy Rating Commercial
· TCSPF (Cold/Mixed/Hot): 5.41 / 5.20 / 5.38 · HSPF (Cold/Mixed/Hot): 3.99 / 4.55 / 4.94
Performance
· Operation Range - Cooling: -5 / +52 degC · Operation Range - Heating: -20 / +21 degC
3D Harmony Accessory
· PLP-U160ELR-E Dimensions (WxDxH, mm): 840 x 840 x 80 · PLP-U160ELR-E Weight: 6 kg

PLA-M100EA2-A.TH - 4-Way Cassette Heat Pump

· Function: Cooling/Heating · Type: Single Split, Inverter
Nominal Capacity
· Capacity - Cooling: 10.0 kW · Capacity - Heating: 11.2 kW
· Sound Level - Cooling (Low - Super High, dB(A)): 31 / 34 / 37 / 40 · Sound Level - Heating (Low - Super High, dB(A)): 31 / 34 / 37 / 40
· Air Volume - Cooling (Super High, Litre/sec): 483 · Air Volume - Heating (Super High, Litre/sec): 483
· Refrigerant: R32 · Liquid pipe size (OD, mm): 9.52
· Gas pipe size (OD, mm): 15.88 · Max. pipe length (m): 75
· Max. pipe height (m): 30 · Power supply: 230V / Single Phase / 50 Hz
· Dimensions (WxDxH, mm): 840 x 840 x 298 · Weight: 24.0 kg
· Panel Dimensions (WxDxH, mm): 950 x 950 x 40 · Panel Weight: 5 kg

PUZ-ZM100VKA2-A.TH - R32 Inverter Outdoor Unit

· Function: Cooling/Heating · Type: Single Split, Standard Inverter
· Operation Range - Cooling: -5 / +52 degC · Operation Range - Heating: -20 / +21 degC
· Sound Level - Cooling (dB(A)): 49 · Sound Level - Heating (dB(A)): 51
· Air Volume - Cooling (Litre/sec): 1833 · Air Volume - Heating (Litre/sec): 1833
· Power Supply: Single phase, 230 V, 50Hz · Refrigerant: R32
· Liquid Pipe Size (OD, mm): 9.52 · Gas Pipe Size (OD, mm): 15.88
· Max. Pipe Length (m): 75 · Max. Pipe Height (m): 30
· Dimensions (WxDxH, mm): 1050 x 330 x 1338 · Weight: 116 kg

·  Rating Conditions (AS / NZS 3823):
   Cooling – Indoor: 27°C DB, 19°C WB. Outdoor: 35°C DB.     Heating – Indoor: 20°C DB, Outdoor: 7°C DB, 6°C WB.

·  Sensible Cooling Conditions, Indoor: 27°C DB, 20°C WB. Outdoor: 35°C DB.

·  Dry function will not work when the room temperature is below 13°C.

·  Colour: Heat pump units shown may not be colour accurate, please ensure you view an actual unit for colour matching.

·  Maximum length is inclusive of height differential. i.e. (20m length/12m high) means the pipe can be 12m high and 8m across for a total length of 20m.

·  Measure of Energy Efficency: A calculated measurement of energy efficiency for both heating and cooling using the ratio of kW input to kW output.
   EER = Energy Efficiency Ratio
   COP = Coefficient of Performance
   AEER# = Annual Energy Efficiency Ratio
   ACOP# = Annual Coefficient of Performance
   #These include standby power in the rating calculation

·  Star Ratings based on the Seasonal Energy Rating standard for New Zealand - cold zone [GEMS 2019]
