PEA-M100HAA Standard Splittable Ducted System with Wi-FI

Large Room System // PEA-M100HAA Standard + MAC-588IF-E

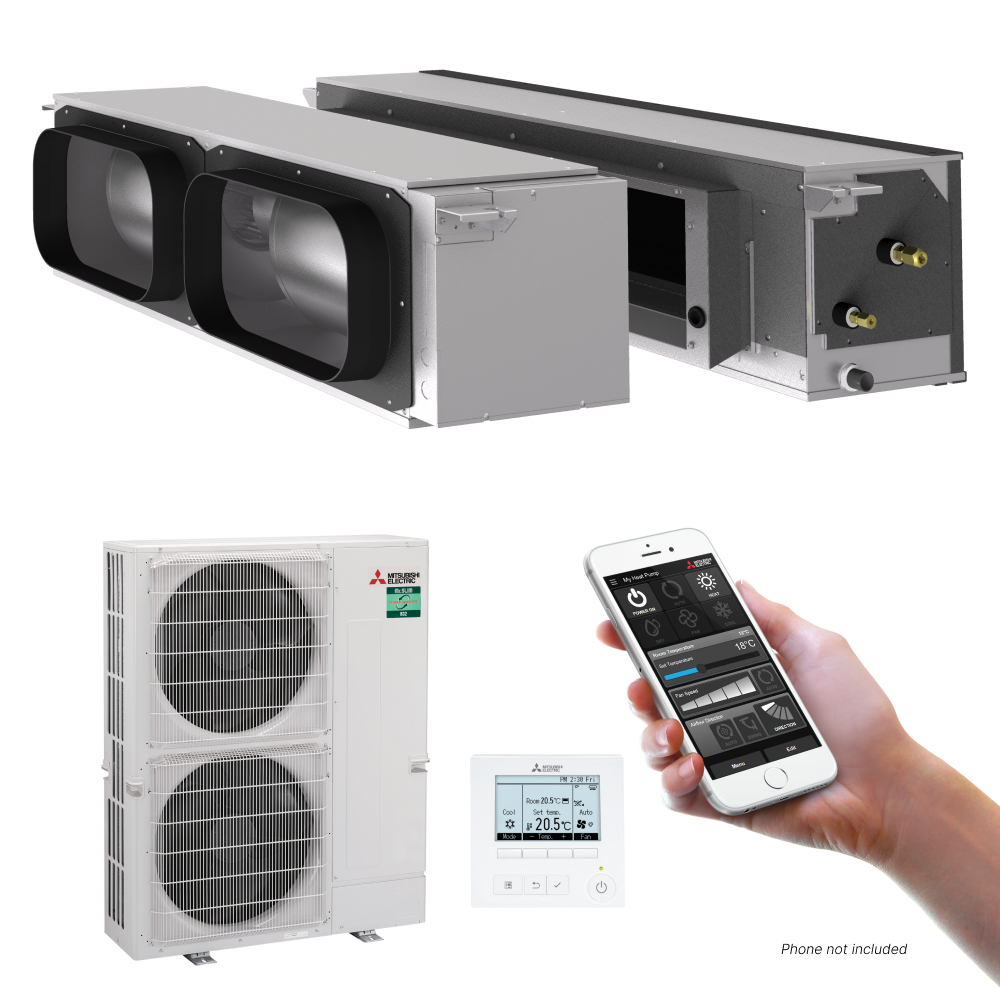

The PEA-M100HAA is designed for easier installation and maintenance, this Splittable Ducted System is ideal for remodelling of existing houses. The PEA-M100HAA has a two-piece construction. This allows separation of the indoor units heat exchanger and fan deck assembly for easier handling and installation in the roof space. The Wi-Fi range comes equipped with a Wi-Fi Control Interface (supplied separately) which allows you to control and monitor your heat pump from anywhere via your smartphone, tablet or online account.

Cooling Capacity10.0 kW
Heating Capacity12.5 kW
Select a Size
Select a Controller
Optional Outdoor Performance

Features

Unobtrusive, Whole Home Heating

Our ducted systems are specifically designed for installation in ceiling spaces. Ideal for large residences or offices, ducted units are the ultimate hidden heating and cooling solution with only grilles visible.

Splittable Design

Designed for easier installation and maintenance, the PEA-M HAA is ideal for remodelling existing houses.

Two-Way Maintenance Access

Two-way access to the fan deck assembly (from the top and the bottom) and to the drain pan (from the bottom and the side) allows for easy maintenance.

Roof Truss Installation

The PEA-M HAA can be installed in roof trusses thanks to the two-piece structure.

Easier Installation

The fan deck section and the heat exchanger can be seperately transported and assembled in the ceiling space.

Next Generation R32 Technology

R32 is a refrigerant with just one-third the global warming potential of R410A and has zero ozone depletion potential. R32 offers increased energy efficiency, and is said to be the next generation of refrigerants.

Features:

Specifications

PEA-M100HAA Standard + MAC-588IF-E // PEA-M100HAA Standard Splittable Ducted System with Wi-FI System

· Function: Cooling/Heating · Type: Single Split, Inverter
Rated
· Capacity - Cooling: 10.0 kW · Capacity - Heating: 12.5 kW
· Capacity - Cooling (min. - max.): 4.0 - 10.6 Kw · Capacity - Heating (min. - max.): 2.8 - 12.5 kW
· Power Input - Cooling: 3.02 kW · Power Input - Heating: 3.24 kW
· Current - Cooling [In+Outdoor] (Rated): 13.80 A · Current - Heating [In+Outdoor] (Rated): 14.80 A
Energy Rating Residential
· ZERL - Cooling (Cold/Mixed/Hot): 2.5 / 2.5 / 3 · ZERL - Heating (Cold/Mixed/Hot): 1.5 / 2 / 2.5
· TCSPF (Cold/Mixed/Hot): 4.09 / 4.03 / 4.73 · HSPF (Cold/Mixed/Hot): 3.28 / 3.85 / 4.39
· EER / COP: 3.31 / 3.85 · AEER / ACOP: 3.21 / 3.75
Energy Rating Commercial
· TCSPF (Cold/Mixed/Hot): 5.52 / 5.19 / 5.20 · HSPF (Cold/Mixed/Hot): 3.48 / 4.07 / 4.39
Performance
· Operation Range - Cooling: -5 / +46 degC · Operation Range - Heating: -15 / +21 degC

PEA-M100HAA.TH - Ceiling Concealed Splittable Ducted Heat Pump

· Function: Cooling/Heating · Type: Single Split, Inverter
Nominal Capacity
· Capacity - Cooling: 10.0 kW · Capacity - Heating: 12.5 kW
· Sound Level - Cooling (Low - Super High, dB(A)): 29 / 32 / 36 / 38 · Sound Level - Heating (Low - Super High, dB(A)): 29 / 32 / 36 / 38
· Air Volume - Cooling (Super High, Litre/sec): 700 · Air Volume - Heating (Super High, Litre/sec): 700
· Refrigerant: R32 · Liquid Pipe Size (OD, mm): 9.52
· Gas Pipe Size (OD, mm): 15.88 · Power Supply: 230V / Single Phase / 50 Hz
· Dimensions (WxDxH, mm): 1405 x 900 x 380 · Weight: 63 kg

PUZ-M100VKA-A.TH - R32 Inverter Standard Outdoor Unit

· Function: Cooling/Heating · Type: Single Split, Standard Inverter
· Operation Range - Cooling: -15 / +46 degC · Operation Range - Heating: -15 / +21 degC
· Sound Level - Cooling (dB(A)): 52 · Sound Level - Heating (dB(A)): 54
· Air Volume - Cooling (Litre/sec): TBA · Air Volume - Heating (Litre/sec): TBA
· Power Supply: Single phase, 230 V, 50Hz · Refrigerant: R32
· Liquid Pipe Size (OD, mm): 9.52 · Gas Pipe Size (OD, mm): 15.88
· Max. Pipe Length (m): 55 · Max. Pipe Height (m): 30
· Dimensions (WxDxH, mm): 1050 x 330 (+40) x 981 · Weight: 76 kg

·  Rating Conditions (AS / NZS 3823):
   Cooling – Indoor: 27°C DB, 19°C WB. Outdoor: 35°C DB.     Heating – Indoor: 20°C DB, Outdoor: 7°C DB, 6°C WB.

·  Sensible Cooling Conditions, Indoor: 27°C DB, 20°C WB. Outdoor: 35°C DB.

·  Dry function will not work when the room temperature is below 13°C.

·  Colour: Heat pump units shown may not be colour accurate, please ensure you view an actual unit for colour matching.

·  Maximum length is inclusive of height differential. i.e. (20m length/12m high) means the pipe can be 12m high and 8m across for a total length of 20m.

·  Measure of Energy Efficency: A calculated measurement of energy efficiency for both heating and cooling using the ratio of kW input to kW output.
   EER = Energy Efficiency Ratio
   COP = Coefficient of Performance
   AEER# = Annual Energy Efficiency Ratio
   ACOP# = Annual Coefficient of Performance
   #These include standby power in the rating calculation

·  Star Ratings based on the Seasonal Energy Rating standard for New Zealand - cold zone [GEMS 2019]
