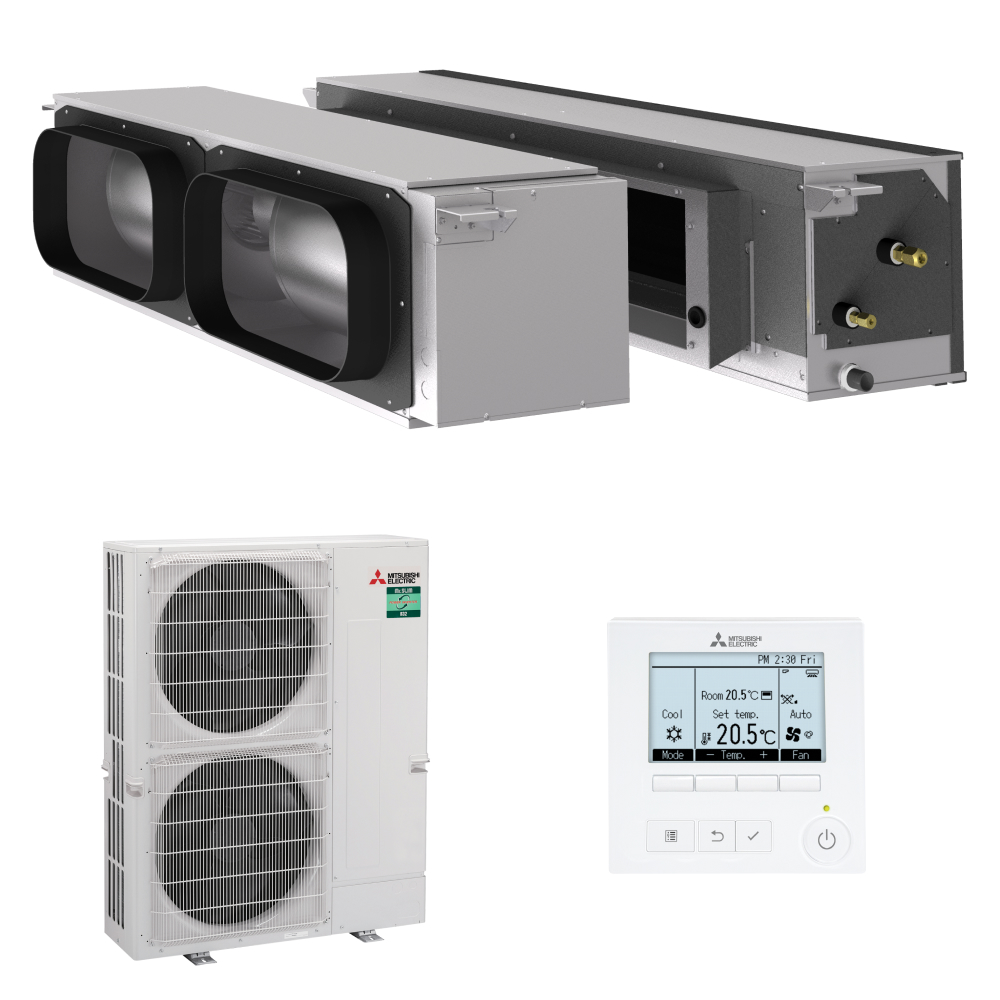

The PEA-M160HAA is designed for easier installation and maintenance, this Splittable Ducted System is ideal for remodelling of existing houses. The PEA-M160HAA has a two-piece construction. This allows separation of the indoor units heat exchanger and fan deck assembly for easier handling and installation in the roof space.
Our ducted systems are specifically designed for installation in ceiling spaces. Ideal for large residences or offices, ducted units are the ultimate hidden heating and cooling solution with only grilles visible.
Designed for easier installation and maintenance, the PEA-M HAA is ideal for remodelling existing houses.
Two-way access to the fan deck assembly (from the top and the bottom) and to the drain pan (from the bottom and the side) allows for easy maintenance.
The PEA-M HAA can be installed in roof trusses thanks to the two-piece structure.
The fan deck section and the heat exchanger can be seperately transported and assembled in the ceiling space.
R32 is a refrigerant with just one-third the global warming potential of R410A and has zero ozone depletion potential. R32 offers increased energy efficiency, and is said to be the next generation of refrigerants.
| · | Function: Cooling/Heating | · | Type: Single Split, Inverter |
| Rated | |||
| · | Capacity - Cooling: 16.0 kW | · | Capacity - Heating: 18.0 kW |
| · | Capacity - Cooling (min. - max.): 4.7 - 17.0 Kw | · | Capacity - Heating (min. - max.): 5.4 - 20.0 kW |
| · | Power Input - Cooling: 4.95 kW | · | Power Input - Heating: 4.58 kW |
| · | Current - Cooling [In+Outdoor] (Rated): 19.12 A | · | Current - Heating [In+Outdoor] (Rated): 17.95 A |
| Energy Rating Residential | |||
| · | ZERL - Cooling (Cold/Mixed/Hot): 3.0 / 3.0 / 3.5 | · | ZERL - Heating (Cold/Mixed/Hot): 2.0 / 2.5 / 3.0 |
| · | TCSPF (Cold/Mixed/Hot): 4.69 / 4.54 / 5.19 | · | HSPF (Cold/Mixed/Hot): 3.62 / 4.16 / 4.73 |
| · | EER / COP: 3.23 / 3.93 | · | AEER / ACOP: 3.16 / 3.84 |
| Energy Rating Commercial | |||
| · | TCSPF (Cold/Mixed/Hot): 9.13 / 7.11 / 6.37 | · | HSPF (Cold/Mixed/Hot): 3.93 / 4.39 / 4.73 |
| Performance | |||
| · | Operation Range - Cooling: -15 / +52 degC | · | Operation Range - Heating: -20 / +21 degC |
| · | Function: Cooling/Heating | · | Type: Single Split, Inverter |
| Nominal Capacity | |||
| · | Capacity - Cooling: 16.0 kW | · | Capacity - Heating: 18.0 kW |
| · | Sound Level - Cooling (Low - Super High, dB(A)): 35 / 38 / 42 / 45 | · | Sound Level - Heating (Low - Super High, dB(A)): 35 / 38 / 42 / 45 |
| · | Air Volume - Cooling (Super High, Litre/sec): 1000 | · | Air Volume - Heating (Super High, Litre/sec): 1000 |
| · | Refrigerant: R32 | · | Liquid Pipe Size (OD, mm): 9.52 |
| · | Gas Pipe Size (OD, mm): 19.05 | · | Power Supply: 230V / Single Phase / 50 Hz |
| · | Dimensions (WxDxH, mm): 1405 x 900 x 380 | · | Weight: 66 kg |
| · | Function: Cooling/Heating | · | Type: Single Split, Standard Inverter |
| · | Operation Range - Cooling: -15 / +52 degC | · | Operation Range - Heating: -20 / +21 degC |
| · | Sound Level - Cooling (dB(A)): 58 | · | Sound Level - Heating (dB(A)): 59 |
| · | Air Volume - Cooling (Litre/sec): 2333 | · | Air Volume - Heating (Litre/sec): 2333 |
| · | Power Supply: Single phase, 230 V, 50Hz | · | Refrigerant: R32 |
| · | Liquid Pipe Size (OD, mm): 9.52 | · | Gas Pipe Size (OD, mm): 19.05 |
| · | Max. Pipe Length (m): 75 | · | Max. Pipe Height (m): 30 |
| · | Dimensions (WxDxH, mm): 1050 x 330+40 x 1338 | · | Weight: 115 kg |
