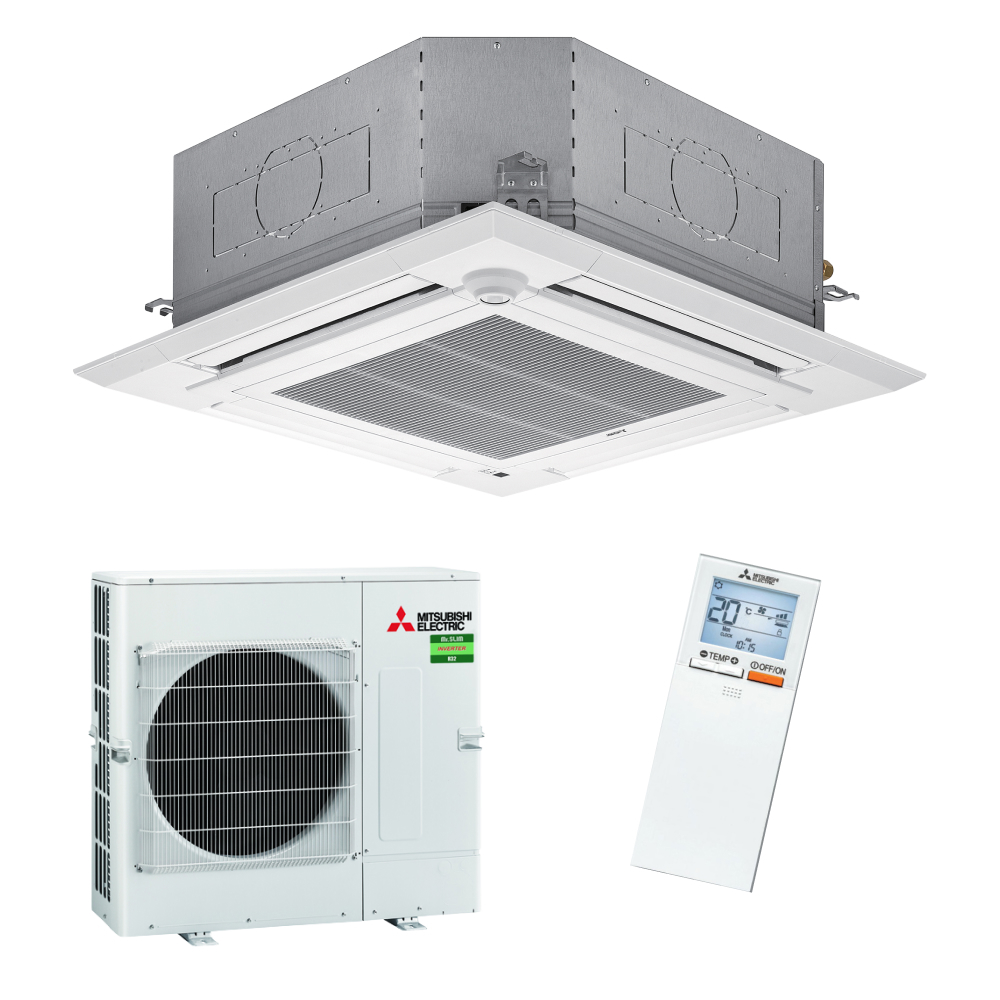

The large capacity PLA-M125 4-Way Cassette, with 3D i-See Sensor technology, wide airflow, independent vane direction setting and a new sleek design, provides consistent temperatures throughout the space you need to heat or cool. Perfect for residential rooms or office spaces. This model comes standard with a Deluxe Wireless Controller.
The new PLA comes standard with 3D i-See Sensor technology, able to detect the number people in the room, their positions and temperatures. In turn, the 3D i-See Sensor is able to provide the ideal temperature and airflow settings.
R32 is a refrigerant with just one-third the global warming potential of R410A and has zero ozone depletion potential. R32 offers increased energy efficiency, and is said to be the next generation of refrigerants.
The PLA features a sleek, square grille design with bevelled edges that provide a compact and modern finish.
With the ability to independently control each wide vane’s airflow, these units are perfect for both residential and office environments, providing controlled airflow to all corners of the space you need to heat or cool. Advanced control of the vanes called “Swing Airflow” provides even greater heat distribution, periodically moving vanes up and down.
This setting automatically adjusts the air-speed to match the conditions of the room. At the start of heating/cooling, the airflow is set to high-speed to quickly heat or cool the room and once the desired temperature is reached, it decreases for efficient operation.
Our PLA Cassettes are equipped to adjust the airflow volume to match the room height. This ensures that you get comfortable temperature control throughout the room no matter how high your ceiling.
| · | Function: Cooling/Heating | · | Type: Single Split, Inverter |
| Rated | |||
| · | Capacity - Cooling: 12.0 kW | · | Capacity - Heating: 14.0 kW |
| · | Capacity - Cooling (min. - max.): 5.8 - 13.0 kW | · | Capacity - Heating (min. - max.): 4.1 - 15.0 kW |
| · | Power Input - Cooling: 3.46 kW | · | Power Input - Heating: 3.85 kW |
| · | Current - Cooling [In+Outdoor] (Rated): 16.8 A | · | Current - Heating [In+Outdoor] (Rated): 17.3 A |
| Energy Rating Residential | |||
| · | ZERL - Cooling (Cold/Mixed/Hot): 2.5 / 2.5 / 3 | · | ZERL - Heating (Cold/Mixed/Hot): 1.5 / 2 / 3 |
| · | TCSPF (Cold/Mixed/Hot): 4.14 / 4.09 / 4.69 | · | HSPF (Cold/Mixed/Hot): 3.26 / 3.87 / 4.55 |
| · | EER / COP: 3.46 / 3.63 | · | AEER / ACOP: 3.38 / 3.55 |
| Energy Rating Commercial | |||
| · | TCSPF (Cold/Mixed/Hot): 5.40 / 5.09 / 5.11 | · | HSPF (Cold/Mixed/Hot): 3.51 / 4.16 / 4.56 |
| Performance | |||
| · | Operation Range - Cooling: -5 / +46 degC | · | Operation Range - Heating: -15 / +21 degC |
| · | Function: Cooling/Heating | · | Type: Single Split, Inverter |
| Nominal Capacity | |||
| · | Capacity - Cooling: 12.5 kW | · | Capacity - Heating: 14.0 kW |
| · | Sound Level - Cooling (Low - Super High, dB(A)): 33 / 37 / 41 / 44 | · | Sound Level - Heating (Low - Super High, dB(A)): 33 / 37 / 41 / 44 |
| · | Air Volume - Cooling (Super High, Litre/sec): 517 | · | Air Volume - Heating (Super High, Litre/sec): 517 |
| · | Refrigerant: R32 | · | Liquid pipe size (OD, mm): 9.52 |
| · | Gas pipe size (OD, mm): 15.88 | · | Max. pipe length (m): 75 |
| · | Max. pipe height (m): 30 | · | Power supply: 230V / Single Phase / 50 Hz |
| · | Dimensions (WxDxH, mm): 840 x 840 x 298 | · | Weight: 27.0 kg |
| · | Panel Dimensions (WxDxH, mm): 950 x 950 x 40 | · | Panel Weight: 5 kg |
| · | Function: Cooling/Heating | · | Type: Single Split, Standard Inverter |
| · | Operation Range - Cooling: -15 / +46 degC | · | Operation Range - Heating: -15 / +21 degC |
| · | Sound Level - Cooling (dB(A)): 54 | · | Sound Level - Heating (dB(A)): 56 |
| · | Air Volume - Cooling (Litre/sec): 1433 | · | Air Volume - Heating (Litre/sec): 1433 |
| · | Power Supply: Single phase, 230 V, 50Hz | · | Refrigerant: R32 |
| · | Liquid Pipe Size (OD, mm): 9.52 | · | Gas Pipe Size (OD, mm): 15.88 |
| · | Max. Pipe Length (m): 55 | · | Max. Pipe Height (m): 30 |
| · | Dimensions (WxDxH, mm): 1050 x 330 (+40) x 981 | · | Weight: 84 kg |
