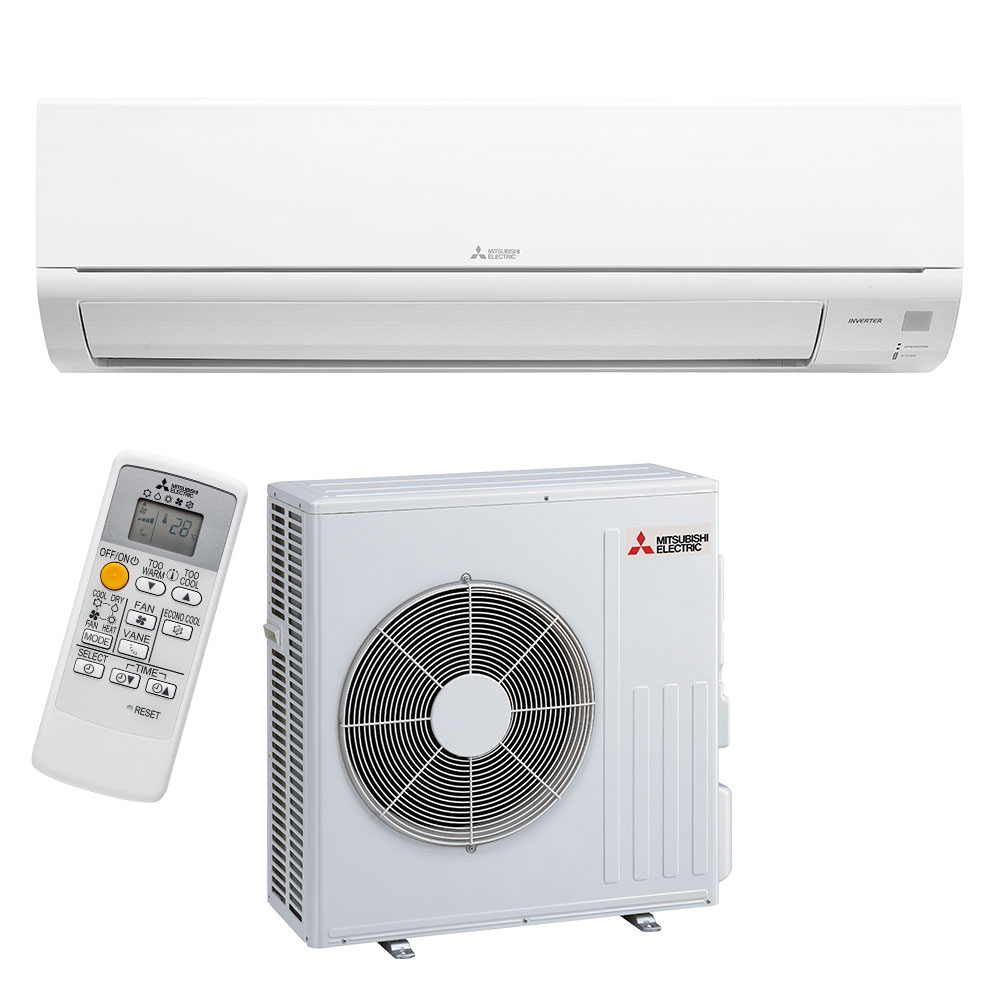

The GS80 Standard High Wall Heat Pump offers real value and sets a new benchmark in super energy efficient heating and cooling. Next-generation EcoCore Technology is designed to use less power than ever before, and because they are very quiet, they are ideal where it matters most - in living rooms and bedrooms!
Superior energy efficiency is achieved by incorporating a large, high-density heat exchanger, an advanced high-efficiency fan motor and a next-generation inverter compressor using the latest super efficient R32 refrigerant.
Slows the corrosion process on the heat exchanger, caused by salt and sulphur in the air, making it ideal for coastal and high sulphur areas.
The standard air purifying filter traps dust, pollen and other airborne contaminants while the optional washable Anti-Allergy Enzyme Filter effectively breaks down harmful microbes such as bacteria, mould and dust mites.
Econo Cool maximises energy efficient cooling. The target room temperature is automatically switched to Swing Mode to create a cooling breeze effect.
The Vertical Swing Vane function enables airflow direction to be adjusted
up, down or set to Swing Mode – ensuring every corner of the room
is comfortable.
With an easy-to-read display and large buttons, the hand-held 12 Hour Programmable Controller is designed to give you simplified control of your GS Standard Series High Wall. Because the controller removes the complicated and focuses on the operating functions that really matter, whether you are tech savvy or not, you can rest assured comfort will always be at your fingertips.
This optional weekly timer allows you to program up to four time and temperature settings for each day of the week. The 7-Day Controller is the perfect way to maximise energy efficiency without compromising on comfort.
Now you can pre-heat or cool a room no matter where you are. On the way home, running late, or in a different country, with optional Wi-Fi Control* you’ll always arrive home to total comfort.
*Wi-Fi adapter must be mounted externally.
Read more and try a demonstration
Designed to integrate with your existing Heat Pump, this high-performance two-stage advanced air filtration module, cleans and minimises dust and other allergens for better indoor air quality, all year round.
Learn more
This treatment service is considered to be mid-range corrosion protection which is suitable for many environments and will help increase the life of the GS Standard Series as well as reduce the likelihood of unsightly premature corrosion in less-than-ideal environmental conditions. For further information, please contact your local Mitsubishi Electric representative.
| · | Function: Cooling/Heating | · | Type: Single Split, Inverter |
| Rated | |||
| · | Capacity - Cooling: 7.8 kW | · | Capacity - Heating: 9.0 kW |
| · | Capacity - Cooling (min. - max.): 2.0 - 9.0 kW | · | Capacity - Heating (min. - max.): 2.2 - 10.0 kW |
| · | Power Input - Cooling: 2.40 kW | · | Power Input - Heating: 2.55 kW |
| · | Current - Cooling [In+Outdoor] (Rated): 10.50 A | · | Current - Heating [In+Outdoor] (Rated): 11.90 A |
| Energy Rating Residential | |||
| · | ZERL - Cooling (Cold/Mixed/Hot): 3.0 / 2.5 / 3.0 | · | ZERL - Heating (Cold/Mixed/Hot): 2.0 / 2.5 / 3.0 |
| · | TCSPF (Cold/Mixed/Hot): 4.54 / 4.33 / 4.63 | · | HSPF (Cold/Mixed/Hot): 3.52 / 4.04 / 4.62 |
| · | EER / COP: 3.25 / 3.53 | · | AEER / ACOP: 3.23 / 3.51 |
| Energy Rating Commercial | |||
| · | TCSPF (Cold/Mixed/Hot): 5.50 / 5.12 / 4.98 | · | HSPF (Cold/Mixed/Hot): 3.83 / 4.29 / 4.64 |
| Performance | |||
| · | Operation Range - Cooling: -10 / +46 degC | · | Operation Range - Heating: -15 / +24 degC |
| · | Function: Cooling/Heating | · | Type: Single Split, Standard Inverter |
| · | Operation Range - Cooling: -10 / +46 degC | · | Operation Range - Heating: -15 / +24 degC |
| · | Sound Level - Cooling (dB(A)): 56 | · | Sound Level - Heating (dB(A)): 57 |
| · | Air Volume - Cooling (Litre/sec): 1057 | · | Air Volume - Heating (Litre/sec): 927 |
| · | Power supply: 230V / Single Phase / 50 Hz | · | Refrigerant: R32 |
| · | Liquid pipe size (OD, mm): 6.35 | · | Gas pipe size (OD, mm): 12.7 |
| · | Max. pipe length (m): 30 | · | Max. pipe height (m): 15 |
| · | Dimensions (WxDxH, mm): 840 x 330 x 880 | · | Weight (kg): 53 kg |
A quick-start guide to your GS Series controller (487 KB)Operation Manual (2,383 KB)Standard GS Series Brochure (233 KB)warranty terms and conditions.pdf (204 KB)
