Introducing the Mitsubishi Electric ME(CH/HP)-iS-G07 Air Source Chiller/ Heat Pump Range

Introducing the Mitsubishi Electric ME(CH/HP)-iS-G07 Air Source Chiller/ Heat Pump Range

Mitsubishi Electric has launched its latest Air-Source Chiller and Heat Pump range, the ME(CH/HP)-iS-G07. Available as a cooling only or heat pump version, the ME(CH/HP)-iS-G07 is a versatile solution suitable for comfort as well as IT and process cooling applications from hotels, offices and hospitals to data centres and food processing facilities.

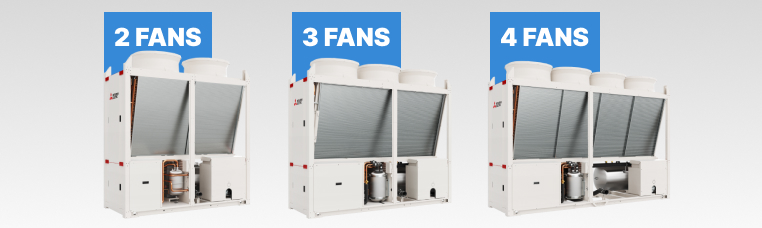

There are seven different capacities available from 50-110kW and three chassis sizes. It is also possible to connect 2 of the same size units, end on end – to double the capacity and extend the range to a maximum 220kW.

With a small footprint and only 1.1m wide, the compact format of the ME(CH/HP)-iS-G07 is logistically efficient and a suitable choice for narrow plant spaces or installations.

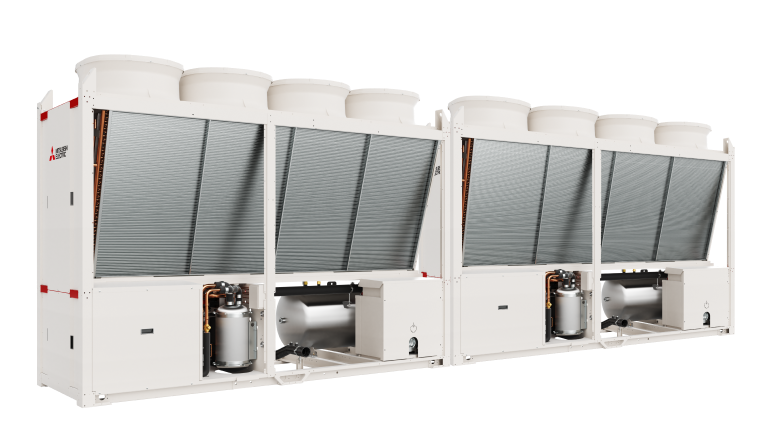

Connect Two Same Sized Modules to Double Total Capacity Range

Same size units can be connected end on end to double the capacity using a connection kit. This configuration is unique and useful in some tight plant layout configurations. This gives the ME(CH/HP)-is-G07 a total capacity range of 50-220kW.

Up to two modules can be connected.

Three Diamond Product – quality you can rely on

The ME(CH/HP)-iS-G07 is a three-diamond product and as such carries the Mitsubishi Electric 3 diamond insignia.  The entire range has been fully tested through their full operating envelope.  System design and manufacturing follow Mitsubishi Electric Japan Quality Standards and processes ensuring this range is of the highest quality standard expected from Mitsubishi Electric. Furthermore key components in the ME(CH/HP)-iS-G07 feature Mitsubishi Electric technology such as the Inverter Compressor and EC Fans -  so quietness, quality and efficiency can be relied upon.

High Efficiency Inverter Compressors

The ME(CH/HP)-iS-G07 utilises Mitsubishi Electric inverter scroll compressors to deliver high part load efficiency and low compressor turndown. Larger units use 2 compressors in a tandem arrangement; one fixed speed and one variable speed inverter compressor. This achieves full capacity and efficient operation at part load.

Uses Lower Global Warming Potential R32 Refrigerant

With the New Zealand Government's ratification of the International Kigali Amendment in 2020 sparking a steep phasedown of HFCs, building owners, facility managers and the construction industry have been looking for HVAC systems that deliver high operational efficiency with lower GWP refrigerants used within these systems. This is identified in the products nomenclature as “G07”.

By using R32 with a GWP of 677, the new ME(CH/HP)-iS-G07 Range offers significant environmental benefits over conventional R410A chillers. Furthermore, the use of R32 compatible compressors reduces the total refrigerant charge in the system and ensures a wider operating range.

Industry Leading Sound Power Levels

Operating from just 77dBA (SWL), the ME(CH/HP)-iS-G07 range comes standard with an inverter driven Mitsubishi Electric compressor in an acoustic enclosure and whisper quiet EC fans to deliver low noise performance.

Size	dB(A) SWL†
0051	77
0061	78
0071	80
0082	80
0092	81
0102	82
0112	82

† At nominal cooling rating conditions in accordance with ISO 9614.

Compact Footprint for Reduced Plant Space and Easy Site Logistics

The ME(CH/HP)-iS-G07 range comes with an ultra-compact footprint allowing the machine to fit into tight plant spaces, and reducing the logistics required for loading bulky chillers onto site.

Size	W (mm)	D (mm)	H (mm)
0051 0061 0071	2085	1100	2400
0082 0092	2600	1100	2400
0102 0112	3225	1100	2400

Wide Operating Range – Ideal for New Zealand Conditions and Applications

The MECH chiller model can produce chilled water down to minus 12 degrees, making it an ideal solution for process cooling. The ability to provide leaving water temperatures up to 24 degrees also makes the chiller model suitable for IT cooling applications.

As the heat pump MEHP model can generate water up to 65 degrees at -2 ambient, it is ideal for heating in most New Zealand conditions. It can also generate 65 degree water in ambient temperatures up to 30 degrees ideal for domestic hot water production all year round.

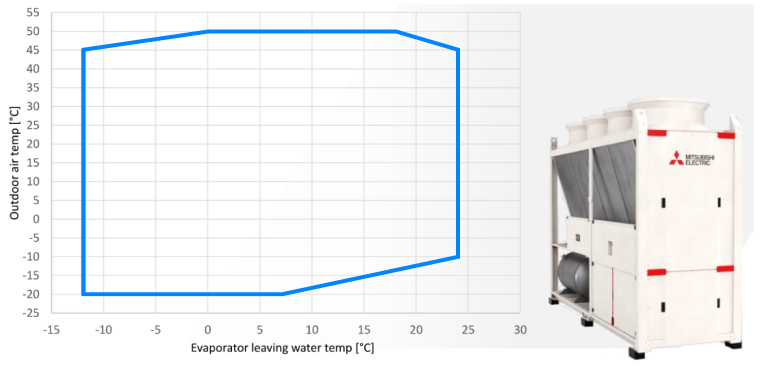

Cooling Operating Limits – MECH-iS-G07

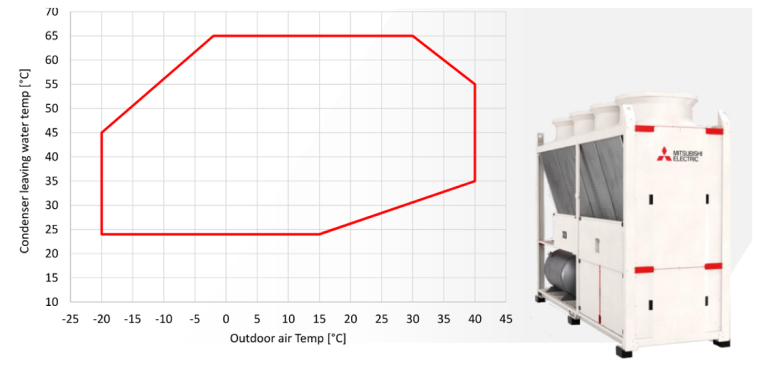

Heating Operating Limits – MEHP-iS-G07

Designed for Versatility – the range is suited to a wide range of applications

Comfort Applications: Space Heating, Cooling and/or Domestic Hot Water

MEHP-iS-G07 can produce, alone and without any auxiliary accessories, both medium temperature water for space heating and cooling or domestic hot water up to 65°C. The impressive performance at part load realises annualised efficiencies of 5.29 SEER* and 4.39 SCOP LT**. High efficiency combined with extremely low noise output and compact design makes it suitable for comfort heating and cooling in high density urban environments such as hotels and office buildings.

• Compact design allows for a smaller plant footprint
• Very wide operating range (outdoor ambient air temperature down to -20°C for the heat pump and up to 50°C for the chiller)
• 65°C maximum outlet water temperature for heat pump units
• Plug and play solution thanks to onboard buffer tanks and pumps (further reducing plant space requirements)

Mission Critical Applications: Process Cooling

The large operating range of the cooling only MECH-iS-G07 at low temperatures (down to -12°C leaving water temperature on the evaporator side) and high quality Mitsubishi Electric components provide a reliable and efficient process cooling system where consistent temperatures and dependable operation is a necessity.

• Full accessibility of service points for easier maintenance
• Refrigerant leak detection options available
• Coil protection solutions including epoxy microchannel coils, copper aluminium coils, with pre-painted fins or fin guard silver coated coils

Mission Critical Applications: IT-Cooling for Small Scale Data Centres

MECH-iS-G07 combined with w-MEXT and Hydronic plant connect optimisation control logic creates a complete Mitsubishi Electric system ideal for small scale data centres.

• High leaving water temperature of up to 24°C
• LAN functions for up to 8 units
• Hydronic Plant Connect software optimises the chillers with close control systems

Control with KIPLINK – 'Key Board in Your Pocket'

As well as an onboard interface, KIPLINK is available - an innovative user interface based on Wi-Fi technology that allows users to operate the unit directly from a smartphone, tablet or laptop.

KIPLINK can be supplied, either in addition to, or instead of the standard user interface.

ME(CH/HP)-iS-G07 Key Features

• Available from 50kW to 110kW in 3 Chassis sizes and 7 capacities
• Connect 2 models to double the capacity to 220kW
• Mitsubishi Electric Inverter Compressors and EC Fans
• R32 refrigerant with a GWP 1/3 of R410A
• High seasonal efficiencies up to 5.29 SEER* and 4.39 SCOP LT**
• Extremely low noise levels
• Compact footprint and only 1100mm wide
• High configurability
• Plug and play solution with optional onboard buffer tank, pumps and flow switch
• Variable primary flow control as a standard option
• Supported by Mitsubishi Electric and BDT Technical Support

Contact your BDT Regional Sales Engineer to discuss how the Mitsubishi Electric ME(CH/HP)-iS-G07 Air Source Chiller/ Heat Pump range could be the solution for your next project or  enquire here.

*Regulation (EU) N.2281/2016
**MEHP-iS-G07. Regulation (EU) N.813/2013
