Fresh Air Home Ventilation with Lossnay Heat Recovery

VL-220CZGV-E

Lossnay is the ultimate home ventilation system that provides fresh clean air (from the outside not attic space), removes both moisture and stale indoor air and effectively recovers heat not only from outgoing stale air but also from damp areas such as kitchens and bathrooms. Featuring the new advanced Diamond Heat Exchanger, heat is recovered from both outgoing stale air as well as from damp areas such as kitchens and bathrooms. This heat is utilised to pre-heat incoming fresh air so your heating system is not required to work as hard to maintain desired room temperature.

$ POA
Select a Size


Features

Balanced Pressure Heat Recovery Ventilation Solutions

Lossnay by Mitsubishi Electric, is an advanced Fresh Air Heat Recovery Ventilation System that captures and filters fresh outdoor air (as opposed to attic air) to replace indoor stale air for an all-round healthier, drier and warmer home. But what makes Lossnay so different from other ventilation systems is our patented Heat Exchanger, which is the secret to the heat recovery capabilities of the Lossnay ventilation unit and provides several important benefits.

The Mitsubishi Electric Lossnay Difference

What makes the Balanced Pressure Lossnay VL220 Heat Recovery Home Ventilation System from Mitsubishi Electric so different from other systems is our advanced Diamond Lossnay Core at the heart of the heat exchanger.

Pressure

Unlike ordinary positive pressure ventilation systems, the patented Diamond Core and built in drain outlet allows the system to also be effectively utilised in damp areas such as kitchens, bathrooms and toilets to help extract moisture and maximise recovery of additional heat energy from these damp areas at the same time.

The available energy is absorbed and re-used to provide pre-warming in winter or pre-cooling in summer, rather than going to waste by directly transferring this air outside. In doing so, moisture build up in your home is minimised while healthy humidity levels are maintained and managed.

Quiet

The end result: your home is ventilated with fresh, filtered and clean pre-warmed (or cooled) air at the same time whilst maintaining optimum humidity levels for healthy living. The system is super energy efficient and designed specifically to be whisper quiet.

Key Features

Improved Air Quality

Improved Air Quality

By drawing in fresh outdoor air, indoor air quality is improved as high levels of CO2, odours and other pollutants are removed from your home.

Creates a Healthier Home

Creates a Healthier Home

Filtered fresh air improves air quality for allergy and asthma sufferers.

Fresh Air Without Windows Open

Fresh Air Without Windows Open

Lossnay allows you to have a well-ventilated home without the need to open windows. This improves the safety of your home and family and means outdoor noise is minimised.

Assists Moisture Control

Assists Moisture and Condensation Control

Lossnay effectively reduces moisture in your home by directly removing stale air that causes condensation via the Lossnay core.

Retains Heat

Retains Heat

Lossnay’s unique Heat Recovery Technology collects up to 86% of the heat energy in outgoing air which is then used to pre-warm or cool the fresh air vented in.

Energy Efficient

Energy Efficient

Incoming fresh air is pre-warmed so your heating system isn’t required to work as hard to reach desired temperature. This is highly energy efficient, and can help reduce heating bills.

No Draughts

Balanced Pressure, No Draughts

Lossnay is specifically designed for more airtight homes built to the current New Zealand building code, bringing in the optimum amount of fresh air without creating draughts and minimising indoor temperature fluctuations.

Easy To Clean

Quietest in its Class

At an ultra quiet 14dBA in low fan speed, the Lossnay VL220 is the quietest system in its class.

Easy To Clean

Easy To Clean

The standard filters can be removed for regular cleaning to keep the unit in optimal working condition.

Easy Control

Easy Control At Your Finger Tips

An intuitive wall controller with easy to read LCD display comes standard. Fan speed, night set back and 24-hour and weekly timers can easily be customised and programmed with up to 8 stop and start patterns per day.

Why is outside air so important?

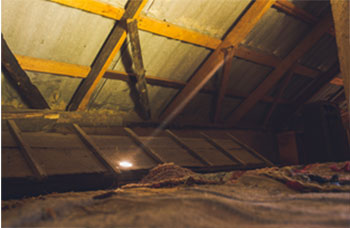

Not all air is created equal. Lossnay specifically only draws fresh air from the outside, it does not draw air from the attic. The absence of significant air movement common in attics means the air is likely to be stale and lacking in oxygen. In addition, build-up of dust, dirt and other contaminants such as mould, insect and rodent droppings makes this air much harder to clean through filtration before it is distributed through your home. This is why the Lossnay system specifically utilizes direct fresh air instead.

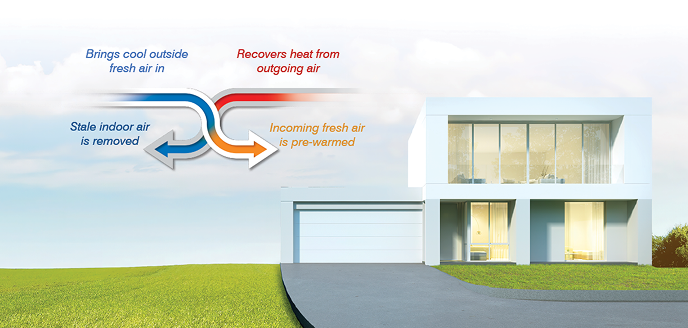

How does Lossnay work?

Lossnay by Mitsubishi Electric, is an advanced Fresh Air Heat Recovery Ventilation System that captures and filters fresh outdoor air to replace indoor stale air for an all-round healthier, drier and warmer home.

But what makes Lossnay so different from other ventilation systems is our patented Heat Exchanger, which is the secret to the heat recovery capabilities of the Lossnay ventilation unit and provides several important benefits.

Learn how Lossnay works?

Specifications

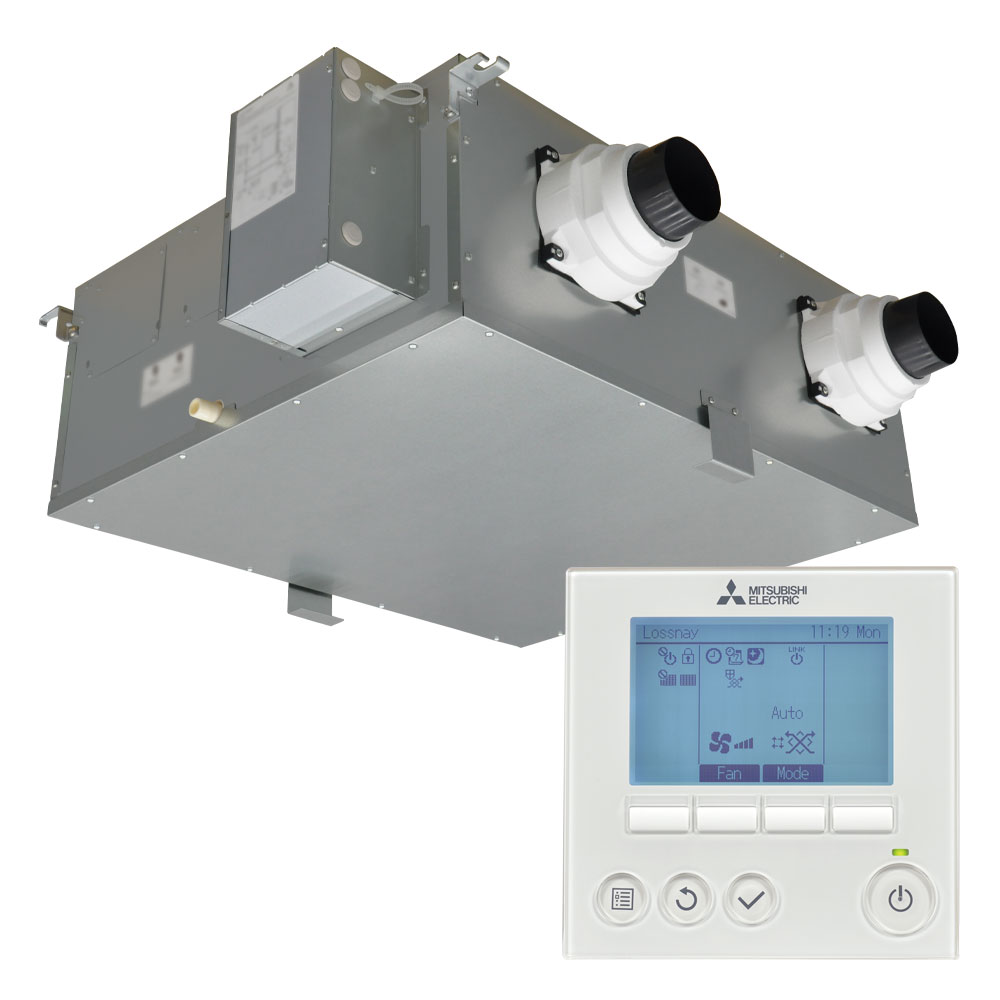

VL-220CZGV-E - Lossnay Balanced Pressure Fresh Air Energy Recovery Home Ventilation

Heat exchange system: Heat Recovery Ventilating System
Heat exchange element material: Non-permeable specially coated resin core
Dimensions (WxDxH, mm): 850 x 815 x 320
Weight: 31 kg
Duct size: 100mm - 125mm - 150mm
Power supply: 230V +/- 10% / Single Phase / 50 Hz
Heat Recovery Ventilation Mode
Running Current (Fan 1-4): 0.11A - 0.18A - 0.29A - 0.60A
Input Power (Fan 1-4): 8.5 - 18.5 - 35 - 80 W
Air Volume (Fan 1-4): 18 - 33 - 46 - 64 L/s
External Static Pressure (Fan 1-4): 13 - 44 - 84 - 164 Pa
Temperature exchange efficiency (Fan 1-4): 86.0 - 85.0 - 84.0 - 82.0 %
Enthalpy exchange efficiency - Heating (Fan 1-4): 83.0 - 76.0 - 72.0 - 69.5 %
Enthalpy exchange efficiency - Cooling (Fan 1-4): 83.0 - 74.5 - 70.0 - 68.0 %
Noise (Fan Speed 1-4): 14 - 19 - 25 - 31 dBA
Bypass mode
Running Current (Fan 1-4): 0.12A - 0.19A - 0.30A - 0.61A
Input Power (Fan 1-4): 11.1 - 21.3 - 37.8 - 82.8 W
Air Volume (Fan 1-4): 18 - 33 - 46 - 61 l/s
External Static Pressure (Fan 1-4): 11 - 40 - 75 - 150 Pa
Noise (Fan 1-4): 14 - 19 - 25 - 31 dBA
Notes
*: Noise dB, (Measured at 1.5m under panel)
**: Lossnay Ventilation Complies with Standards: S/NZS60335.2.80 and AS/NZS CISPR14.1

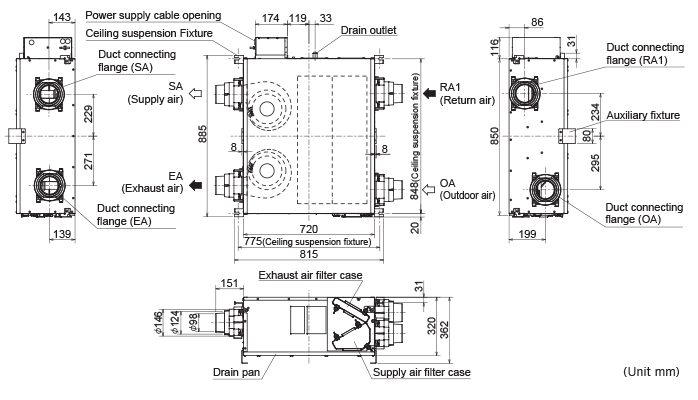

Dimensions

Note: Dimension unit (mm).

Downloads

Support

Warranty

Other

Optional

The P-133DUE-E bypass damper is available as an optional part. When the outdoor temperature is cooler than the indoor temperature (or vice versa) the optional damper allows a bypass of the heat exchanger should temperature conditions reach set levels.
The VL220 Ventilation system is supplied with 2 standard (G3) replacement filters that can be washed up to 4 times. The 2 supply filters can be upgraded to the P-220SHF-E option, non-washable high efficiency filters (M6 grade).
The VL220 Ventilation system is supplied with 2 standard (G3) replacement filters that can be washed up to 4 times. The 2 exhaust filters can be upgraded to the P-220EMF-E option, a non-washable medium efficiency filter (G4 grade).
*Actual price may differ.

Fresh Air Home Ventilation
