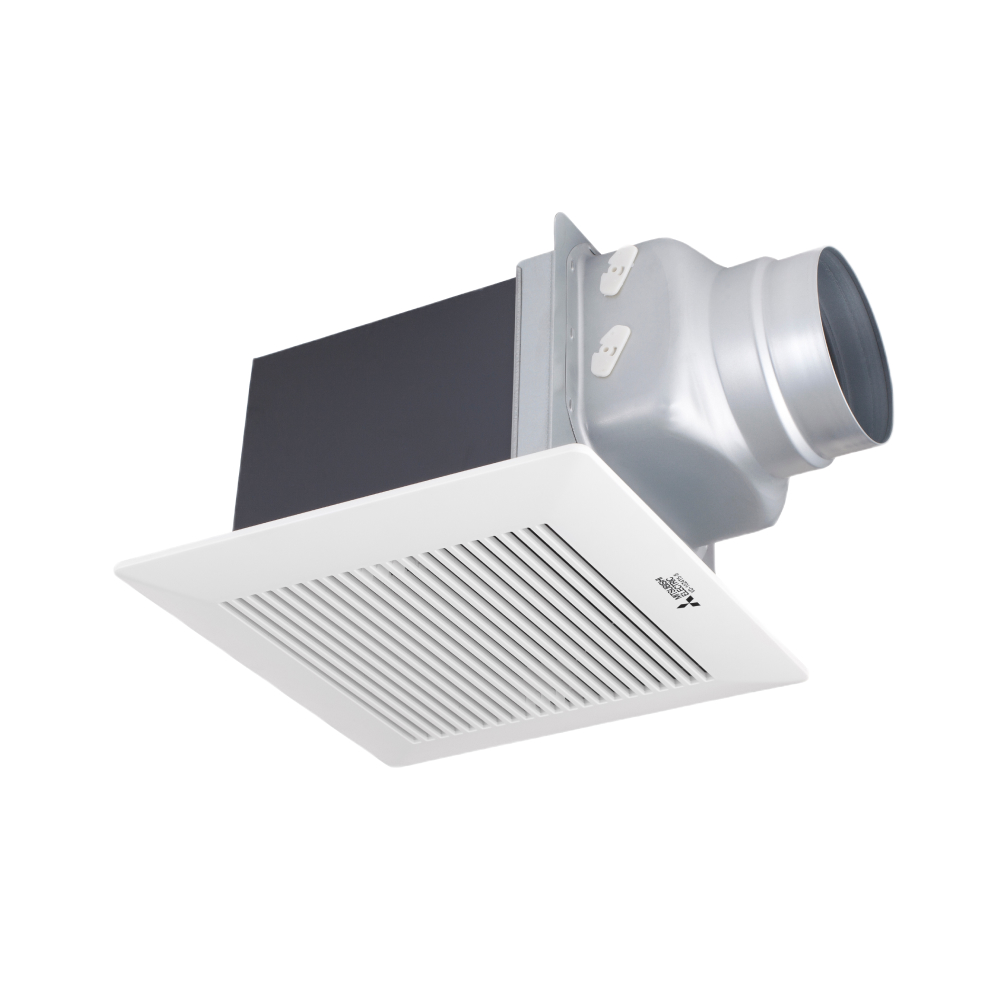

Ducted Exhaust Ventilation Fan with White Plastic Grille

VD-15Z4T7-S

Centrifugal fan with ball bearing motor, anti-backflow lourves and Dual Barrier Coating. White plastic grille. Air extraction: 47.7 l/s (172m3/h). Dual barrier technology on Sirocco Fan. Power consumption 13 watts. Noise level of 30dBA. Weight 3.4kg. Requires 100mm ducting and external grille (not supplied).

$ POA

Select a Size

VD-10Z4T6-S 29 l/s of airVD-15Z4T7-S 47.7 l/s of airVD-15ZP4T7 62.5 l/s of airVD-18Z4T7 98.6 l/s of airVD-20Z4T7 127.7 l/s of air

Features
Specifications

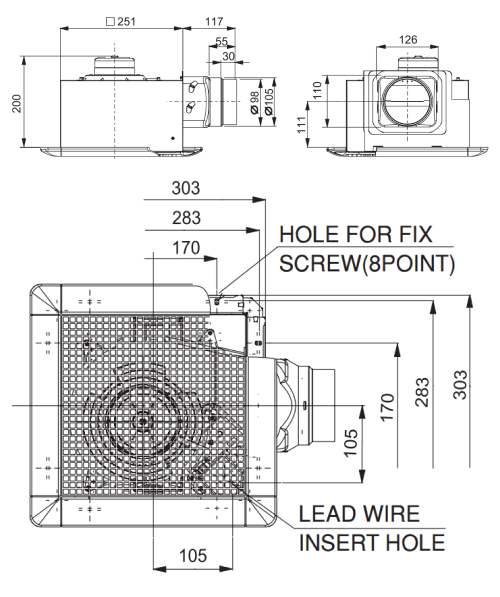

Dimensions
Downloads

Features

Quiet Operation with low vibration for a better environment

Introducing the Mitsubishi Electric VD-15Z ducted exhaust fan with a ball bearing motor that is hard working for commercial applications yet quiet and stylish for domestic use. With a plastic grille the VD-15Z is ideal for bathrooms, laundries, washrooms and toilets.

All fans are continually rated with easy installation and low vibration.

Features:

Quiet operation with low vibration for a better living and working environment.
Centrifugal fan with ball bearing motor.
Energy efficient for increased savings.
Stylish design that blends well with surroundings.
Dual shutters minimise external noise and air.
Ideal for domestic and commercial applications.

Designed for ease of installation:

Suitable for both lightweight steel frame ceilings and traditional roof cavities.
Less than 210mm in height for placement between floors.
Stepped pipe guide for simplified duct connection.
High static pressure for longer duct runs.

Specifications


·	Type: Ducted Exhaust Ventilation Fan	·	Blade Diameter (mm): Ø 150
·	RPM: 725	·	Airflow Rate (l/s / m3/h)1: 47.7 / 172*
·	Noise (dBA): 30	·	Rated Current (A): 0.06
·	Power Consumption (W): 13	·	Rated Voltage (V): 230
·	Frequency (Hz): 50	·	Weight (kg): 3.4
·	Grille Type: Plastic	·	Duct Diameter (mm): Ø 100
·	*l/s rounded to one decimal place.
