5.0kW Split Hydrobox System

PUHZ-SW50VKA-H

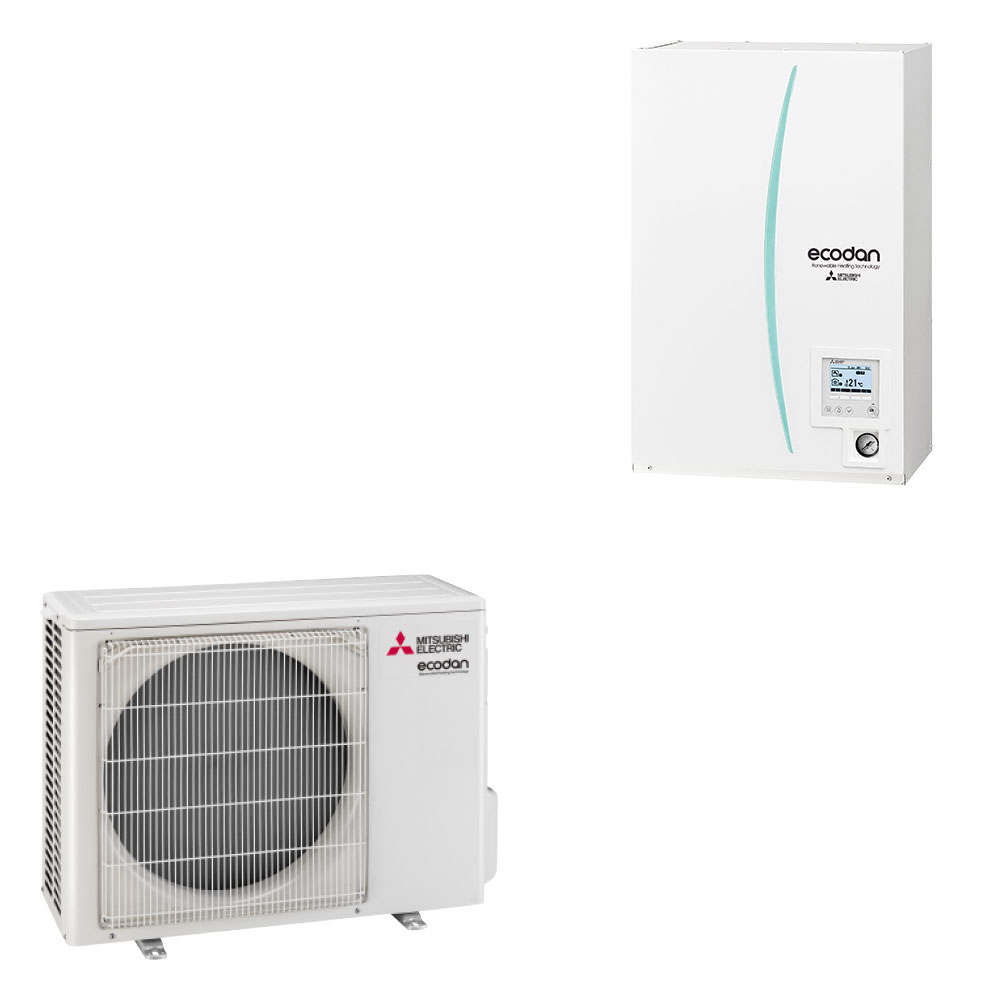

With all the heating and cooling ability of Ecodan Cylinders, the Ecodan Hydrobox is a small form factor heating and cooling powerhouse. The Hydrobox can be connected to underfloor, fan coils and/or radiators and provide a whole home central heating solution. For users looking for domestic hot water, the Hydrobox can be connected to a heat pump compatible coiled cylinder, while still providing whole home heating. At a similar size to a conventional gas hot water heating system, the small form factor Hydrobox is a highly adaptable solution for retrofit or new builds. The system comprises of the 5.0kW PUHZ-SW50VKA-BS Outdoor Packaged Unit, the ERSD-VM2C Hydrobox and FTC5 Controller.

Heating Capacity5.5 kW
Select a Size - R410A Refrigerant

Features

Key Features

  • Split unit allowing water connections to be made internally
  • No need for gas supply, flues or ventilation
  • Single phase power supply with a low starting current
  • Low maintenance and quiet operation
  • 2-Zone Energy Efficient Space Heating Control
  • Energy monitoring as standard
Domestic Applications
  • Heating and hot water
  • The vast majority of NZ homes
Commercial Applications
  • Small retail outlets
  • Health clinics
  • Public sector and commercial buildings

FTC5 Controller – With Energy Monitoring

The Mitsubishi Electric Fifth Generation Controller (FTC5) includes intelligent room temperature control as standard. This together with advanced weather compensation ensures the system delivers efficient, comfortable heating regardless of the season. FTC5 now also includes energy monitoring, showing consumed and produced energy.

2-Zone Control Allows you to Simultaneously Control Two Different Temperature Zones

Using Ecodan, it is possible to control two different flow temperatures, thereby managing two different heating load requirements. The system can adjust and maintain two flow temperatures when different temperatures are required for different rooms; for example, controlling a flow temperature of 40°C for the bedroom radiators and another flow temperature of 30°C for the living room underfloor heating.

Specifications

ERSD-VM2C - Packaged Hydrobox for Reversible Split Units

Liquid / Gas Pipe (mm): 6.35 / 12.7
Type: Hydrobox for Split Reversible Units
Operating Ambient Temperature: 0 ~ +35°C (RH<80%)
Sound Pressure Level At 1m (dBA): 28
WATER DATA
Max Flow Rate (l/min): 27.7
Pump: Grundfos UPM2K 15 - 75 130
Connection Size (mm): G1-A
Primary Expansion Vessel (Litres): 10
Charge Pressure (MPa (Bar)): 0.1 (1)
WATER SAFTEY DEVICES - Water Circuit
Control Thermistor (°C): 1 - 80
Pressure Relief Valve (MPa (Bar)): 0.3 (3)
Flow Sensor (Minimum Flow 5L/min): Supplied
WATER SAFTEY DEVICES - DHW Cylinder
Booster Heater Control Thermistor (°C): 80
Booster Heater Manual Reset Thermostat (°C): 90
Booster Heater Thermal Cut Off (°C): 121
ELECTRICAL DATA - Control Board (Optionally Powered by Outdoor Unit)
Power Supply: 230V / Single Phase / 50 Hz
Breaker (A): 10
ELECTRICAL DATA - Booster Heat (Optionally Powered if Required)
Power Supply: 230V / Single Phase / 50 Hz
Maximum Current (A): 9
Fuse Rating (A): 16
Capacity (kW): 2
GENERAL
Dimensions (WxDxH, mm): 530 x 360 x 800
Weight (Empty / Full) (kg): 45 / 51

PUHZ-SW50VKA - 5.0kW Ecodan Split Air Source Hot Water Heat Pump

Function: Hot Water Heating
Type: Split Air Source Heat Pump
Refrigerant Type: R410A
HEATING (A7/W35)*¹
Capacity [kW]: 5.50
Power Input [kW]: 1.24
COP: 4.42
HEATING (A2/W35)*²
Capacity [kW]: 5.00
Power Input [kW]: 1.68
COP: 2.97
COOLING (A35/W7)*3
Capacity [kW]: 4.5
Power Input [kW]: 1.63
EER: 2.76
COOLING (A35/W18)*4
Capacity [kW]: 5.00
Power Input [kW]: 1.09
EER: 4.60
OPERATING RANGE
Heating Operation Ambient Temperature [°C DB]: -15 ~ +21
Cooling Operation Ambient Temperature [°C DB]: +10 ~ +46
DHW Operation Ambient Temperature [°C DB]: -15 ~ +35
OPERATING CHARACTERISTICS
Sound Pressure Level at 1m [dBA]*¹: 46
Flow Rate [L/min]: 6.5 - 17.2
ELECTRICAL DATA
Power Supply: 230V / single Phase / 50 Hz
Maximum Current / Fuse Rating [A]: 13.0 / 16
GENERAL
Unit Connections (Liquid / Gas) [mm(in)]: 6.35 (1/4) / 12.7 (1/2) Flared connections
Min Pipe Length [m]: 2
Max Pipe Length [m]: 40
Max Height Difference [m]: 30
Dimensions (WxDxH) [mm]: 809+62*5 x 300 x 630
Weight [kg]: 43
Notes

*1 Under normal heating conditions at outdoor temp: 7°CDB / 6°CDB, outlet water temp 35°C, inlet water temp 30°C as tested to BS EN14511.
*2 Under normal heating conditions at outdoor temp: 2°CDB / 1°CDB, outlet water temp 35°C, inlet water temp 30°C as t
