Mitsubishi Electric MEHP-iB-G07 Air-to-Water Heat Pumps

Key Features

• Monobloc unit including all control and hydronic components in the outdoor unit
• Low GWP R32 Refrigerant
• 60°C hot water and heating production
• Down to 5°C water outlet for cooling applications
• Low maintenance
• Capacity ranging from 7kW to 40.0kW
• 2-Zone Control for delivering different temperatures simultaneously
• Variable Primary Flow
• Single phase and 3 phase options

Application

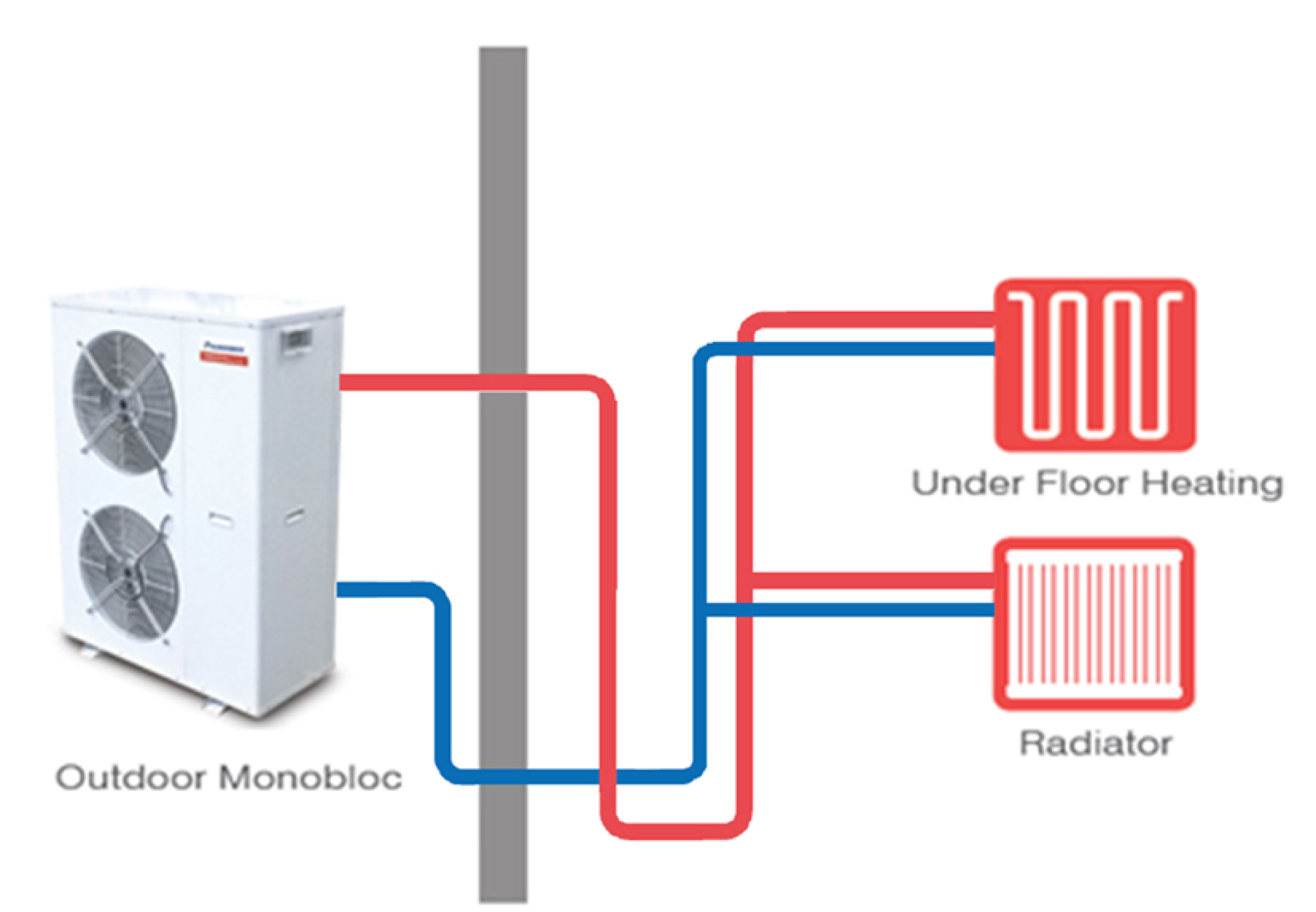

• Space heating with radiators or underfloor hydronic systems
• Cooling

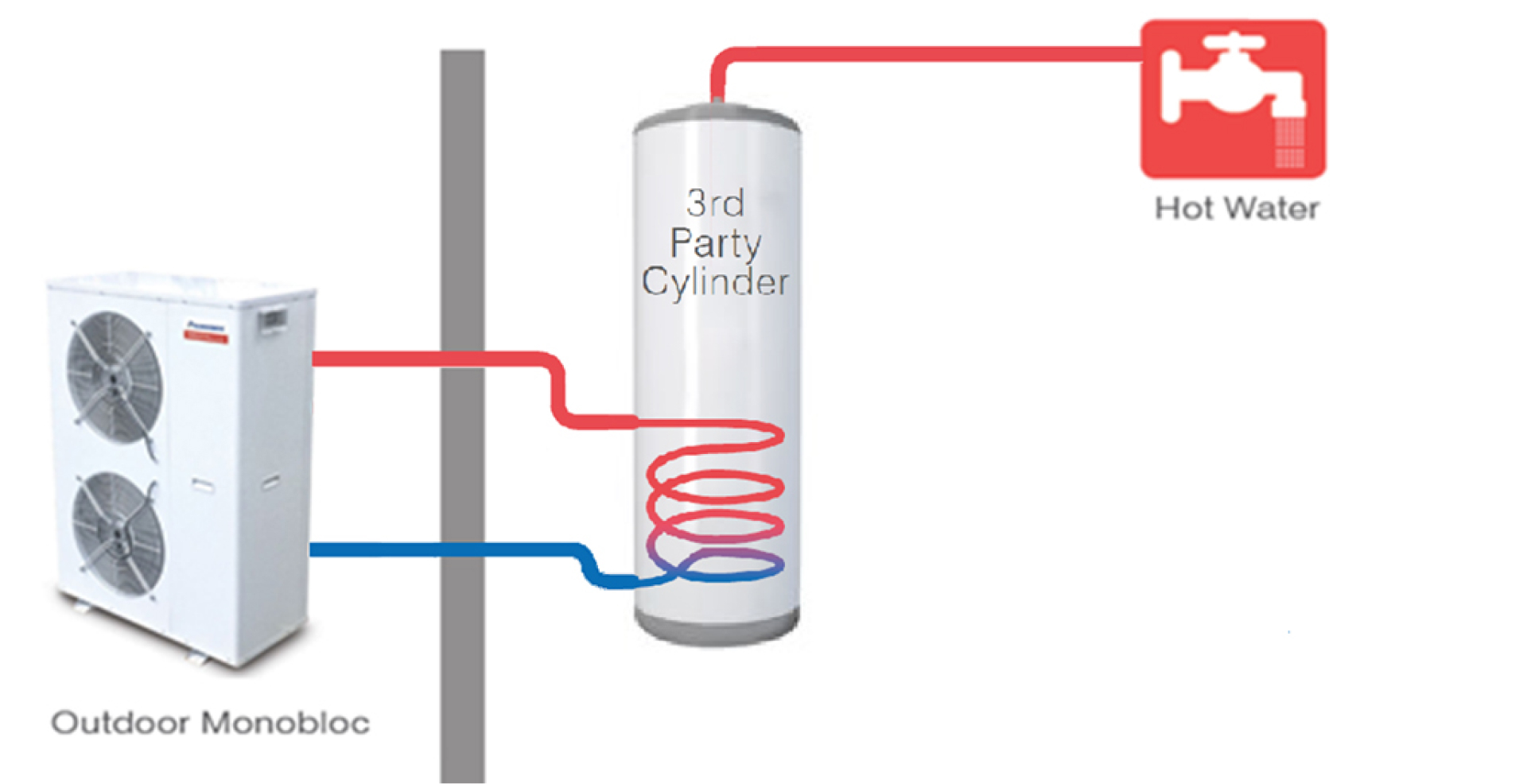

• Potable hot water
• Suitable for the vast majority of domestic and light commercial applications

Plug and Play Hydronic Unit

The integrated hydronic module includes all the water circuit components (plate heat exchanger, air valves, flow switch, strainer, safety valve, EC water pumps, and expansion tank) which optimises installation space, time and costs.

• Water flow switch for system protection
• Variable pumps speed based on load demand
• Mitsubishi Electric Inverter Compressor
• New easy to commission built-in controller

With high efficiency at part loads, the MEHP-iB-G07 uses the Inverter Compressor, EC fans and pumps to deliver the exact amount of energy based on the needs of the building.

Synonymous with quality reliability and efficiency, Mitsubishi Electric Inverter Compressors are mounted on noise damping rubber mounts and surrounded in sound absorbing material, further reducing any noise.

A Greener Future with Mitsubishi Electric

The MEHP-iB-G07 range with R32 refrigerant is a key product offering in the path towards the creation of a greener future.

The reduced GWP level of this refrigerant gas tackles both direct and indirect global warming, offering a concrete, forward-looking solution for residential and light commercial buildings - and a real alternative to traditional refrigerants.

Operating Range

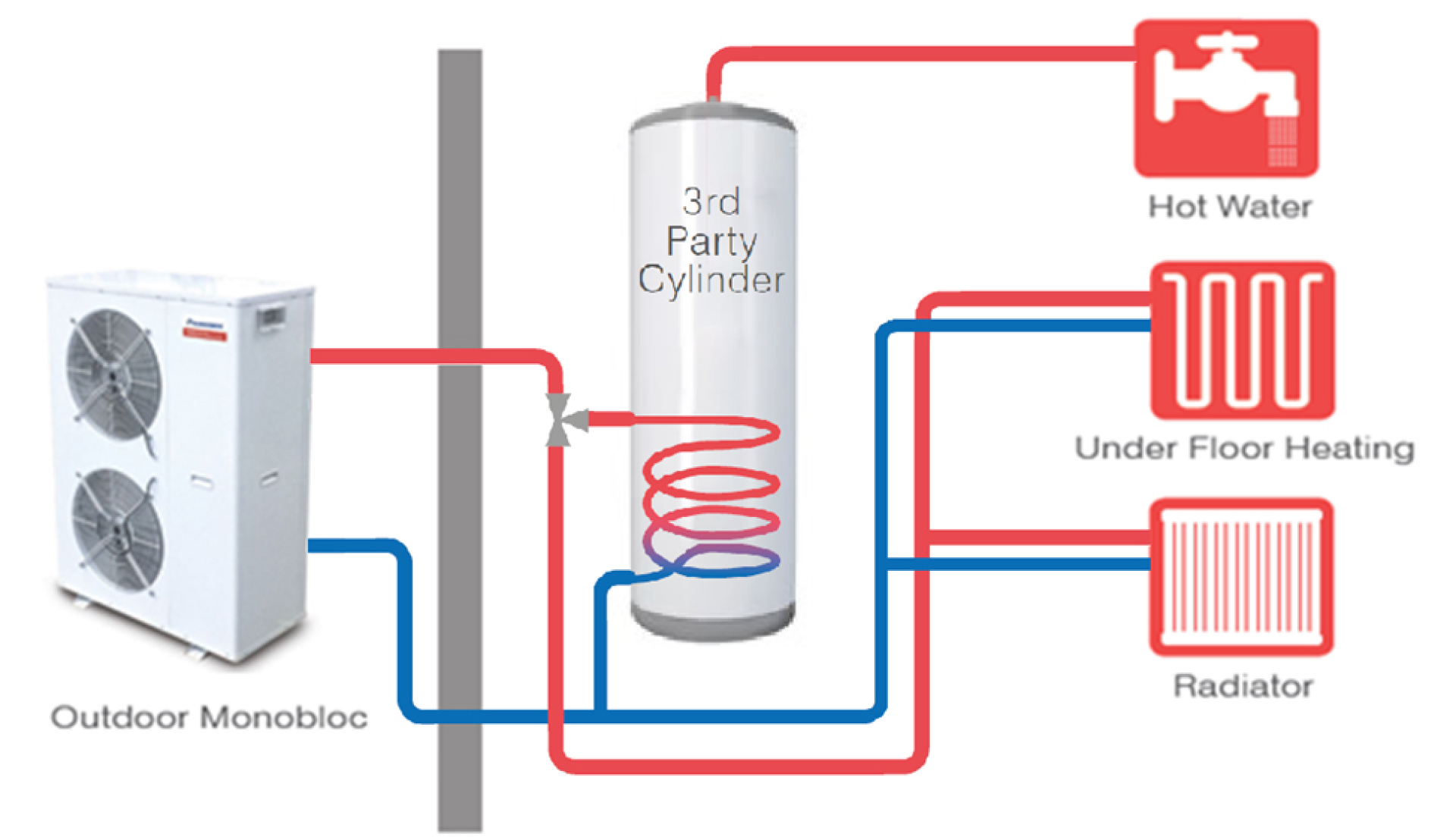

The MEHP-iB-G07 offers one unique unit for heating, cooling and domestic hot water production.

The MEHP-iB-G07 can produce both medium water temperature for space heating and cooling, and hot water for domestic use up to 60℃, without any auxiliary accessories.

This makes MEHP-iB-G07 an alternative to traditional gas or direct electric heating systems in residential and light commercial applications.

Compact Keyboard

The standard interface features a complete LCD display and ergonomic keys for viewing data and navigating the multilevel menu. The compact keyboard is protected by a metal covering and is mounted on the unit.

Optional Room Touchscreen

The room interface touchscreen 4.3” display has the following functions:

• Unit controller (heat pump control)
• Thermostat functions through integrated air temperature and humidity probes
