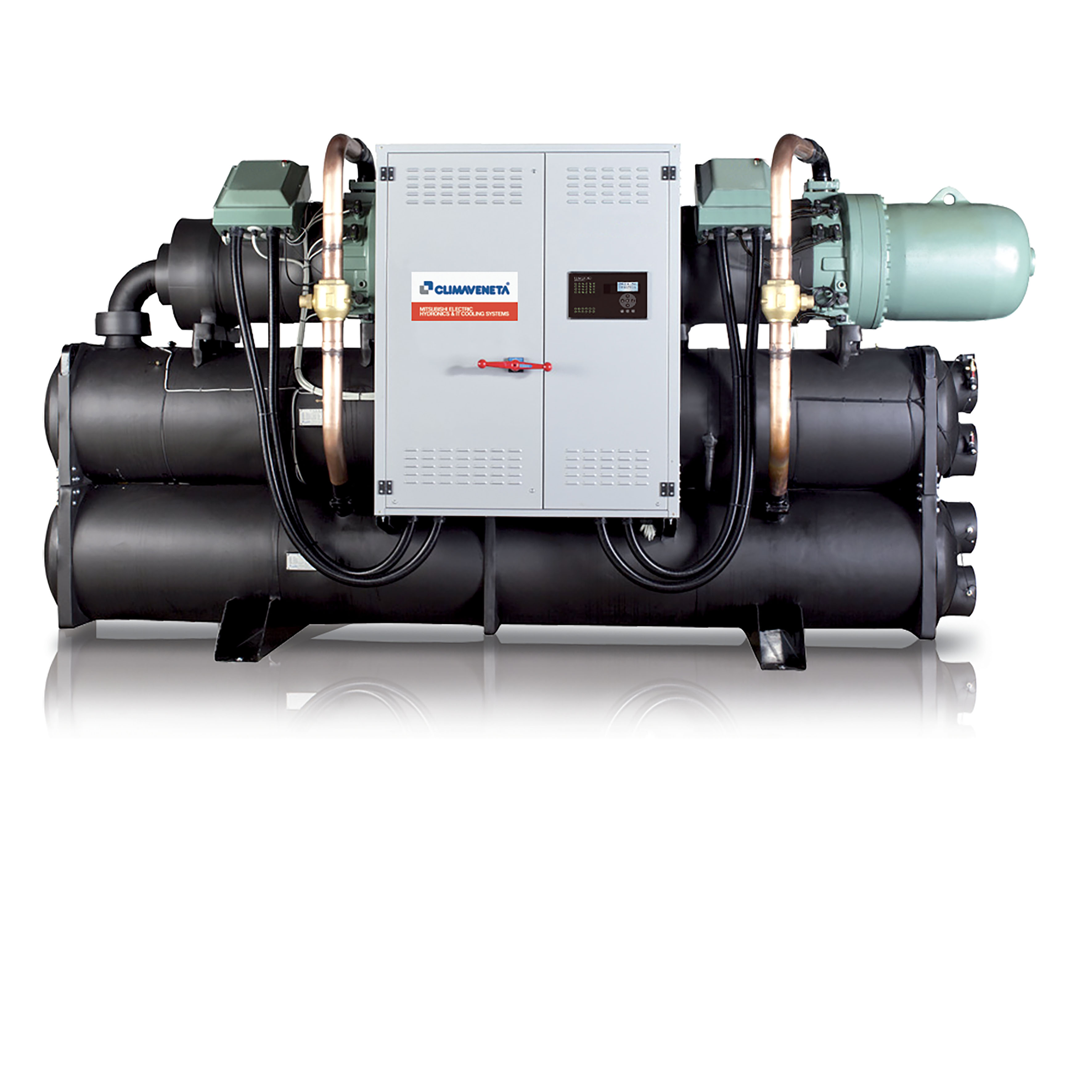

i-FX-W(1+i)-G05/H 1402-4652

i-FX-W(1+i)-G05/H 1402-4652

488.0kW-1636.0kW (Cooling)
544.0kW-1781.0kW 9Heating)
R513A Refrigerant (GWP 573)
Flow temp range: -8°C to15°C (Cooling)
20°C to 45°C (Heating)

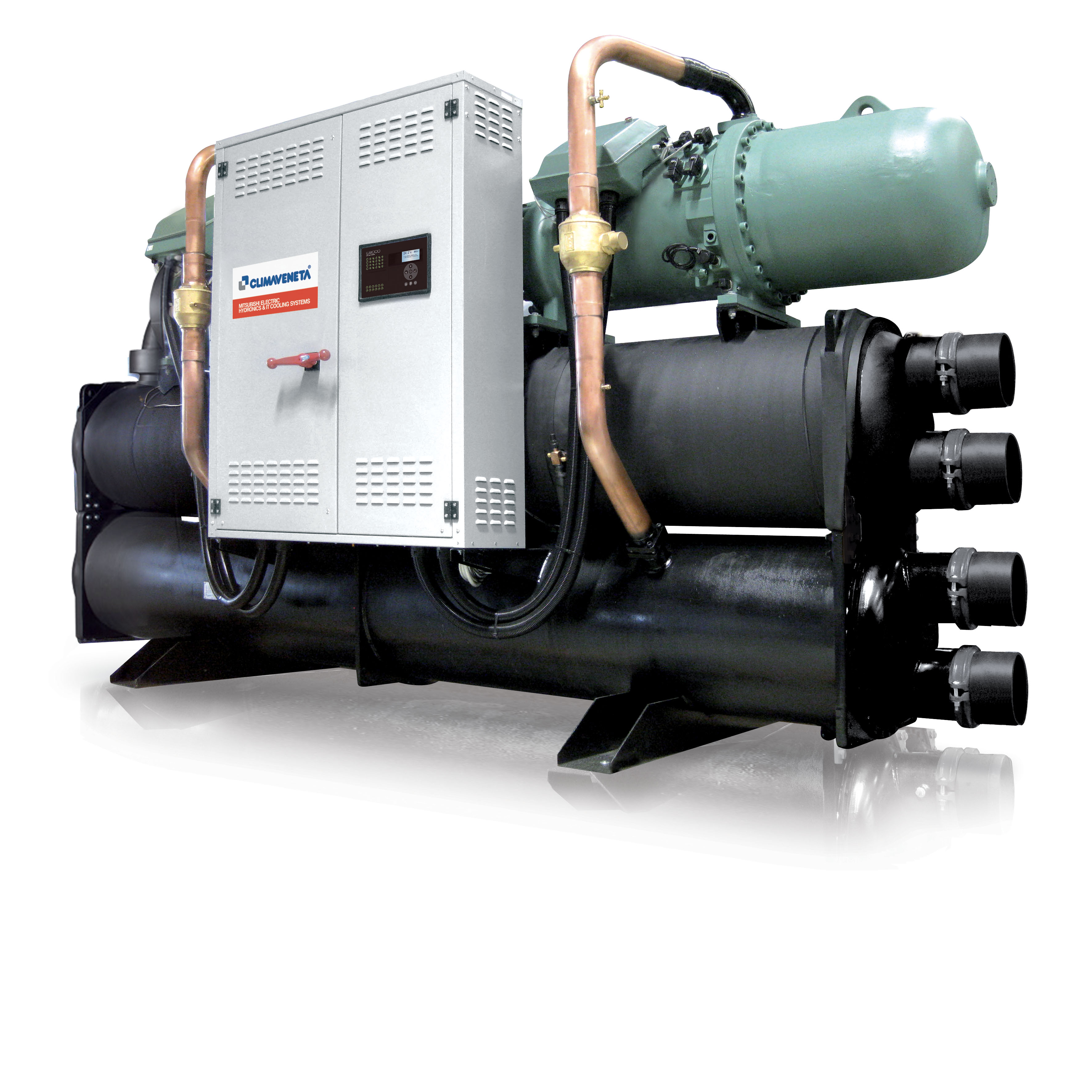

Single circuit indoor unit for the production of chilled/hot water, with fixed speed and variable speed (Inverter Driven) screw compressors optimized for R513A, electronic expansion valve, high performing shell and tube condenser and shell and tube flooded evaporator, both designed and manufactured by Mitsubishi Electric Hydronics & IT Cooling Systems S.p.A. The resulting unit is extremely compact, thanks to the strategic layout, designed without base, frame, and panels.

Downloads

  • DB i-FX-W (1-plus-i)-G05H 1402 - 4652 202102 EN Data book.pdf -

Installation

  • IM i-FX-W(1-plus-i)-G05 H C0210101-07-16-EN General manual for installation.pdf -
  • MEC i-FX-W (1-plus-i)-G05H 1402 - 4652 Dimensional drawings.pdf -
  • SND i-FX-W (1-plus-i)-G05H 1402 - 4652 Full load sound level.pdf -
  • HYD i-FX-W (1-plus-i)-G05H 1402 - 4652 Hydraulic data.pdf -
  • ELC i-FX-W (1-plus-i)-G05H 1402 - 4652 Electrical data.pdf -
