i-FX2-G05 0522-1863

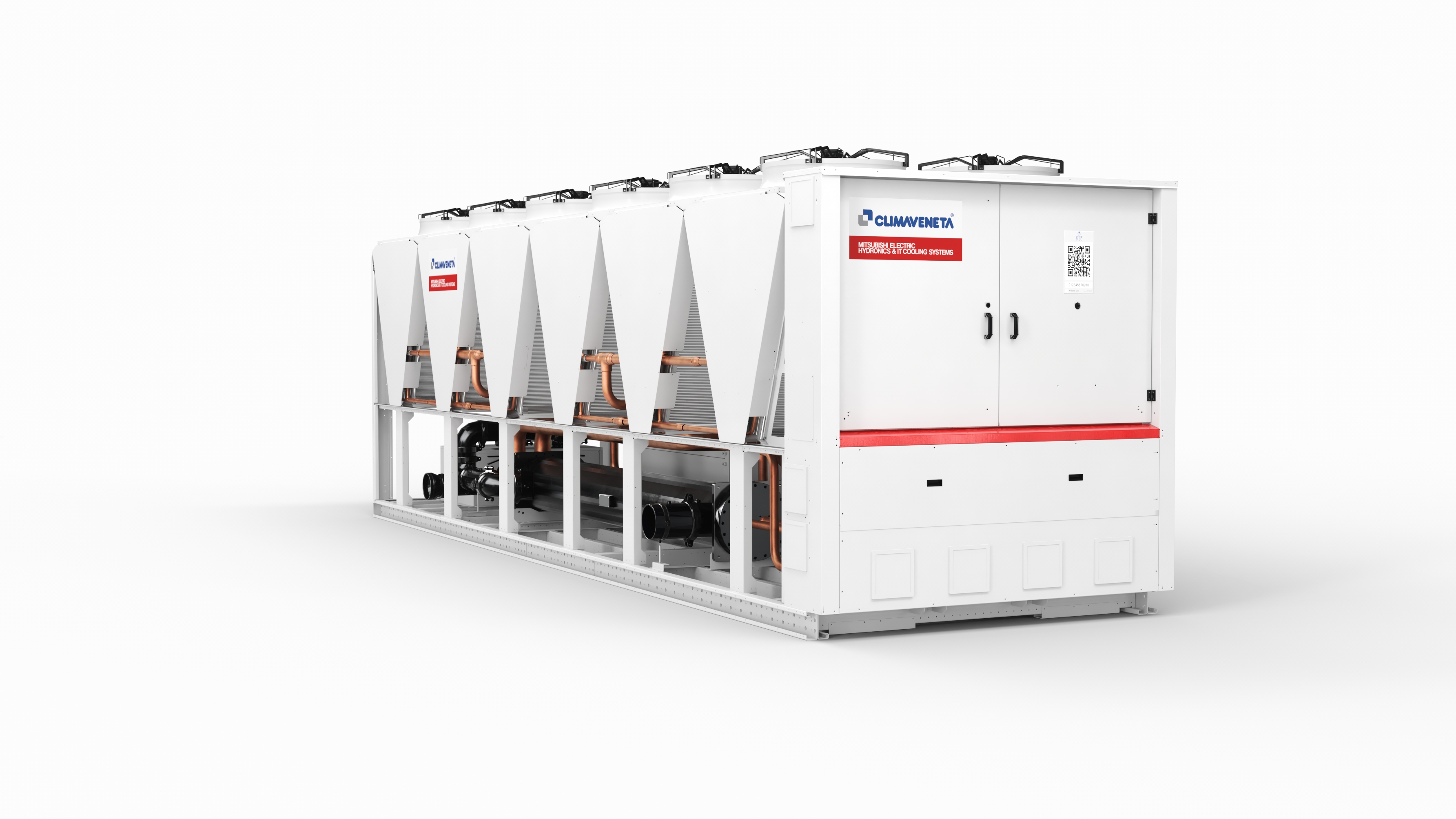

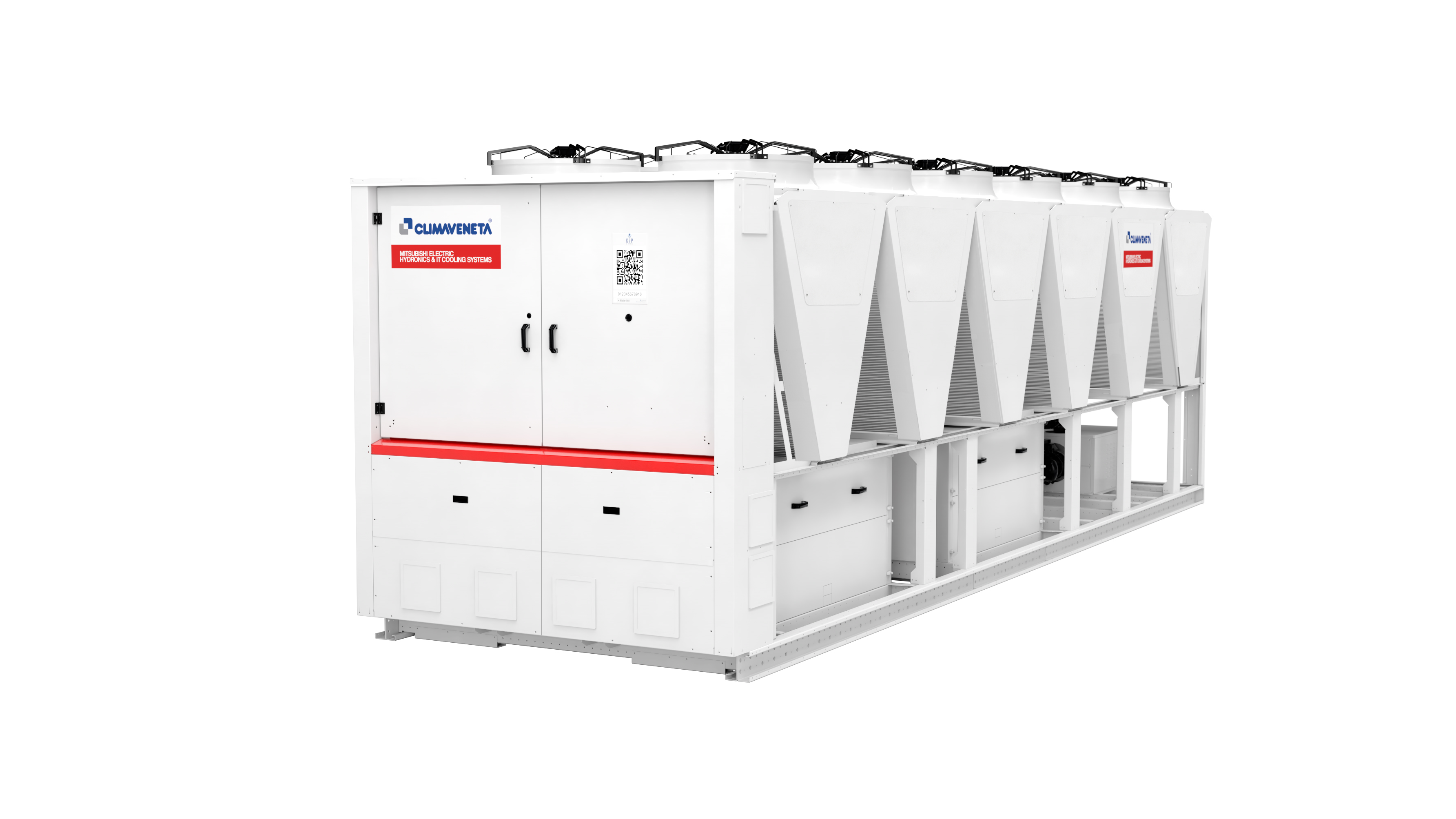

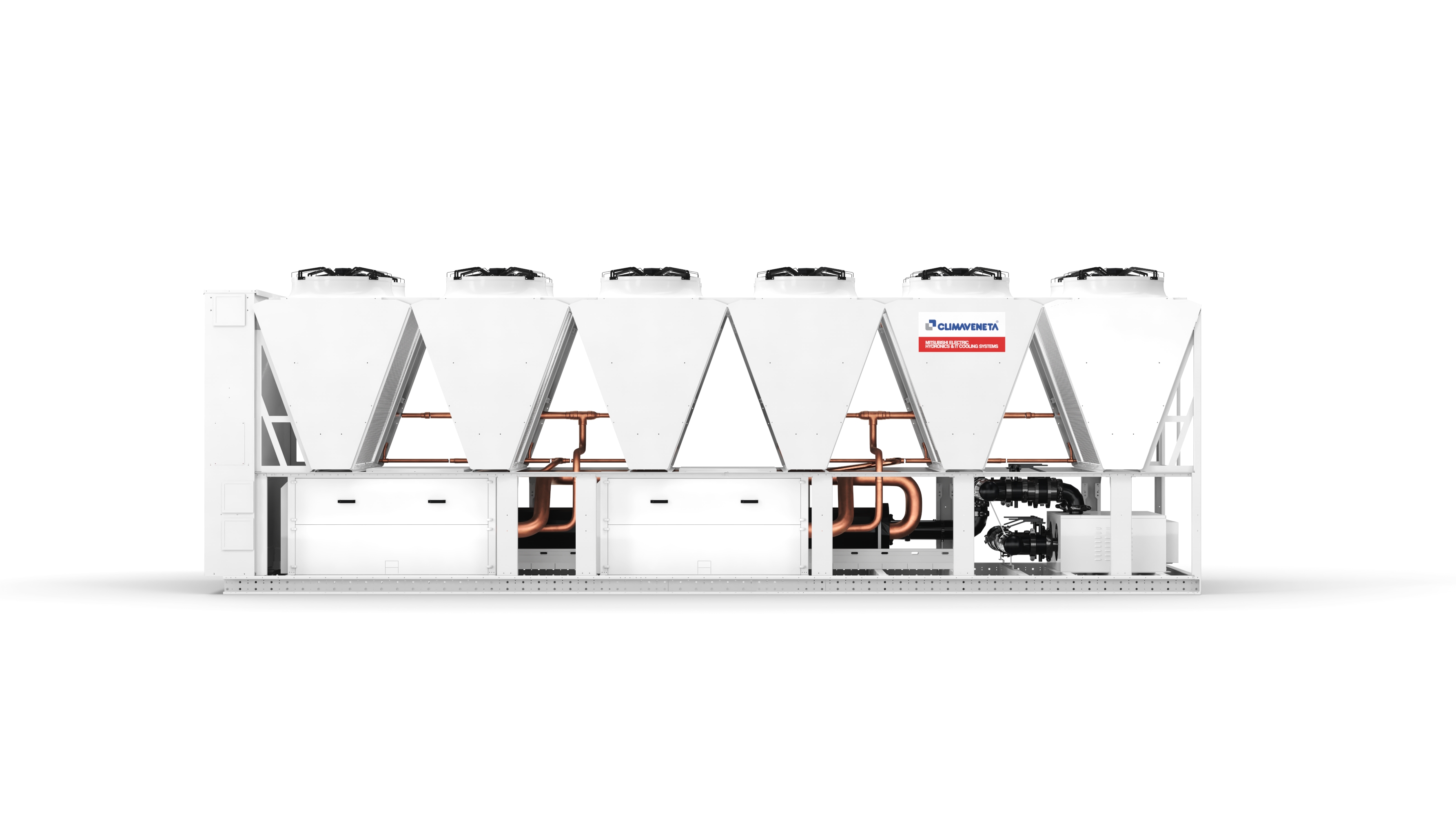

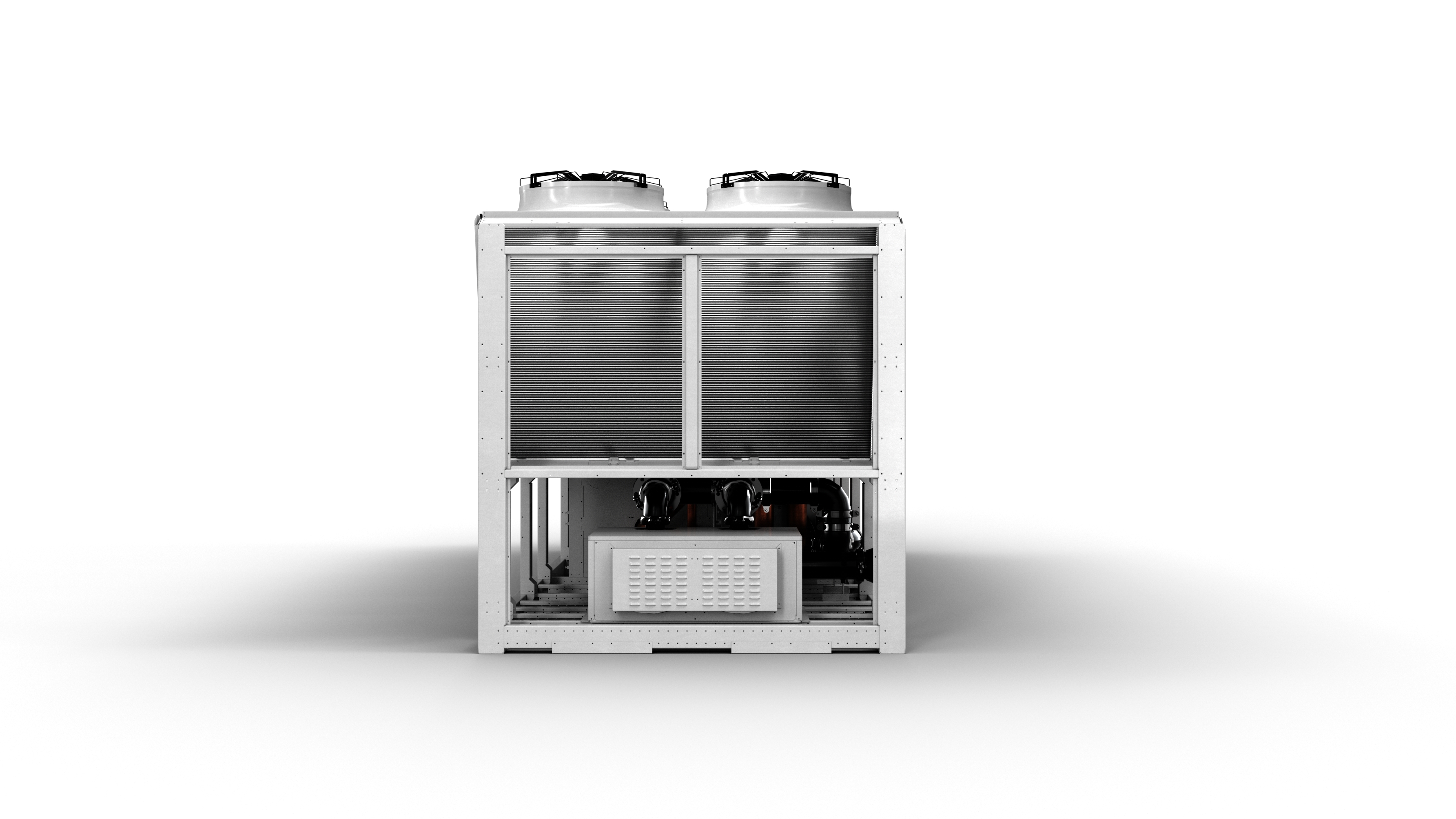

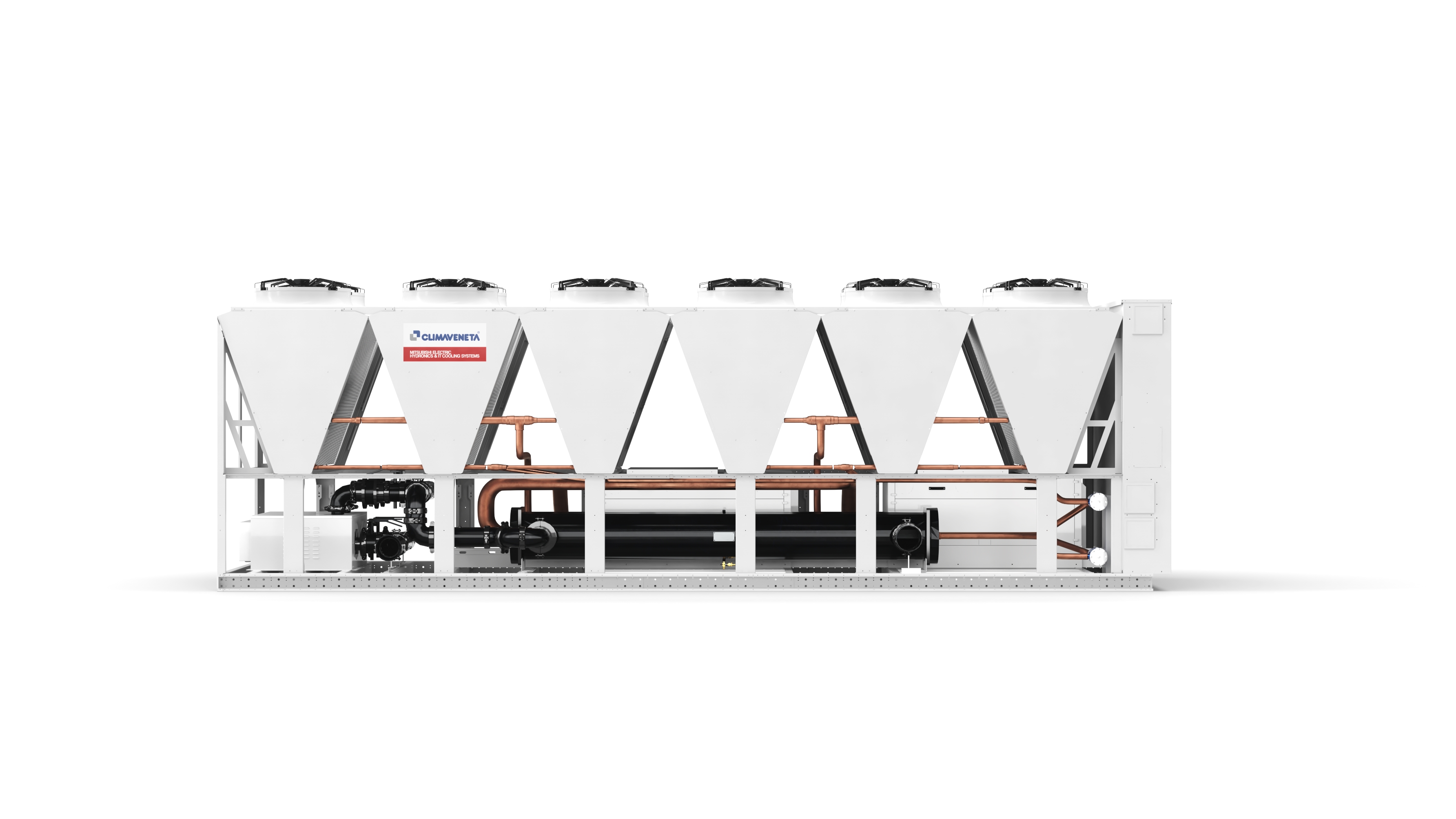

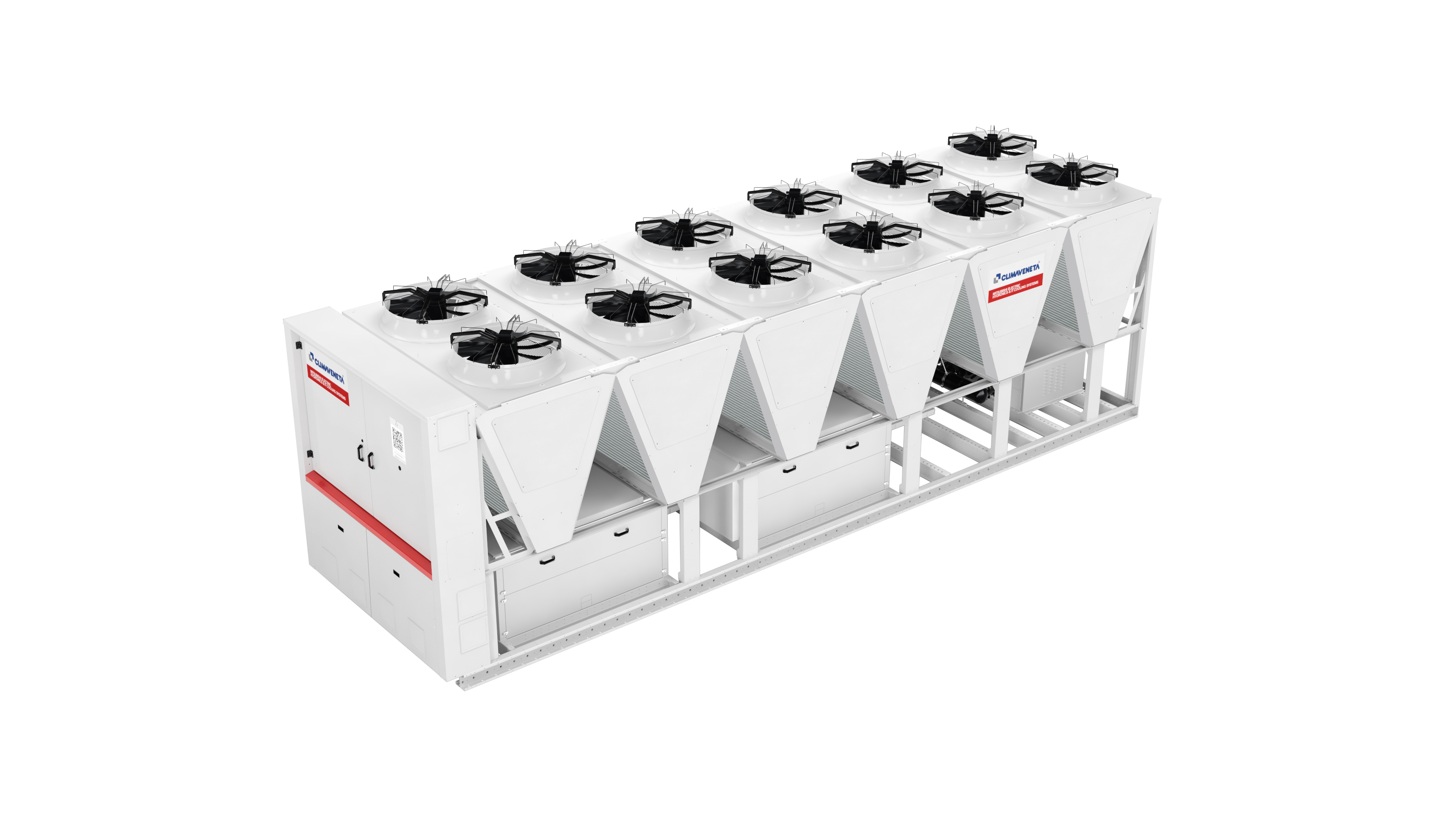

Air Source Chiller for comfort & process cooling
507.0kW-1859.0kW
R513A Refrigerant (GWP 573)
Flow temp range:4°C to 18°C

Outdoor unit for the production of chilled water with semi-hermetic variable-speed screw compressors optimized for R513A, axial-flow fans, micro-channel full-aluminum condensing coils, single-pass shell and tubes evaporator designed by Mitsubishi Electric Hydronics & IT Cooling Systems, and electronic expansion valve. Base and supporting structure and panels are made of galvanized epoxy powder coated steel with increased thickness. Eurovent certification. The screw compressors feature the variable speed technology thanks to the integrated refrigerant cooled inverter, for maximum compactness and operating flexibility. Moreover, they feature the Variable Vi (compression ratio) technology, to change the internal geometry according to the operating conditions. Thanks to the accurate sizing of all internal components and the use of variable speed technology, the unit ensures flexibility, reliability, and maximum efficiency in every operating condition.
