i-FX2-G04 0392-1683

Air Source Chiller for comfort & process cooling
380kW-1675kW
R1234ze Refrigerant (GWP<1)
Flow temp range:4°C to 18°C

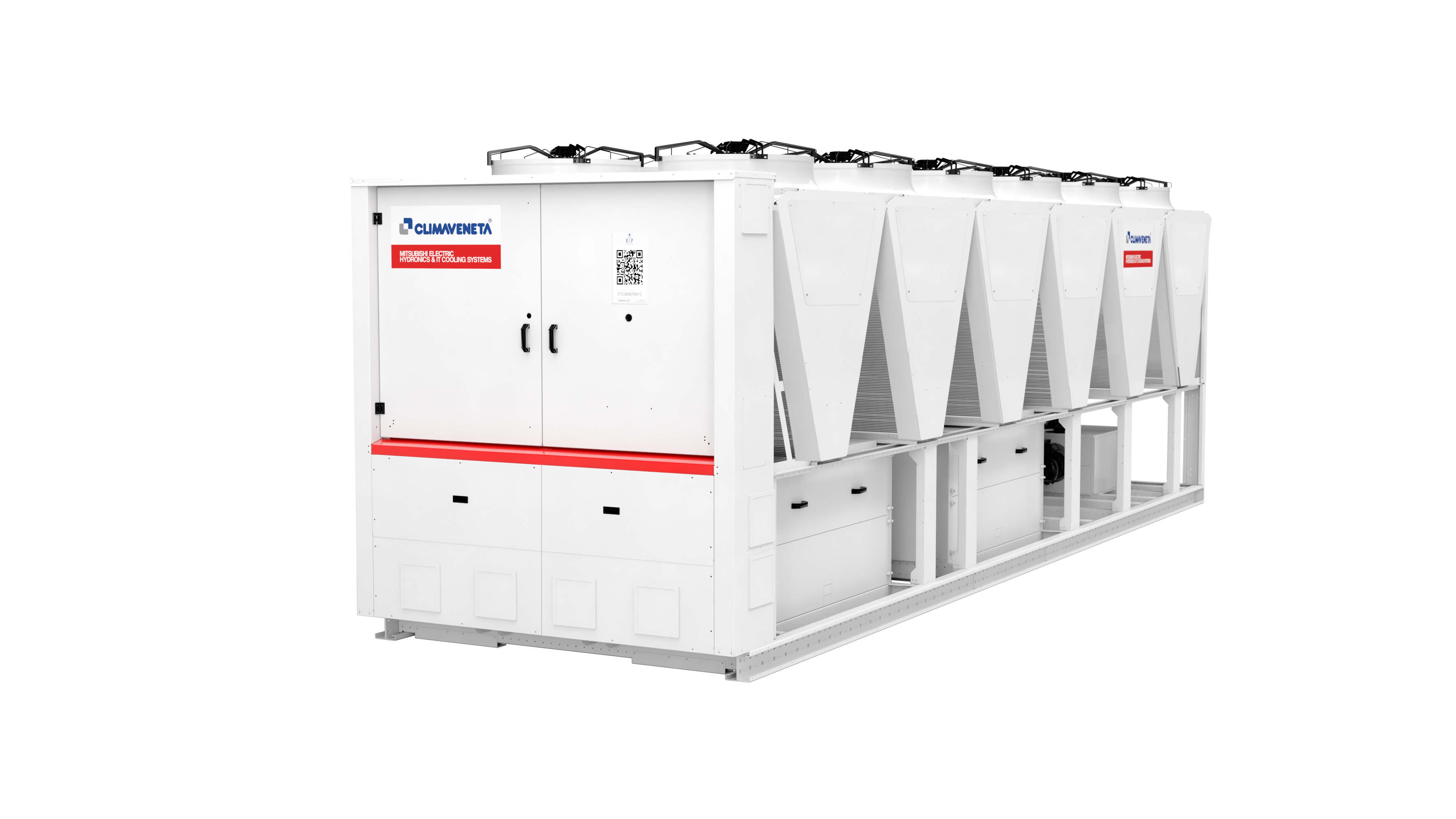

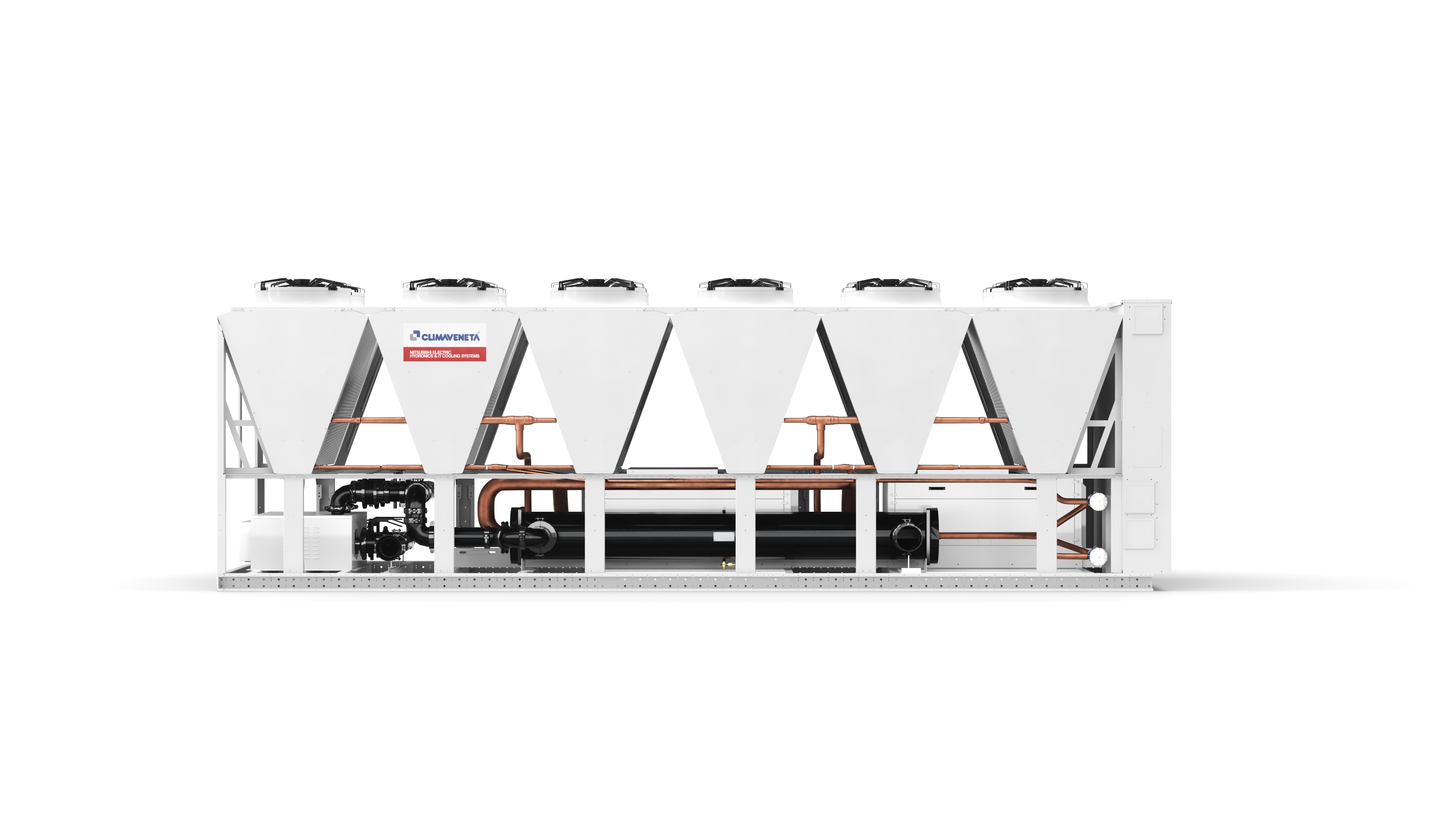

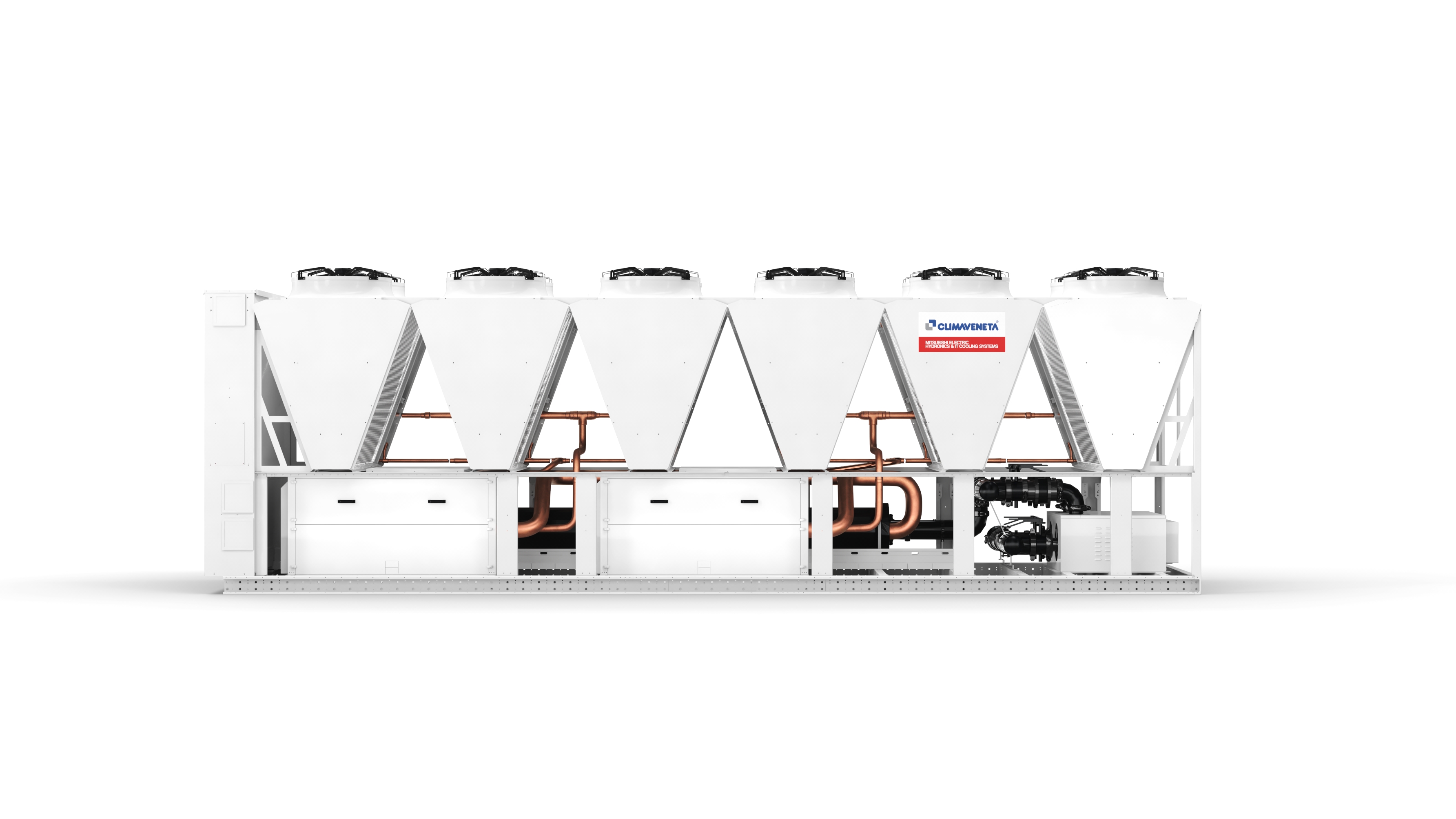

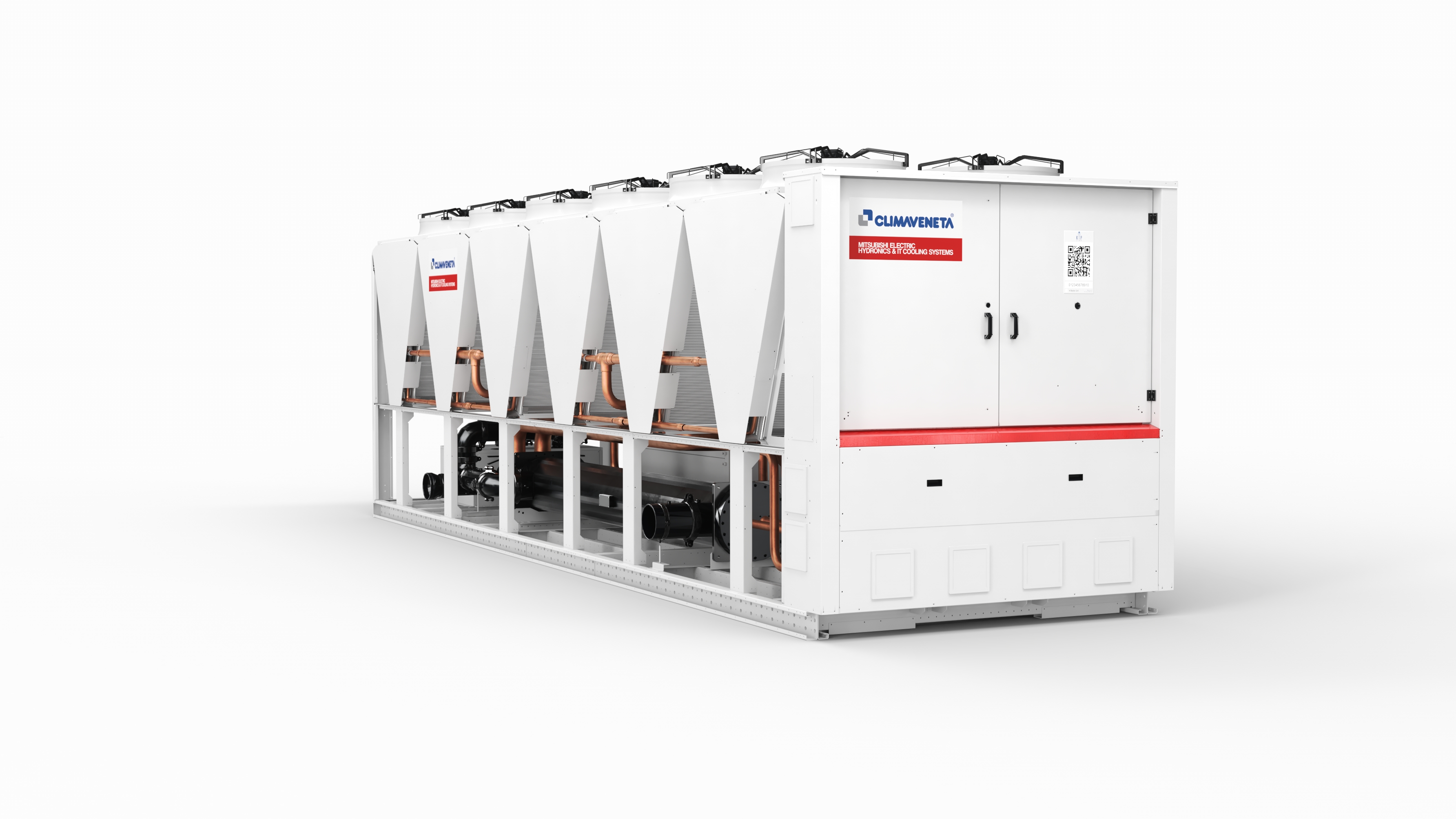

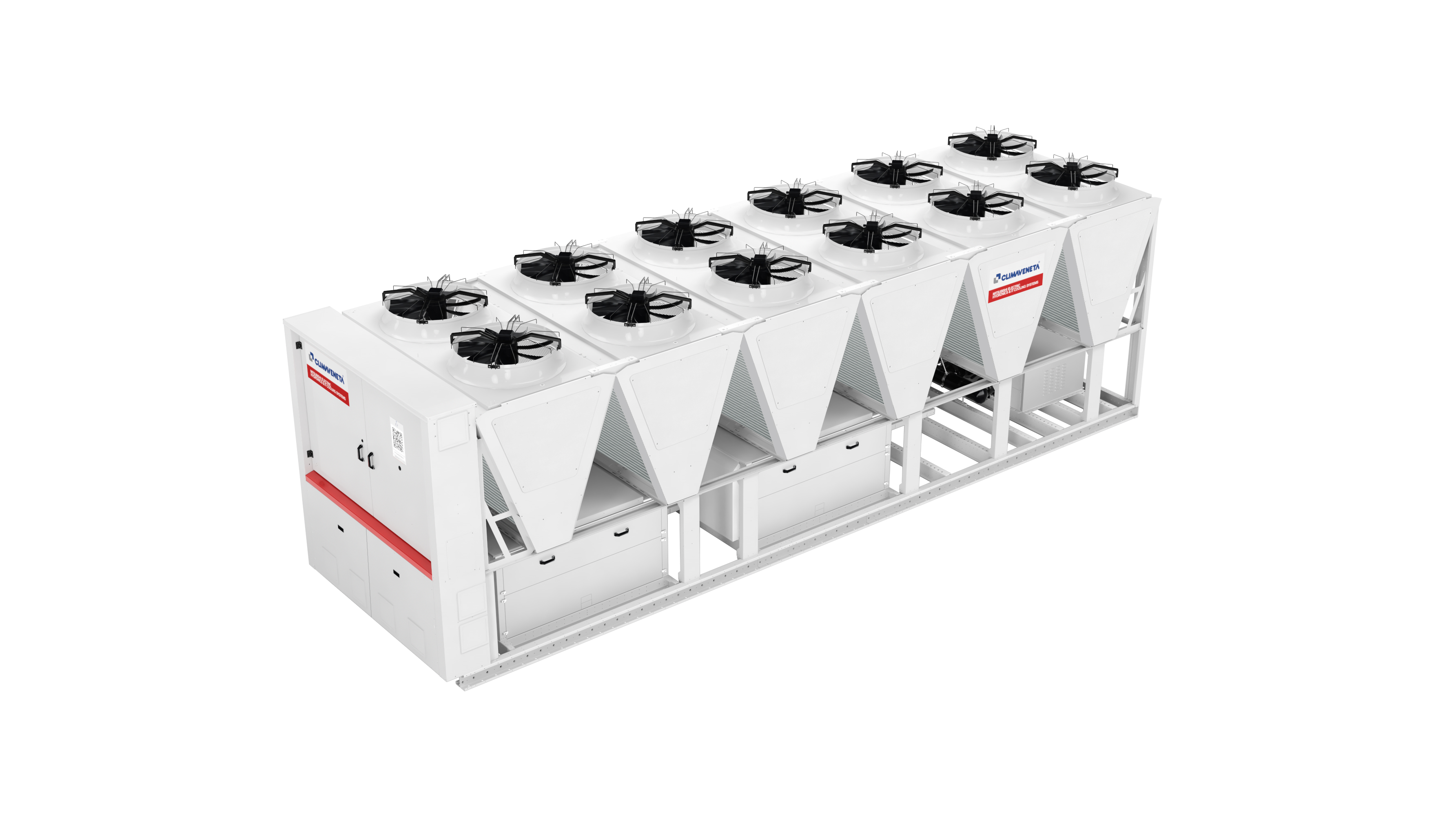

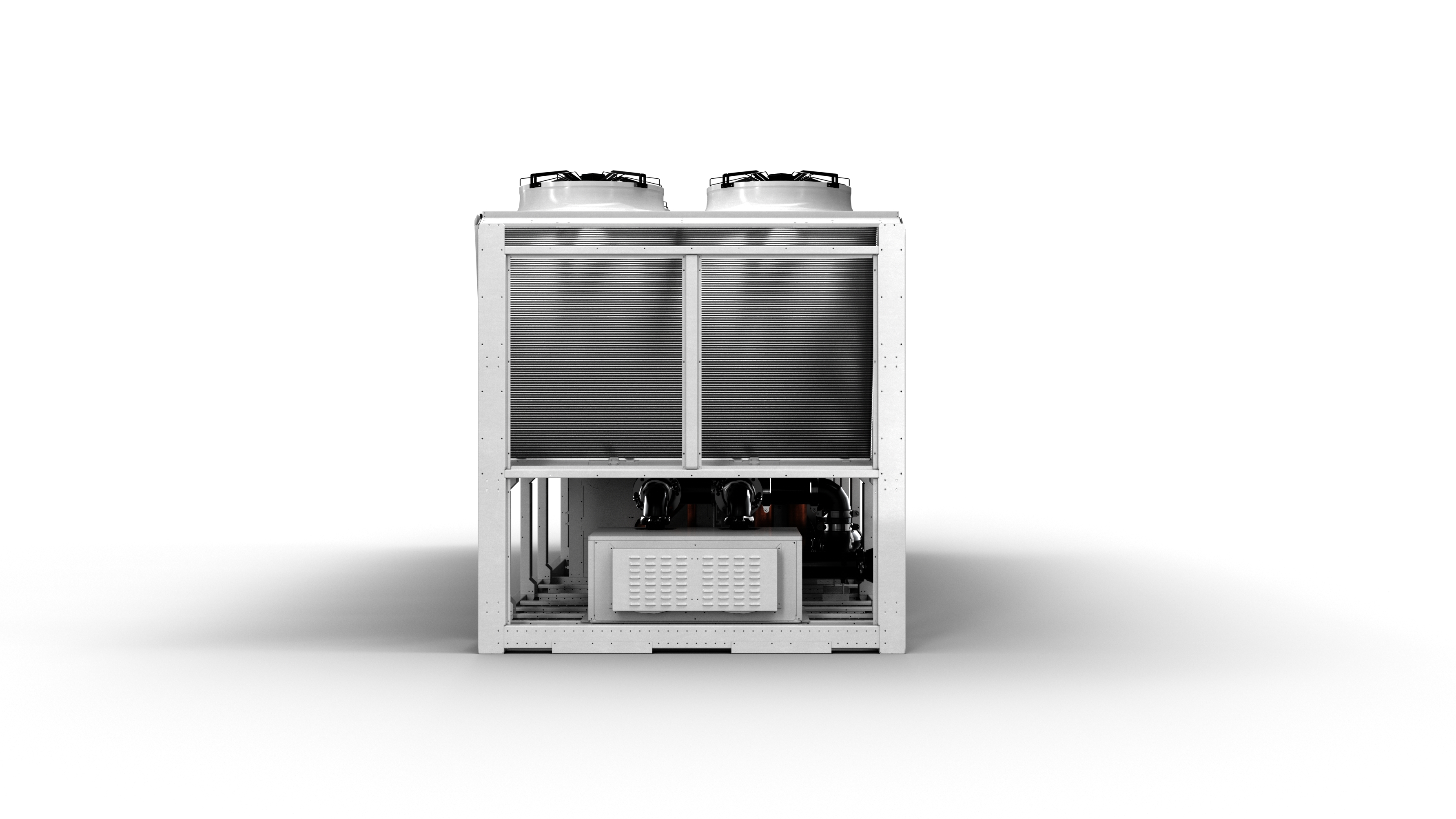

Outdoor unit for the production of chilled water with semi-hermetic variable-speed screw compressors optimized for HFO R1234ze refrigerant, axial-flow fans, micro-channel full-aluminum condensing coils, single-pass shell and tubes evaporator designed by Mitsubishi Electric Hydronics & IT Cooling Systems S.p.A. and electronic expansion valve. Base and supporting structure and panels are made of galvanized epoxy powder coated steel with increased thickness. Eurovent certification. The screw compressors feature the variable speed technology thanks to the integrated refrigerant cooled inverter, for the maximum compactness and operating flexibility. Moreover, they feature the Variable Vi (compression ratio) technology, to change the internal geometry according to the operating conditions. Thanks to the accurate sizing of all internal components and the use of variable speed technology, the unit ensures flexibility, reliability, and maximum efficiency in every operating condition.
