NX-CN 0072 - 1104

Water source heat pump
Cooling Capacity:18.0kW to 265.0kW
Heating Capacity:19.0kW to 283.0kW
R410A Refrigerant (GWP 1923)
Flow temp range:-8°C to 20°C(Cooling)24°C to 55°C(Heating)

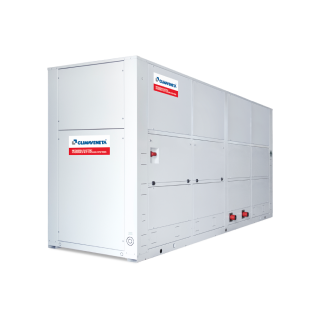

Heat pump for indoor installation to produce chilled/hot water with hermetic rotary Scroll compressors, centrifugal plug fans with EC motor, braze-welded plate-type exchanger and thermal expansion valve. Structure and the external paneling made from hot-galvanised metal plate and painted with epoxy powder coat RAL 7035. The panels are easy to remove for quick and easy access to internal components from either side of the unit. The range includes the single-circuit two-compressor versions and the dual circuit four-compressor versions.
