FOCS-N-G05 2022 - 2622

Air source heat pump
Cooling Capacity:440.0kW to 584.0kW Heating Capacity:467.0kW to 597.0kW
R513A Refrigerant (GWP 573) Flow temp range: -8°C to 20°C(Cooling)26°C to 60°C(Heating)

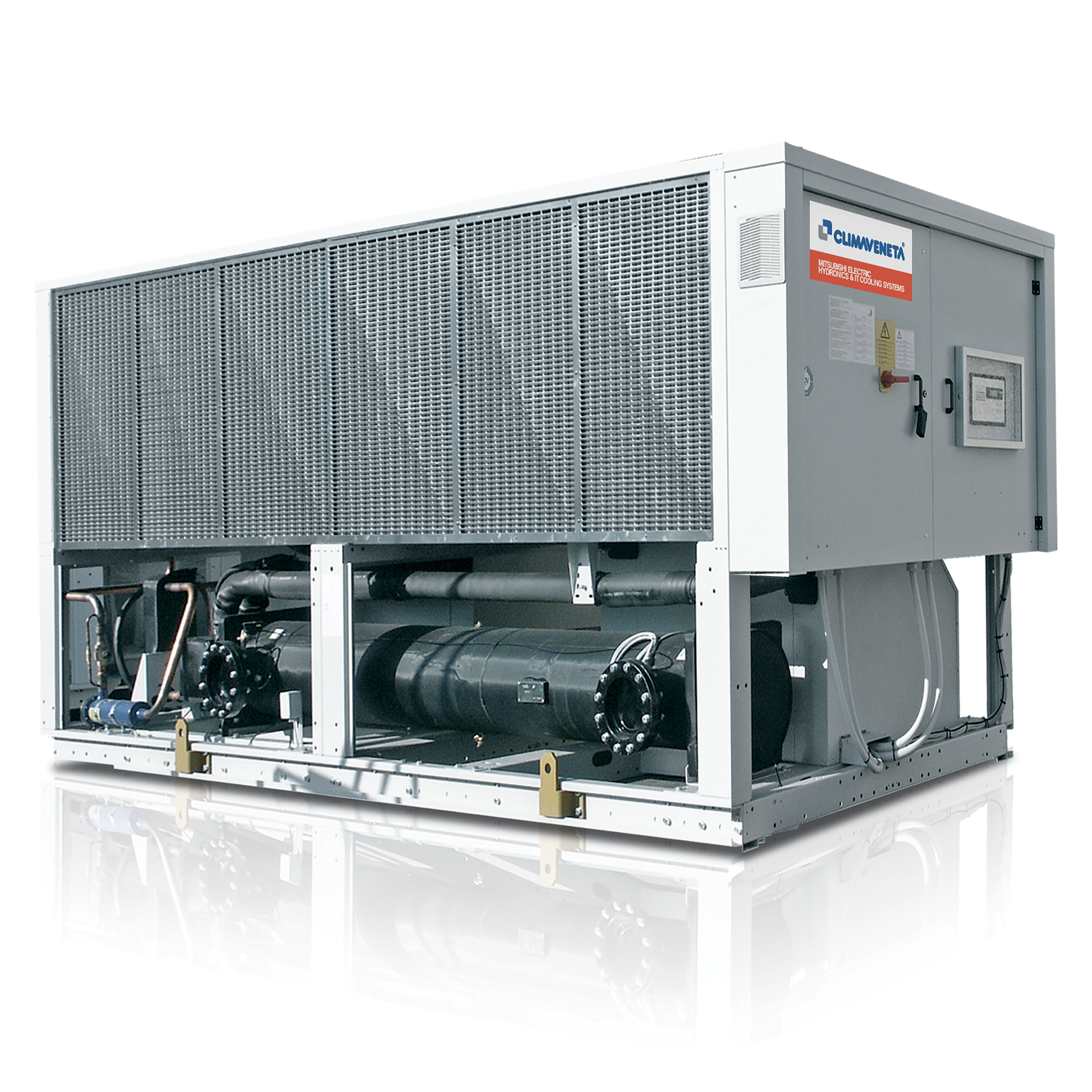

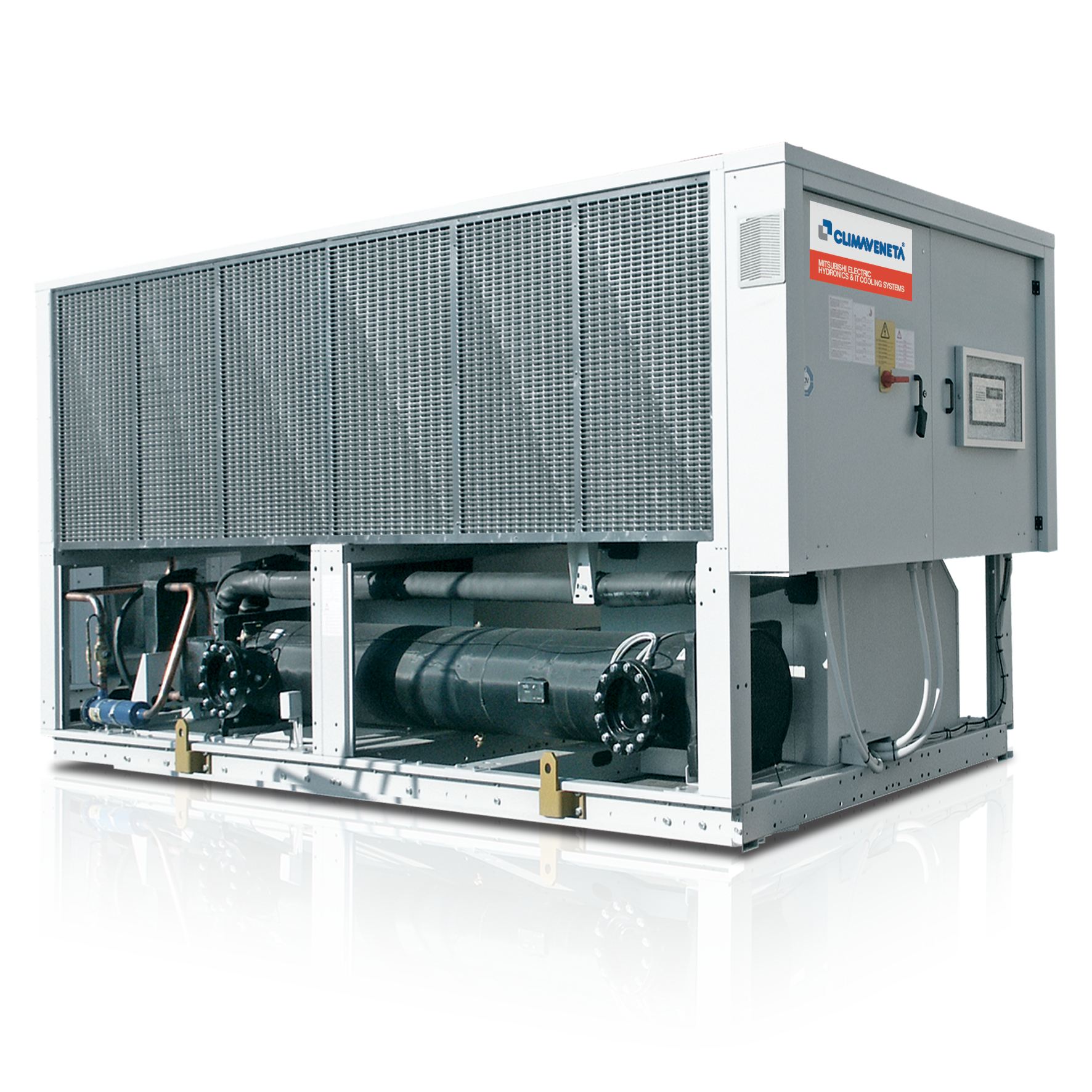

Outdoor heat pump unit for the production of chilled/hot water with semi-hermetic screw compressors optimized for R513A, axial-flow fans, external coil with copper tubes and aluminium fines, shell and tubes heat exchanger designed by Mitsubishi Electric Hydronics & IT Cooling Systems S.p.A. and electronic expansion valve. Base and supporting structure and panels are made of galvanized epoxy powder coated steel with increased thickness. These units are designed for two-pipes systems and are able to produce hot or cold water according to the selected operation mode; the precise thermoregulation guarantees an optimal response to load variations, in every operating condition.
