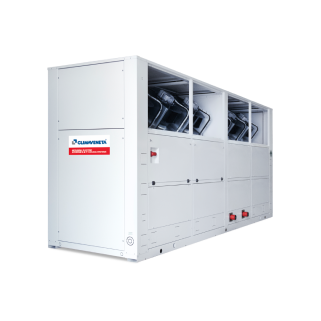

NX-C 0072 - 1204

Air Source Chiller for comfort and process cooling
18.0kW - 291.0kW
R410A (GWP 1923)
Flow temp range: -8°C to 20°C

Unit for indoor installation to produce chilled water with hermetic rotary Scroll compressors, centrifugal plug fans with EC motor, braze-welded plate-type exchanger and thermal expansion valve. Structure and the external paneling made of hot-galvanised metal and painted with epoxy powder coat RAL 7035. The panels are easily removable for a quick and easy access to the inside components on either side of the unit. The range includes the single-circuit two-compressor version and the dual circuit four-compressor version.
