i-FX-W (1+i)-G05 1402 - 4652

i-FX-W (1+i)-G05 1402 - 4652

Water Source Chiller for comfort and process cooling
532kW - 1,784kW
R513A (GWP:573)
Flow temp range: -8°C to 15.0°C

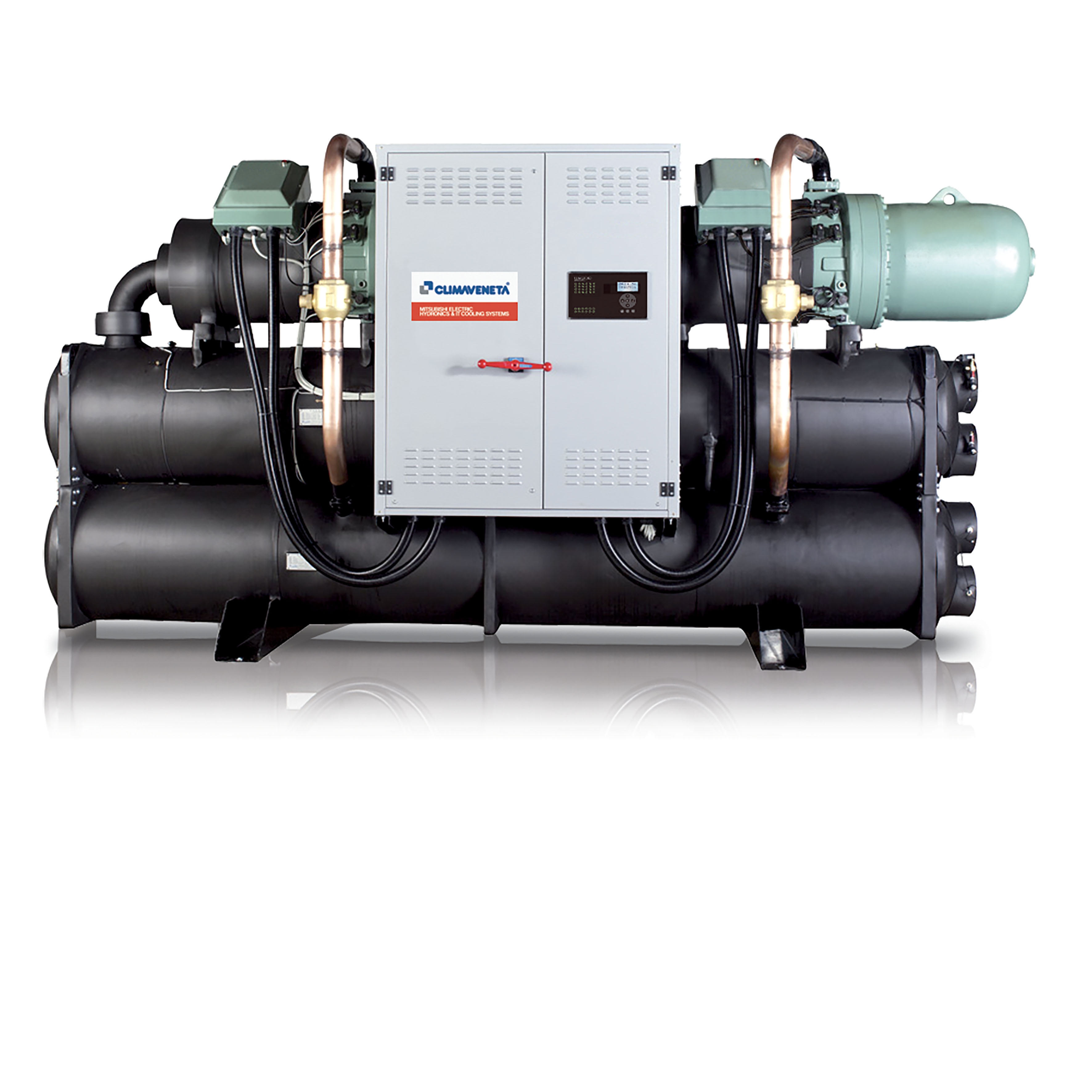

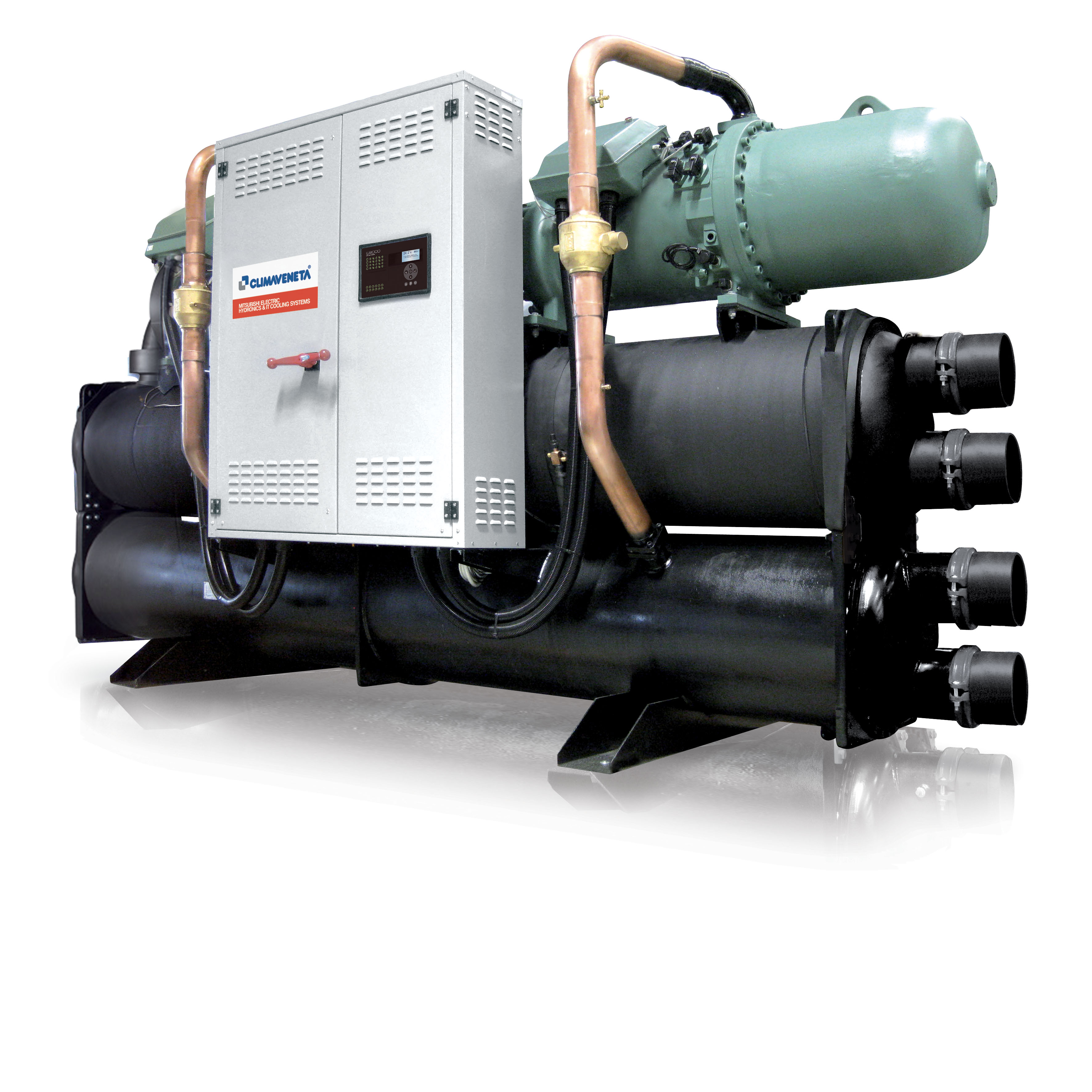

Single circuit indoor unit for the production of chilled water, with fixed speed and variable speed (Inverter Driven) screw compressors optimized for R513A, electronic expansion valve, high performing shell and tube condenser and shell and tube flooded evaporator, both designed and manufactured by Mitsubishi Electric Hydronics & IT Cooling Systems. The resulting unit is extremely compact, thanks to the strategic layout, designed without base, frame, and panels.

Downloads

  • DB i-FX-W (1-plus-i) 1402 - 4652 201504 EN Data book.pdf -

Installation

  • IM i-FX-W(1-plus-i)-G05 C0210101-07-16-EN General manual for installation.pdf -
  • MEC i-FX-W(1-plus-i)-G05 1402-4652 Dimensional drawings.pdf -
  • SND i-FX-W(1-plus-i)-G05 1402-4652 Full load sound level.pdf -
  • HYD i-FX-W(1-plus-i)-G05 1402-4652 Hydraulic data.pdf -
  • ELC i-FX-W(1-plus-i)-G05 1402-4652 Electrical data.pdf -
