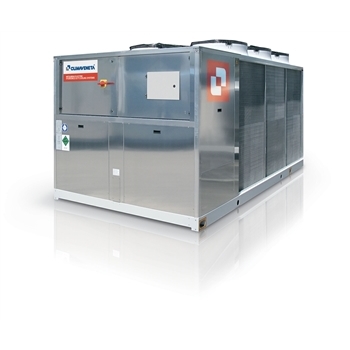

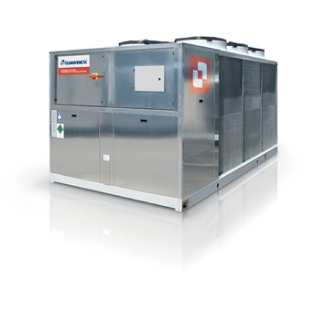

NX-Q-G06 0604 - 1204

Air source INTEGRA unit for 4-pipe simultaneous heating & cooling
Cooling Capacity:136.0kW to 298.0kW
Heating Capacity:150.0kW to 324.0kW
Refrigerant: R454B (GWP 467)
Flow temp range: -8.0°C to 15.0°C (Cooling) 24.0°C to 52°C(Heating)

Multi-purpose outdoor unit for use in 4-pipe systems for the simultaneous production of hot and chilled water by means of two independent hydronic circuits. These units are able to satisfy the demand for hot and cold water simultaneously through a system that does not require seasonal switching and is therefore a valid alternative to traditional plants with chiller and boiler. Unit with two independent refrigerant circuits, each equipped with two hermetic rotary Scroll compressors, low-GWP and ozone-friendly refrigerant R454B, axial fans, braze-welded plate-type exchanger and thermal expansion valve. External panels in Peraluman and base in galvanised sheet steel with paint finish.
