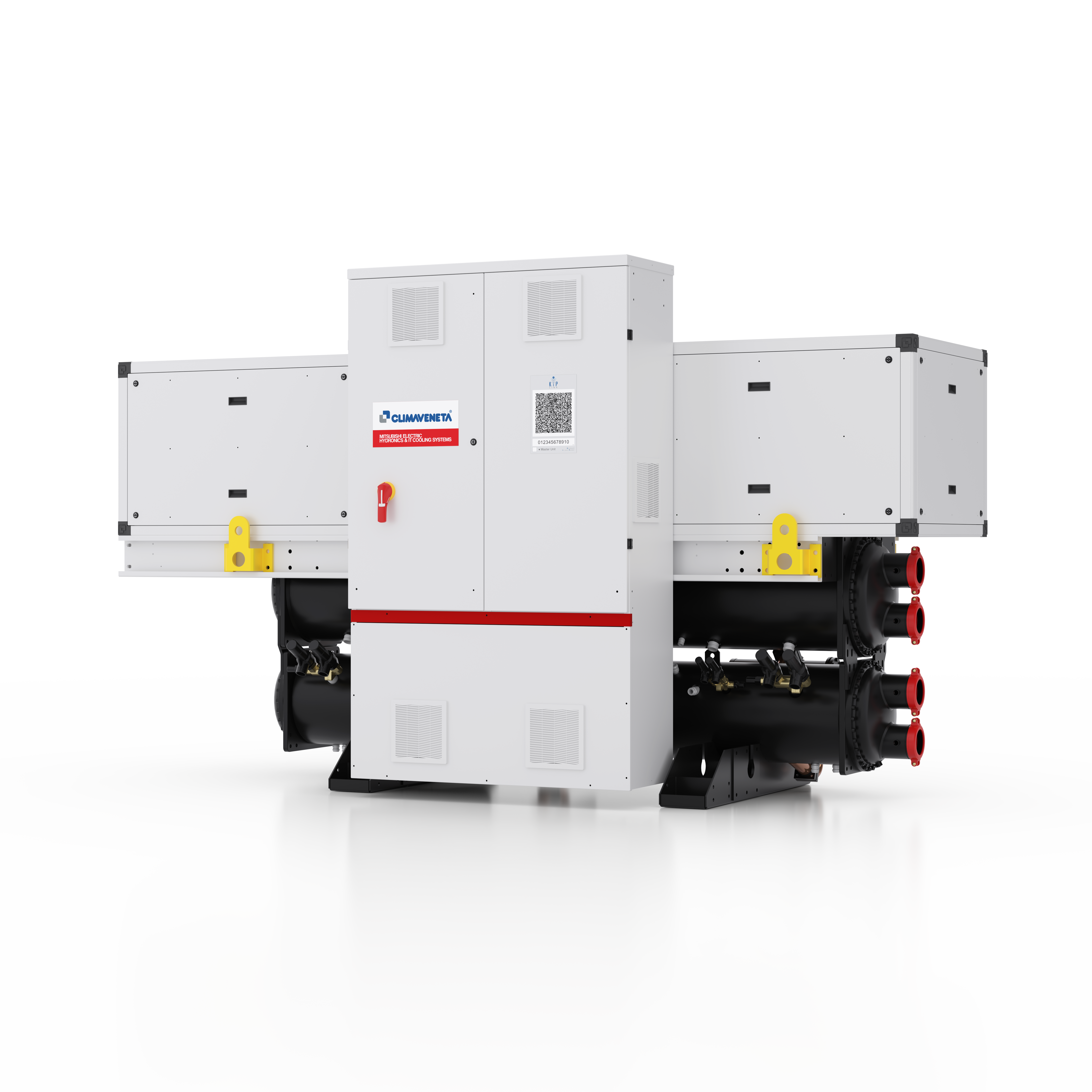

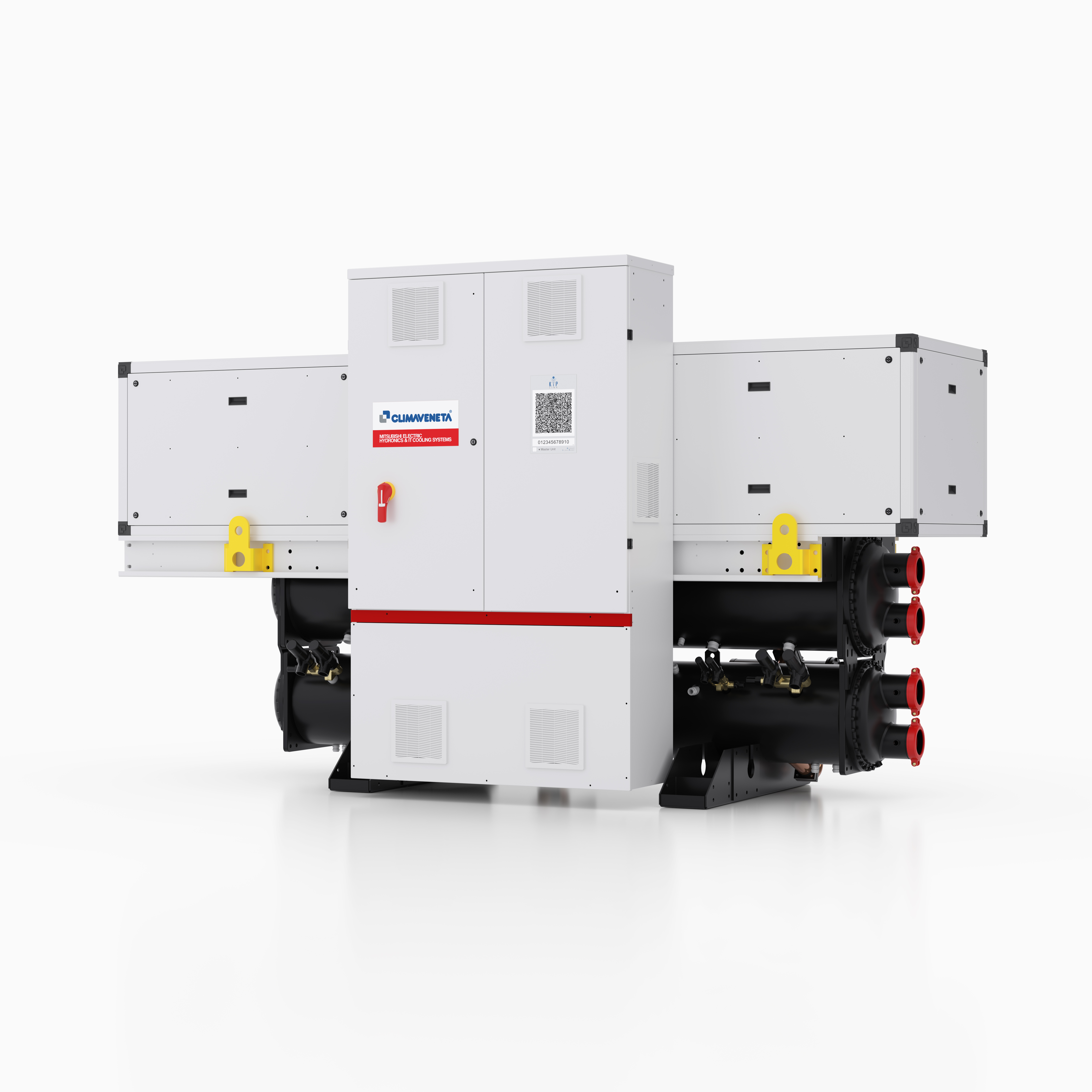

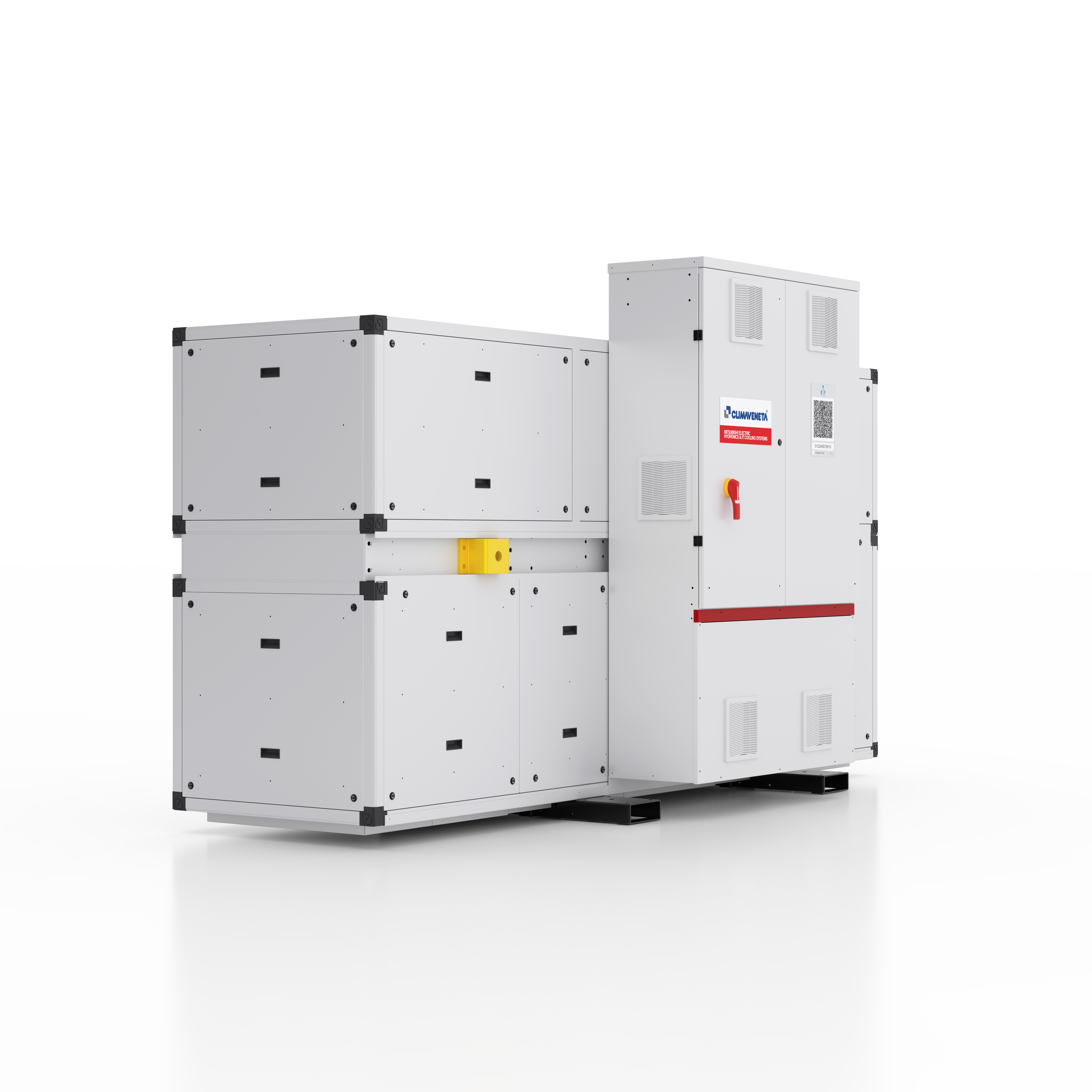

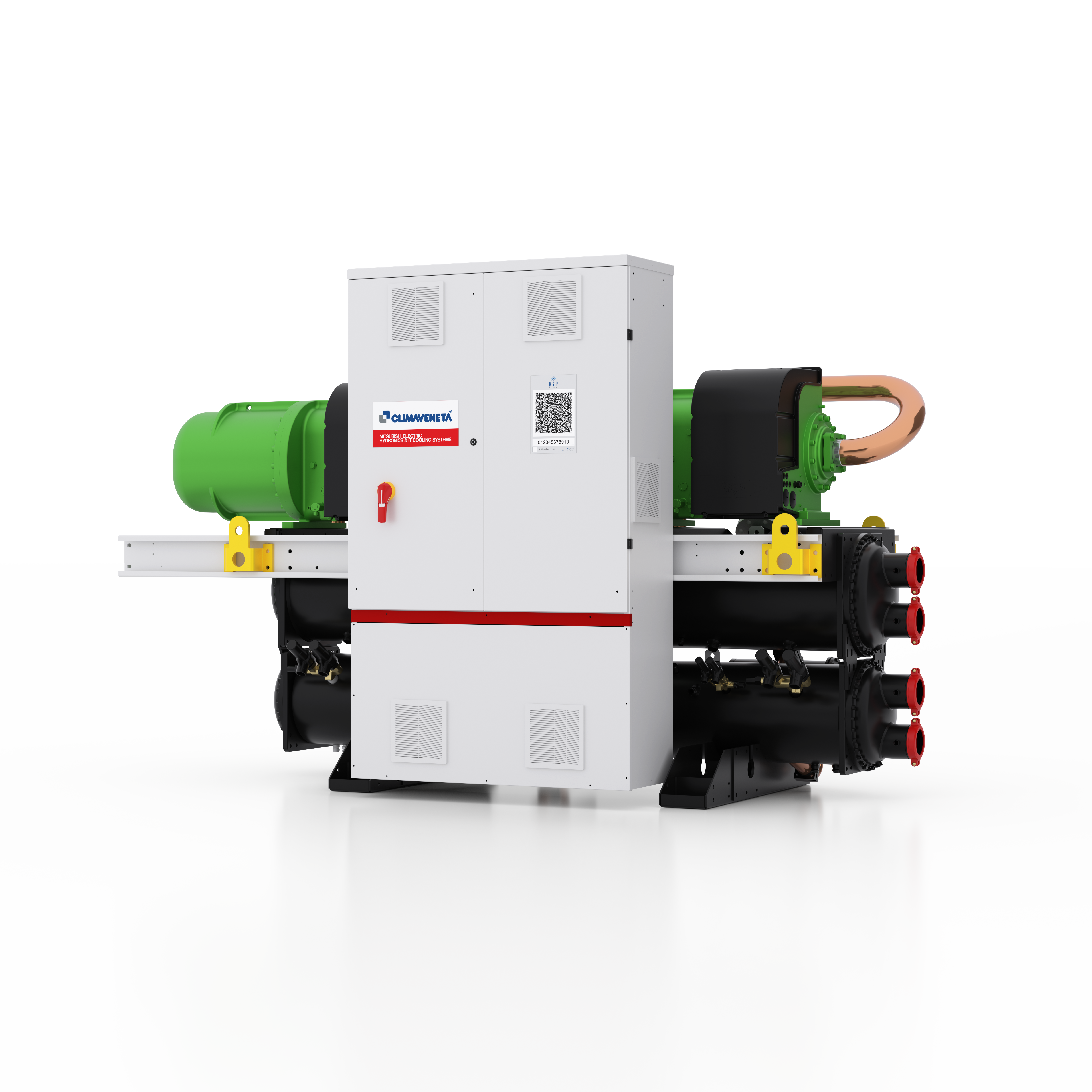

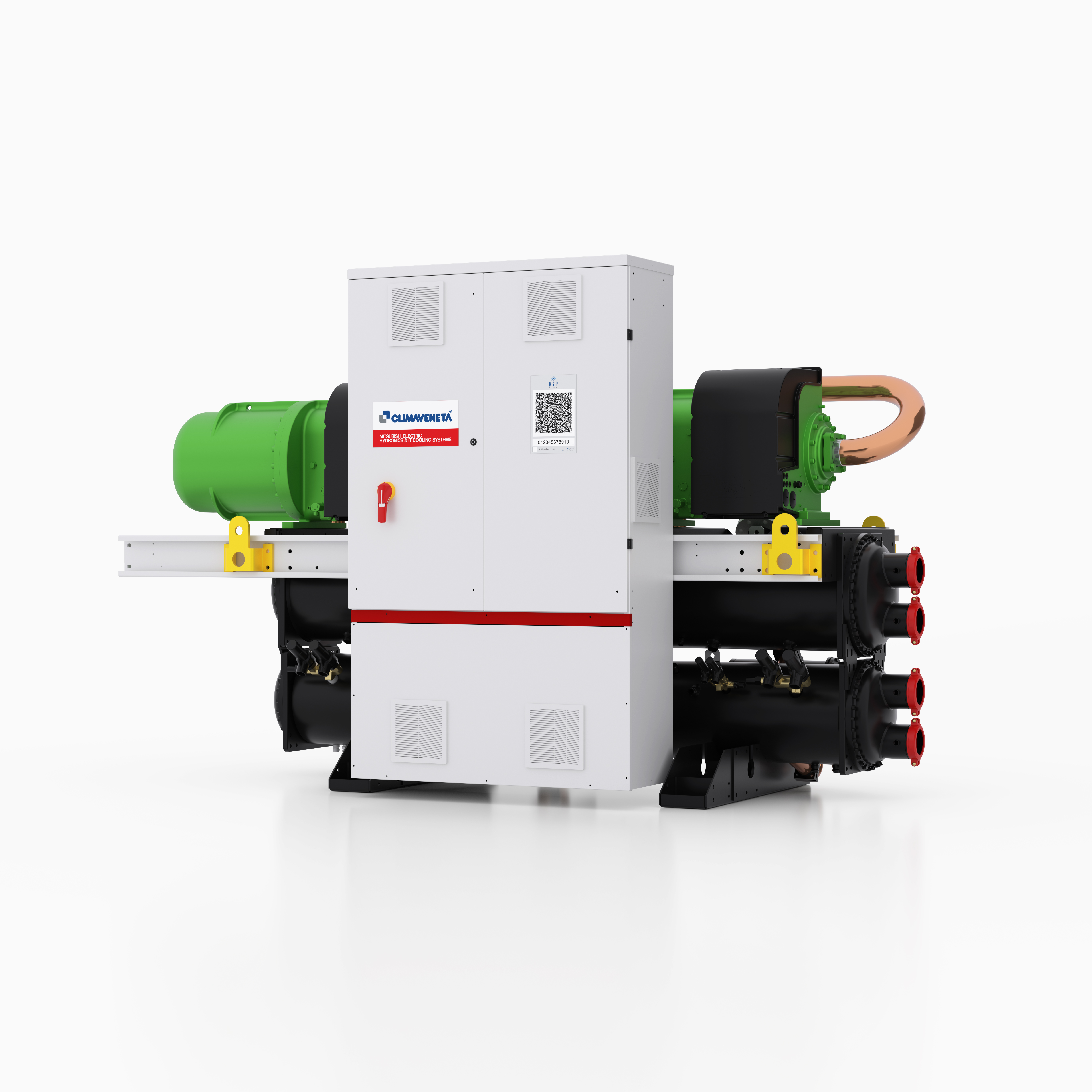

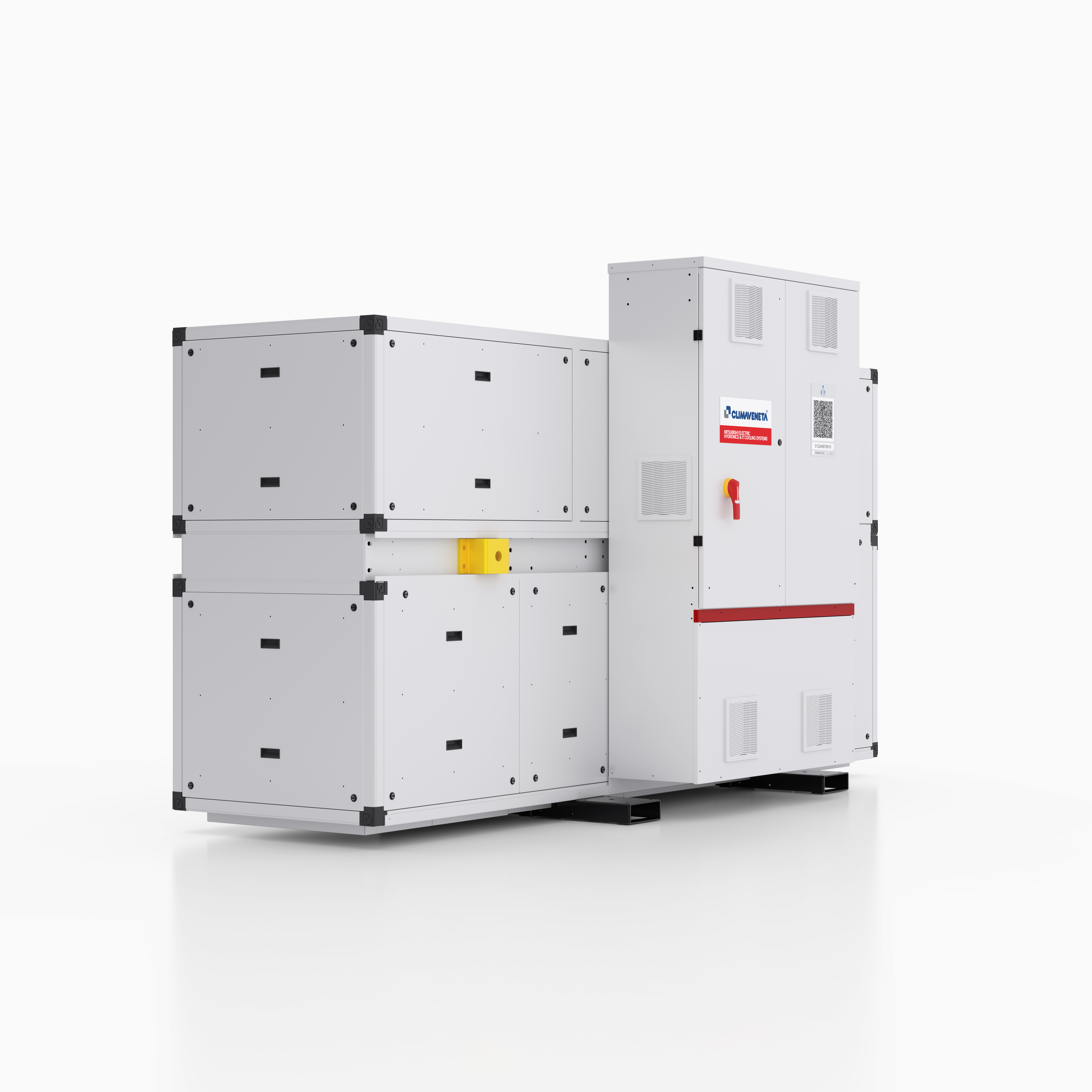

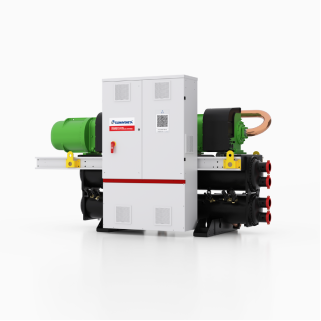

i-FX2-W-G04/H 0402-1242

Water source Heat pump
Cooling Capacity:397.0kW to 1244.0kW
Heating Capacity:453.0kW to 1444.0kW
HFO R1234ze Refrigerant (GWP < 1)
Flow temp range: 4°C to 15°C(Cooling) 21°C to 72°C(Heating)

Indoor unit for the production of chilled/hot water, with high efficiency variable speed (Inverter Driven) screw compressors optimized for low compression ratios and specifically designed for near zero GWP HFO R1234ze refrigerant. All the sizes are designed with two completely indipendent refrigerant circuits, electronic expansion valves, high performing shell and tube condenser and shell and tube hybrid (flooded/falling film) evaporator with low refrigerant charge technology and high heat transfer coefficiecents, both designed and manufactured by Mitsubishi Electric Hydronics & IT Cooling Systems S.p.A. These advanced solutions allows the unit to achieve high efficiencies with low refrigerant charge.
