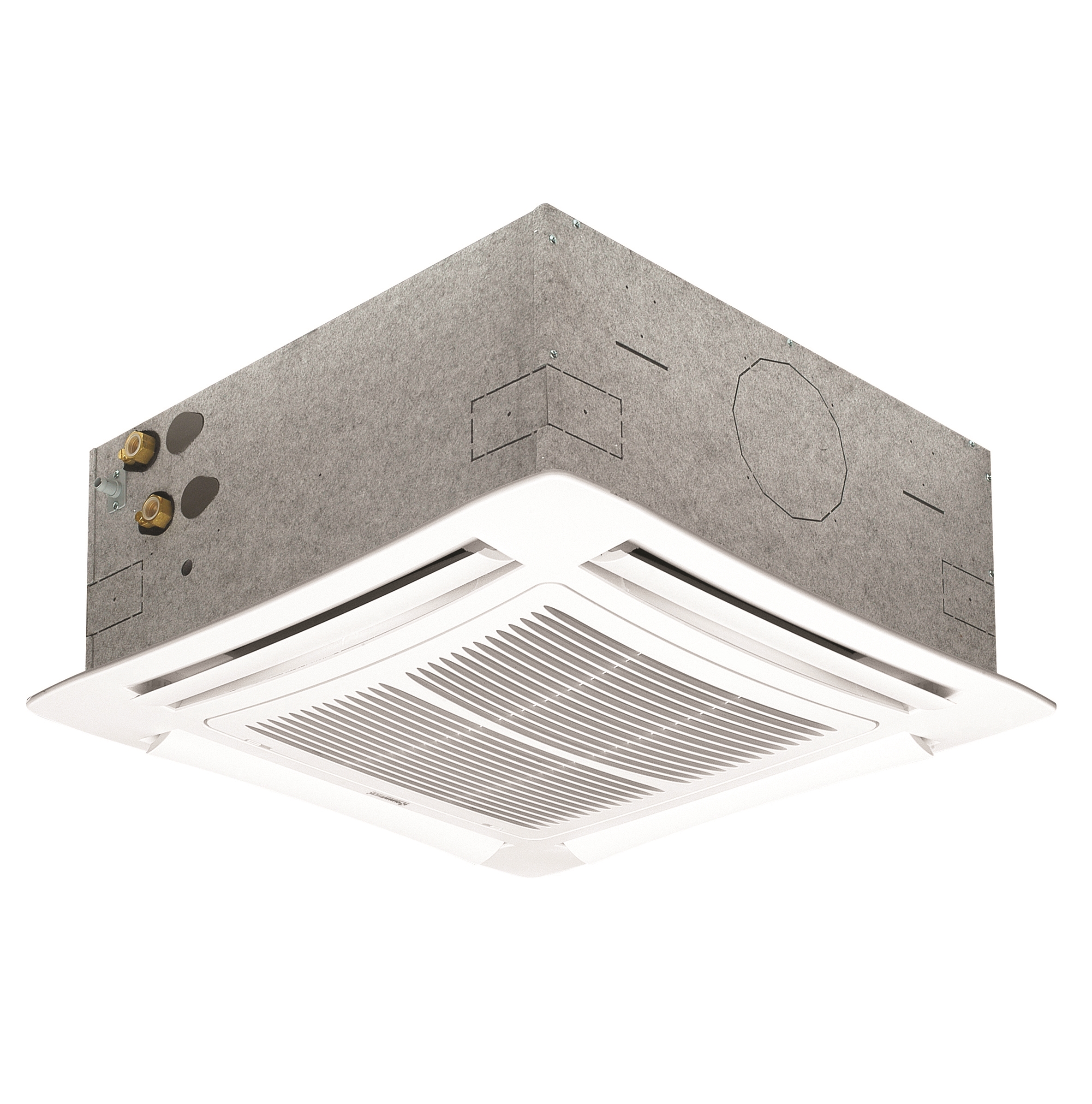

a-CXW, i-CXW

4-Way Cassette
2-Pipe
1.98-11.10, 2.74-10.80 kW Cooling
2.18-11.50, 2.85-10.50 kW Heating
4-Pipe
2.33-8.90, 2.75-9.86 kW Cooling
2.60-10.90, 3.16-8.22 kW Heating

This range of 4-way cassette hydronic terminal comes standard with manually adjustable 4-way air distribution louvres, ultra-quiet radial fan assemblies, washable regenerative air filters, a built-in condensate drain pump with 650mm head, pre-installed 230V 2- or 3-way valves, and a condensate overflow alarm system. Available in both 2-pipe and 4-pipe configurations, the range includes AC motor (a-CXW) and EC inverter-driven motor (i-CXW) versions, with optional primary air integration, additional air distribution outlets, electric heaters, wall-mounted thermostats, IR remote controls, touchscreen controllers, and Modbus BMS connectivity.
