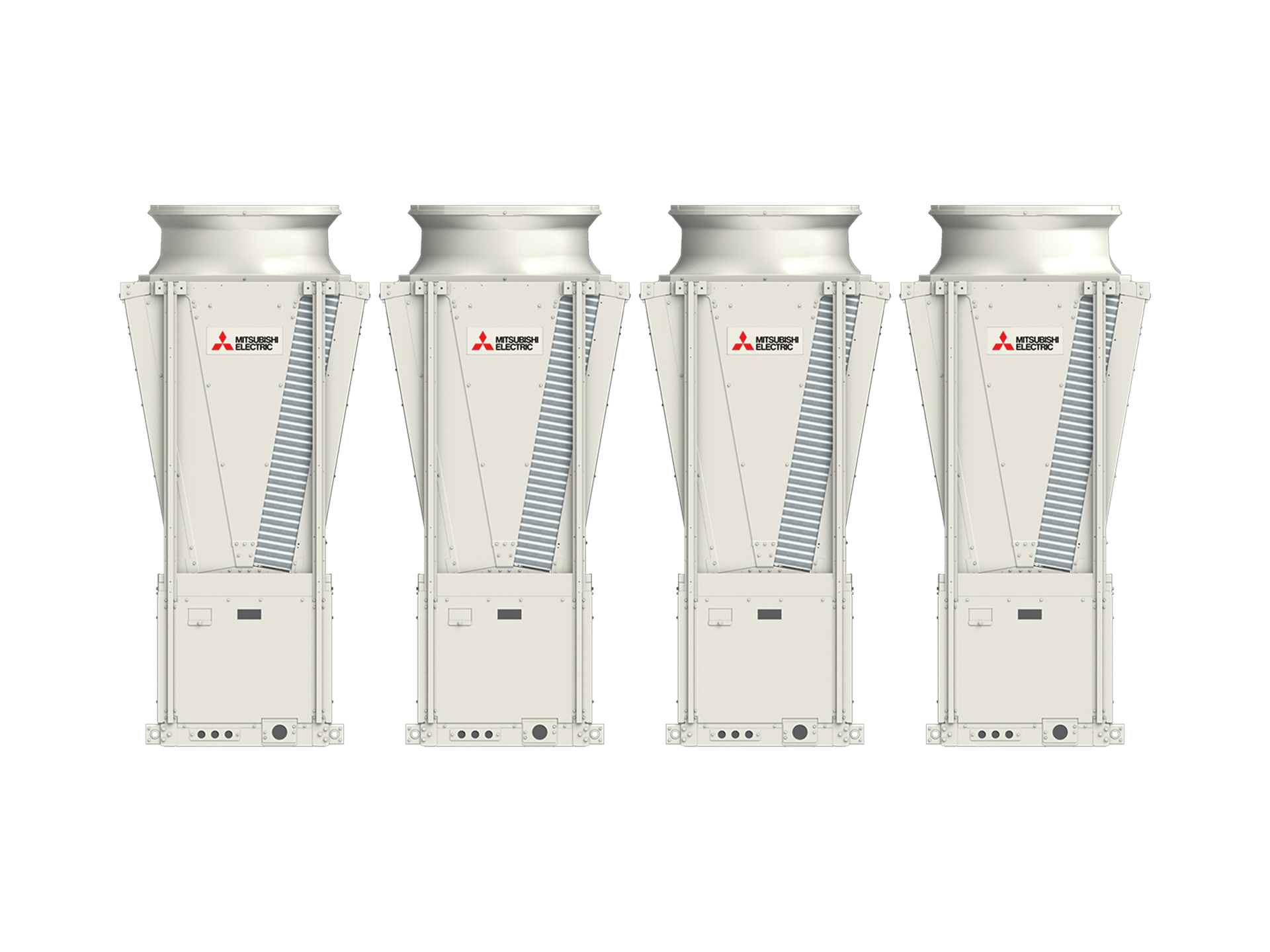

EAHV-M1500 & EAHV-M1800

EAHV-M1500 & EAHV-M1800

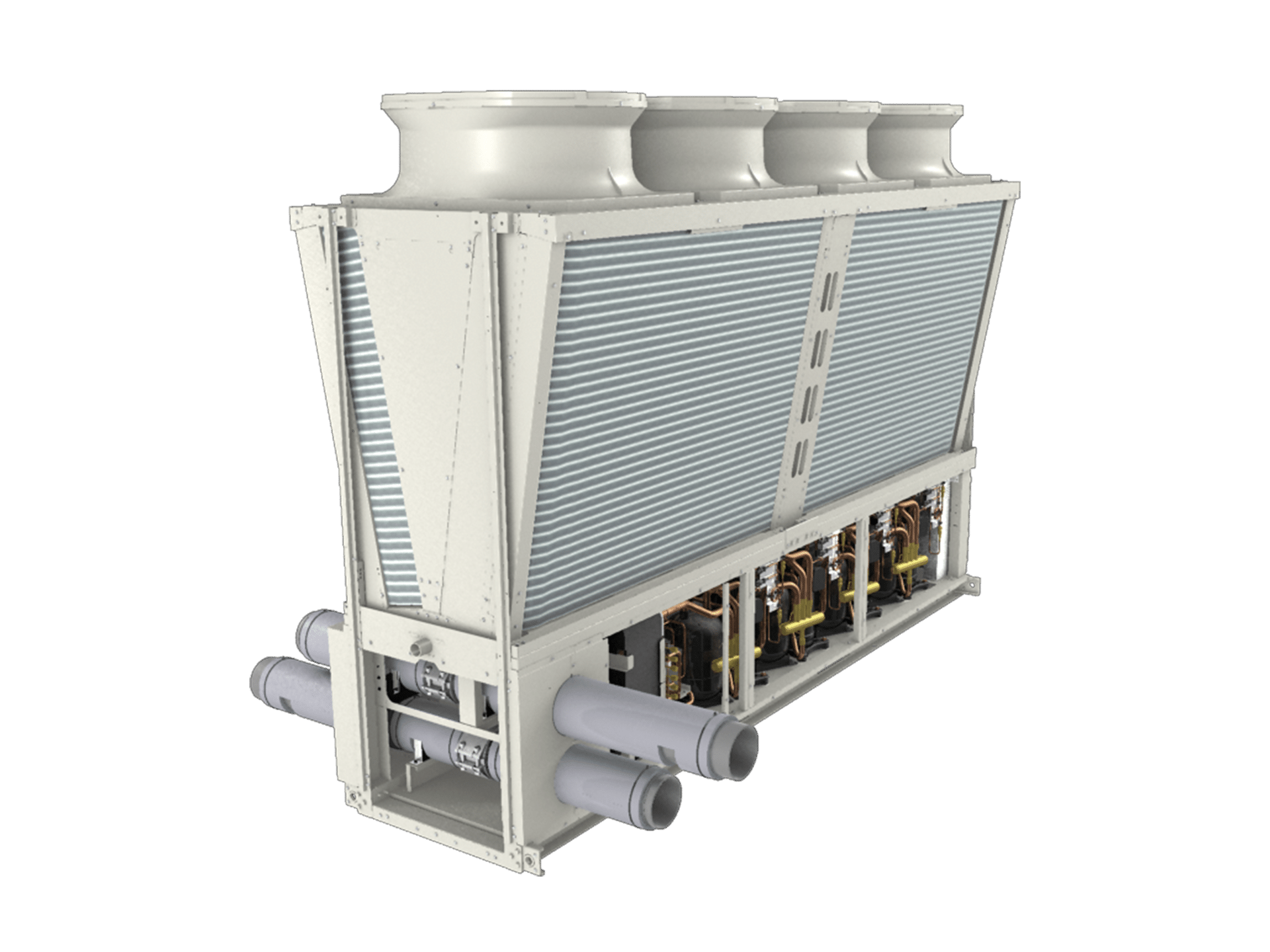

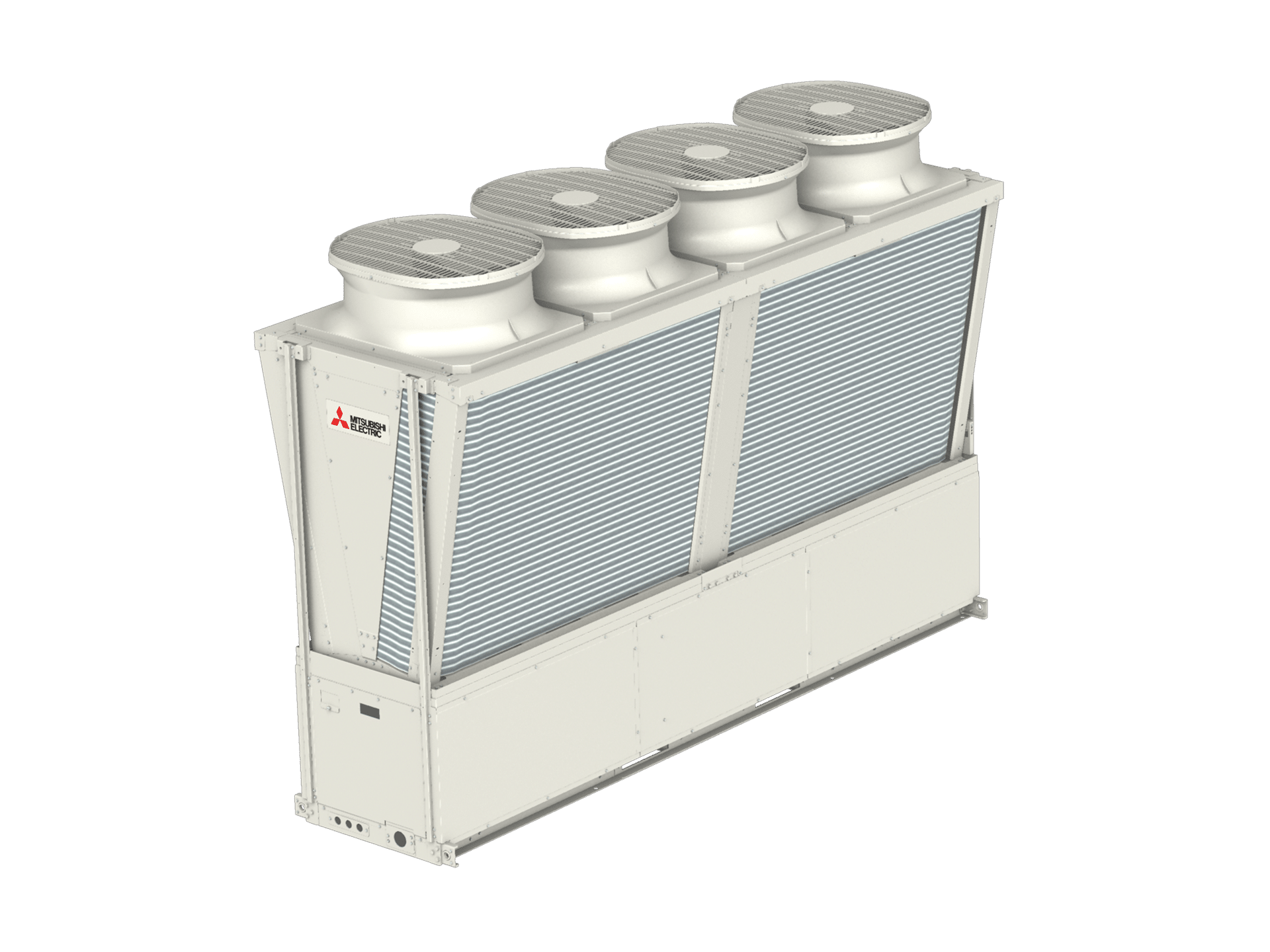

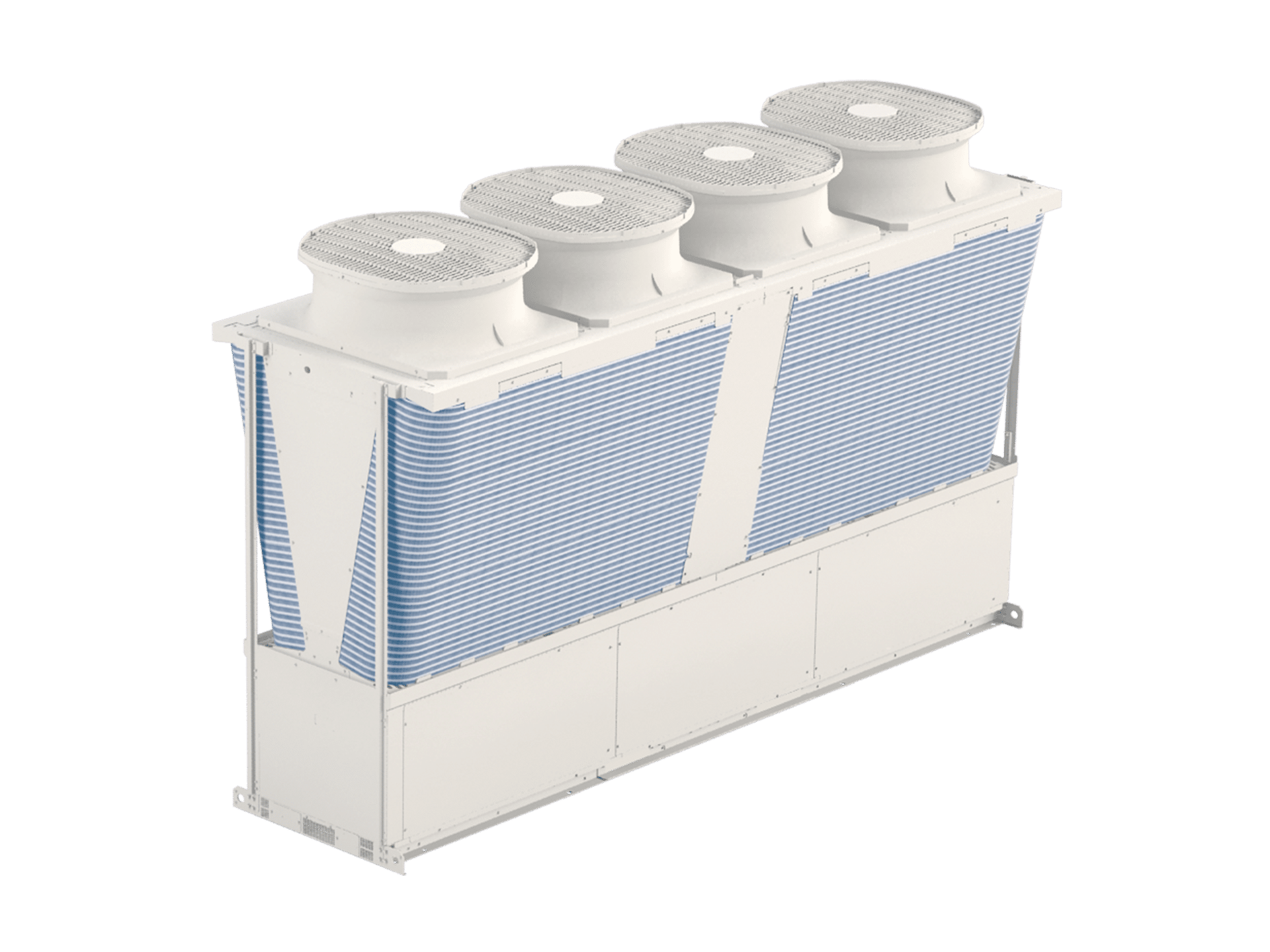

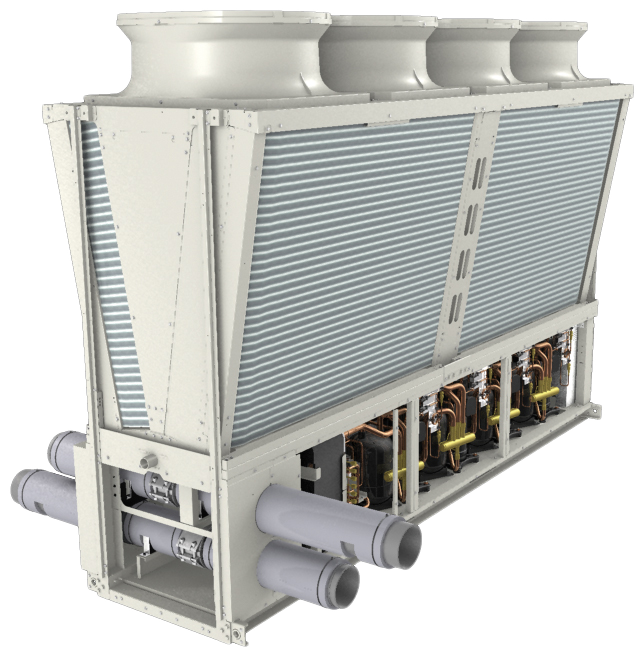

Air sourced e-Series Reversible Modular Heat Pump Chiller for comfort and process cooling and heating
Capacity: 150-180kW modules
Refrigerant: R32 (GWP 677)
Flow Temp Range: 4.0°C to 30.0°C (Cooling),25°C to 55°C(Heating)

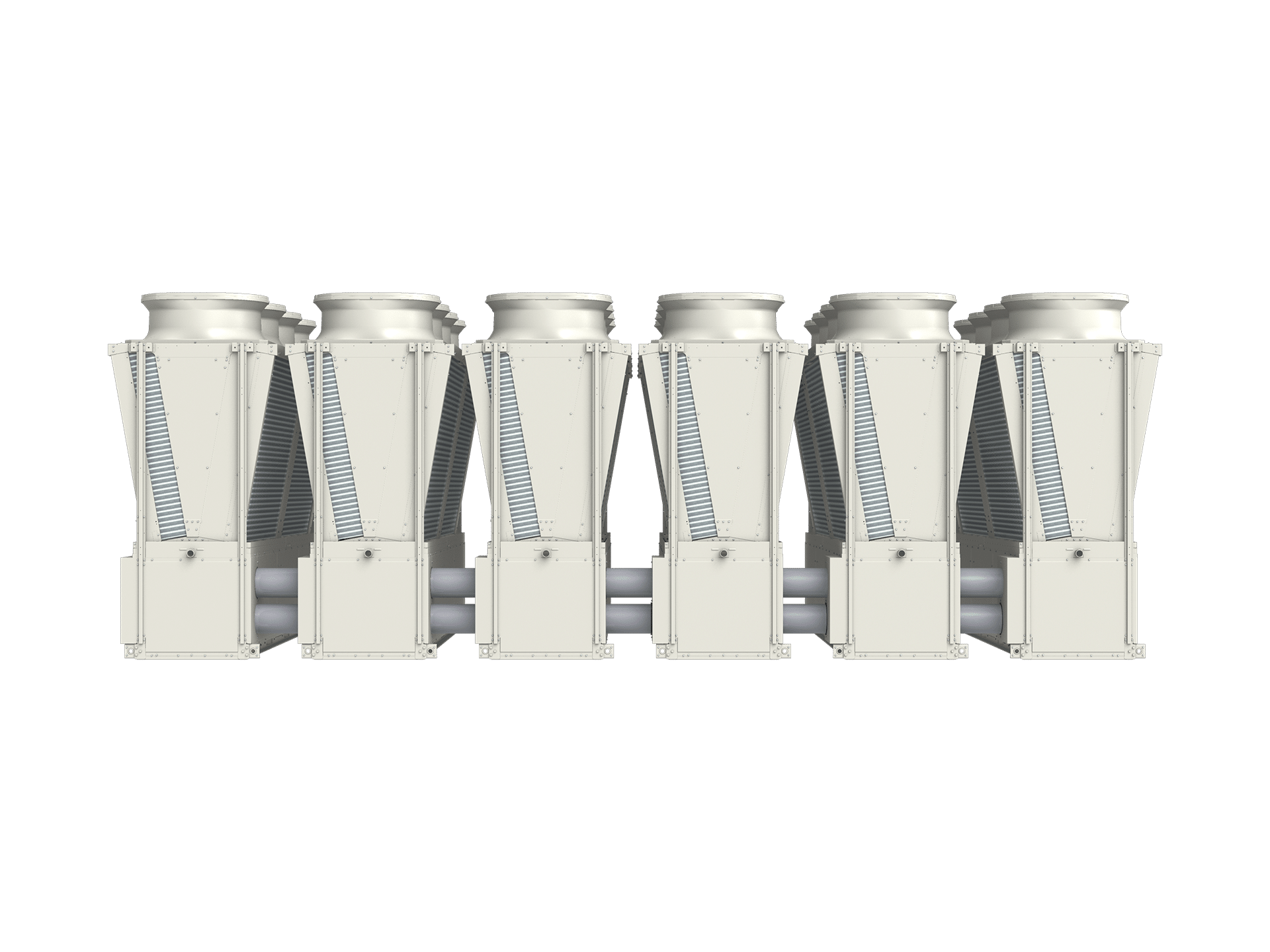

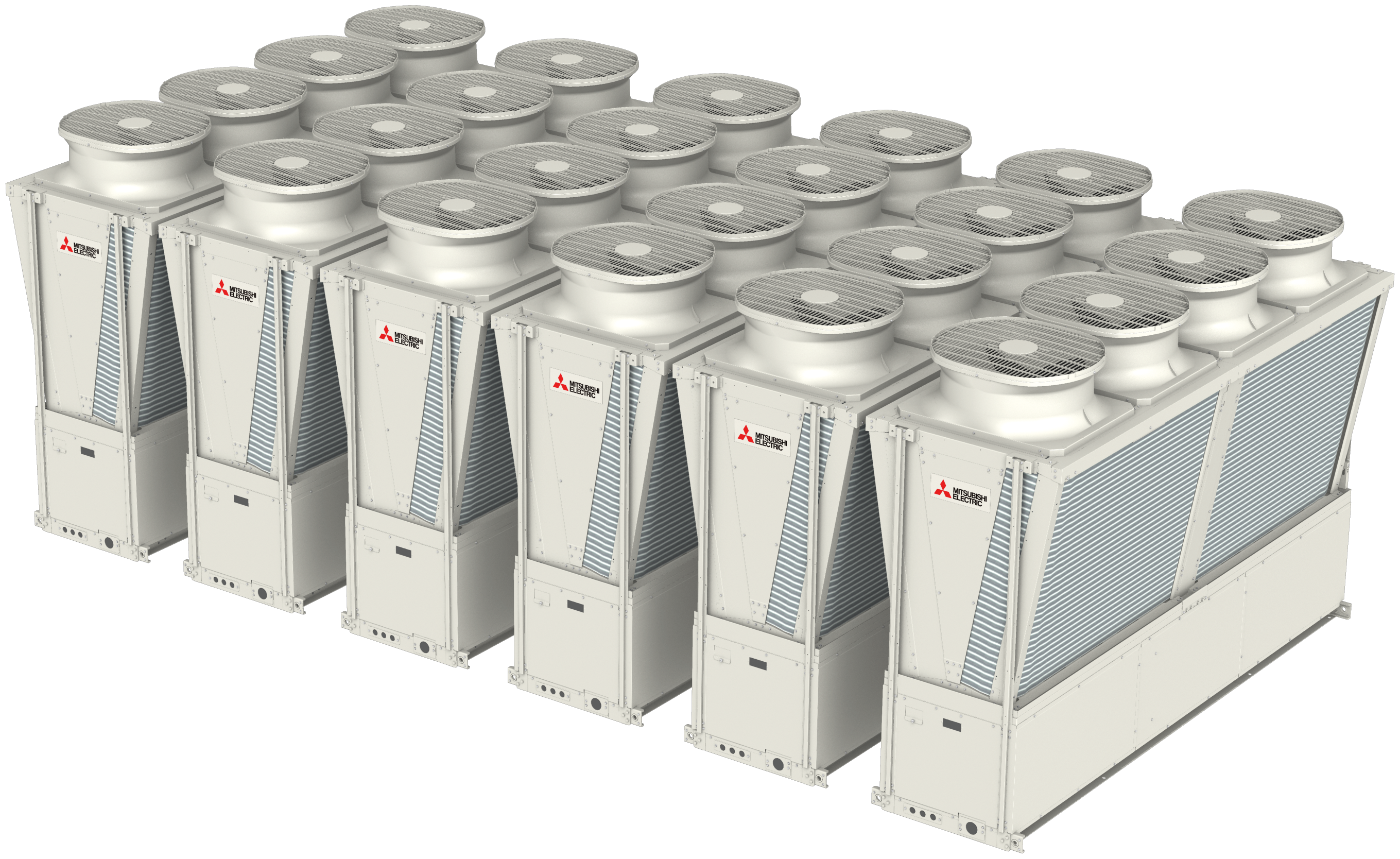

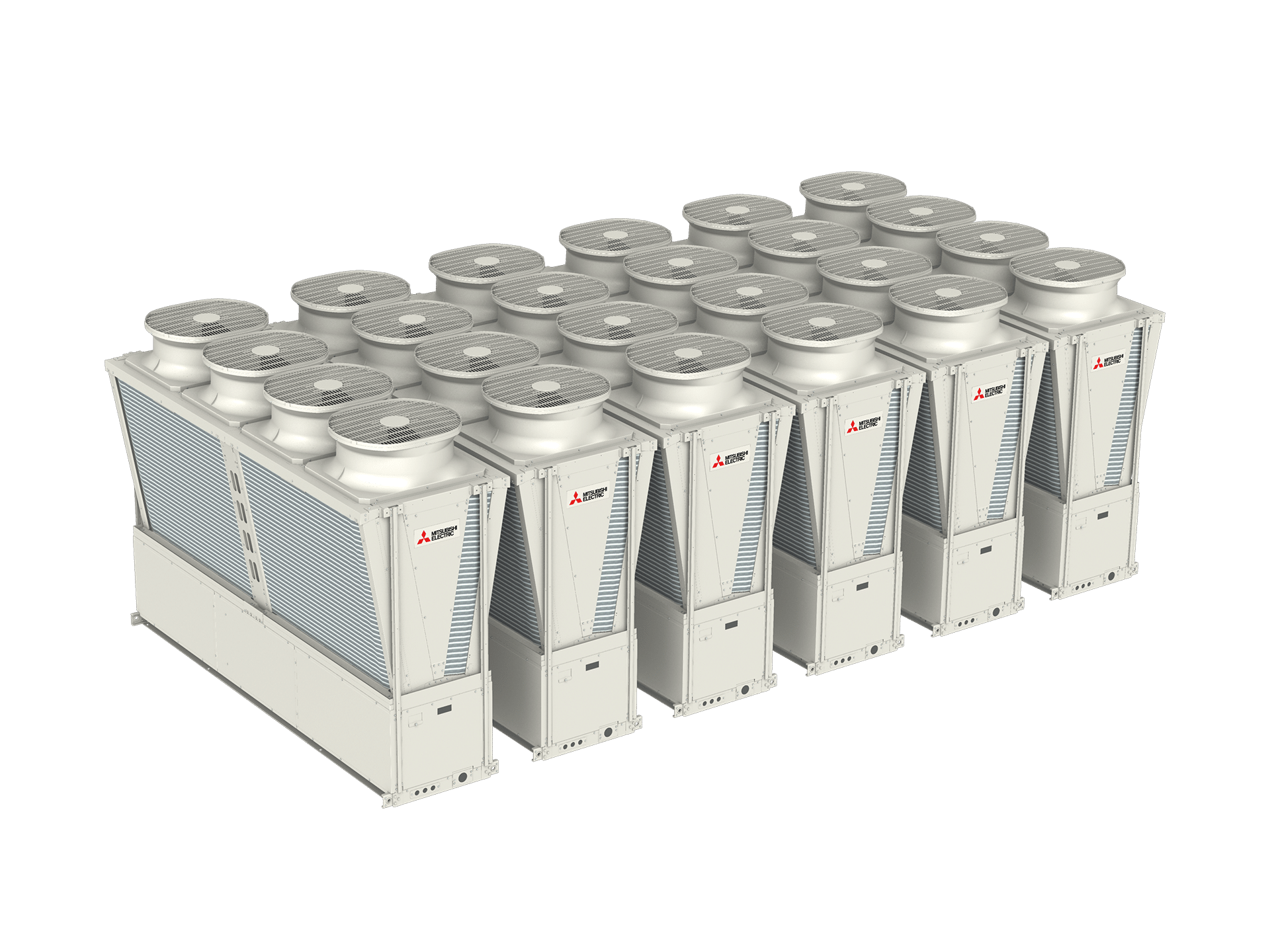

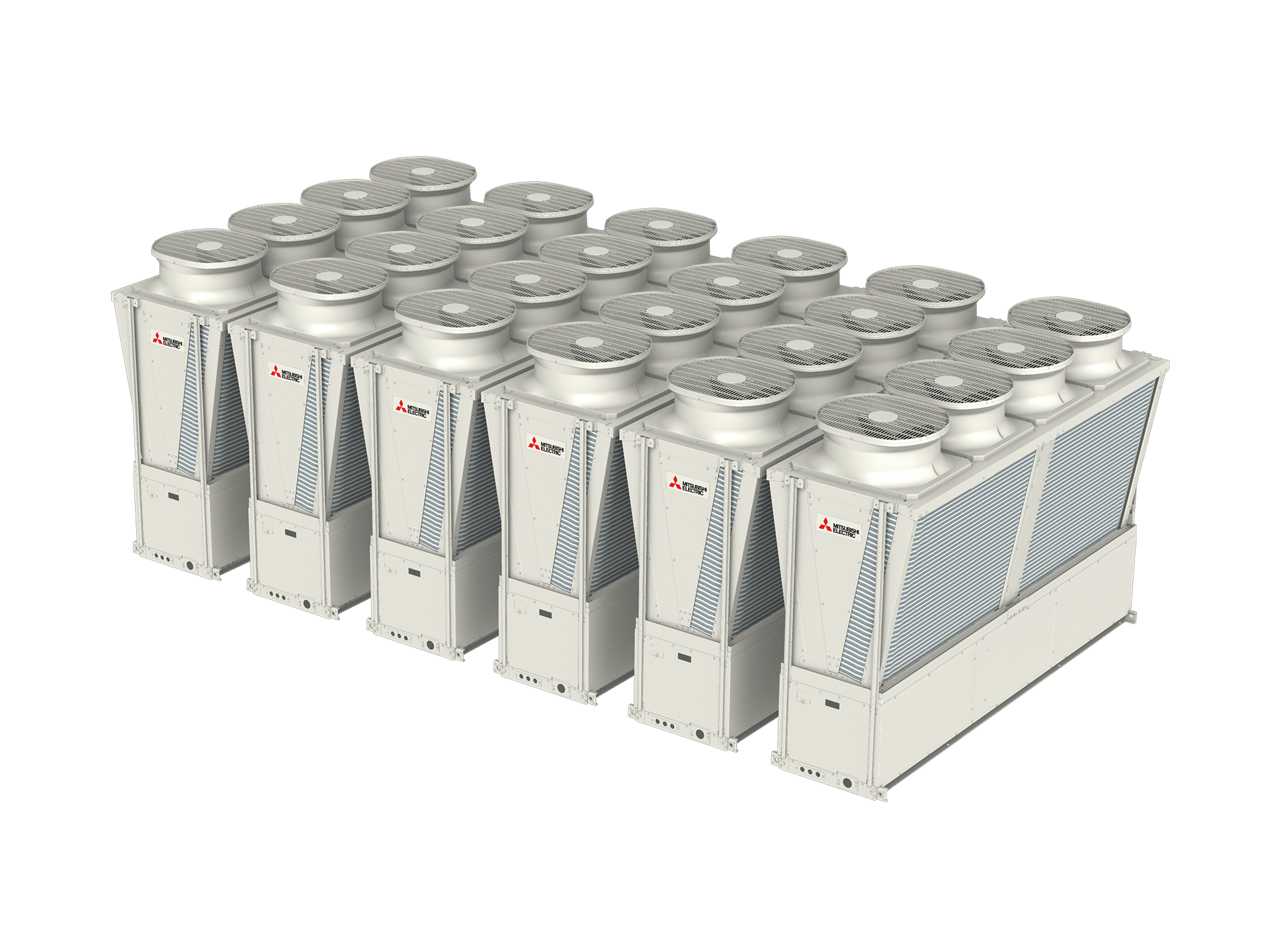

The 150kW and 180kW Air sourced e-Series Reversible Modular Heat Pump Chillers allow for up to six individual units to be connected together to provide a system capacity up to 1,080kW. Available as a cooling only or reversible heat pump version, the e-Series is suitable for both comfort and process heating/cooling applications. Suitable for outdoor installation.

Downloads

Operation

Installation

Service

Parts

  • EAHV EACV Weight Distribution Dimensional Drawing.pdf -
  • MEC-EAHV-M1500, 1800YCL(-BS) Dimensional drawings.pdf -
  • MEC EAHV-M1500, 1800YCL-N(-BS) Dimensional drawings.pdf -
  • SND EAH(C)V-M YCL(-N)(-BS) Sound pressure levels.pdf -
  • ELC E-Series Low Level Inputs Outputs Electrical data.pdf -
  • ELC EAH(C)V-M YCL(-N)(-BS) Electrical data.pdf -

Similar Product

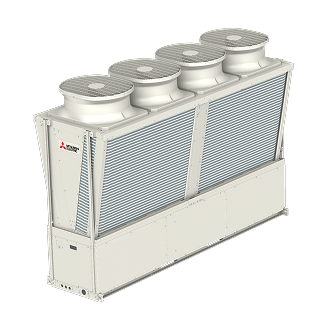

EACV-M1500 & EACV-M1800
