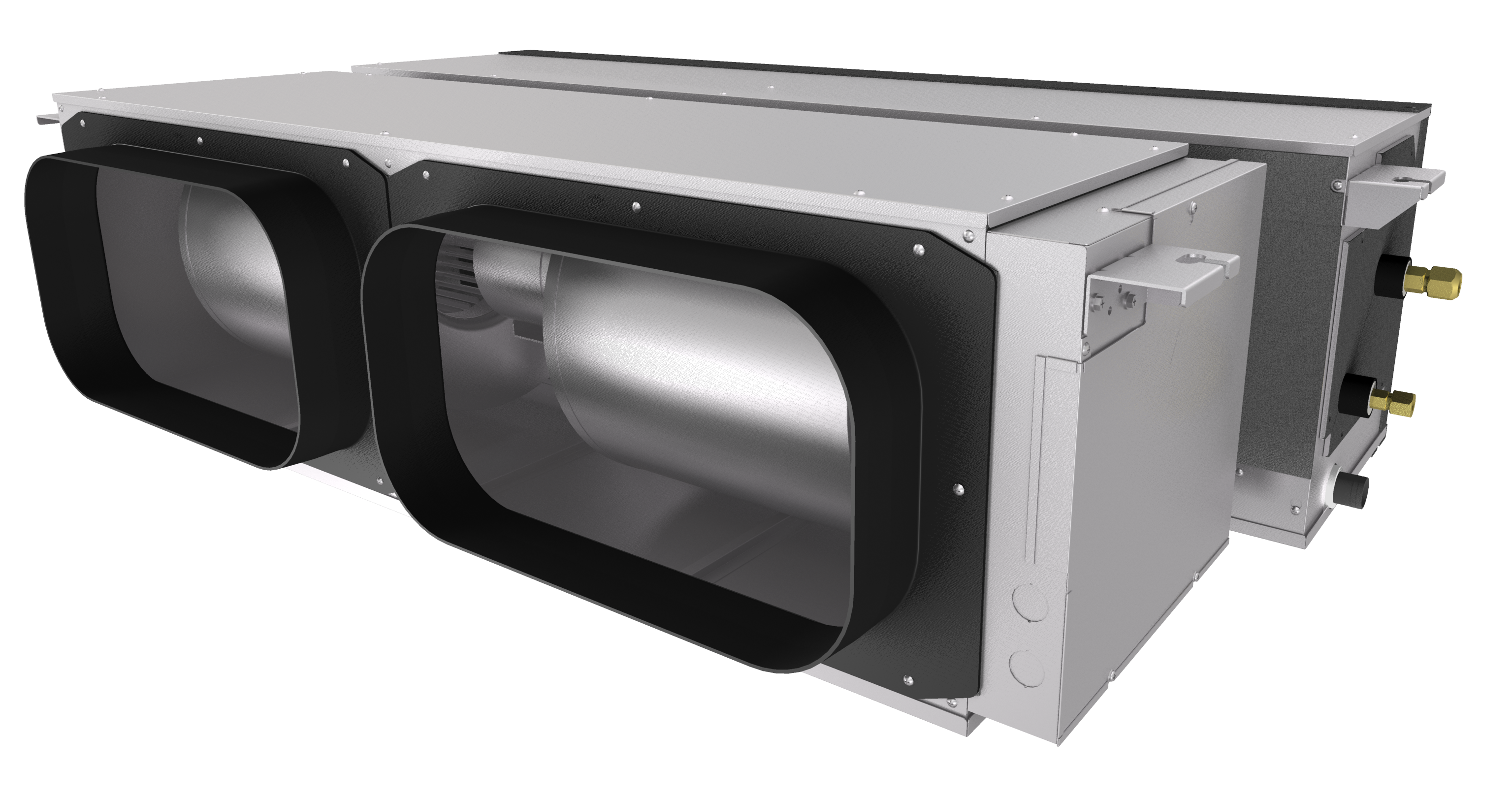

PEA-M100-250H/LAA Splittable

Splittable Ducted Heat Pump / Air Conditioner
10.0kW - 24.5kW (Cooling)
11.2kW - 28.0kW (Heating)
Refrigerant: R32 (GWP 677)
Static Pressure: HAA - 50/100/150Pa
Static Pressure: LAA - 75/100/150/200/250Pa

The PEA-H/LAA Splittable Ducted System is designed for commercial environments that require high-capacity heating and cooling with flexible installation options.

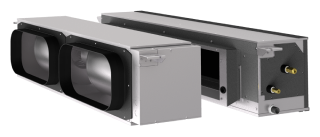

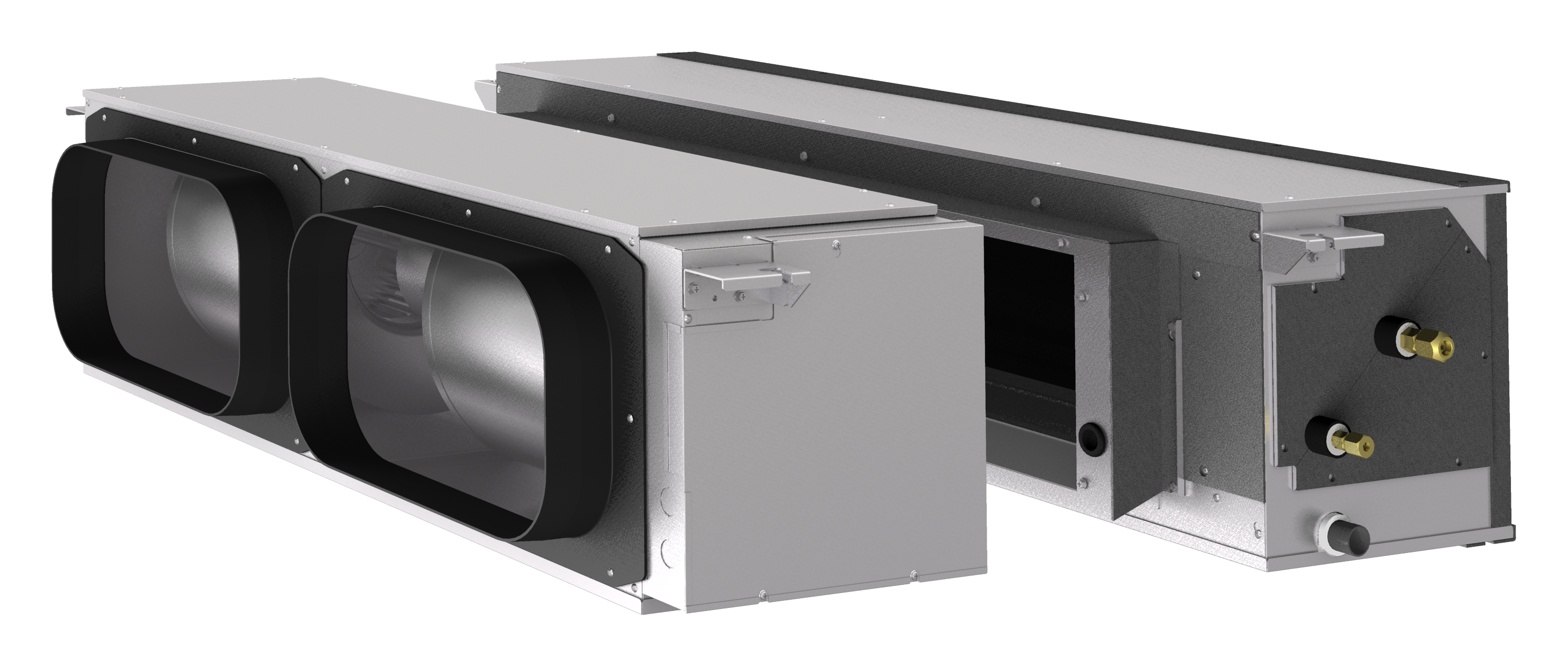

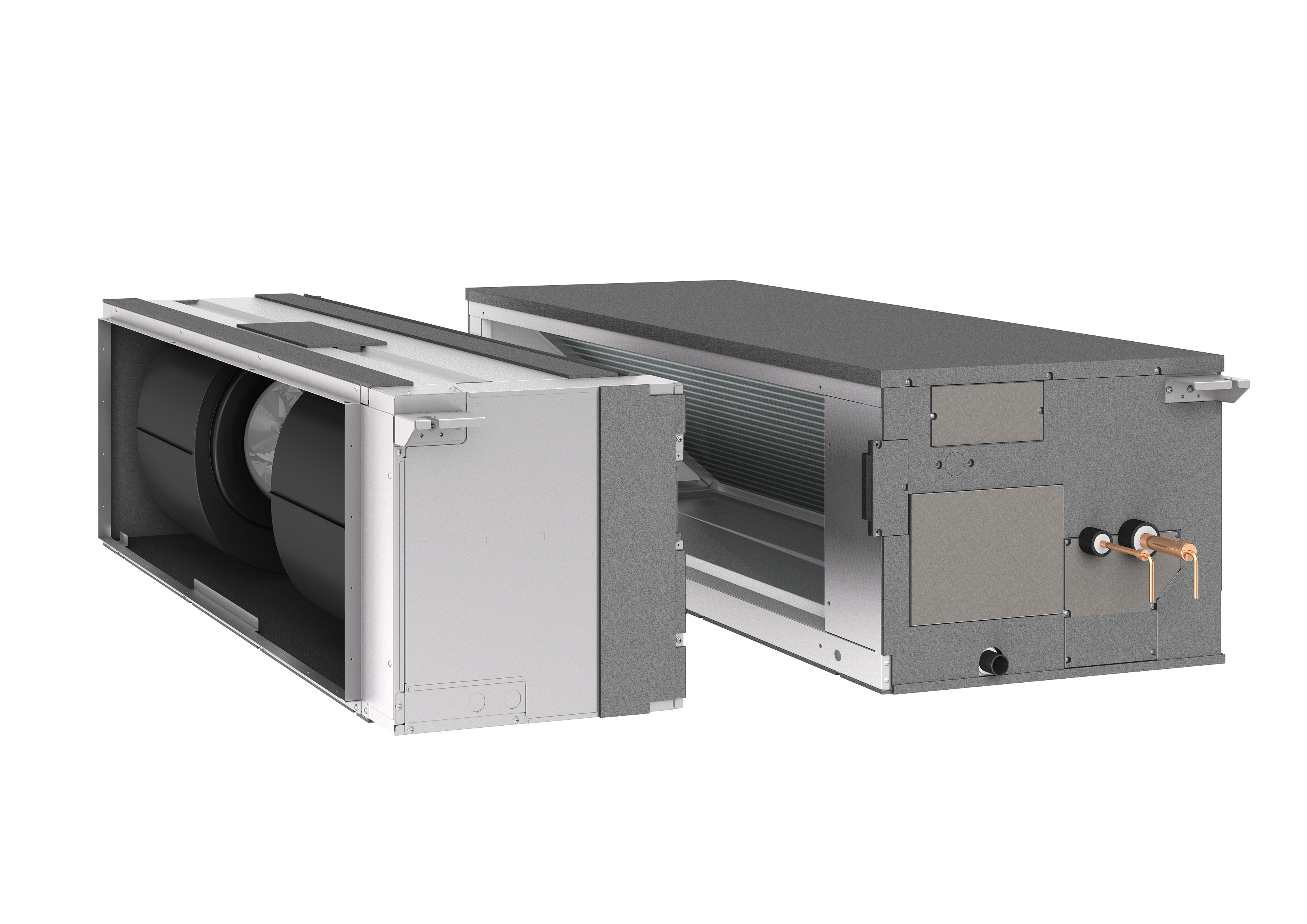

Featuring a two-piece construction, the indoor unit’s heat exchanger and fan deck can be separated, allowing for easier installation in tight roof spaces.
Additionally, the PEA-M180LAA model is one of New Zealand’s largest single-phase ducted systems, making it ideal for large offices, retail spaces, and commercial buildings needing powerful heating and cooling control.

Key benefits for commercial spaces:
One of NZ’s largest single-phase ducted systems (PEA-M180LAA) – Delivers high-capacity performance for large commercial spaces.
Splittable two-piece construction – Simplifies installation in buildings with limited ceiling space.
Flexible installation options – Ideal for complex commercial layouts requiring adaptable ducted solutions.
Two-way access design – Provides easy access to the fan and drain pan, reducing maintenance time and costs.
Efficient airflow distribution – Ensures consistent comfort across multiple rooms or large open areas.

For businesses needing a high-capacity, space-saving, and easy-to-maintain ducted solution, the PEA-H/LAA Series delivers exceptional performance with commercial-grade flexibility.

*When fully installed, the PEA-M H/LAA should be assembled together in one piece. Any gaps between the fan deck section and heat exchanger at final installation will result in significant pressure loss.
