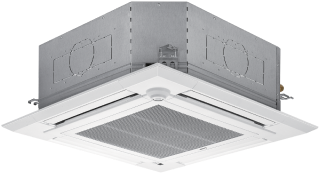

PLA-M71-140EA2 (4-Vane Large)

PLA-M71-140EA2 (4-Vane Large)

4-Way Cassette Heat Pump / Air Conditioner
7.1kW - 13.5kW (Cooling)
8.0kW - 16.0kW (Heating)
Refrigerant: R32 (GWP 677)
Size: 840mm x 840mm
Grille: 950mm x 950mm x 40mm

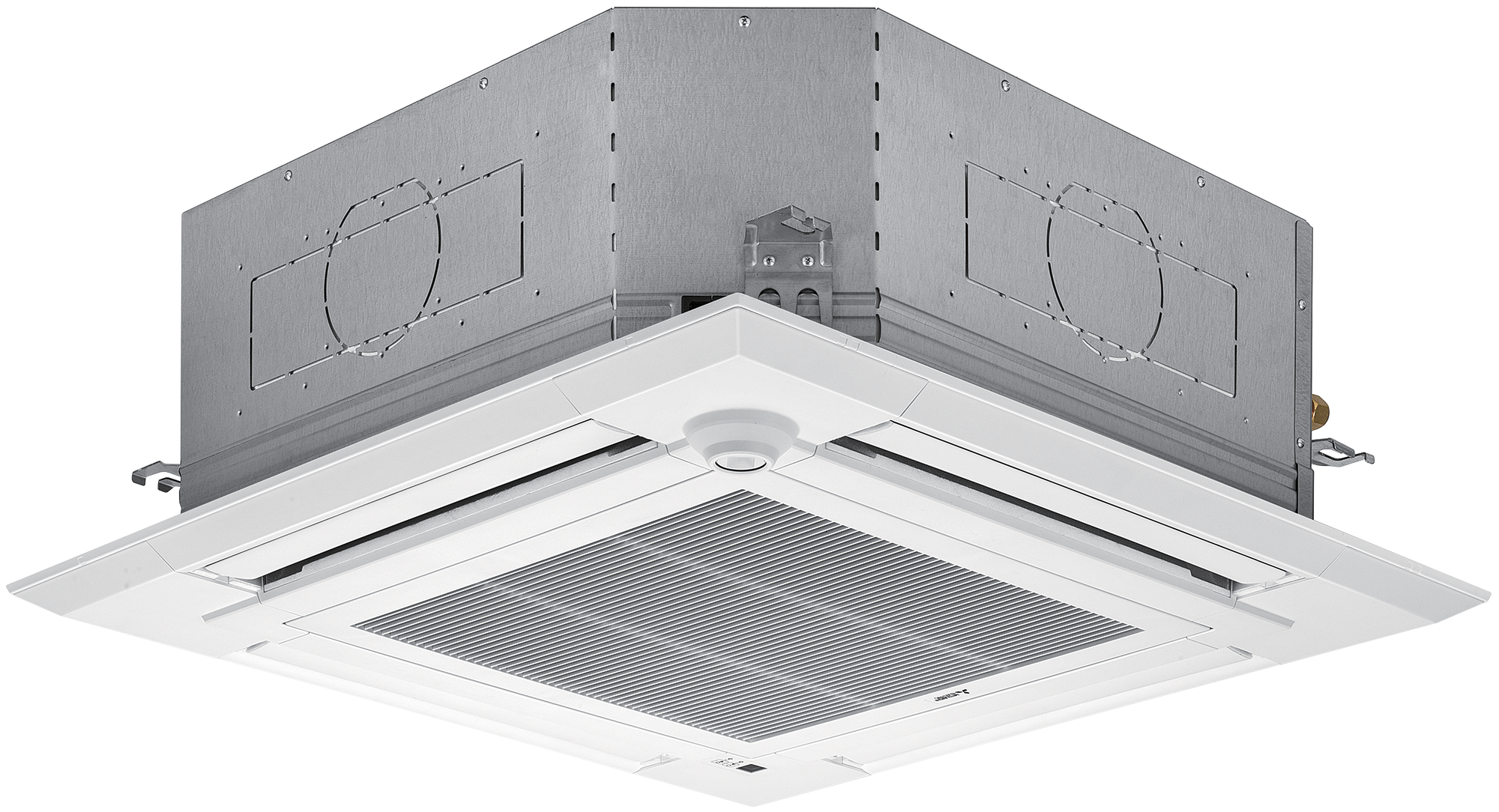

The PLA-M Series Ceiling Cassette Heat Pump delivers powerful, even airflow in a sleek, modern design, making it ideal for large offices, conference rooms, retail spaces, and hospitality environments.
Designed for consistent temperature control across expansive areas, it features advanced airflow management, independent vane direction control, and customisable design options to complement any commercial setting.

Key benefits for commercial spaces:
Large-capacity airflow – Ensures efficient heating and cooling for spacious commercial environments.
Independent vane control – Provides precise airflow direction to optimise comfort.
Optional 3D Harmony – The addition of a horizontal louver unit delivers 360° airflow in conjunction with Mitsubishi Electric's unique i-See Sensor, preventing draughts and short-cycling while ensuring even temperature distribution across the entire space.
Optional Automatic Elevating Panel – Offers eight levels of elevation and up to four meters of travel, simplifying filter cleaning and maintenance.

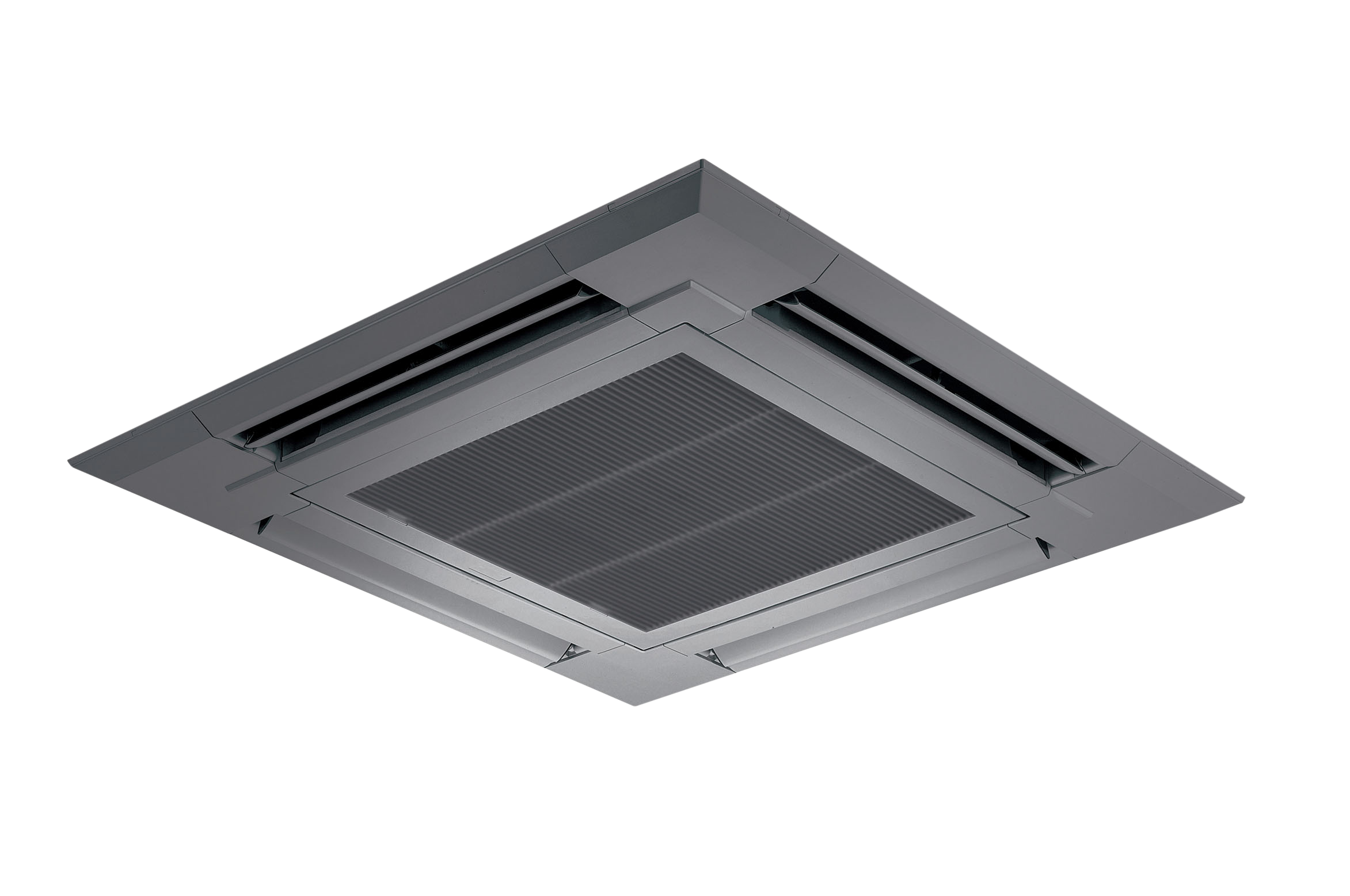

Customisable design – Now available with a Black Grille option, allowing for a stylish and seamless integration into modern commercial interiors.
Discreet ceiling installation – Keeps walls and floors clear, maximising workspace layout.

For businesses seeking a high-performance, stylish, and low-maintenance ceiling-mounted solution, the PLA-M Series delivers seamless comfort and smart airflow control in large commercial settings

Downloads

Operation

Installation

Service

Parts

  • FAN PLA-M71-140EA2 Outlet Air Speed And Coverage Range-Center Of Gravity Position.pdf -
  • FAN PLA-M71-140EA2 Temperature And Air Flow Distributions.pdf -
