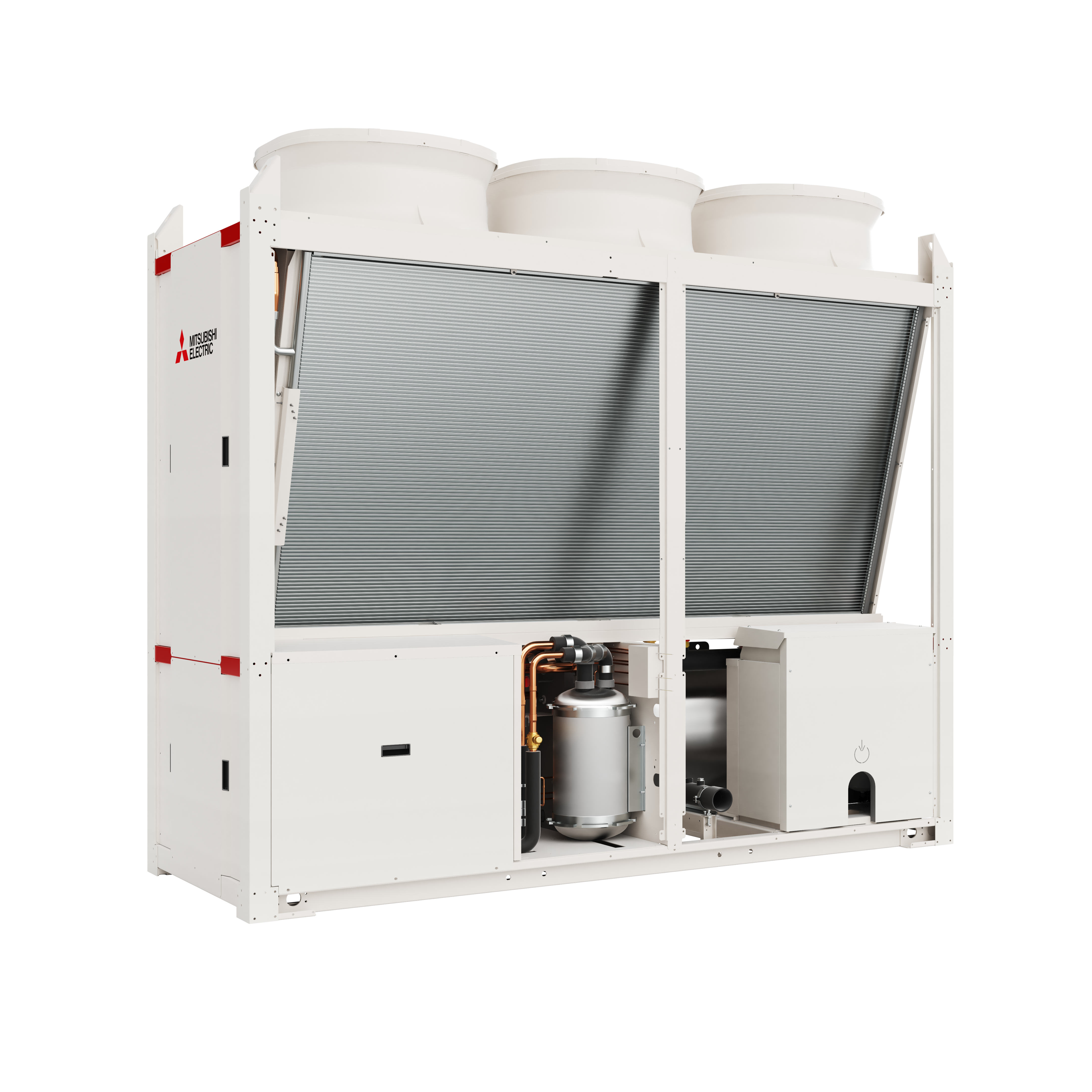

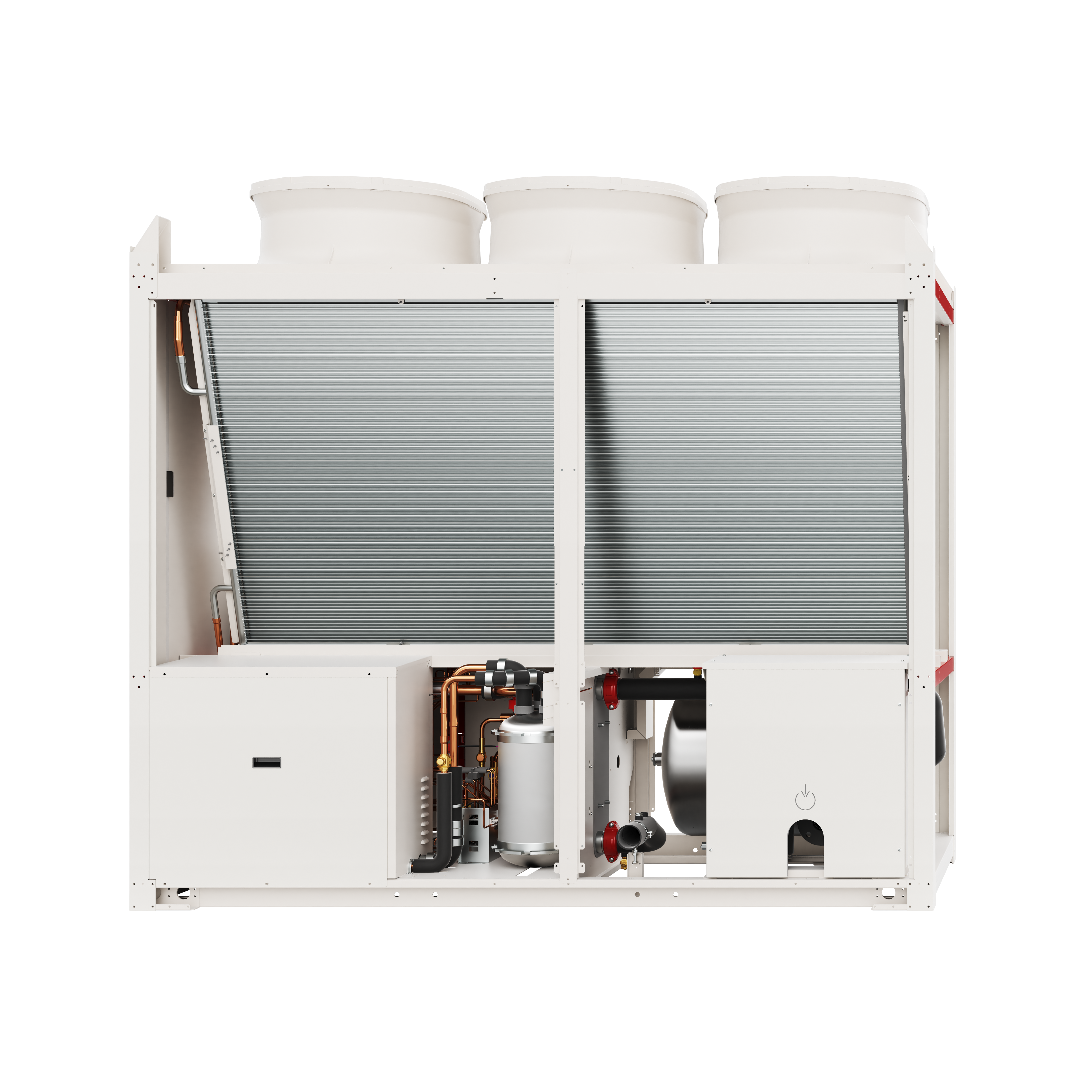

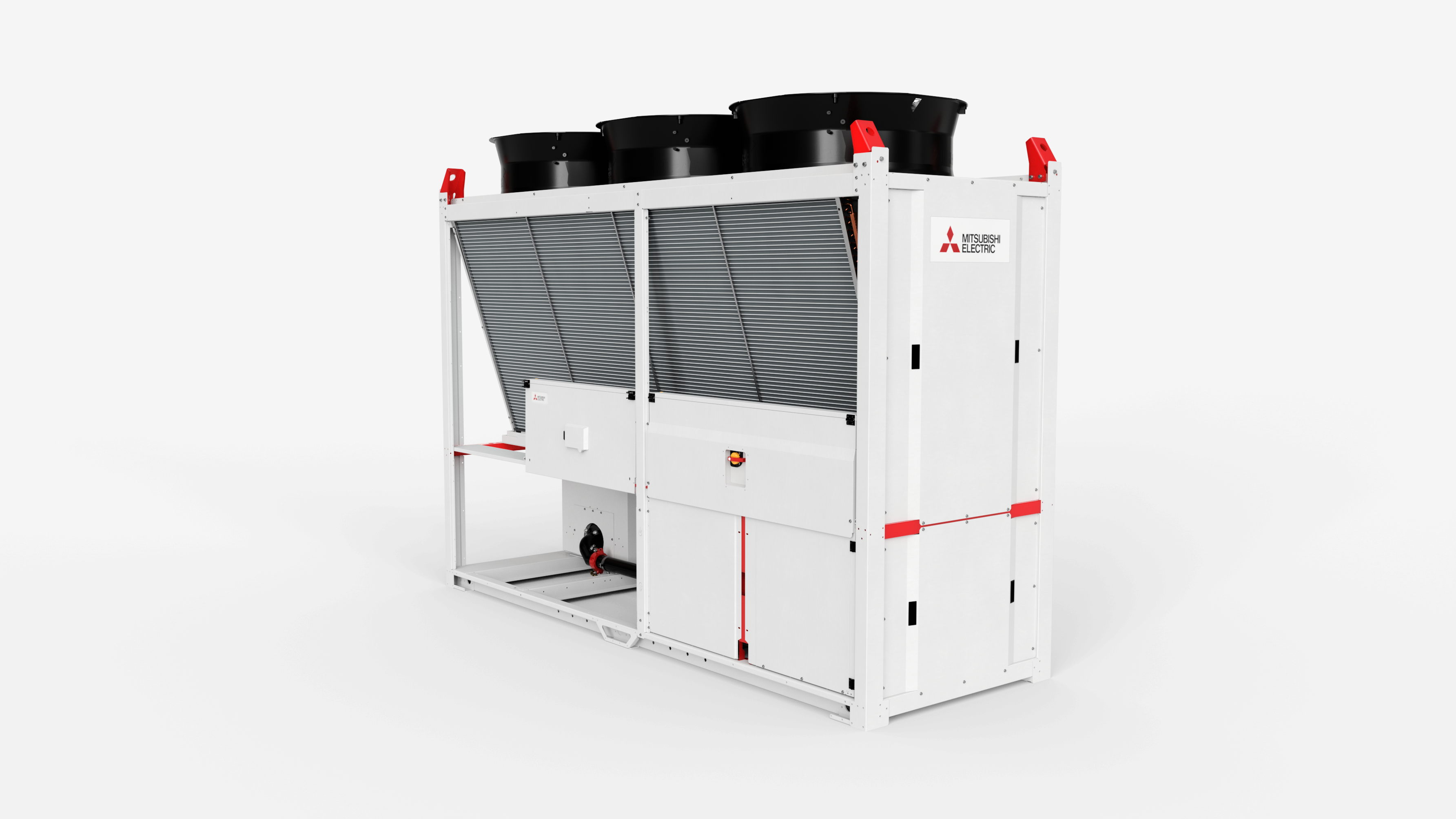

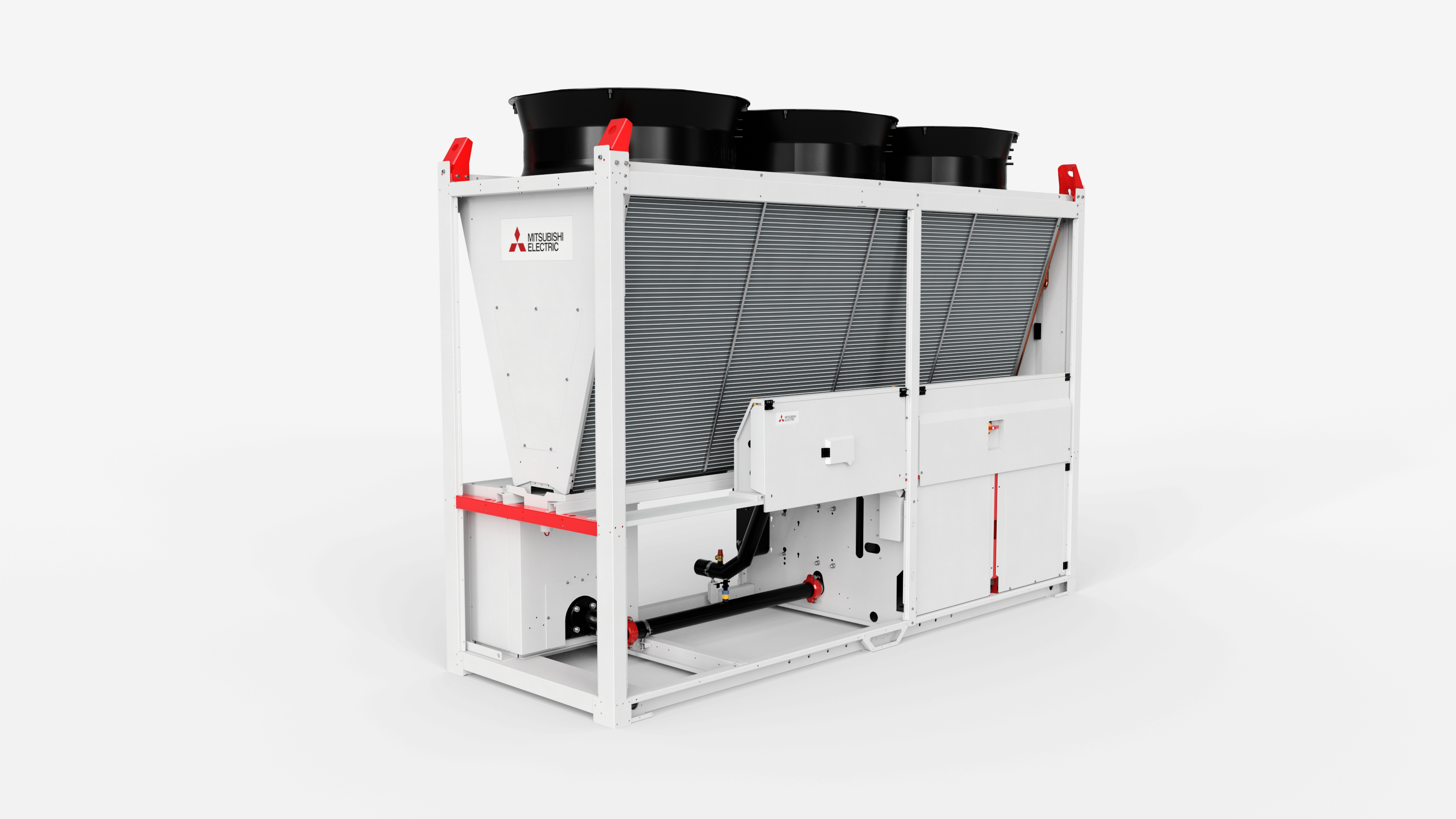

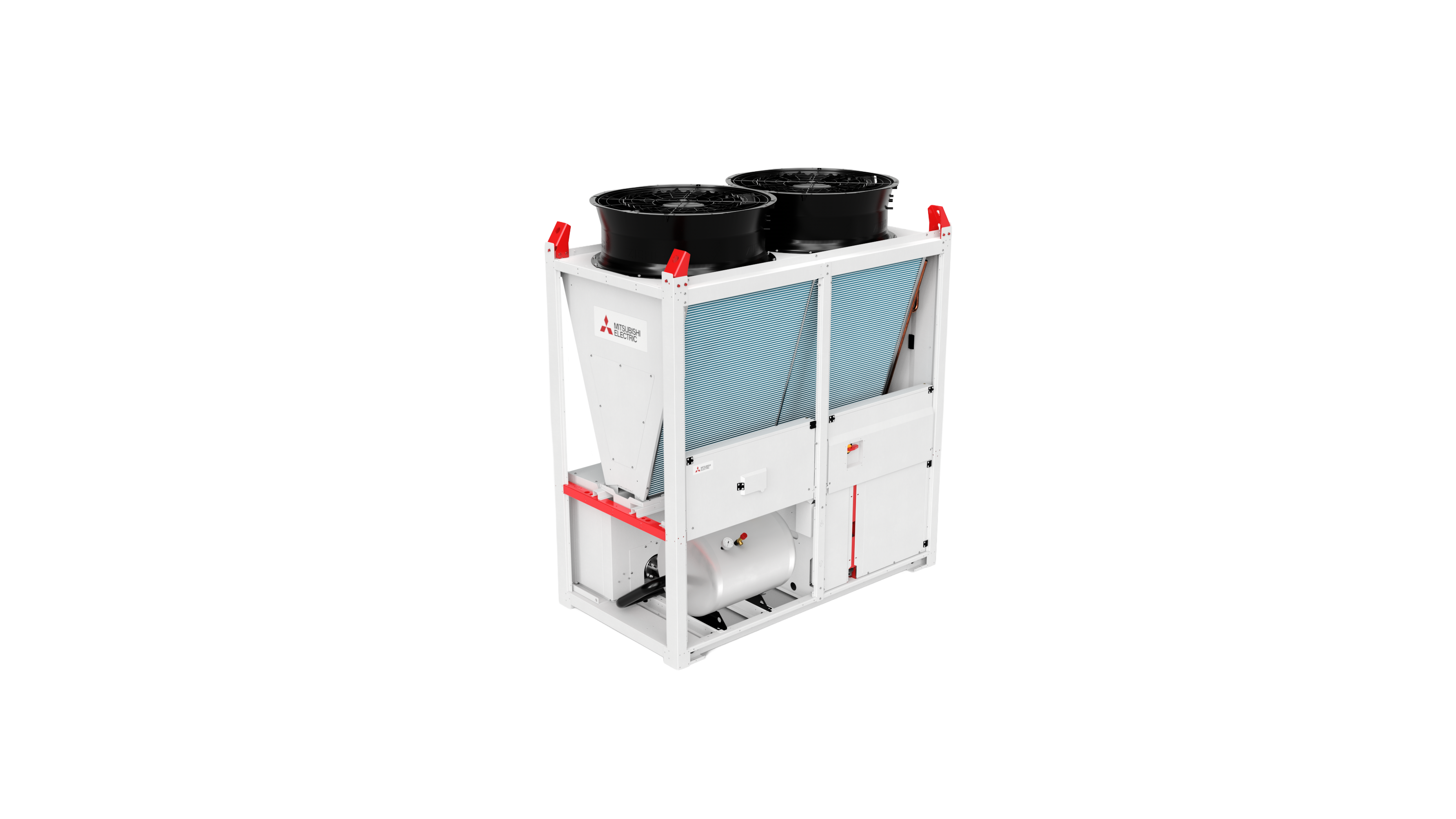

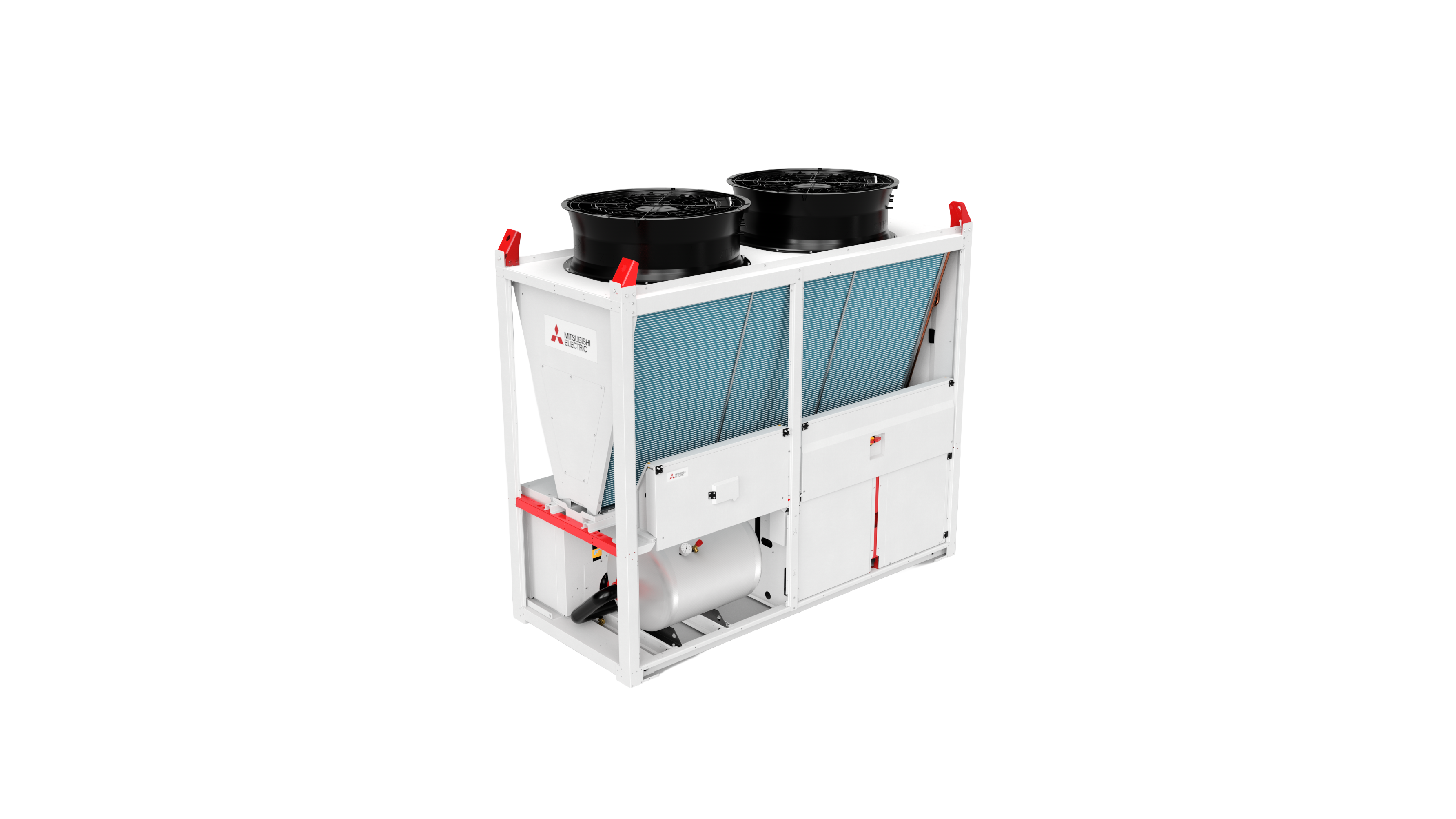

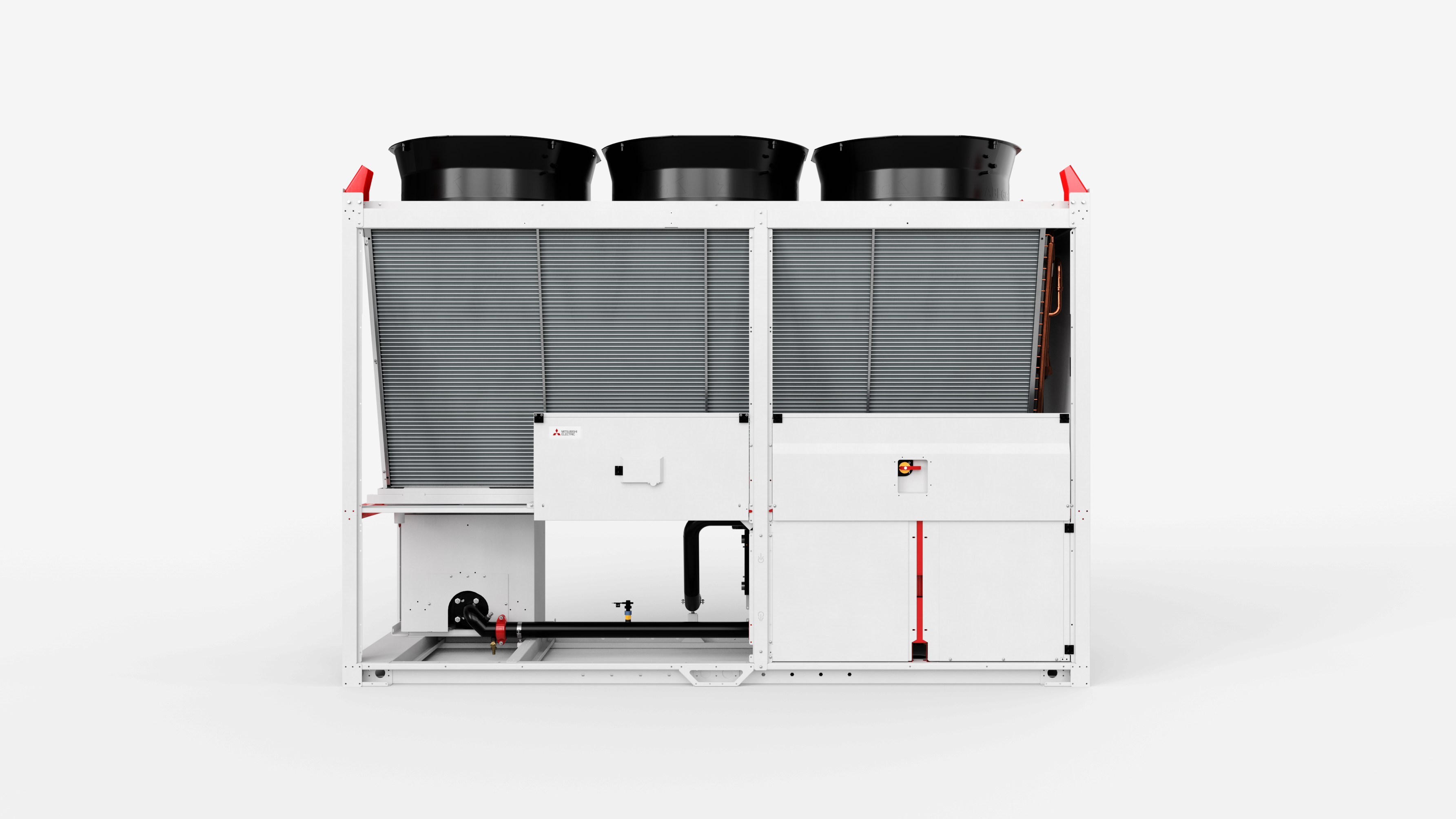

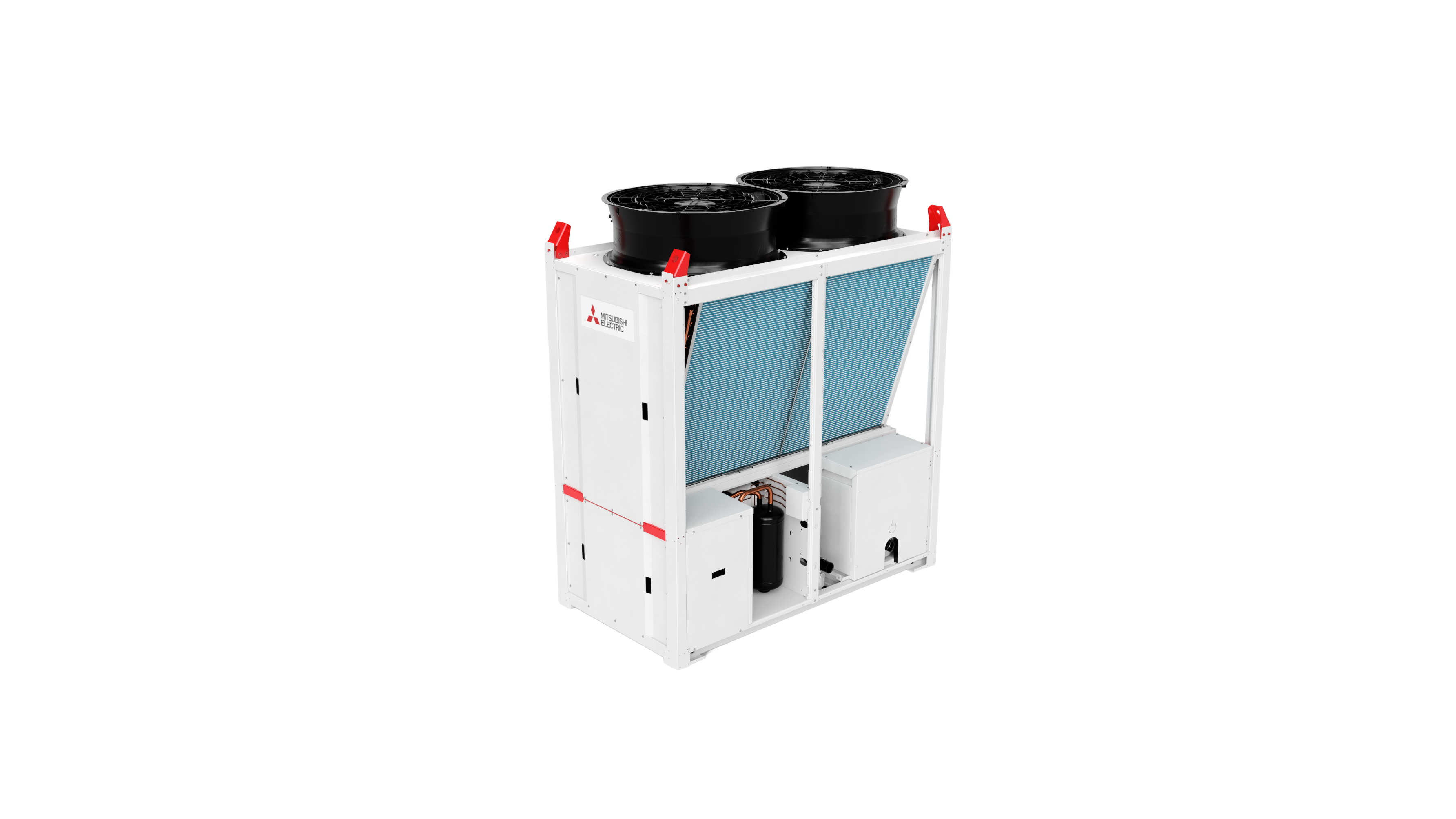

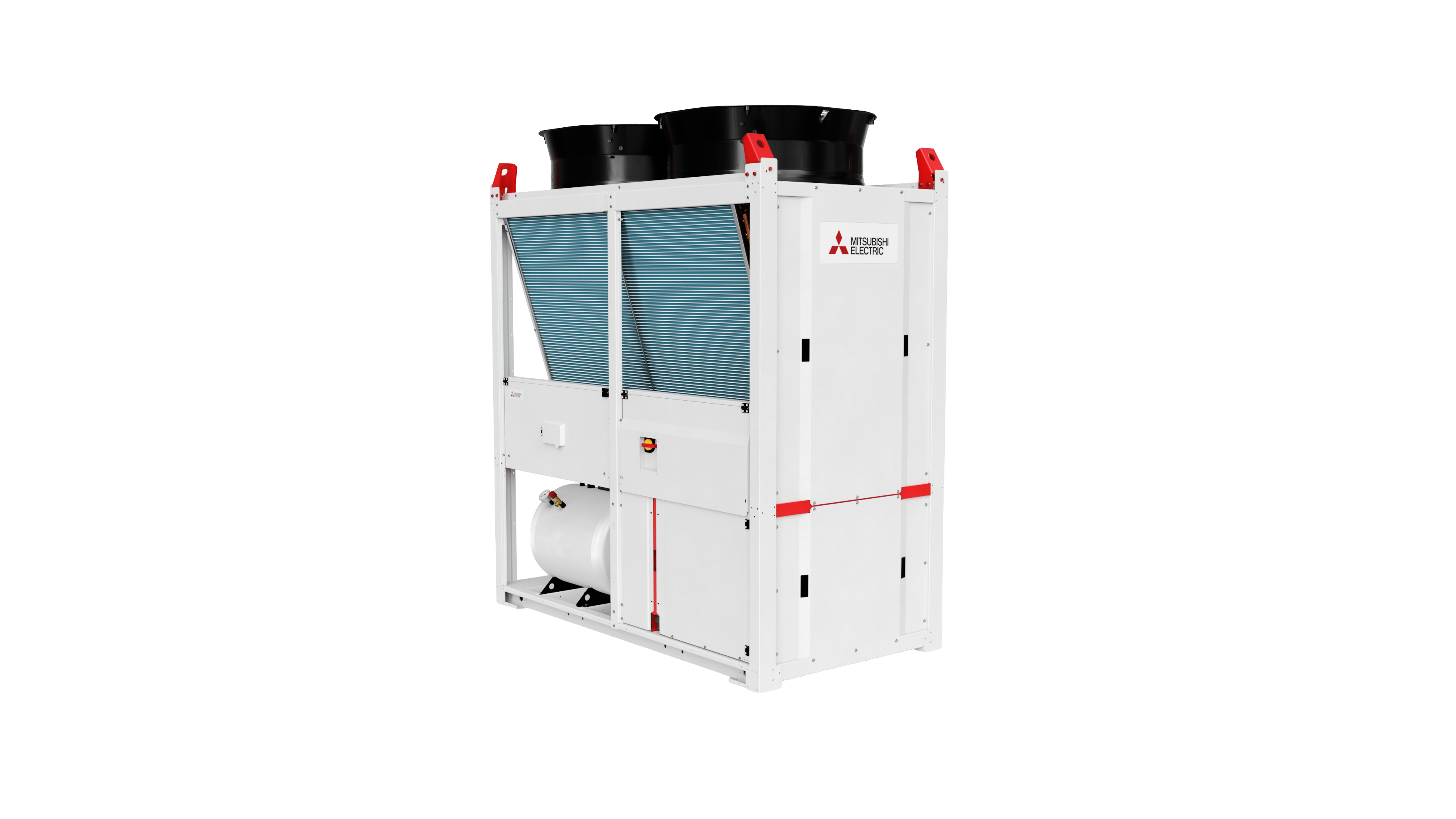

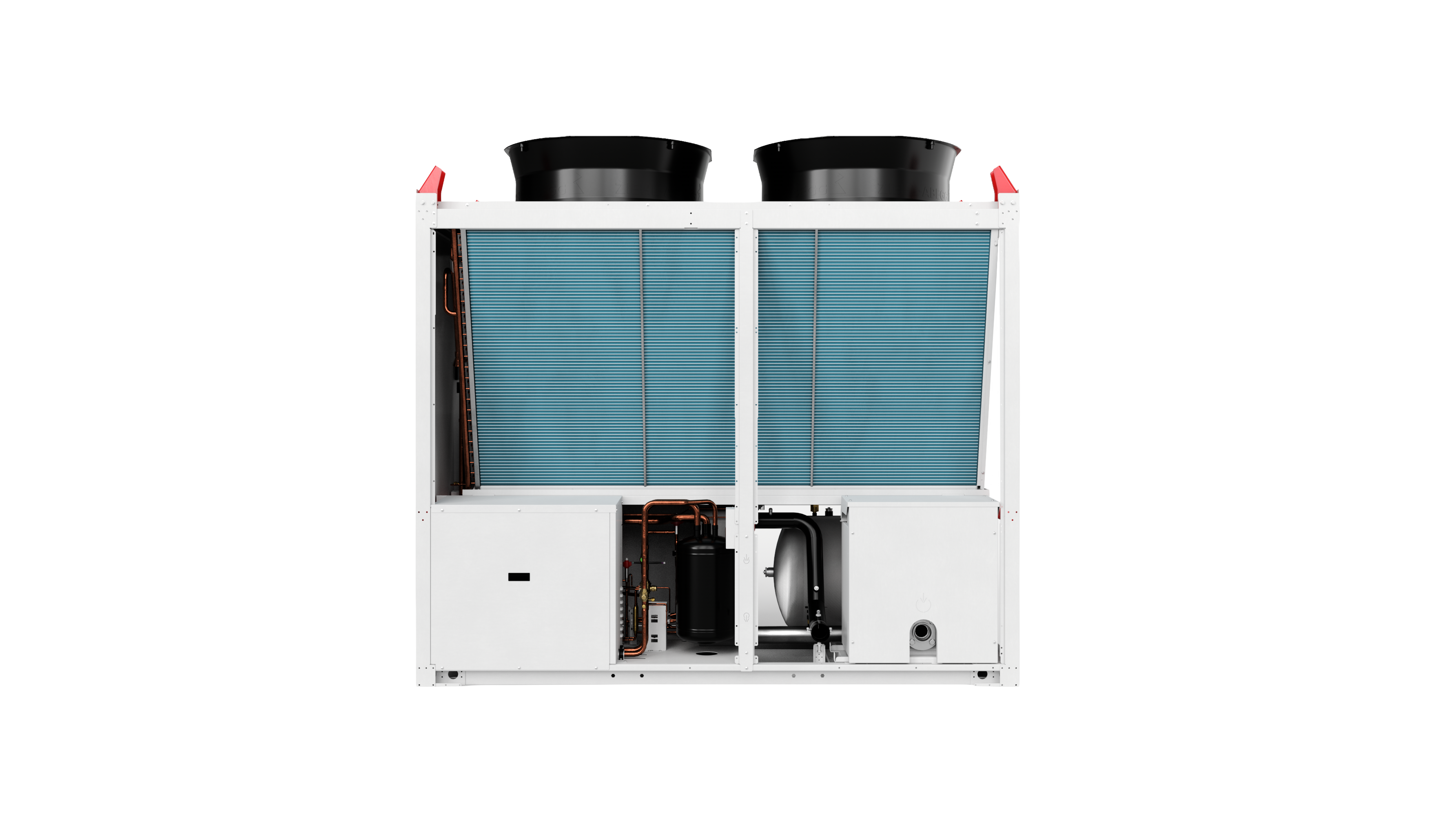

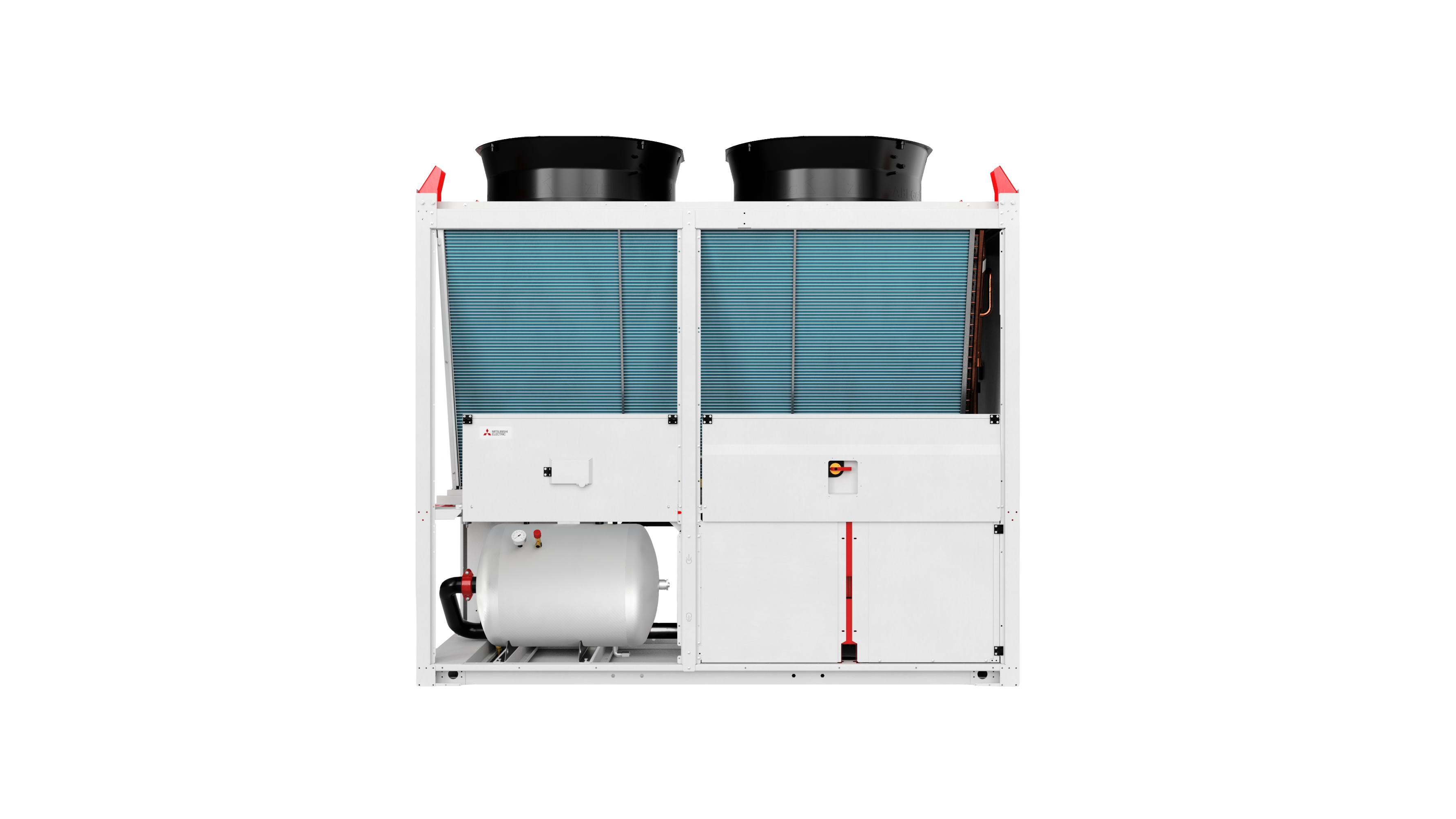

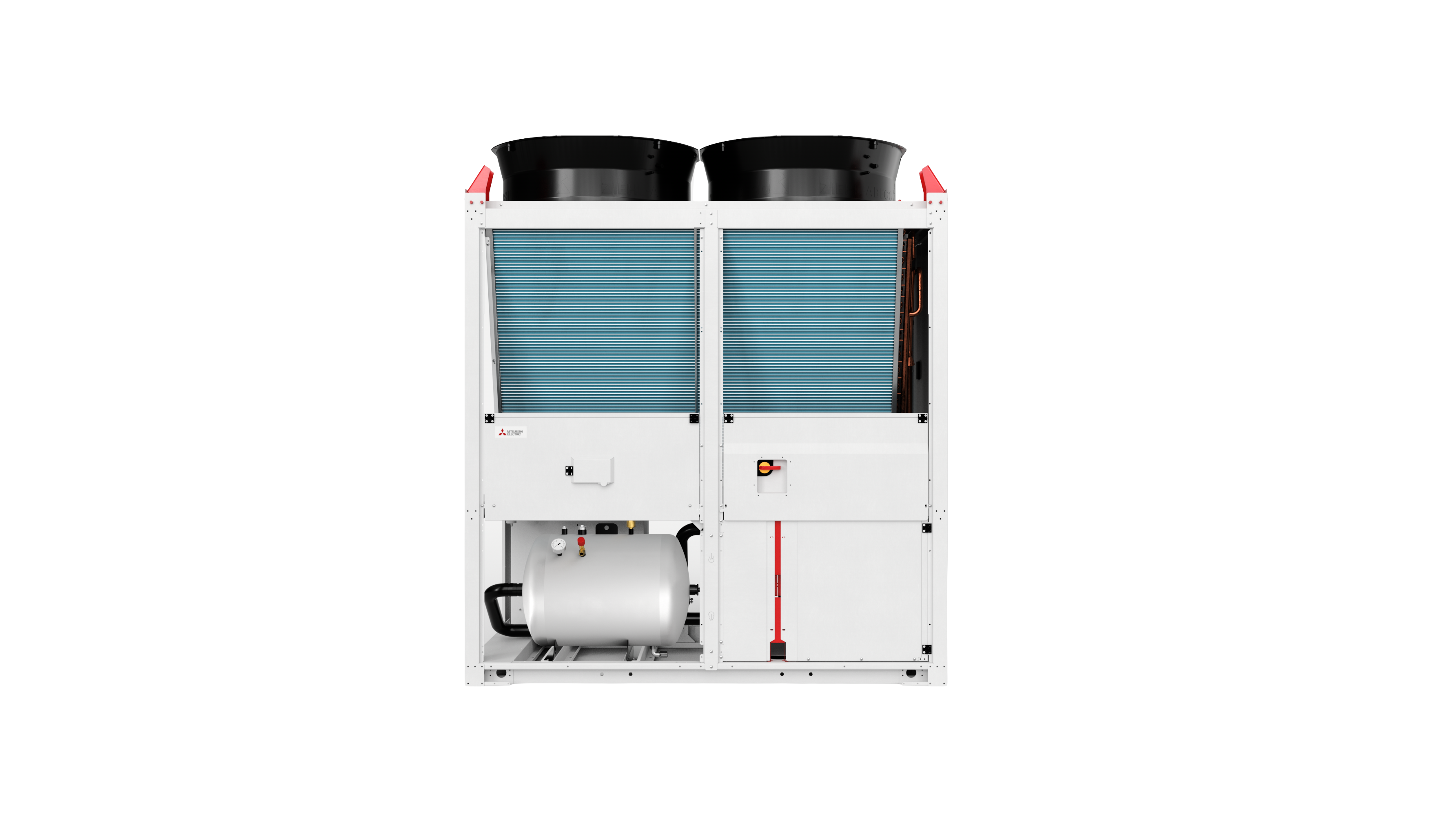

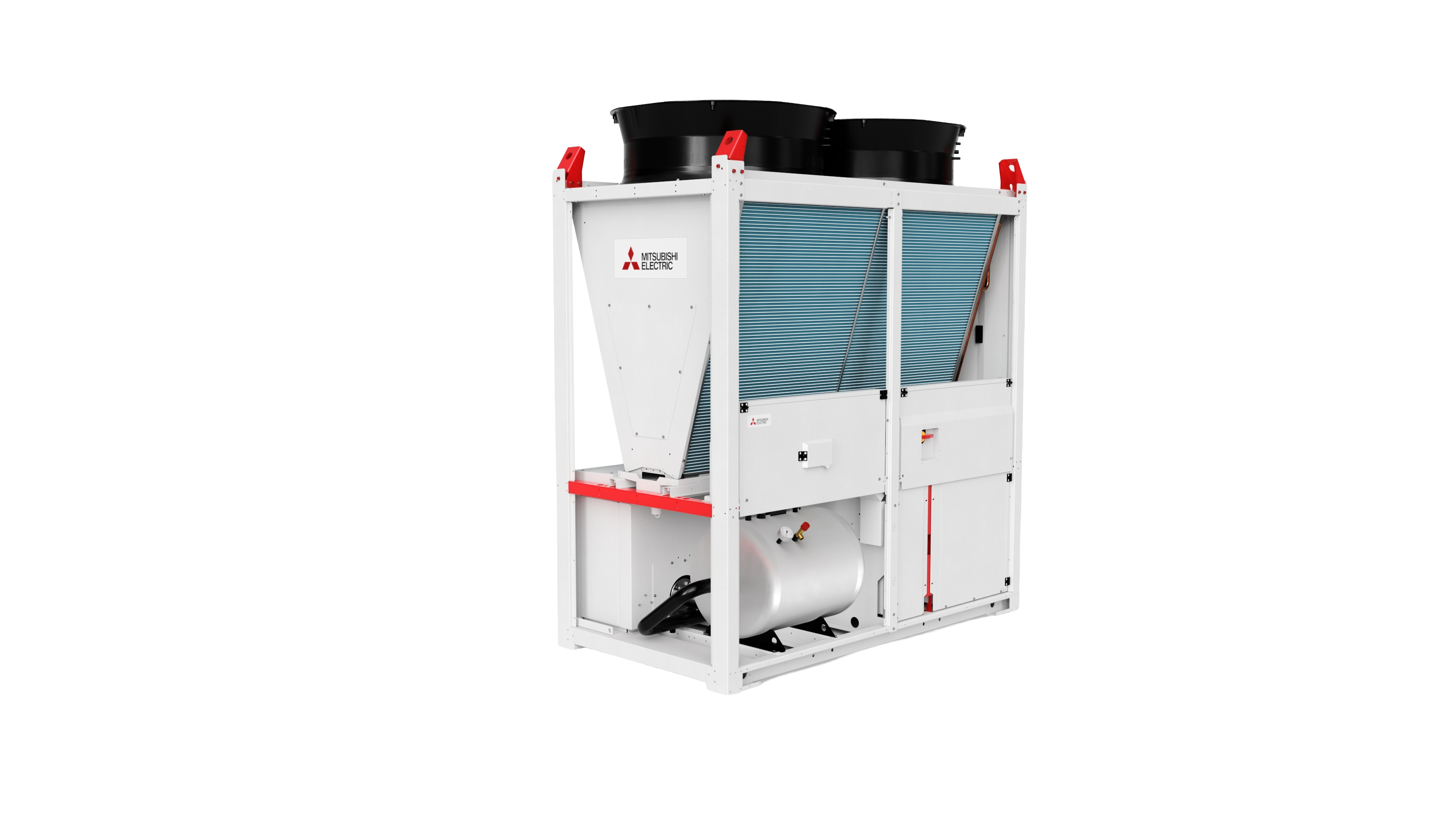

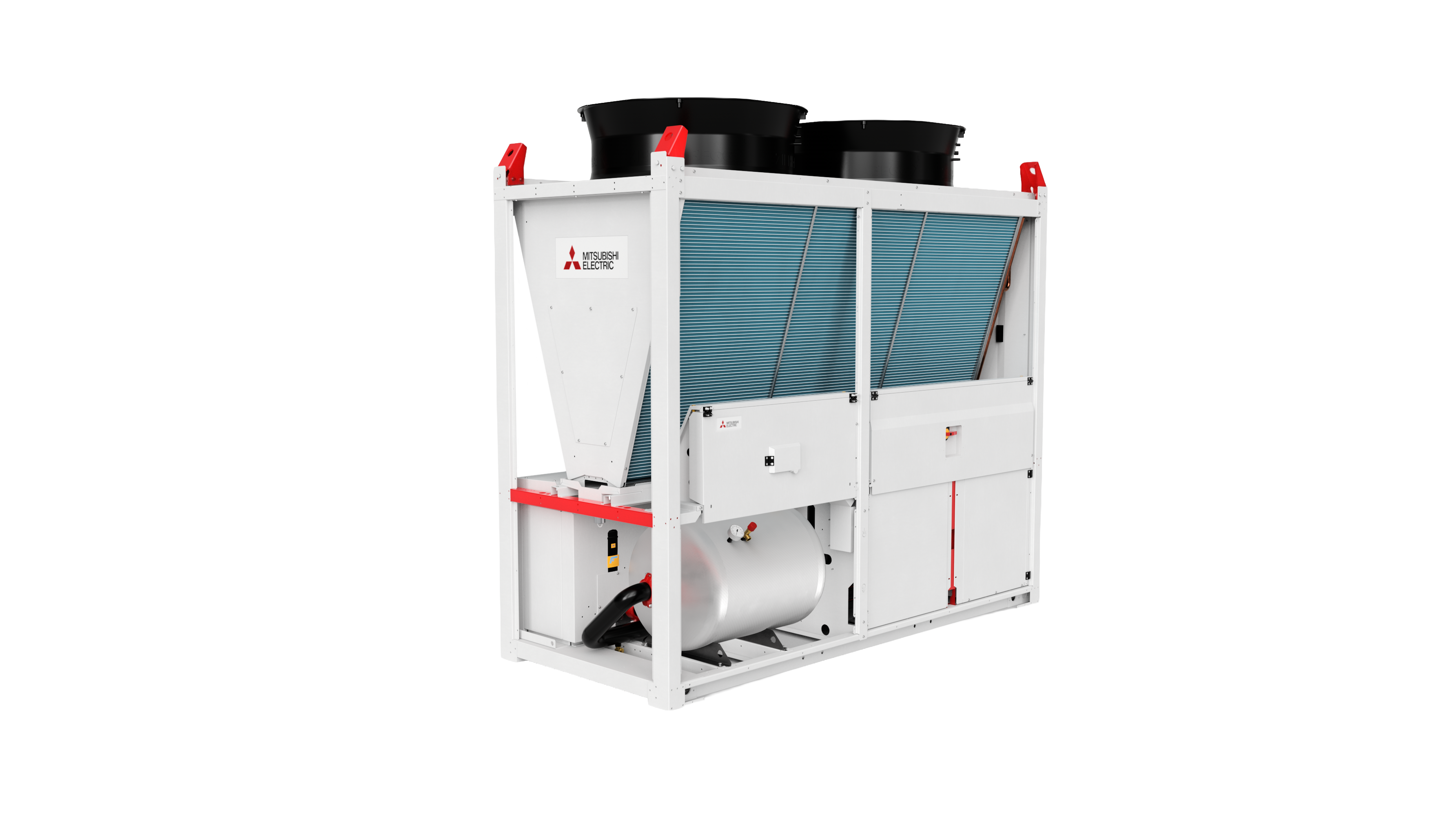

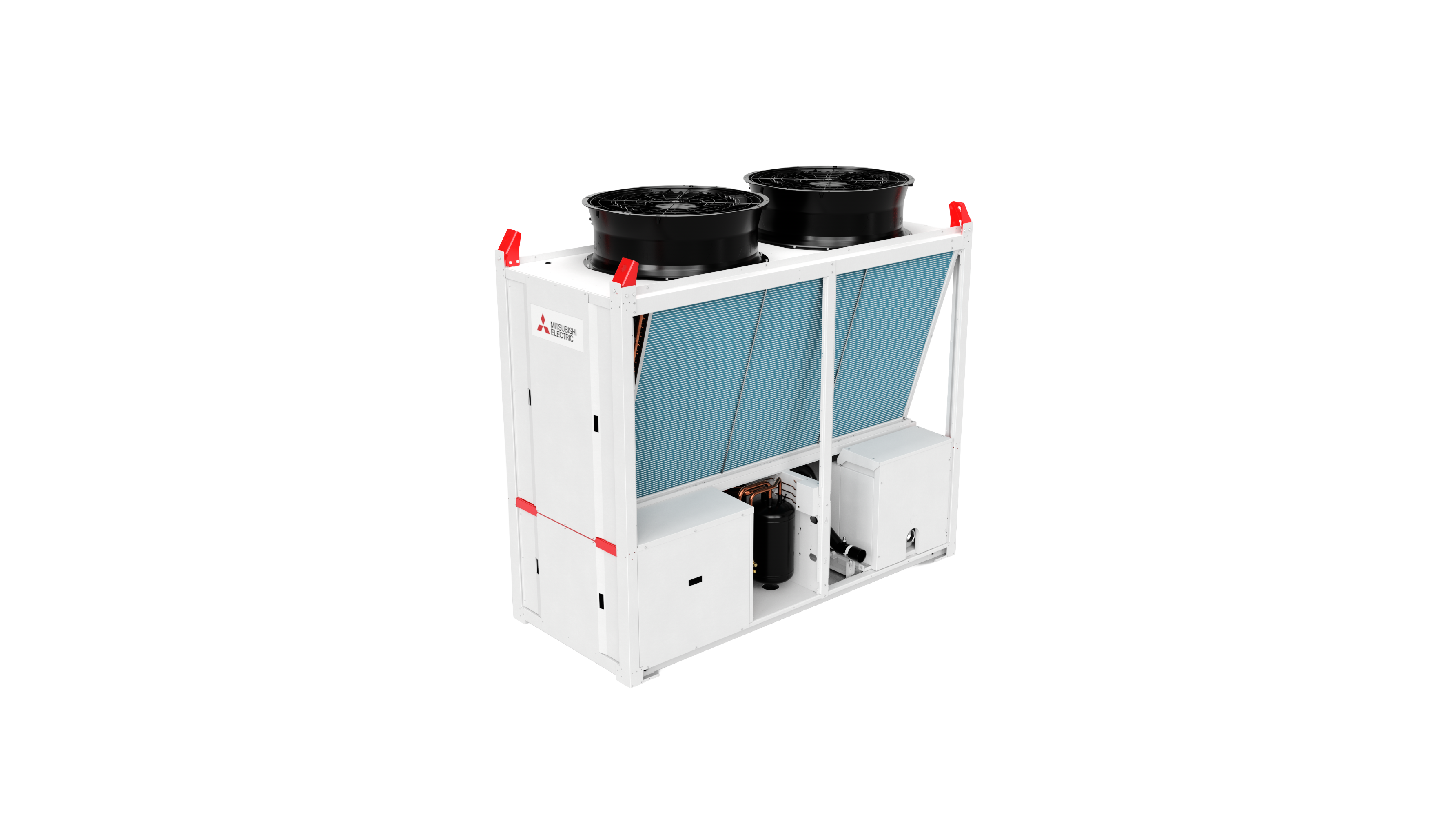

MEHP-iS-G07 0051-0112

Air source heat pump for comfort and process heating/cooling
Cooling Capacity: 48.0kW to 94.0kW
Heating Capacity: 50.0kW to 110.0kW
Refrigerant: R32 (GWP 677)
Flow Temp Range: -8°C to 18°C (Cooling), 24.0°C to 65.0°C (Heating)

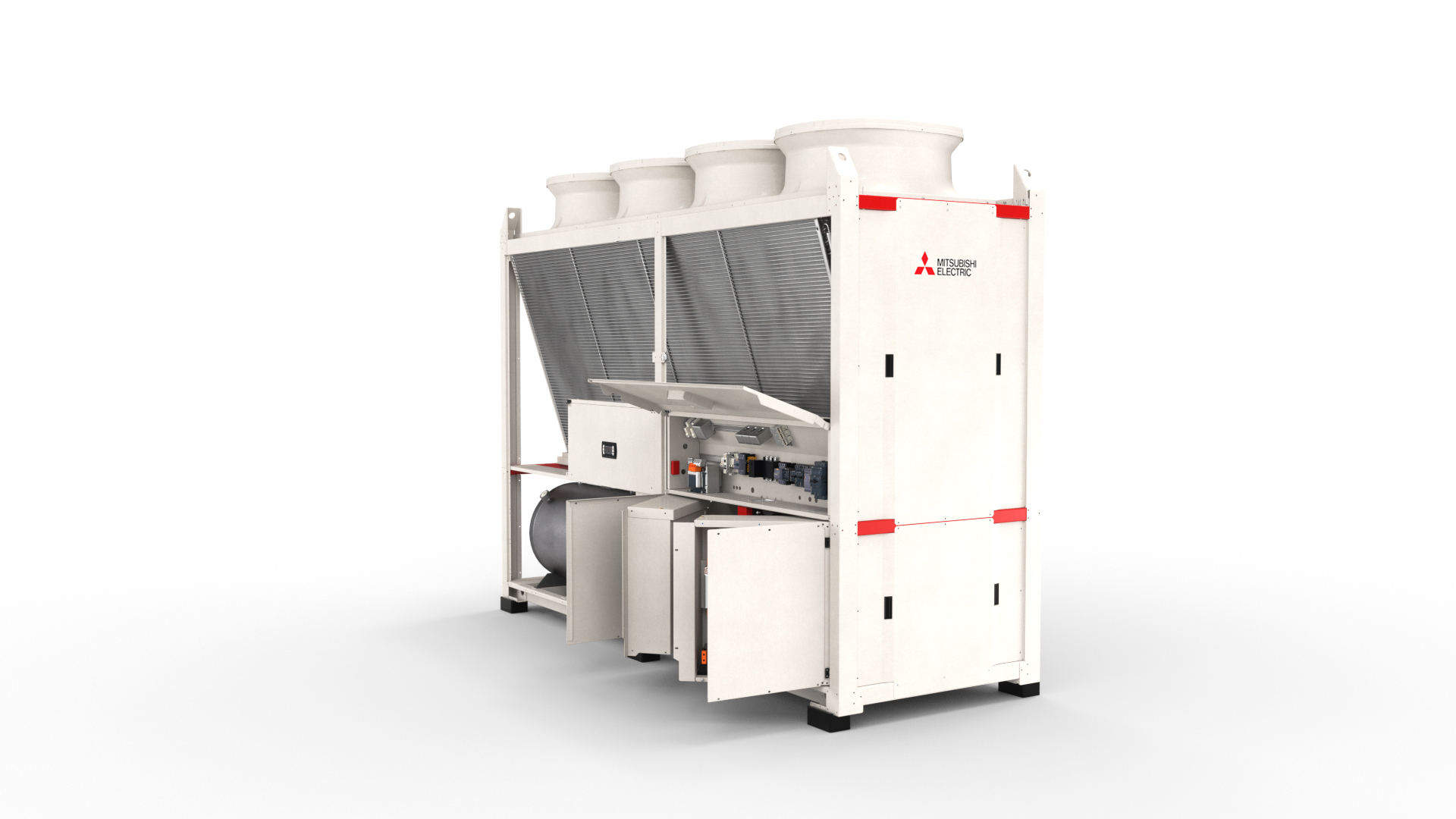

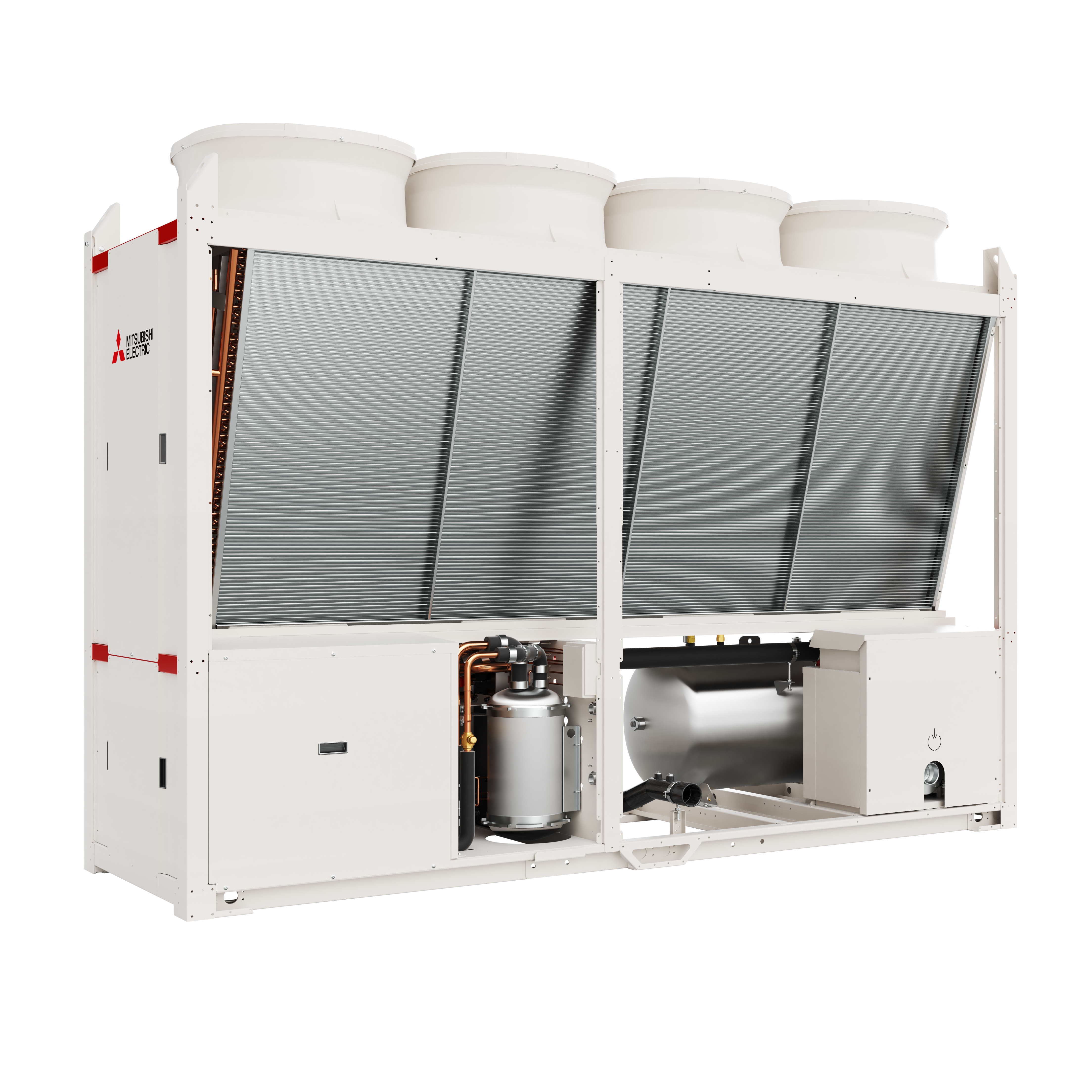

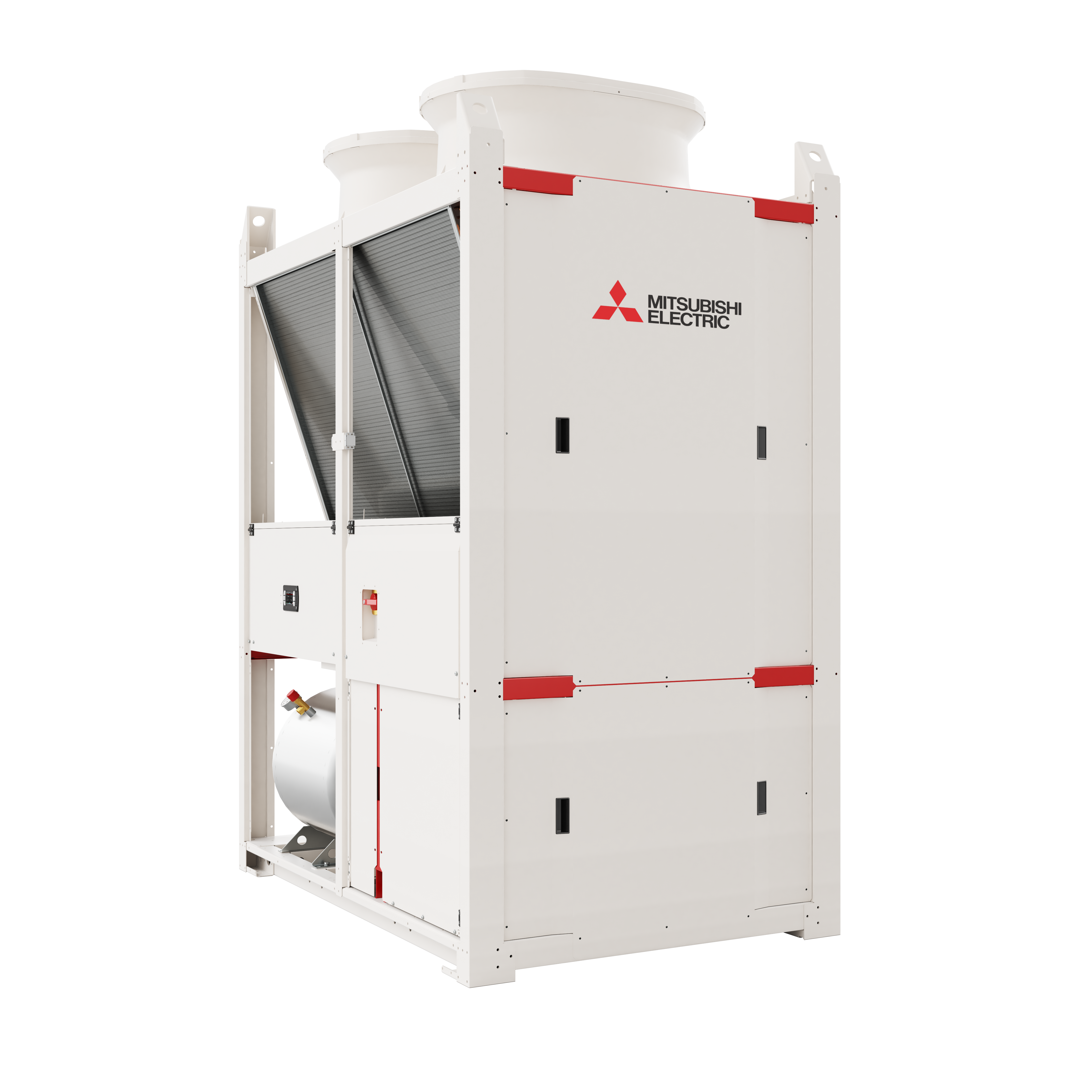

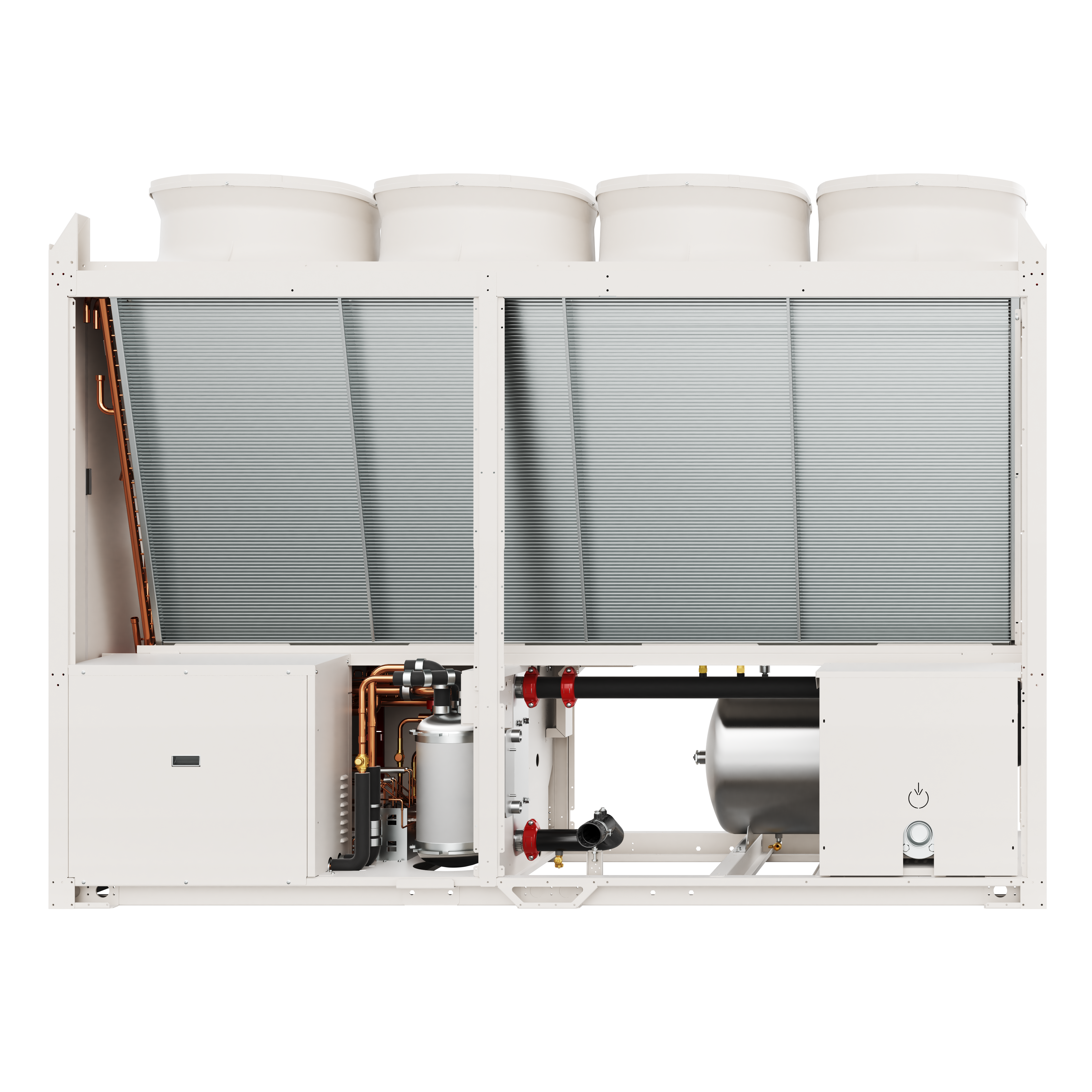

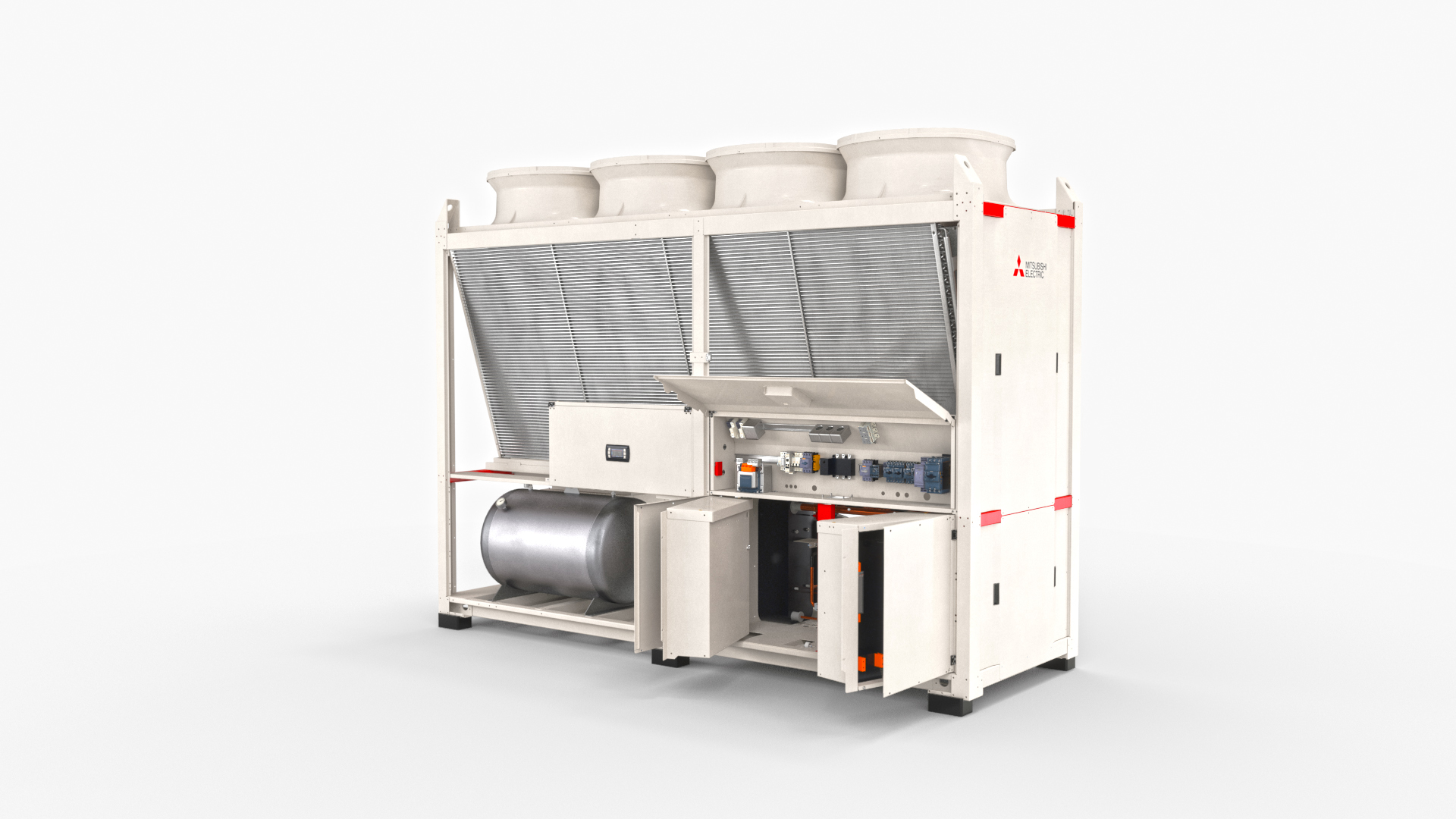

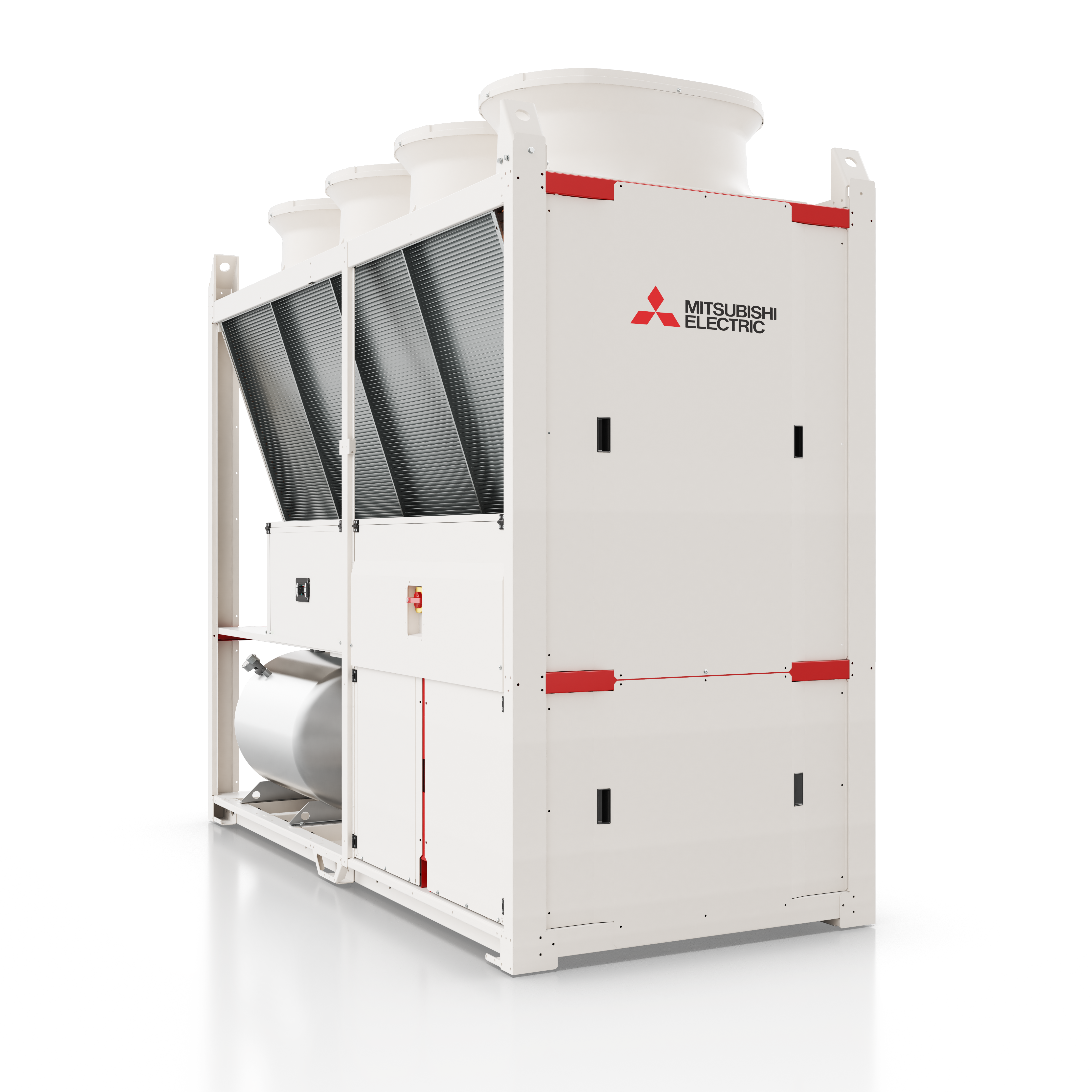

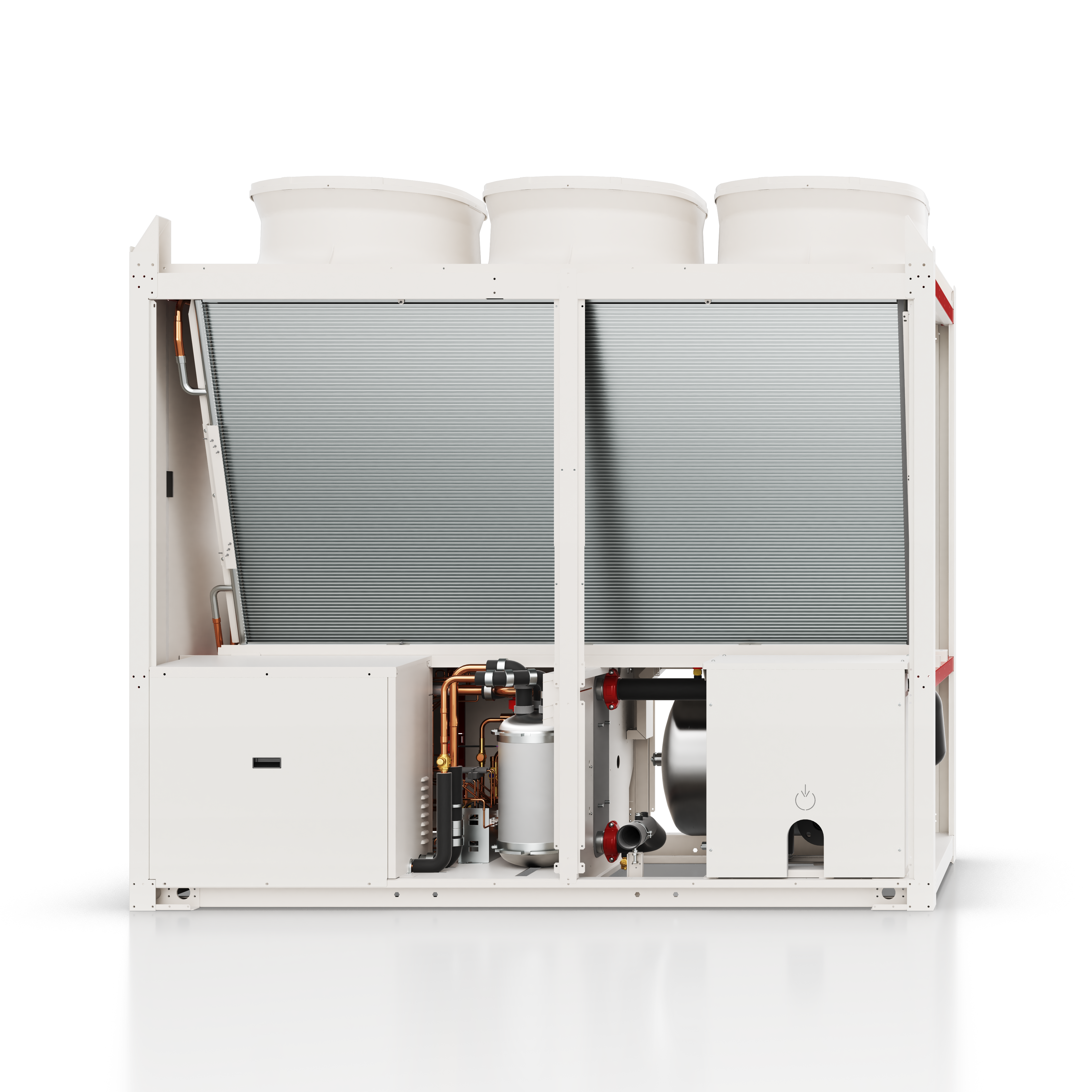

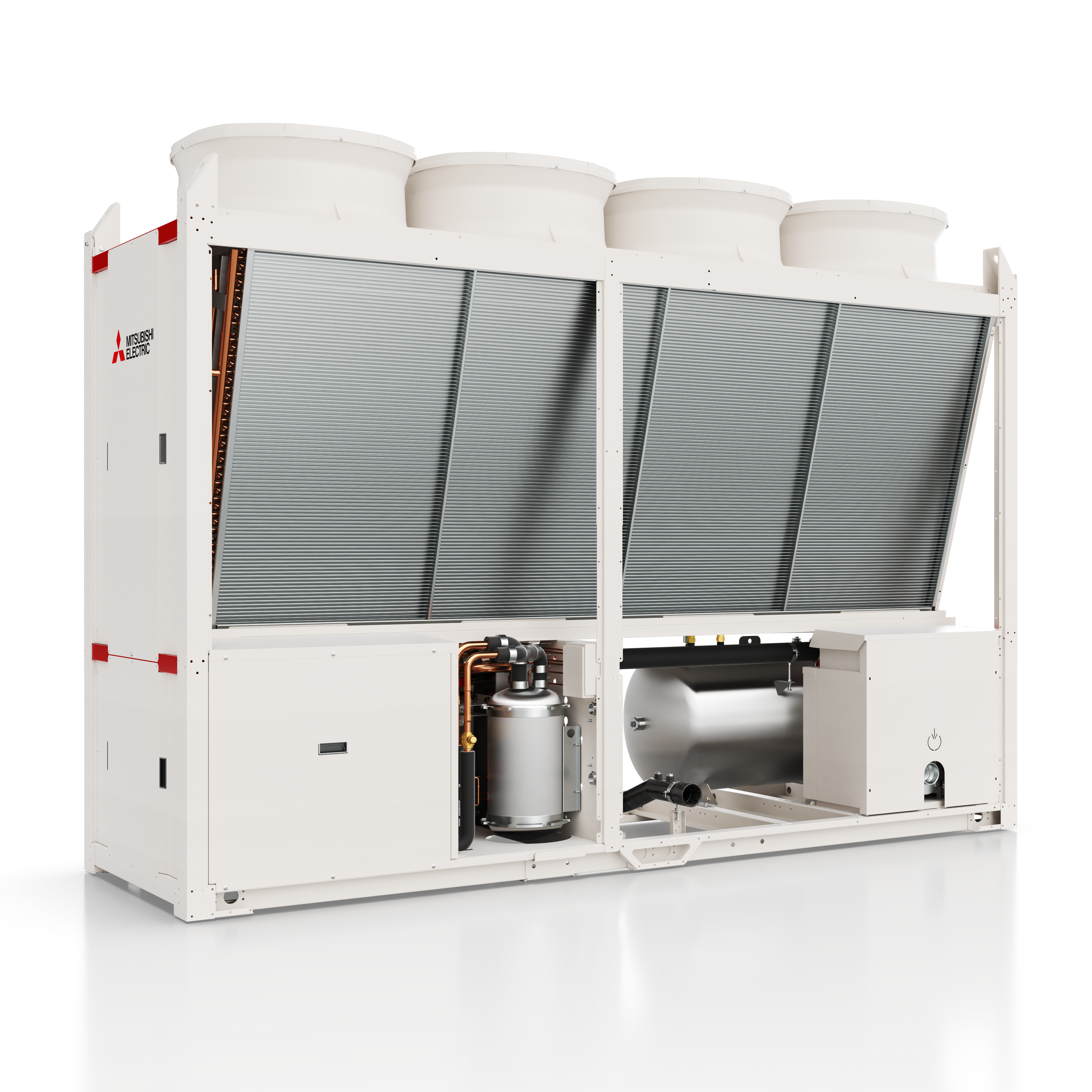

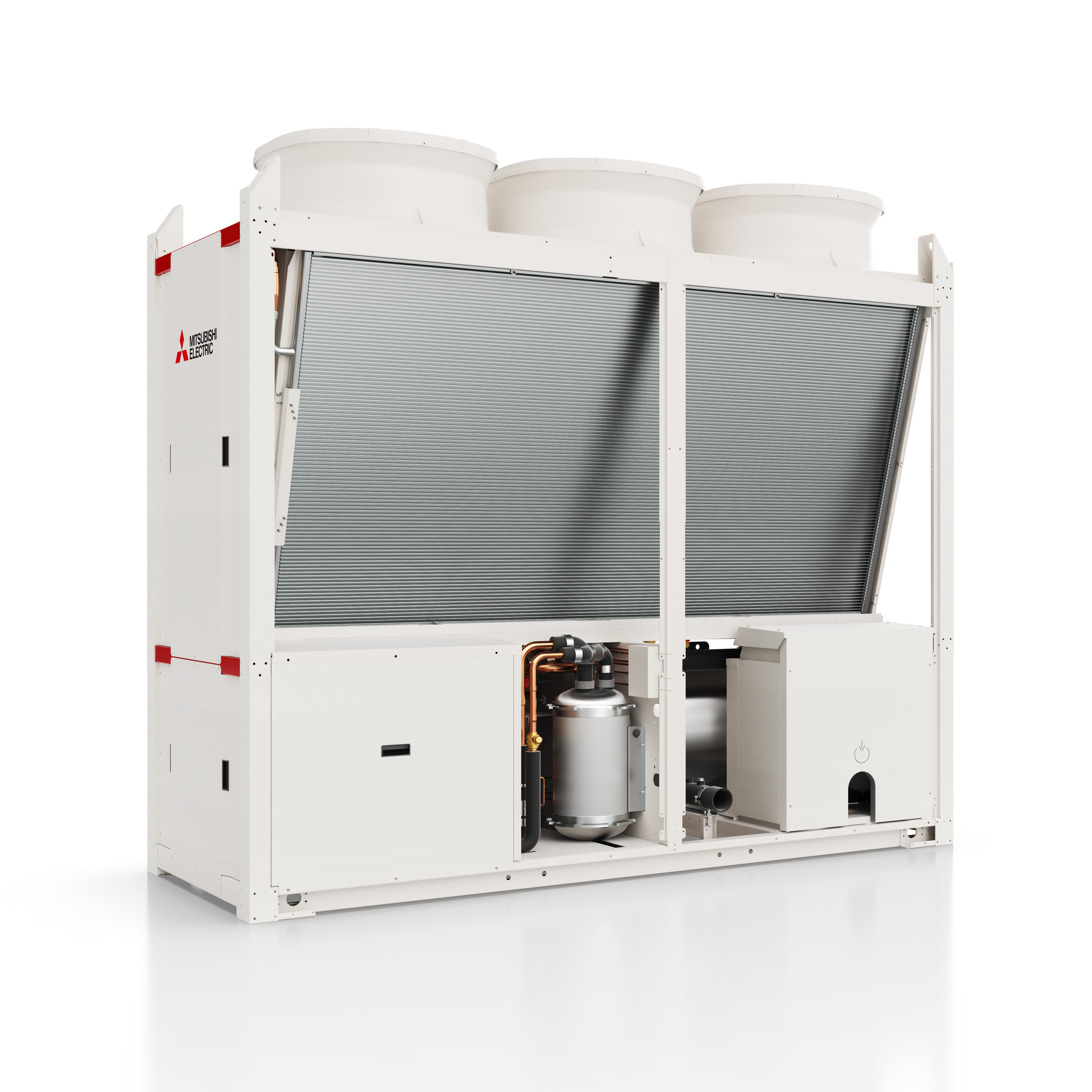

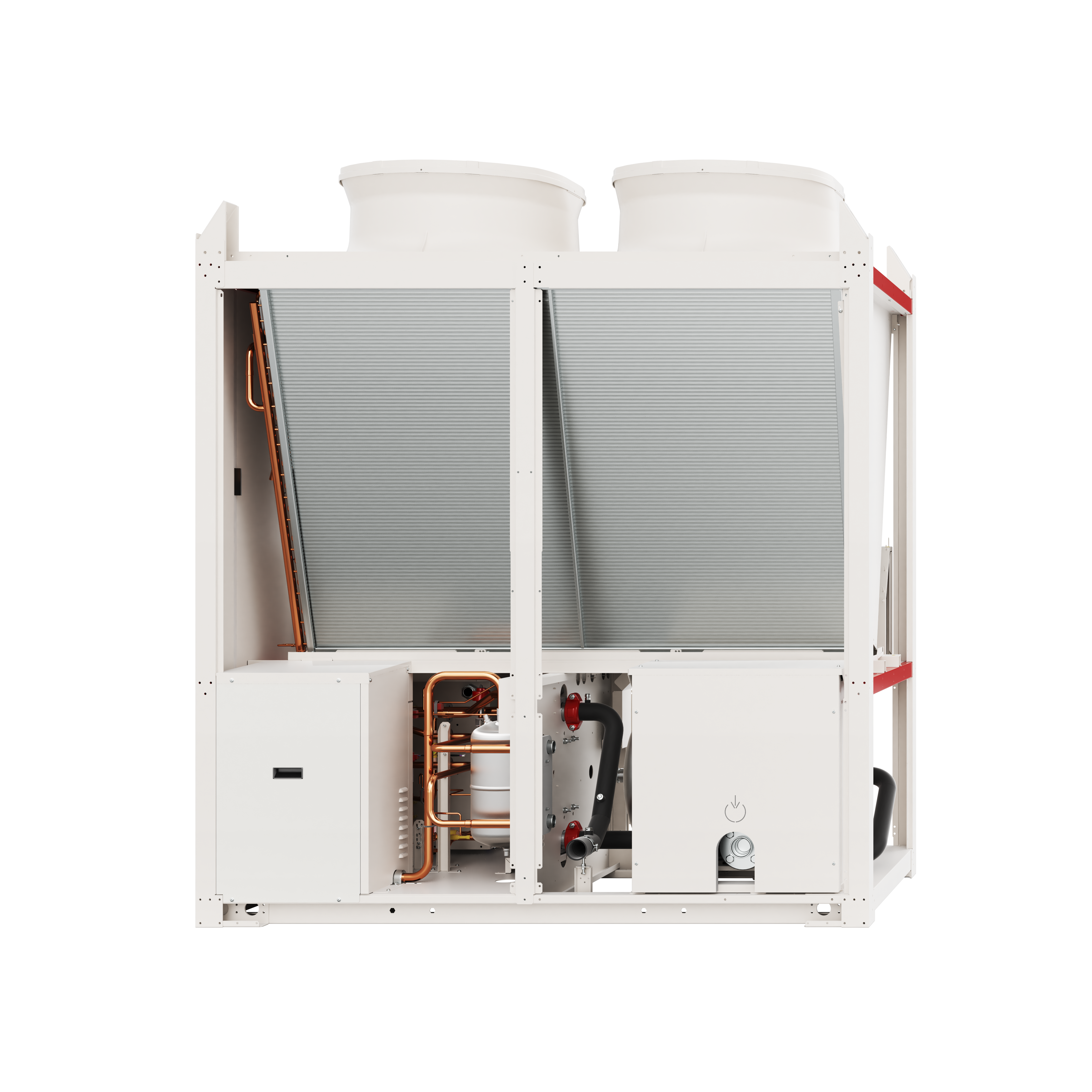

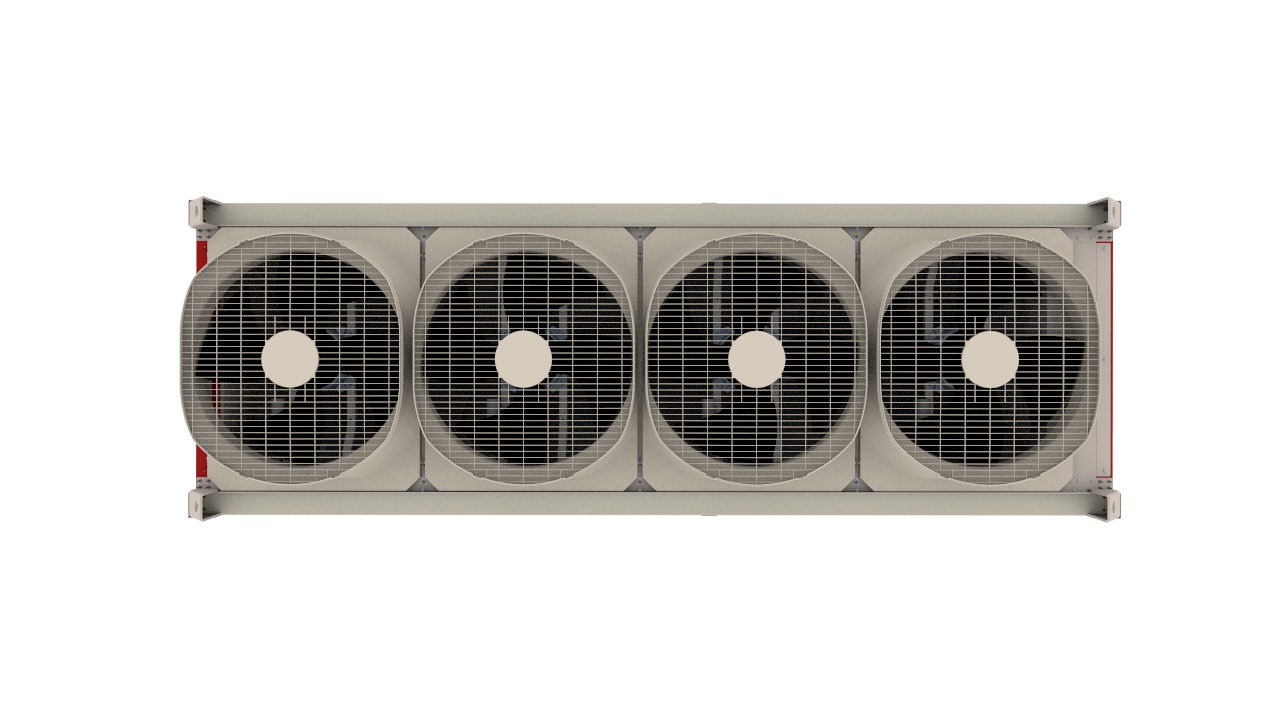

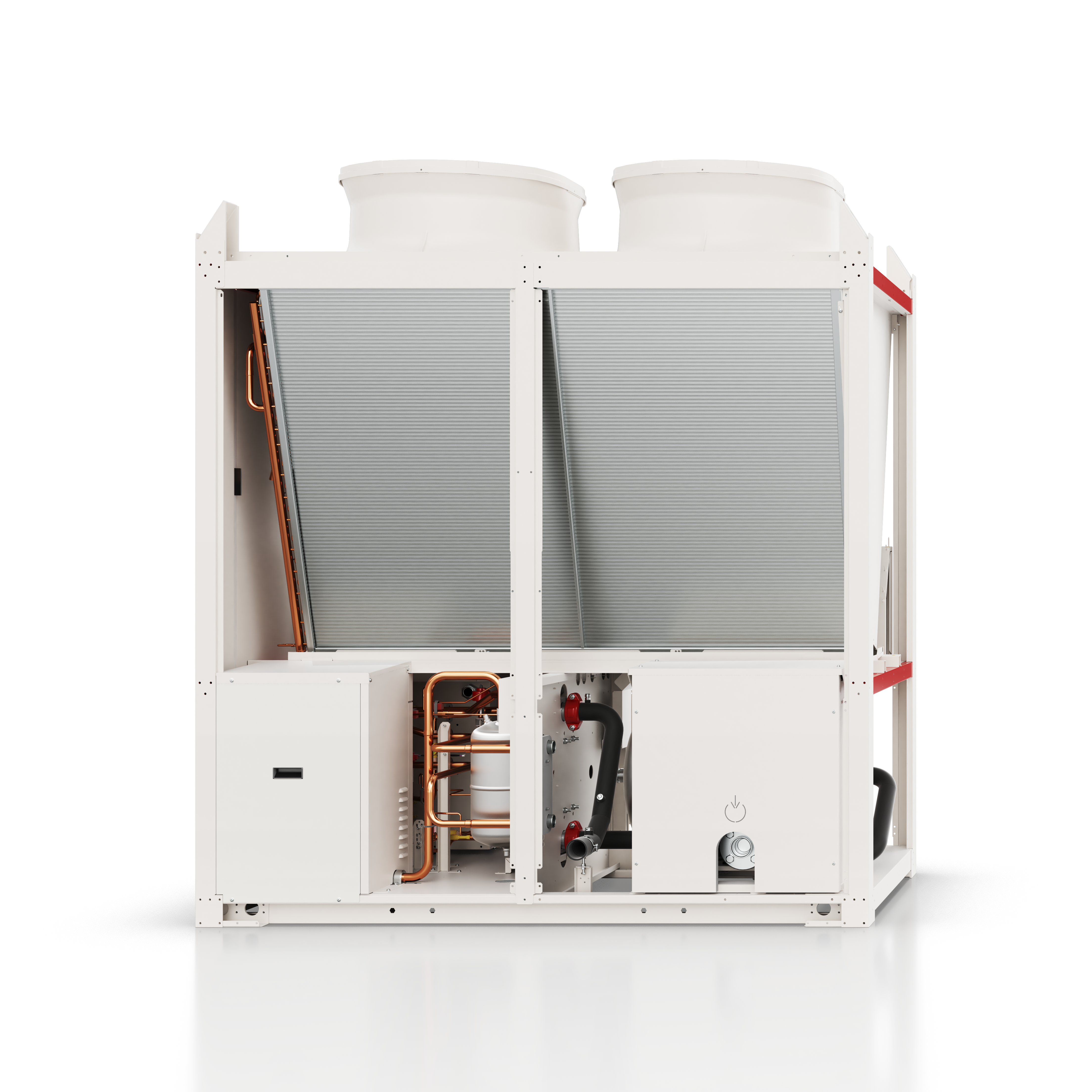

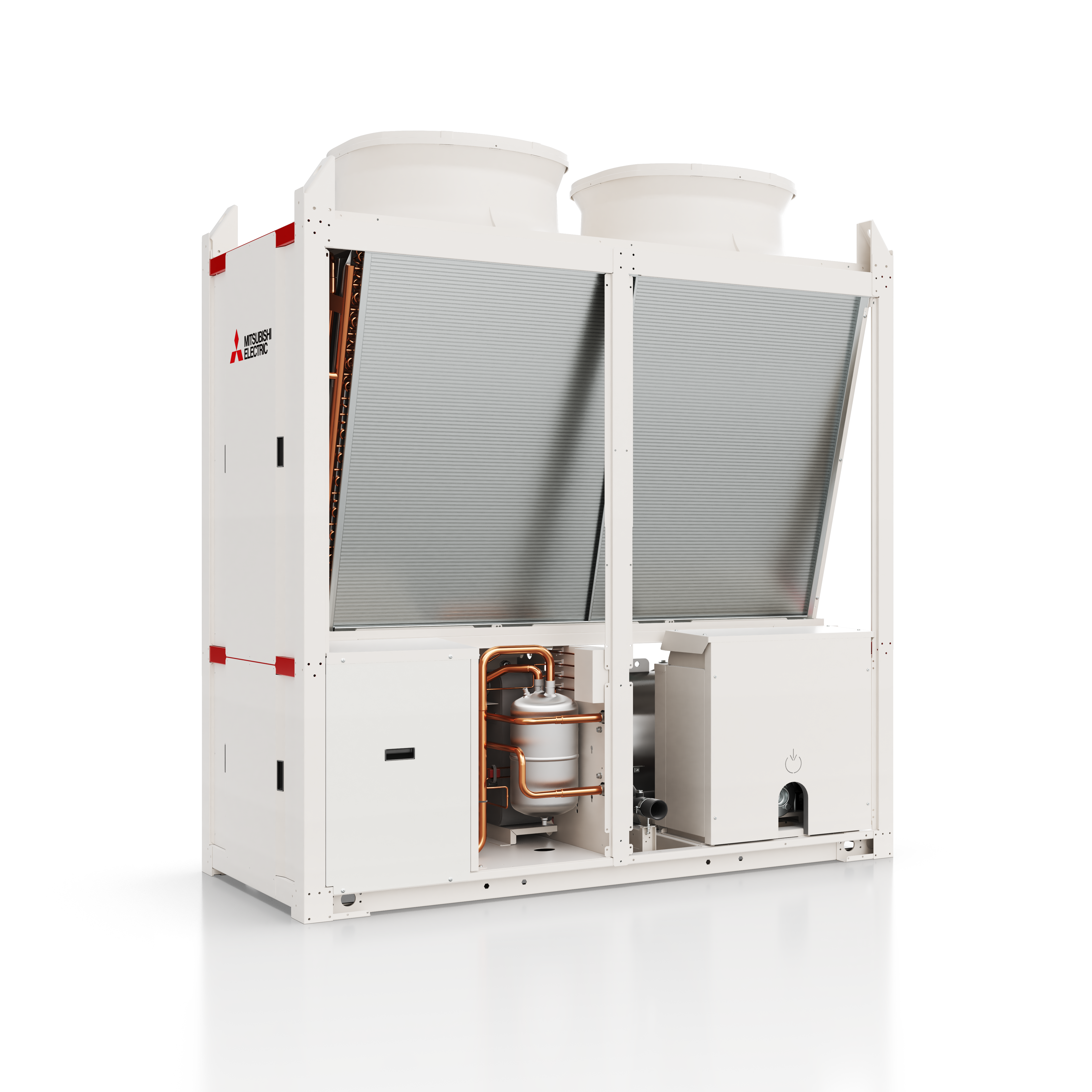

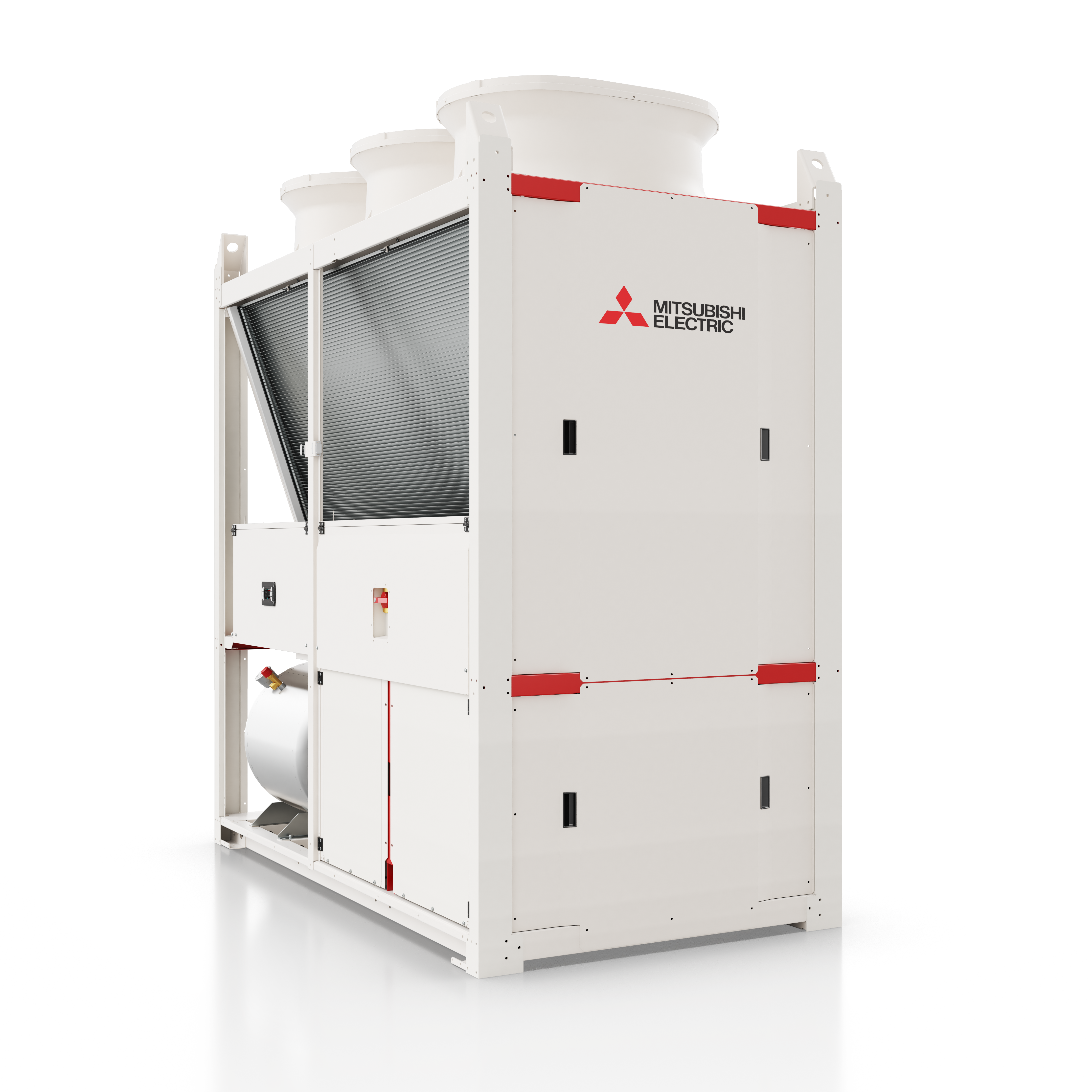

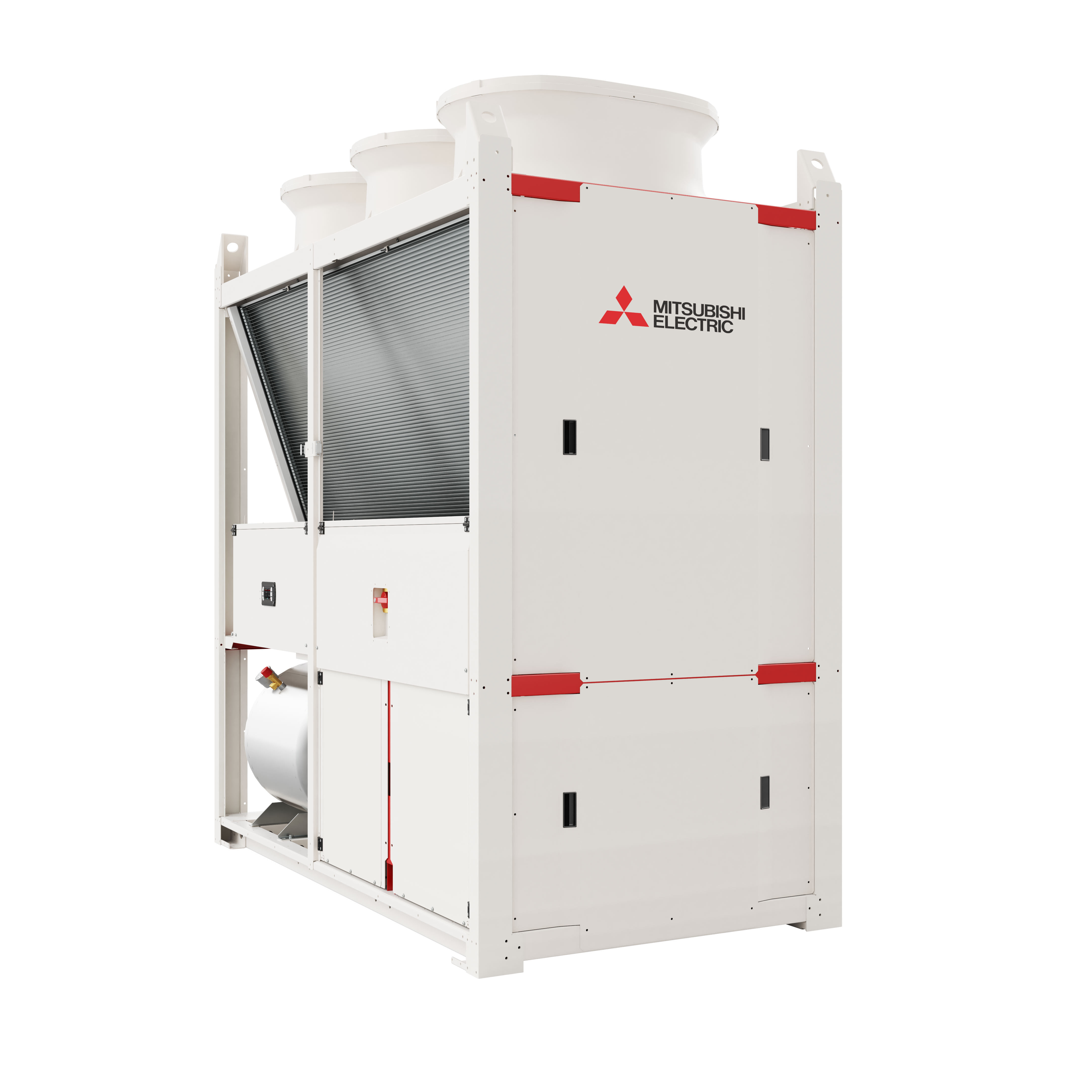

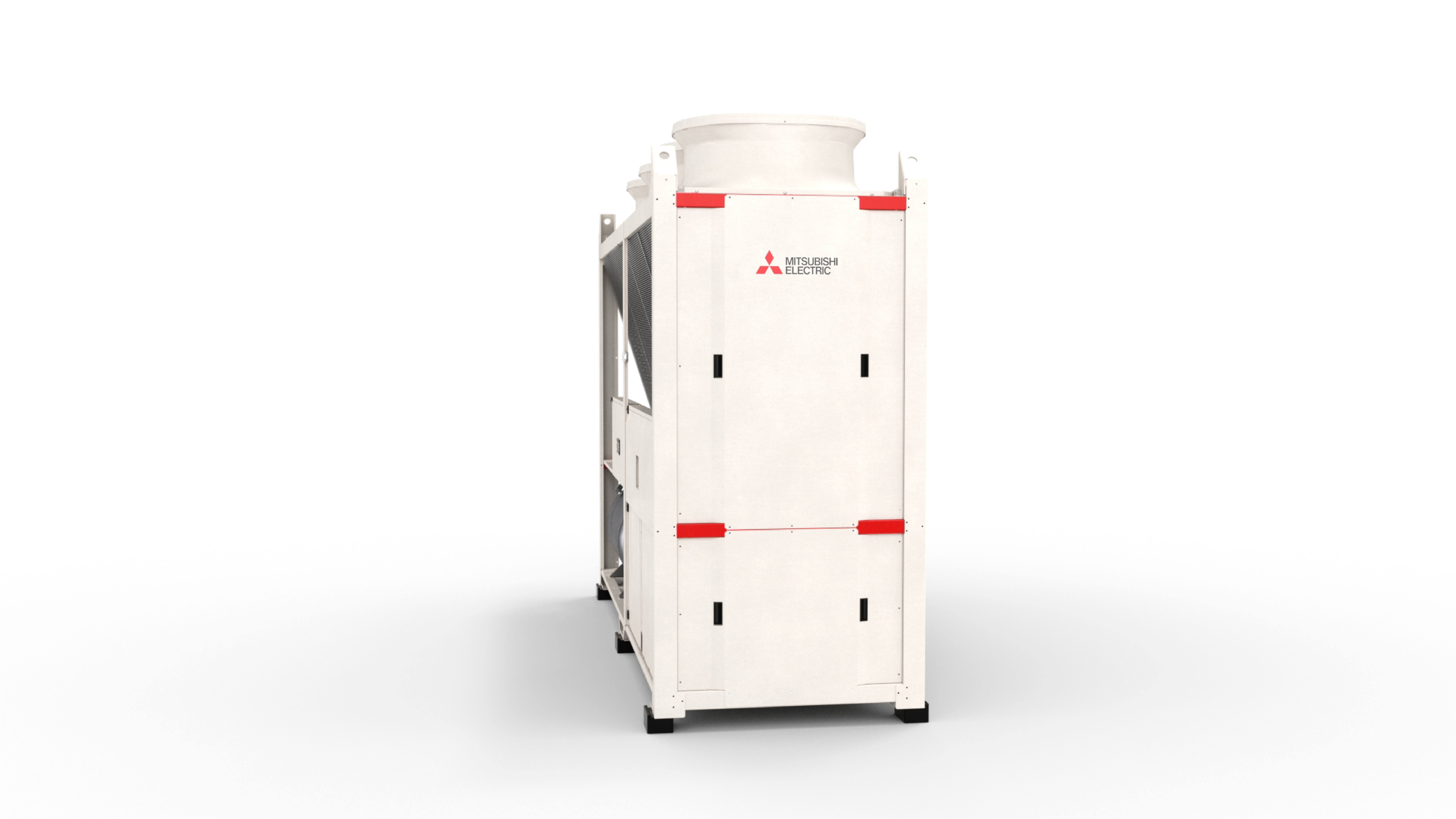

Air source reversible heat pump for outdoor installation, optimized in heating mode, with variable speed Scroll compressors, optimized for R32 in a single-circuit configuration, source-side heat exchanger made with copper tubes and aluminum fins, braze welded plate heat exchanger, electronic expansion valve as standard, variable speed axial-flow fans with BLDC motor and external inverter. Flexible and reliable unit; it easily adapts to different thermal load conditions thanks to the precise temperature control together with the use of inverter technology. The high performance levels, both full and partial loads, is achieved thanks to the unit’s accurate design and to the use of fixed speed motor together with variable speed (inverter) motor.
