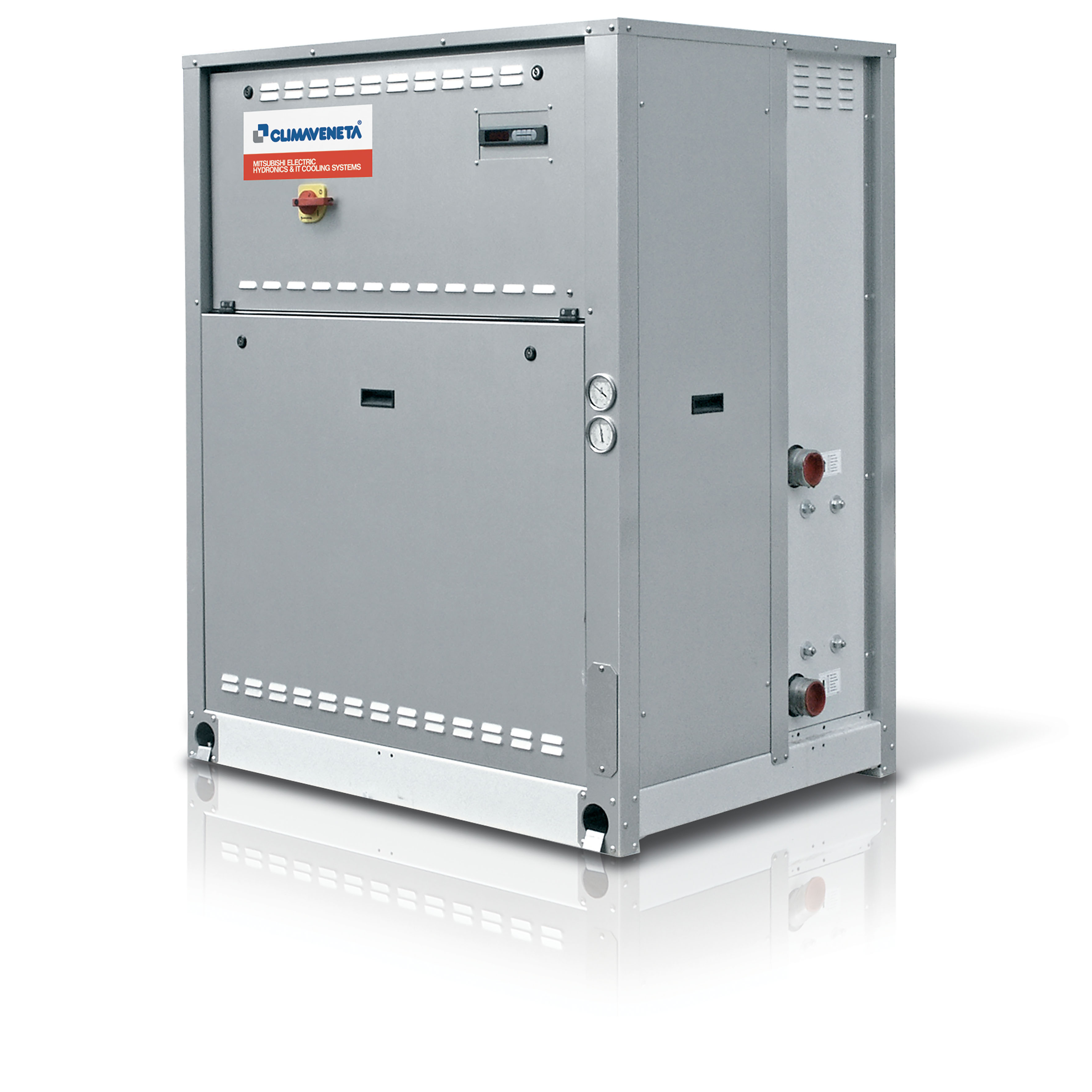

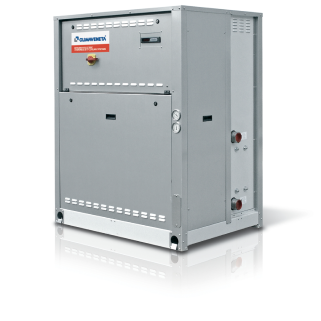

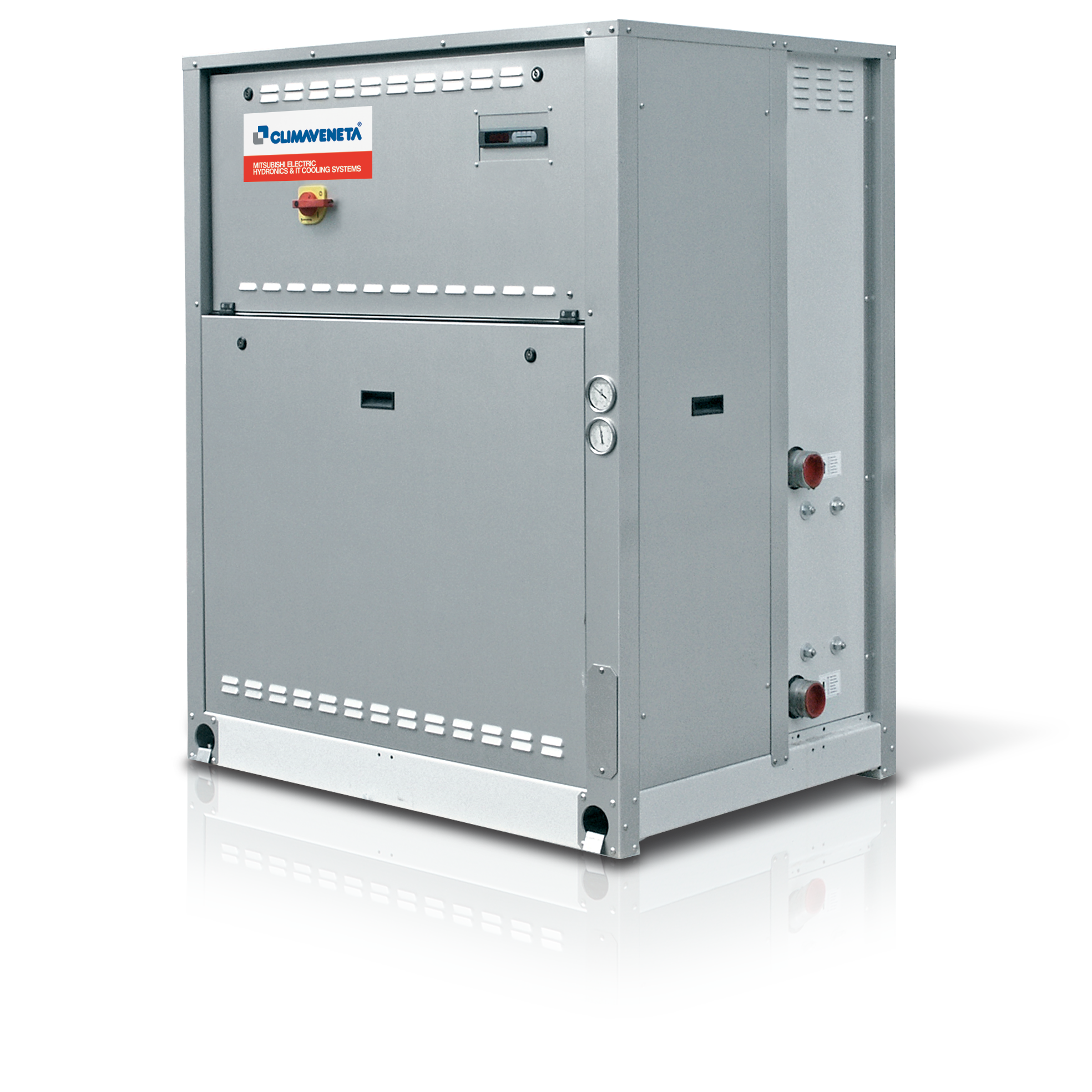

NECS-WQ 0152-1204

Water source INTEGRA unit for 4-pipe simultaneous heating / cooling
Cooling Capacity:45.0kW to 490.0kW
Heating Capacity:52.0kW to 441.0kW
Refrigerant: R410A (GWP1923)
Flow temp range: -8°C to 15°C(Cooling) 26°C to 55°C(Heating)

Multi-purpose indoor unit for use in 4-pipe systems for the simultaneous production of hot and chilled water by means of two independent water circuits. These units are able to satisfy the demand for hot and cold water simultaneously through a system that does not require seasonal switching. Water-source unit equipped with hermetic rotary Scroll compressors, with R410A, plate heat exchangers and thermostatic expansion valve. The range is composed of units equipped with two and four compressors, all with two independent refrigerant circuits.
