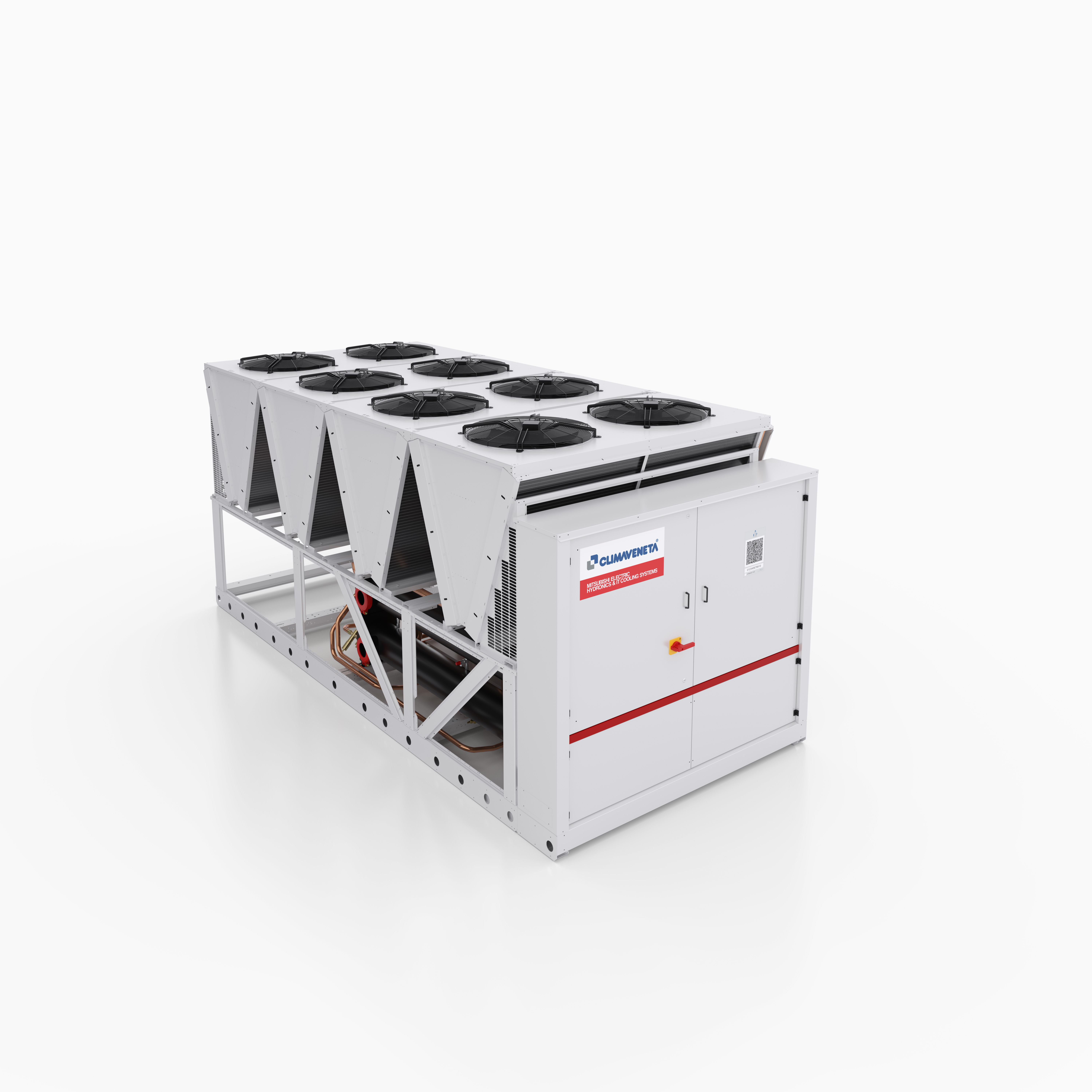

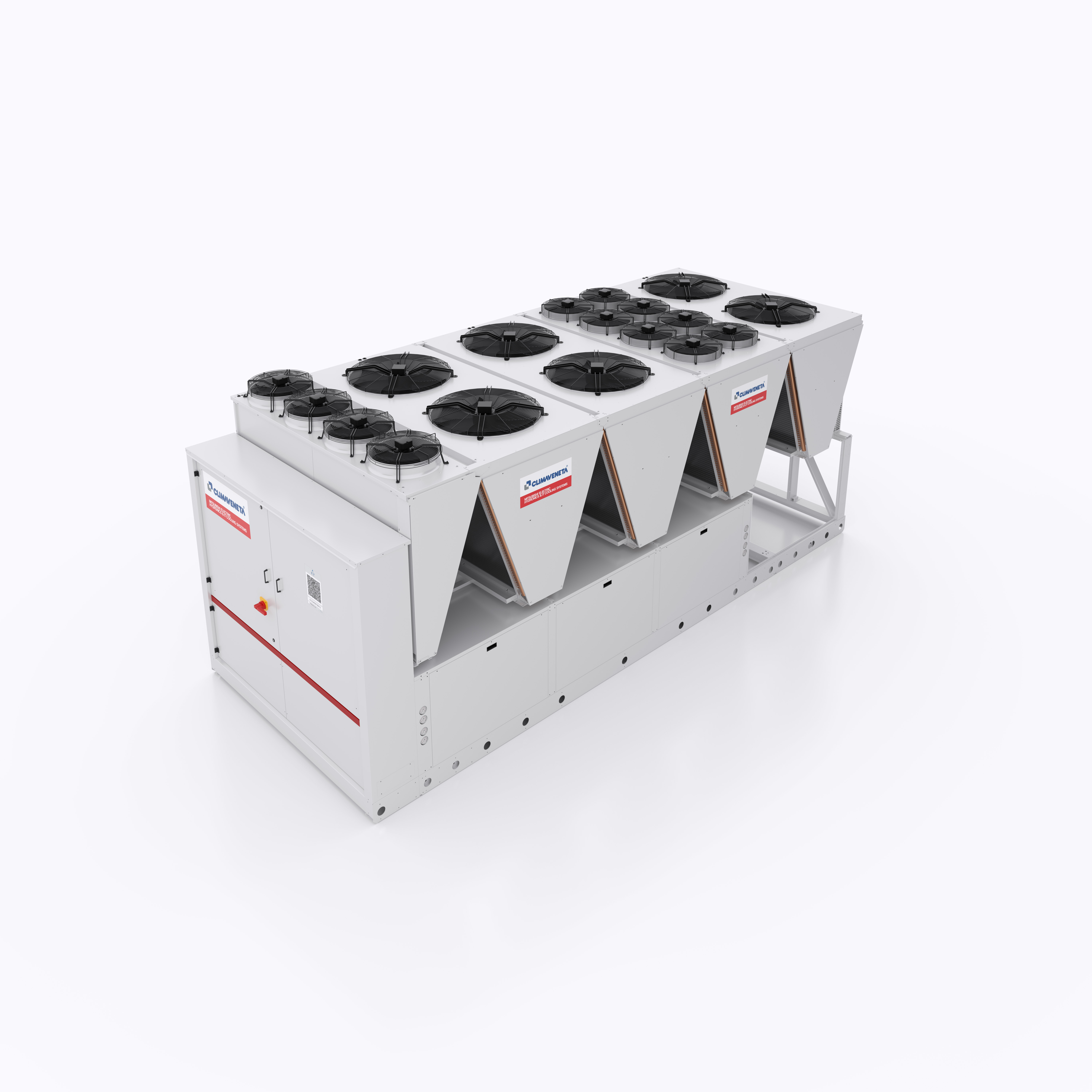

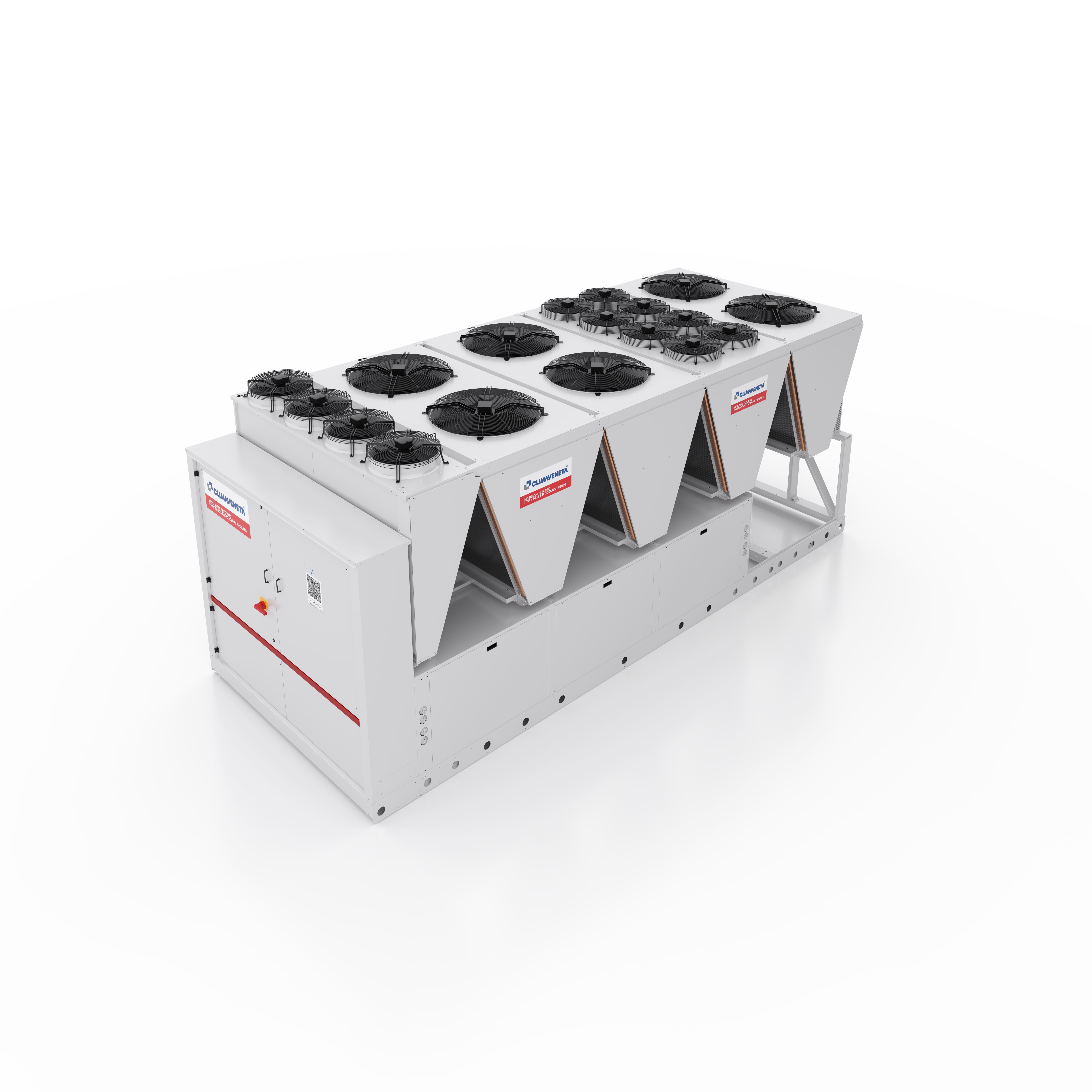

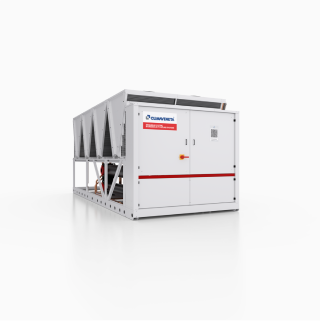

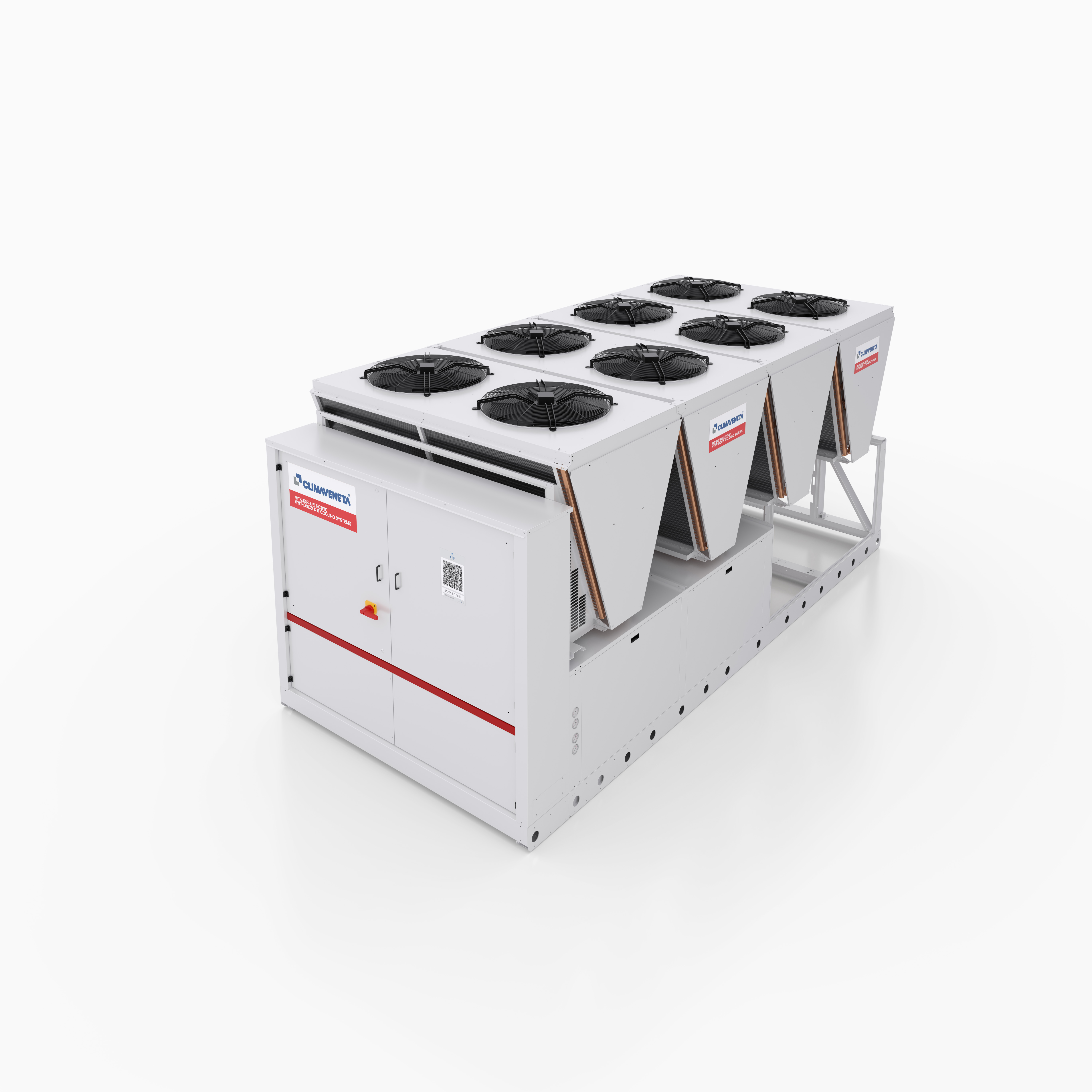

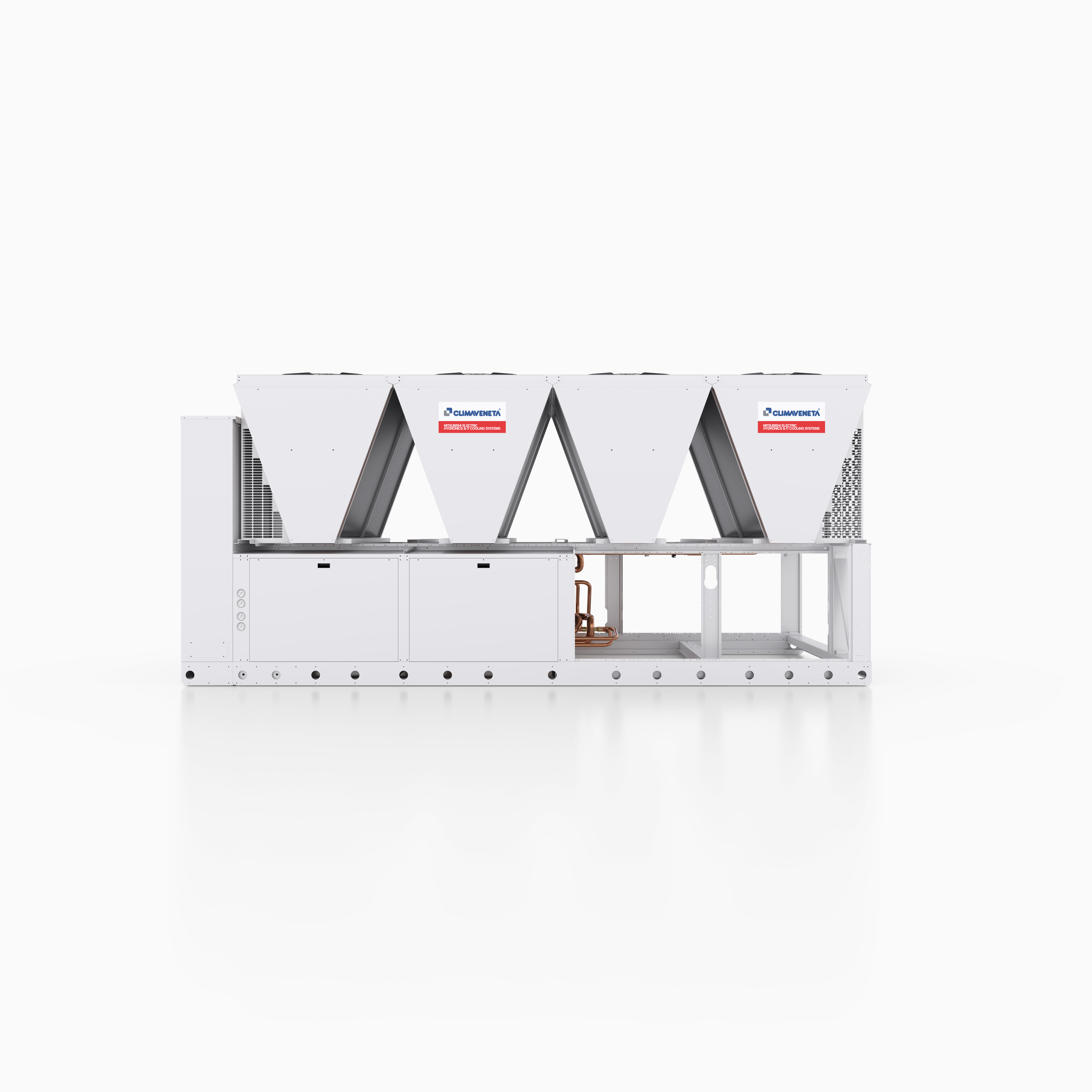

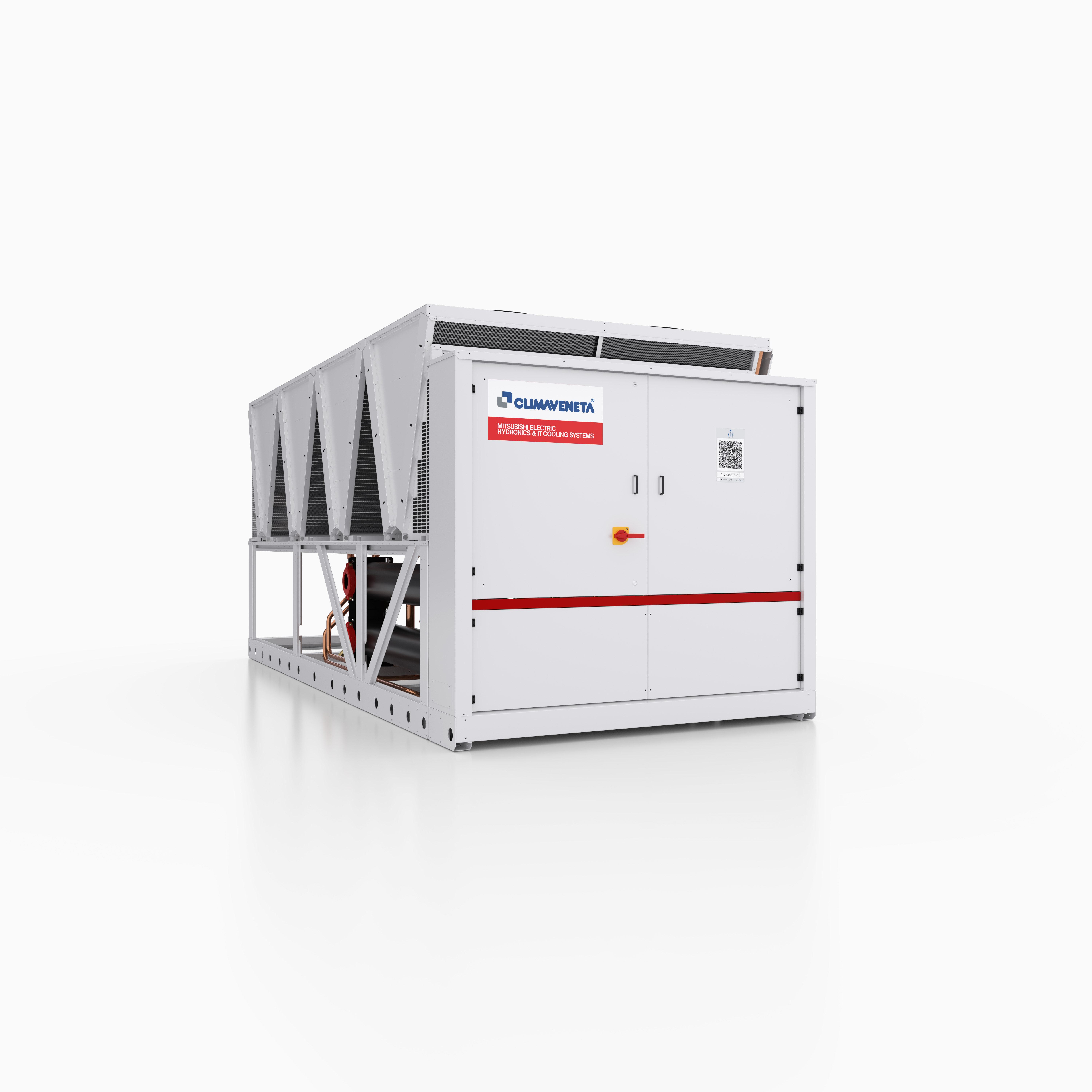

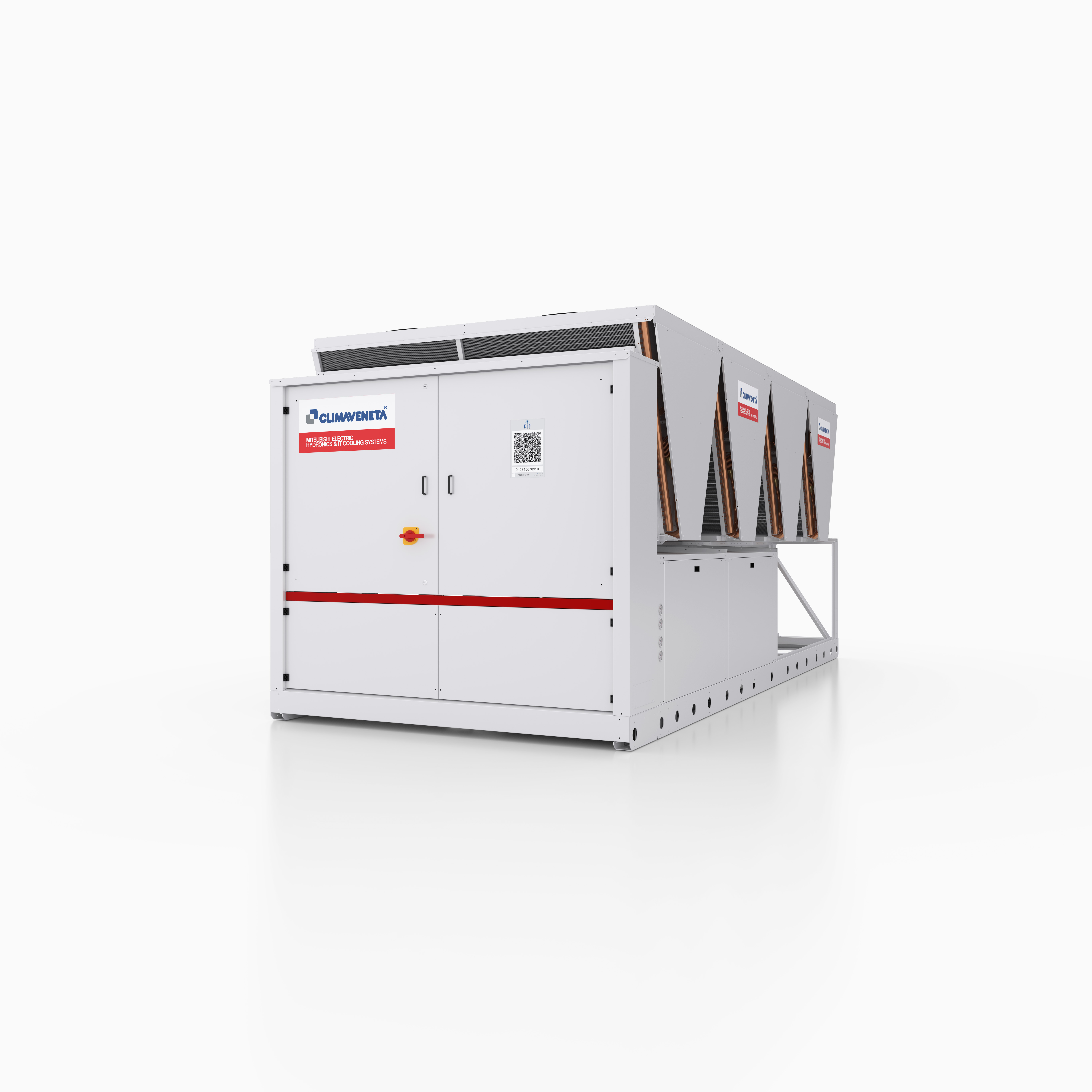

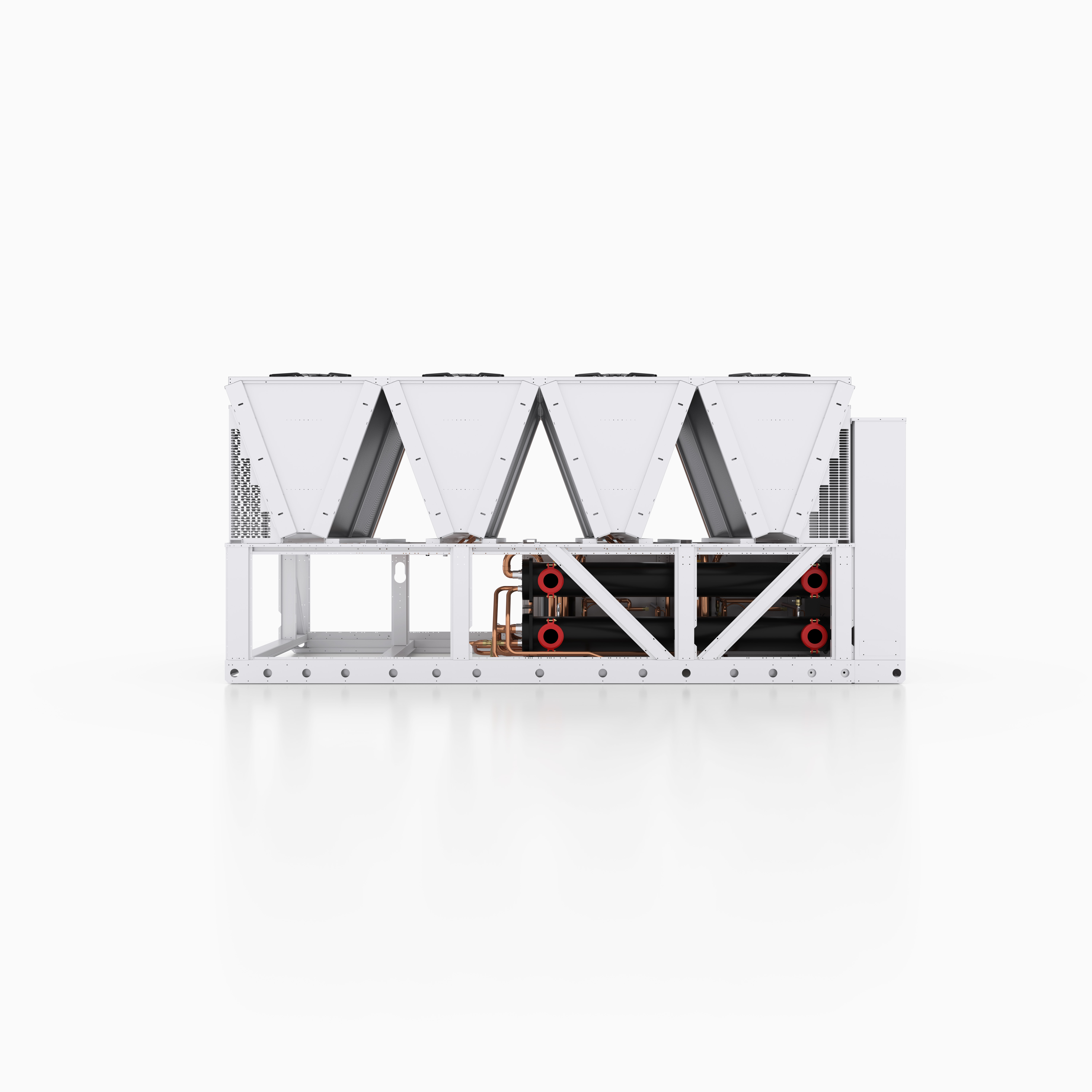

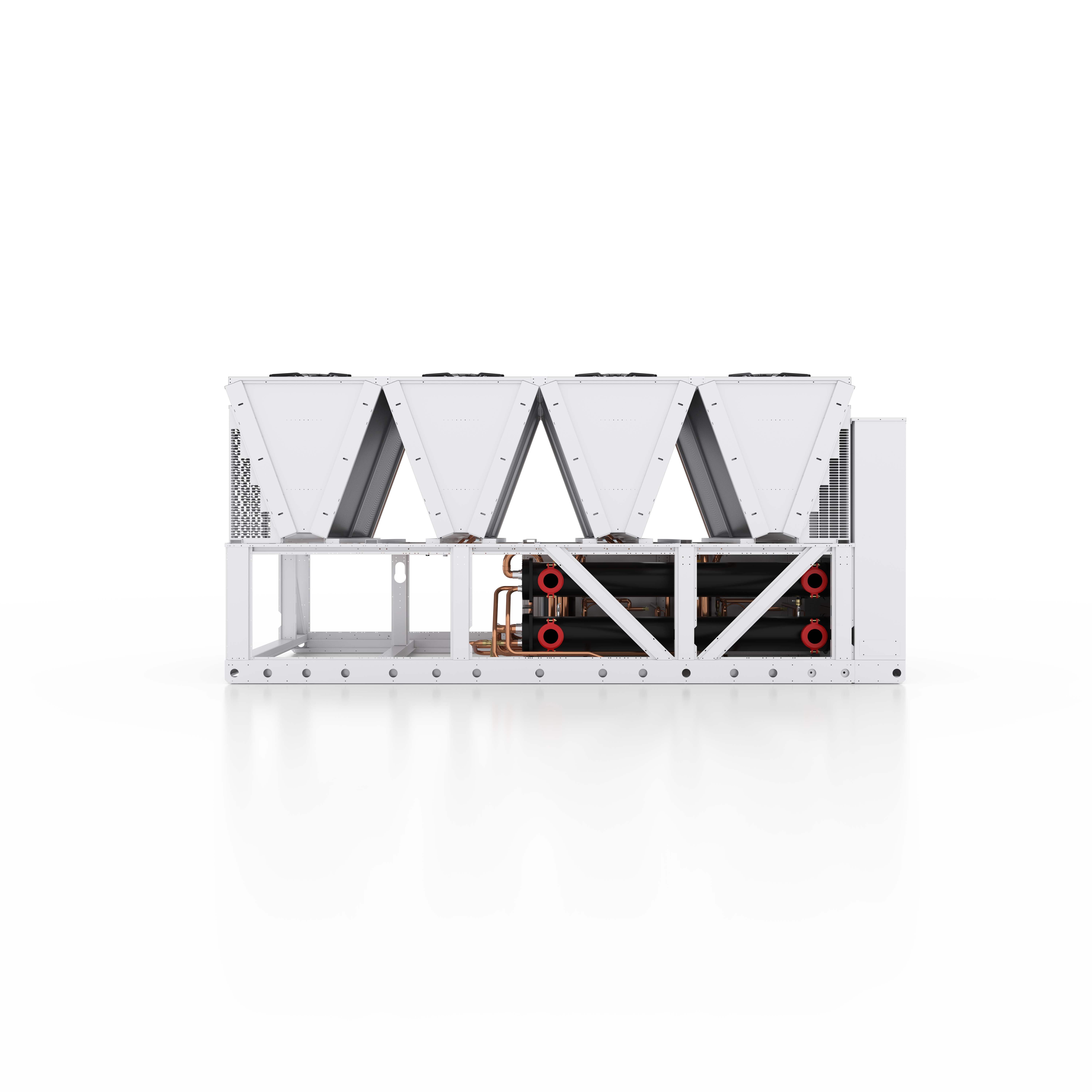

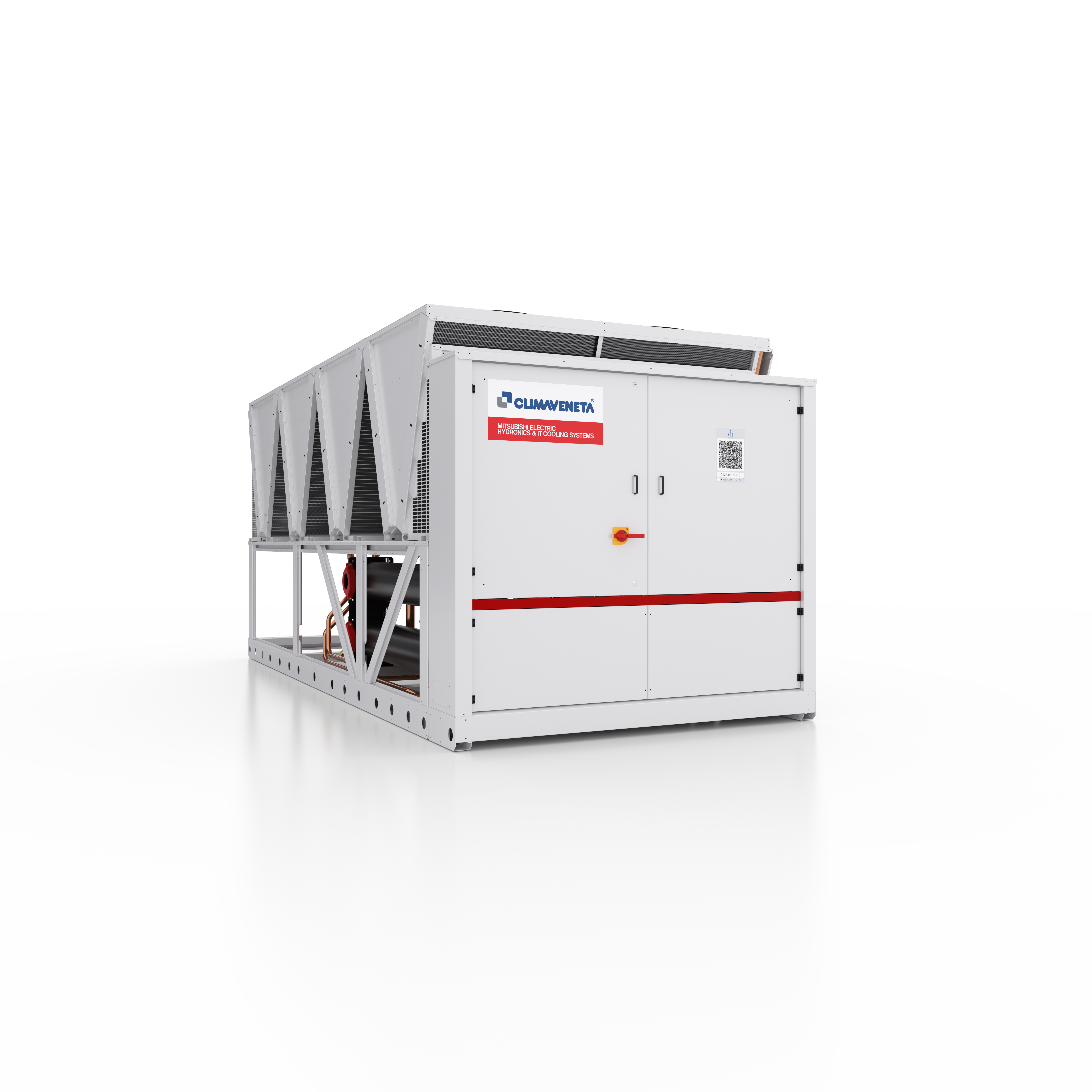

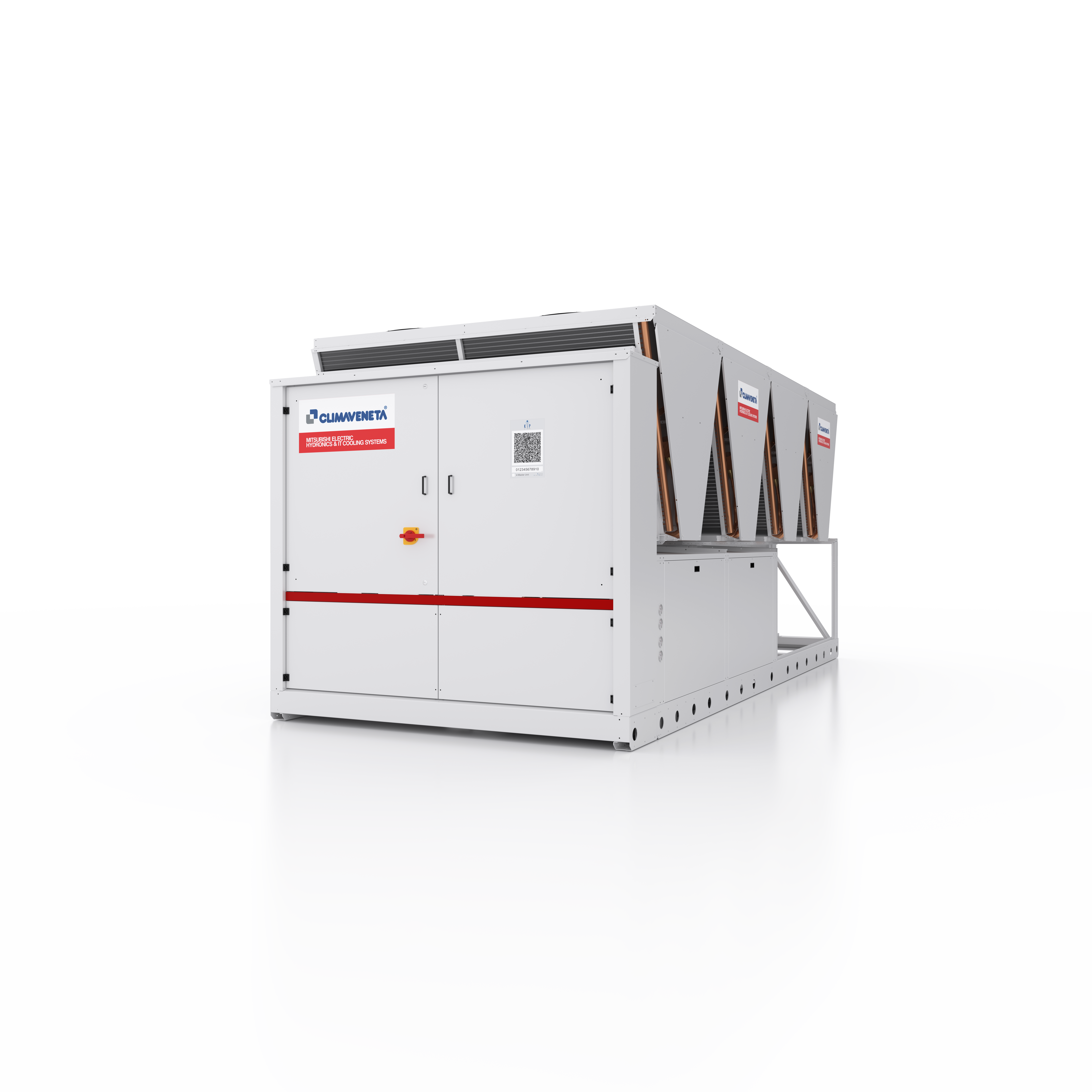

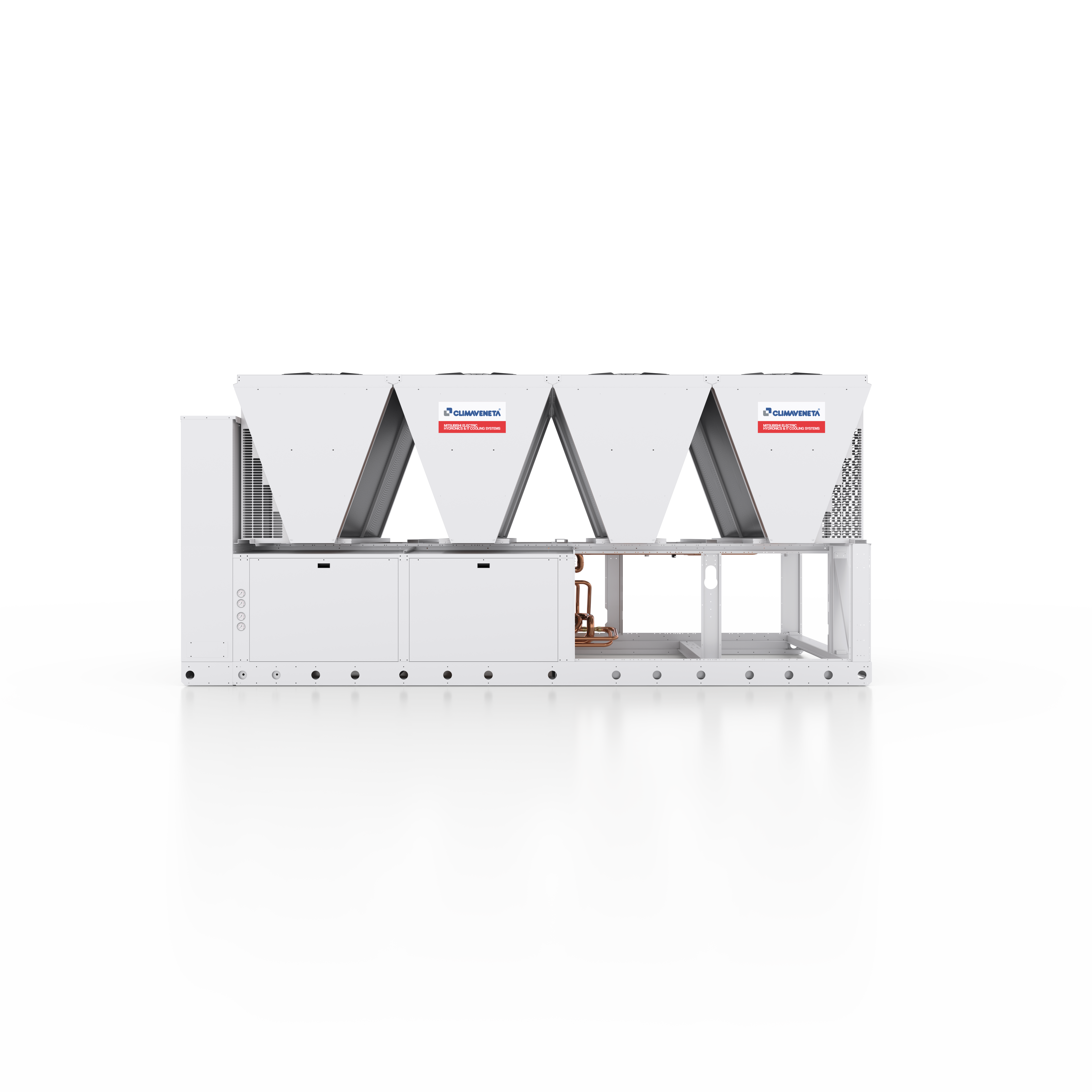

NX2-Q-G06 0344-0808

Air source INTEGRA unit for 4-pipe simultaneous heating / cooling
Cooling Capacity:316.0kW to 798.0kW
Heating Capacity:364.0kW to 854.0kW
Refrigerant: R454B (GWP 467)
Flow temp range: -8.0°C to 15.0°C (Cooling) 24.0°C to 55°C(Heating)

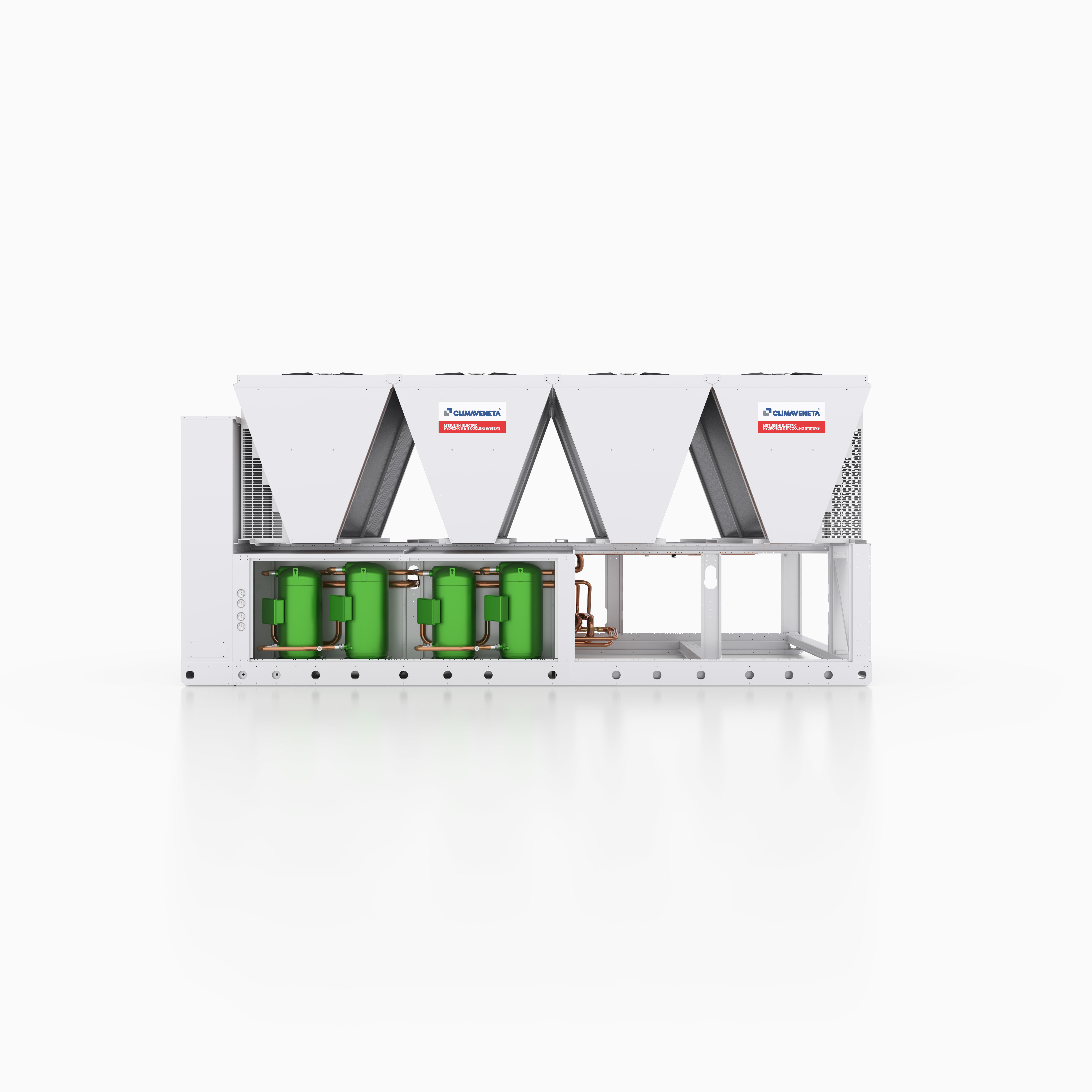

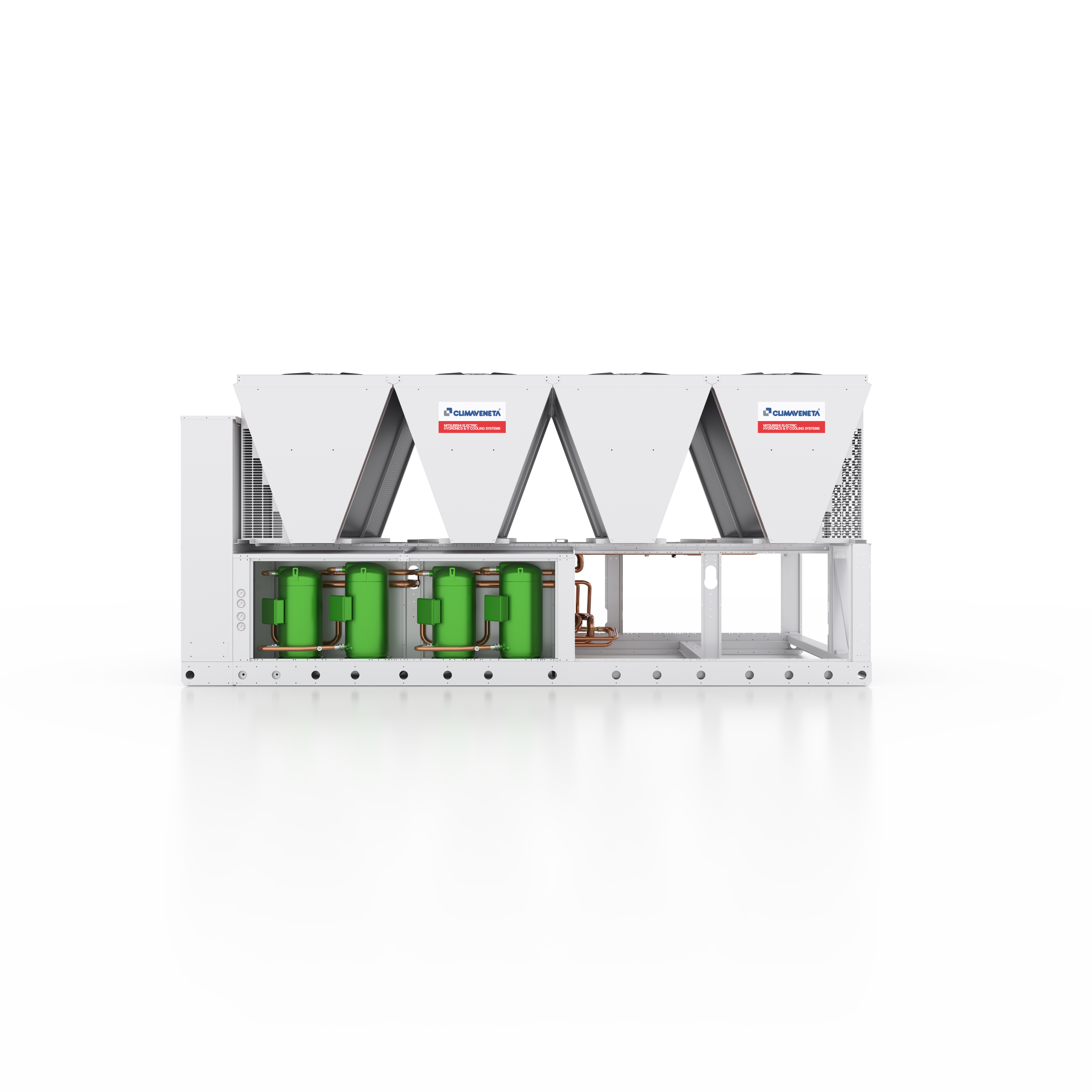

Multi-purpose outdoor unit for use in 4-pipe systems for the simultaneous production of hot and chilled water by means of two independent hydronic circuits. These units are able to satisfy the demand for hot and cold water simultaneously through a system that does not require seasonal switching and is therefore a valid alternative to traditional plants with chiller and boiler. This unit is equipped with hermetic rotary Scroll compressors, with R454B, axial fans, shell and tube heat exchangers and electronic expansion valve. The range is composed of units equipped with four, six, and eight compressors in a multi-circuit configuration.
