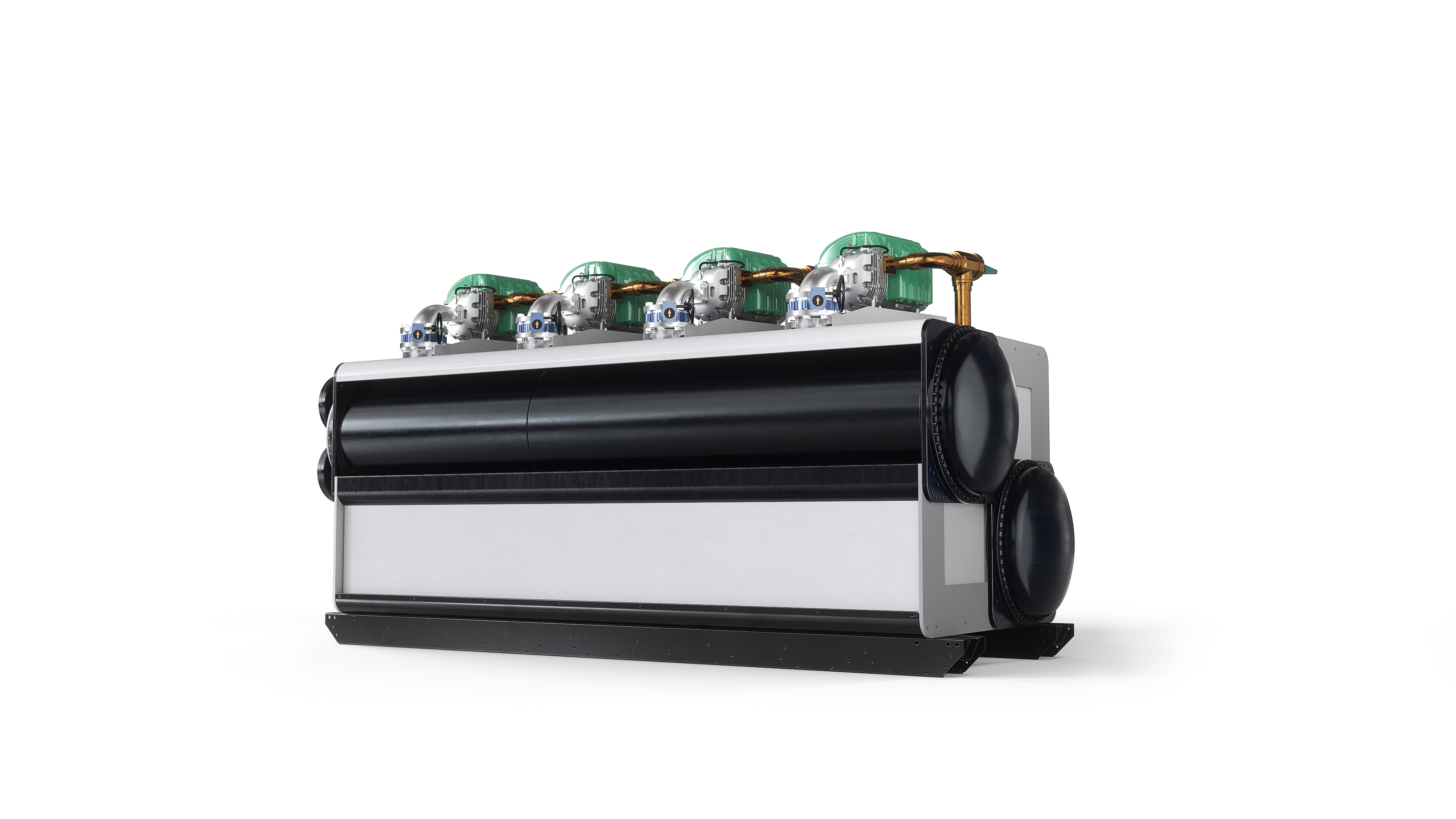

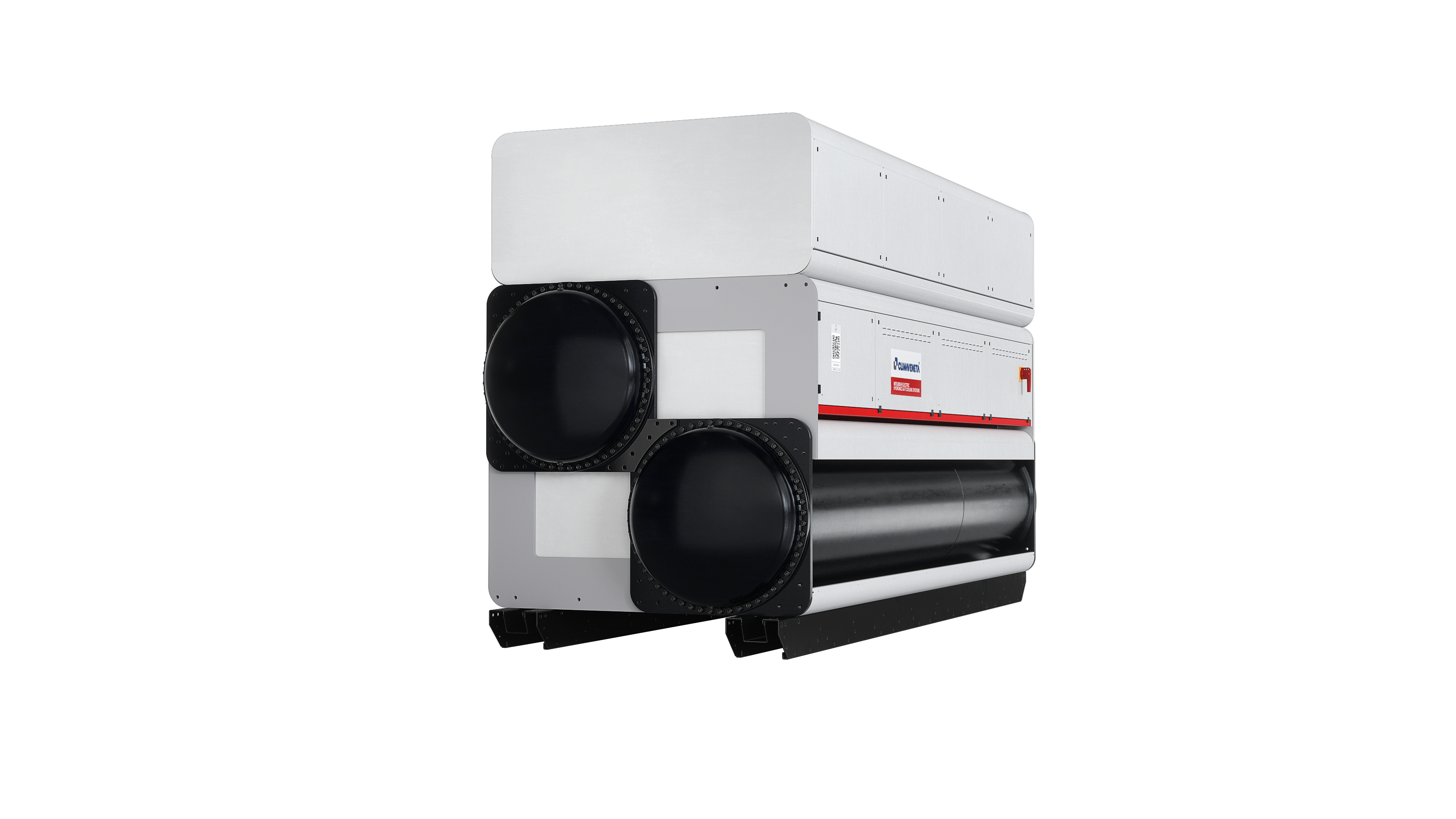

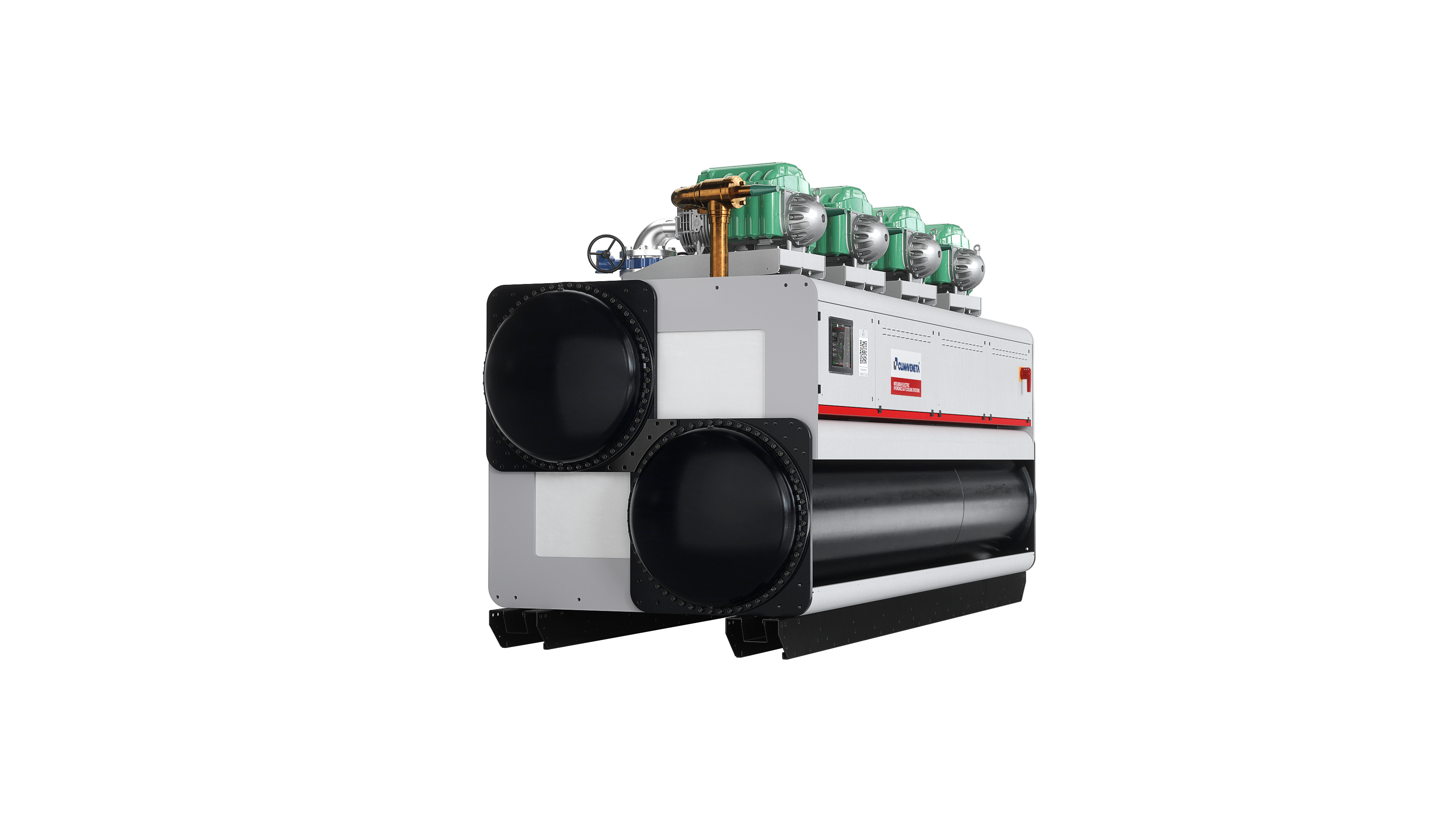

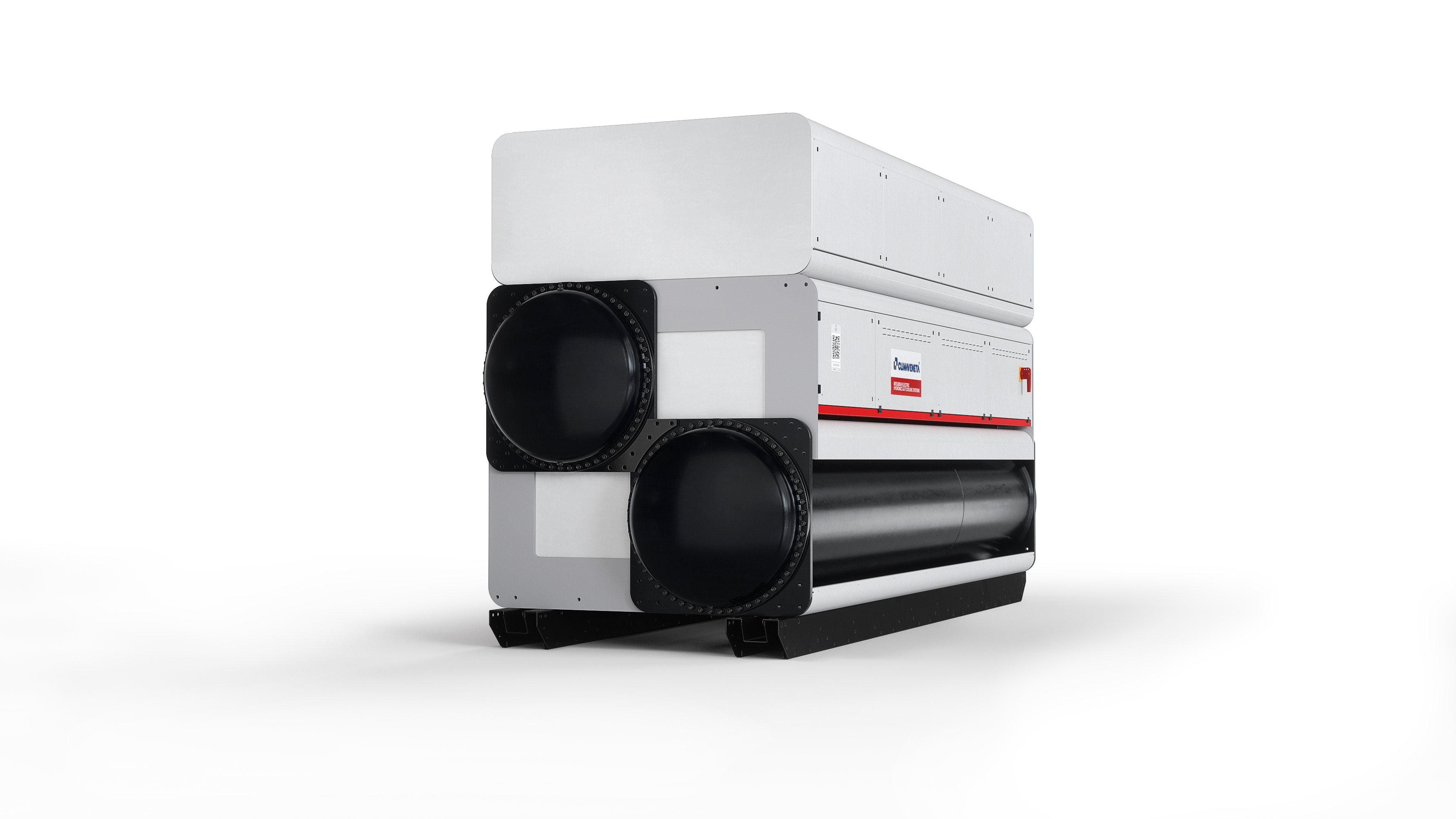

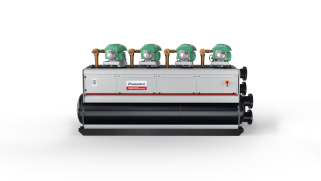

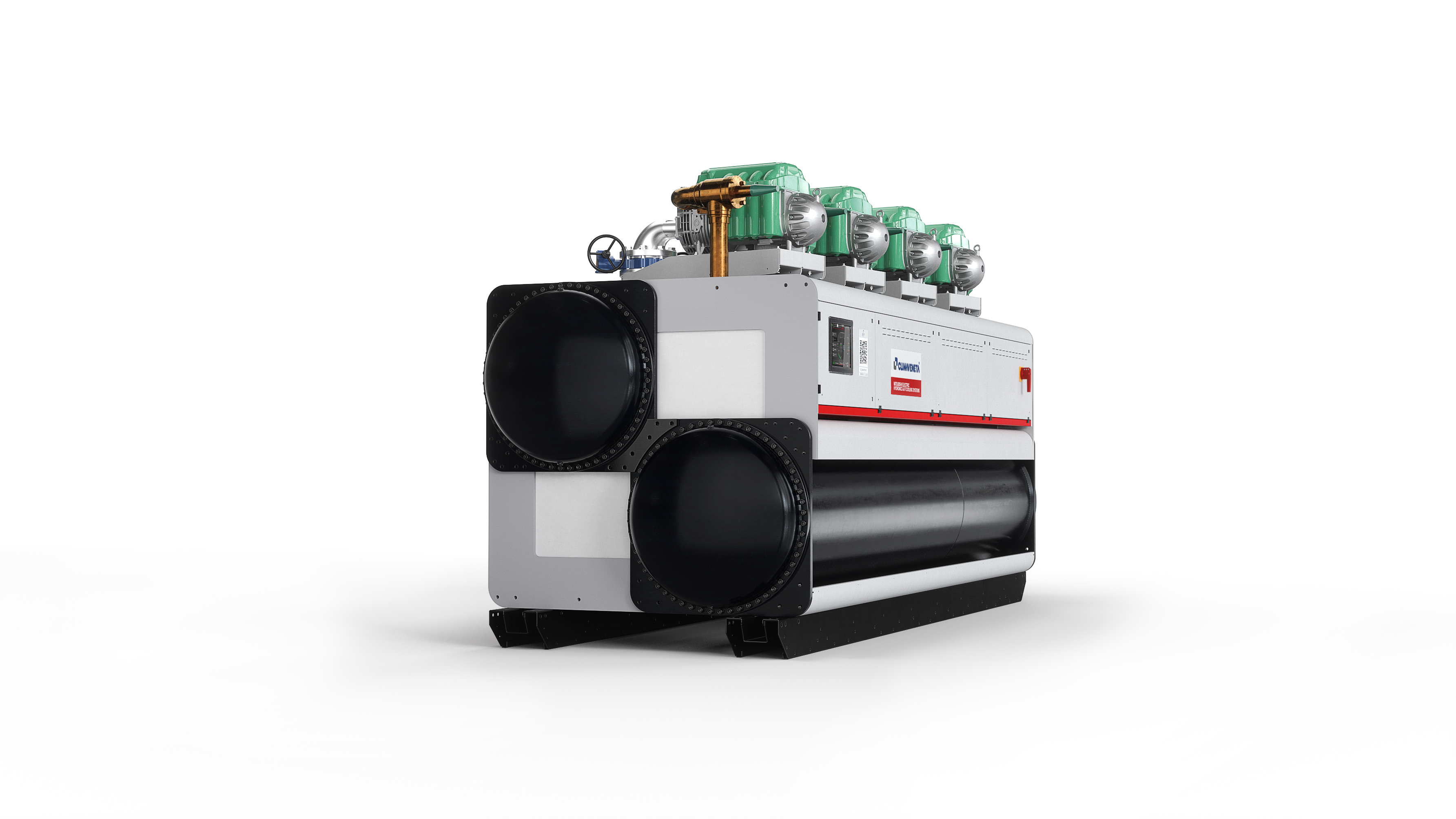

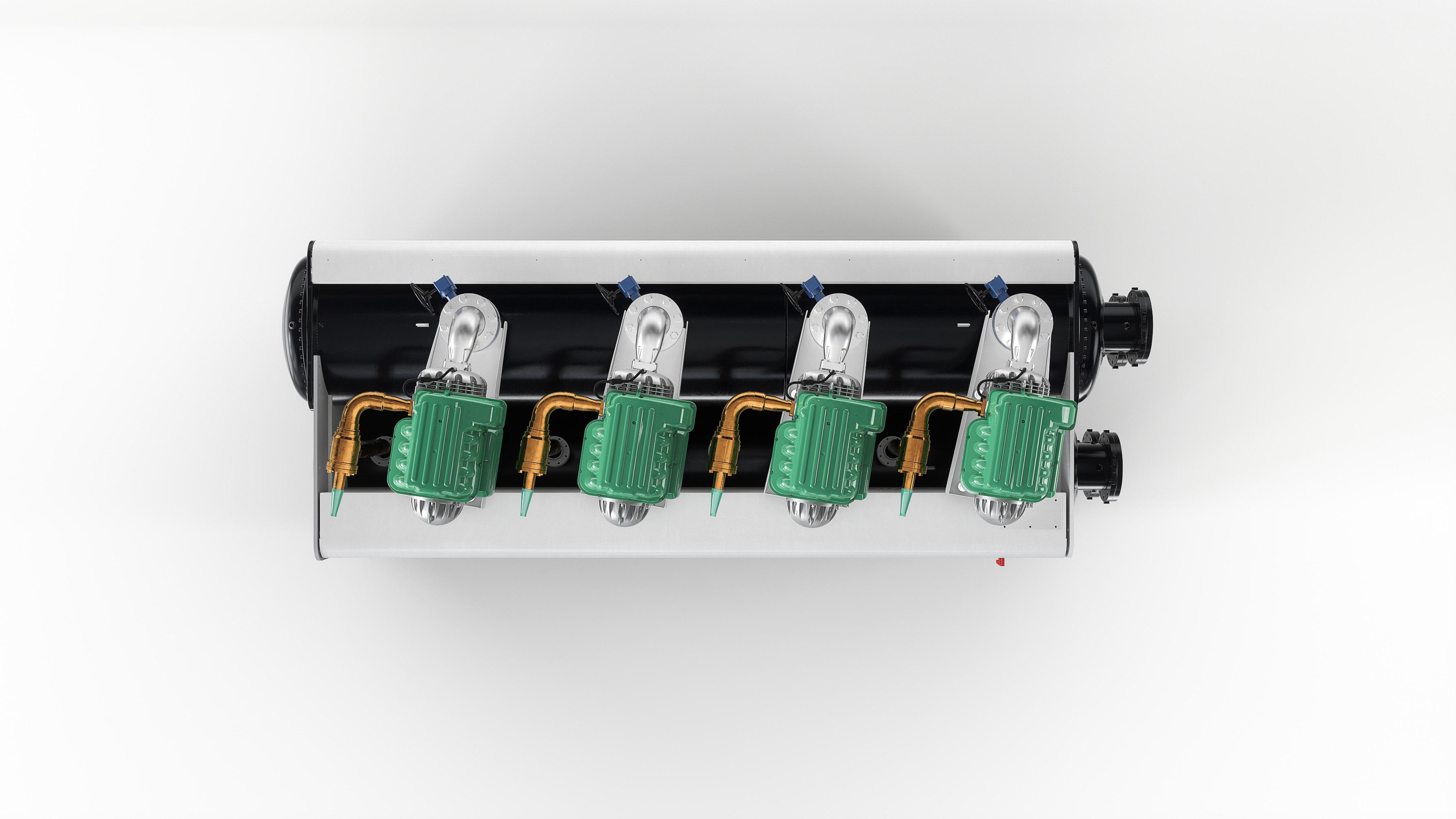

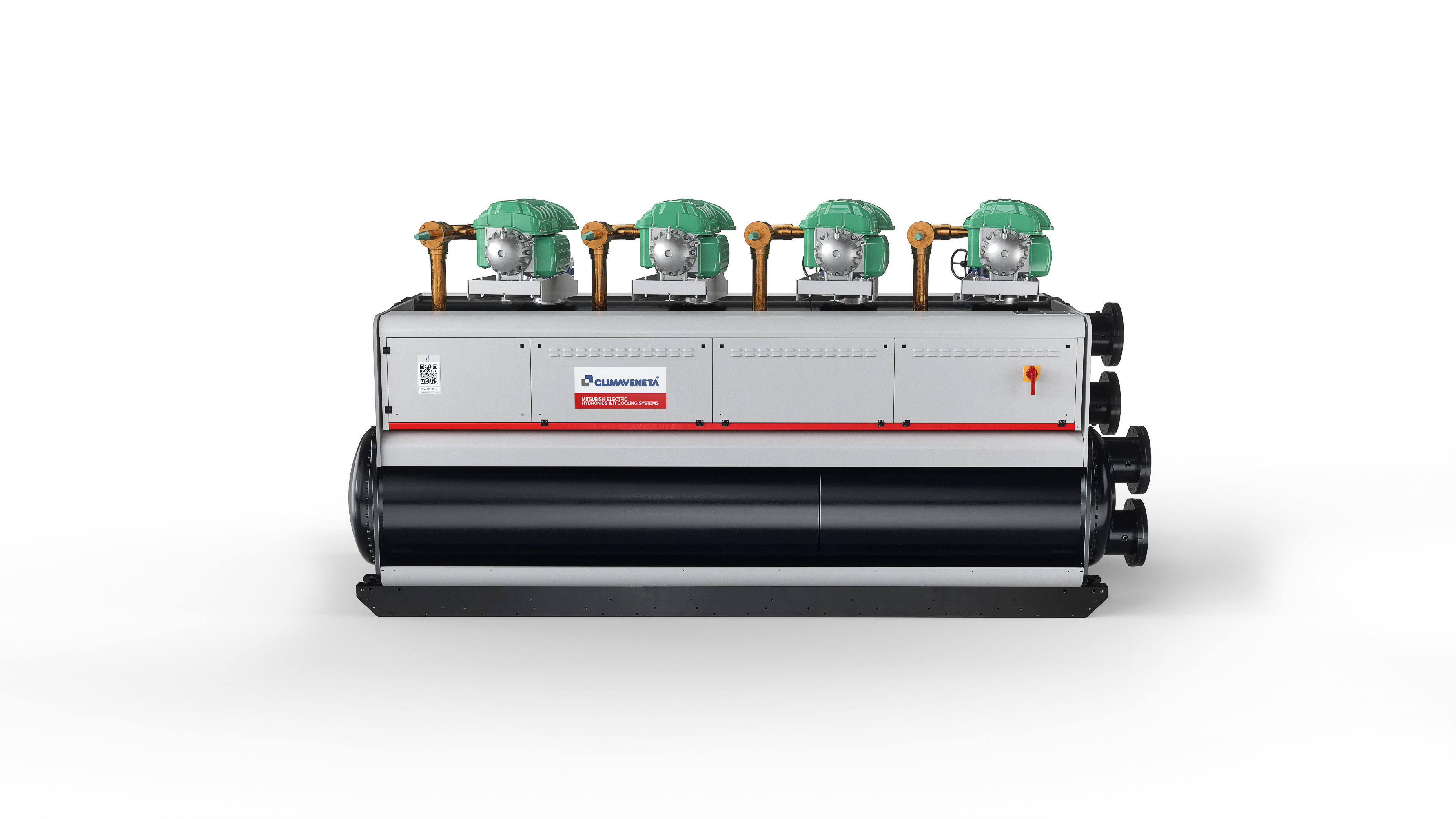

TX2-W-G04/H 0251-2064

Water source Heat pump
Cooling Capacity:209.0kW to 1681.0kW
Heating Capacity:263.0kW to 2146.0kW
HFO R1234ze Refrigerant (GWP < 1)
Flow temp range: 4°C to 13°C(Cooling)18°C to 50°C(Heating)

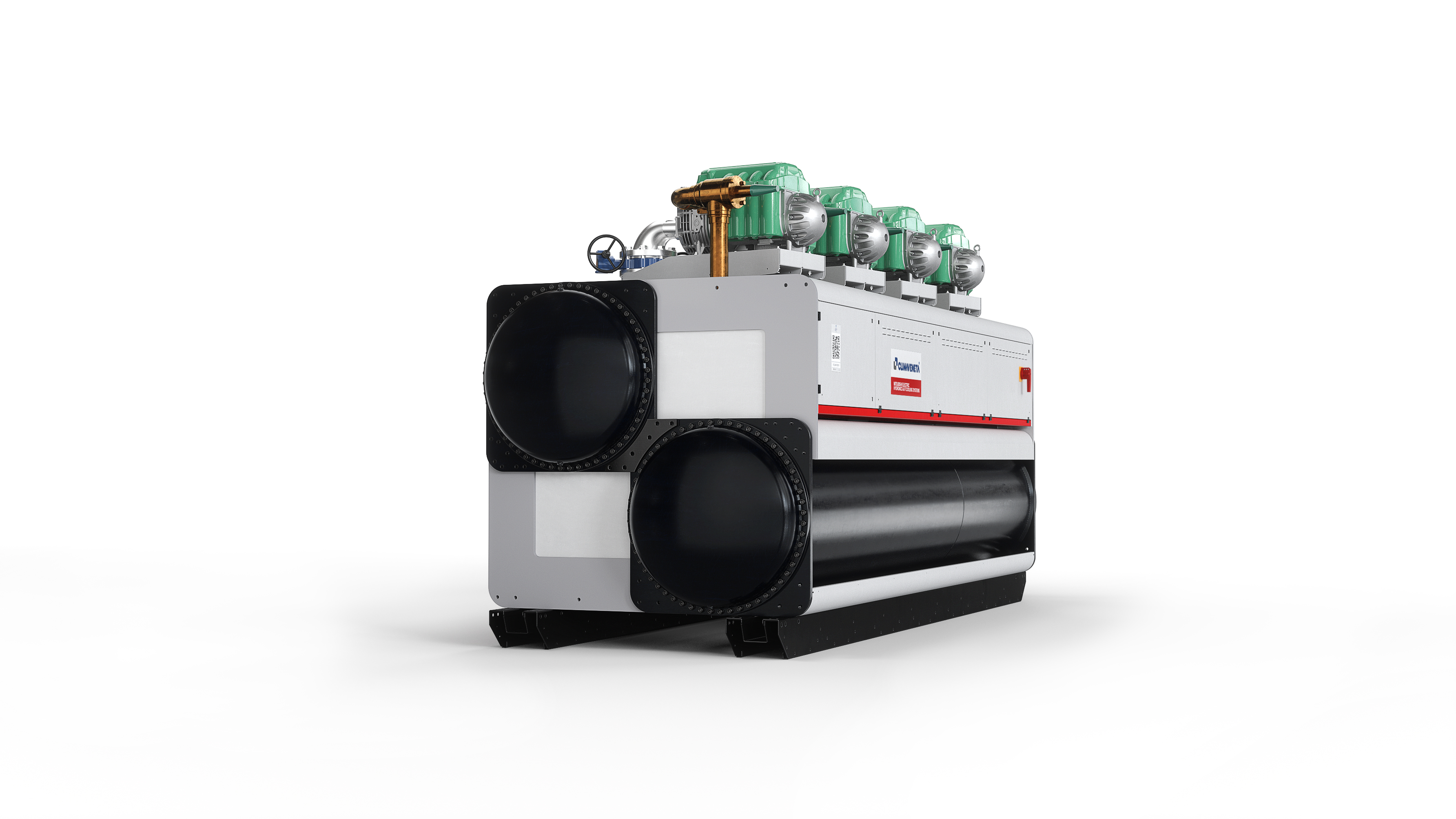

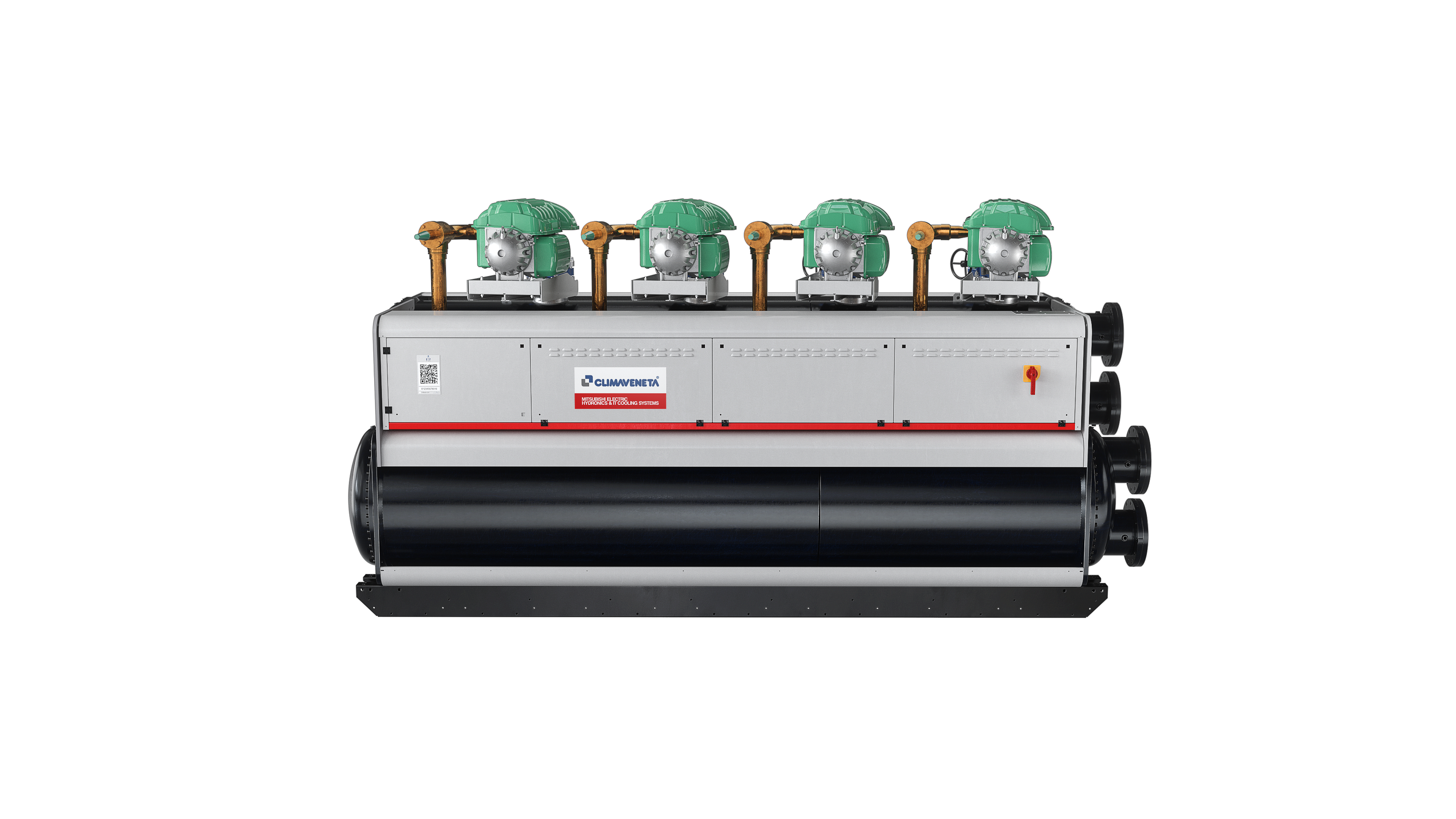

Indoor unit for the production of chilled/hot water water featuring centrifugal oil-free compressors, with R1234ze, electronic regulation valve, shell and tube condenser and shell and tube flooded evaporator. Base and supporting structure and panels are made of galvanized epoxy powder coated steel with increased thickness. Flexible and reliable unit; it easily adapts itself to different thermal load conditions thanks to the precise thermoregulation together with the use of inverter technology. The compressor is radically innovative: magnetic bearings and digital rotor speed control allow partial load efficiency levels to be reached that were hither to impossible.
