FOCS2-W-G05/H 1301-9604

FOCS2-W-G05/H 1301-9604

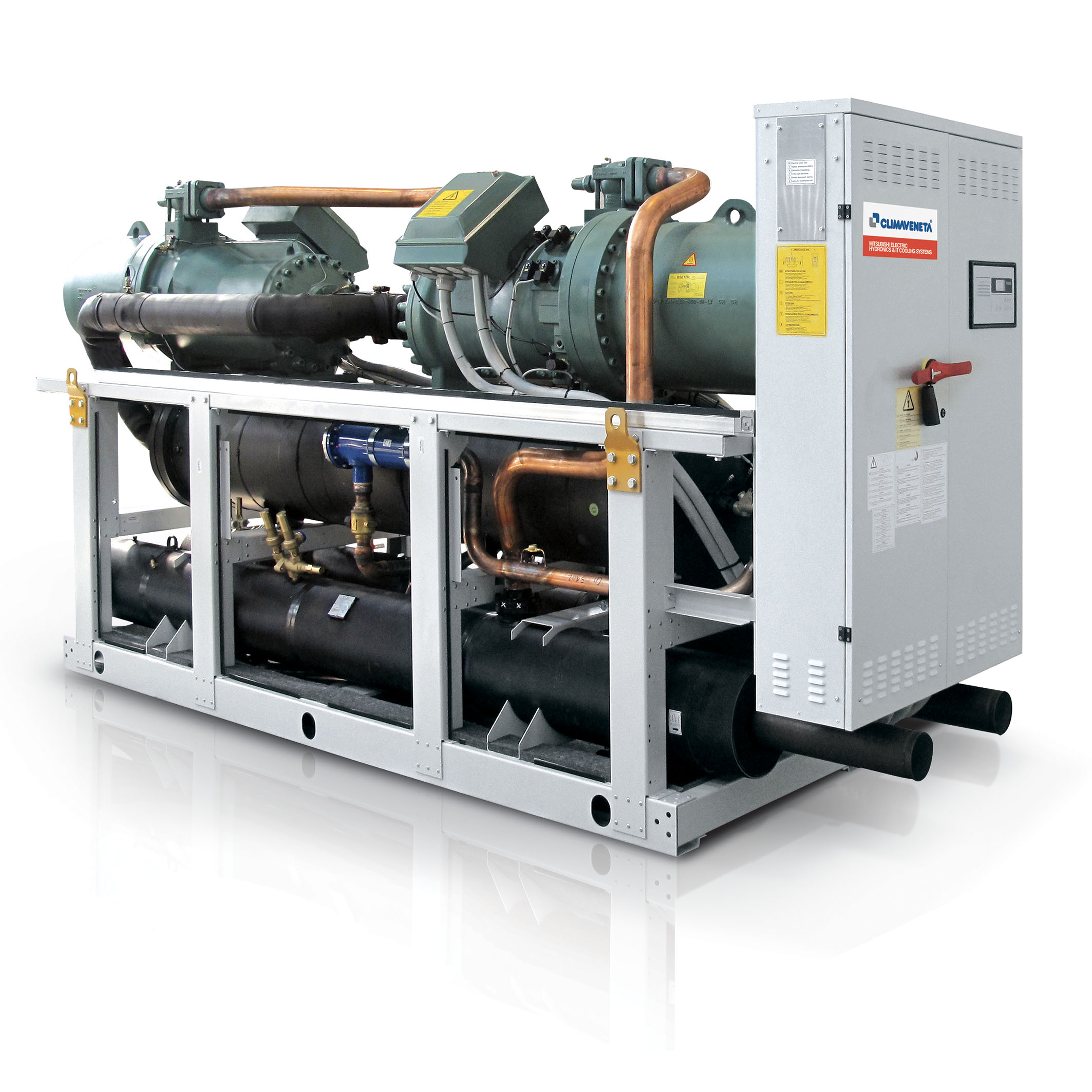

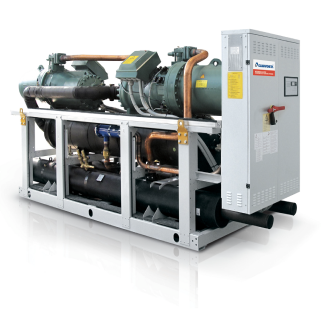

Water source Heat pump
Cooling Capacity:305.0kW to 2410.0kW
Heating Capacity:347.0kW to 2769.0kW
R513A Refrigerant (GWP 573)
Flow temp range: -8°C to 15°C(Cooling)20°C to 62°C(Heating)

Unit for indoor installation for chilled/hot water production. Semihermetic screw compressors optimized to operate with low compression ratio and R513A; shell and tubes condenser and direct expansion evaporator; electronic expansion valve. Frame in polyester-painted galvanized steel. High efficiency unit: the innovative optimized compressors and the high performing heat exchangers enhance EER values up to 5,1 (CA version) and even up to 5,6 (CA-E version) at Eurovent standars conditions.

Downloads

  • DB FOCS2-W-G05 H 1301 - 9604 201810 EN Data book.pdf -

Installation

  • IM FOCS2-W-G05 H 1301 - 9604 C0210101-07-16-EN General manual for installation.pdf -
  • MEC FOCS2-W-G05H 1301-9604 Dimensional drawings.pdf -
  • SND FOCS2-W-G05H 1301-9604 Full load sound level.pdf -
