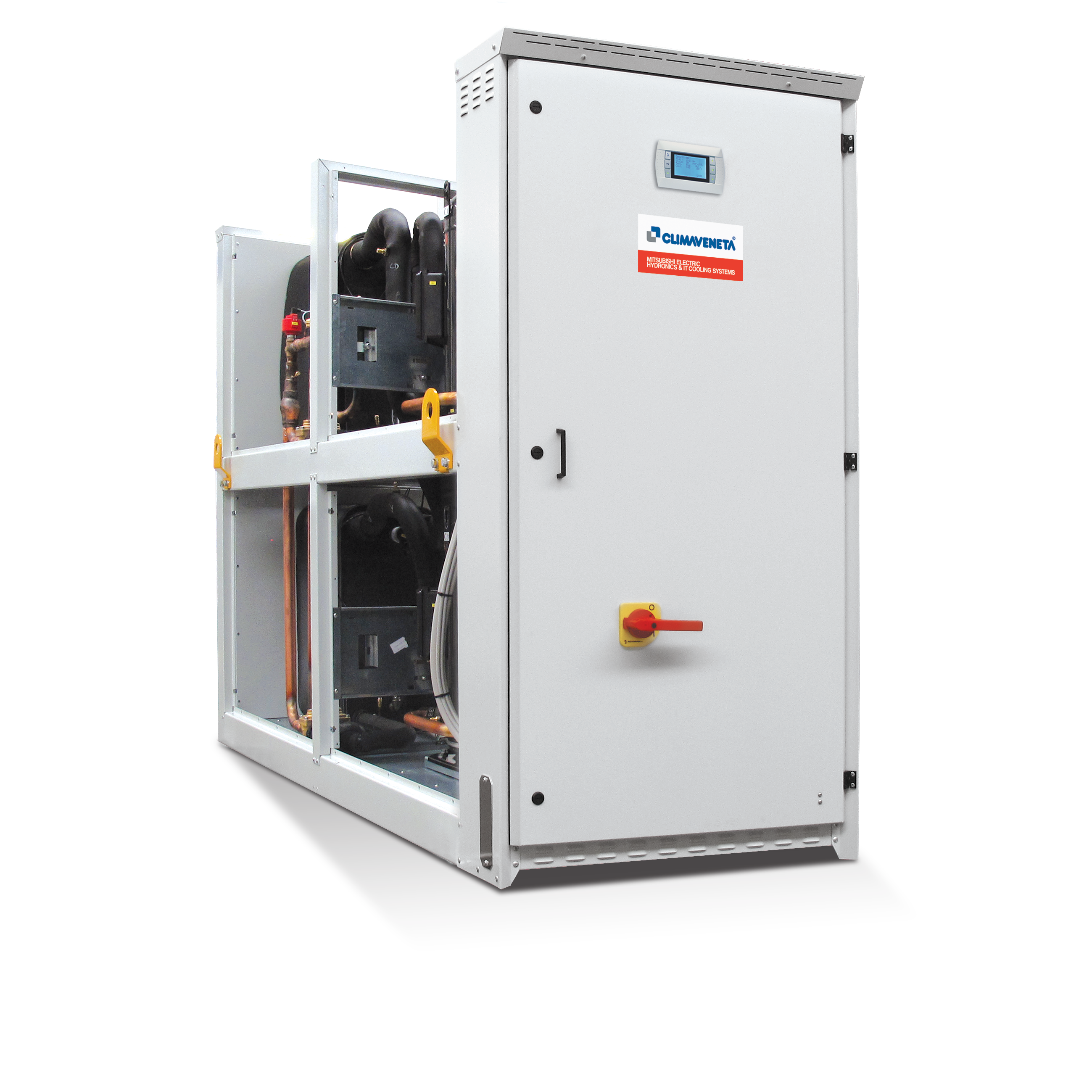

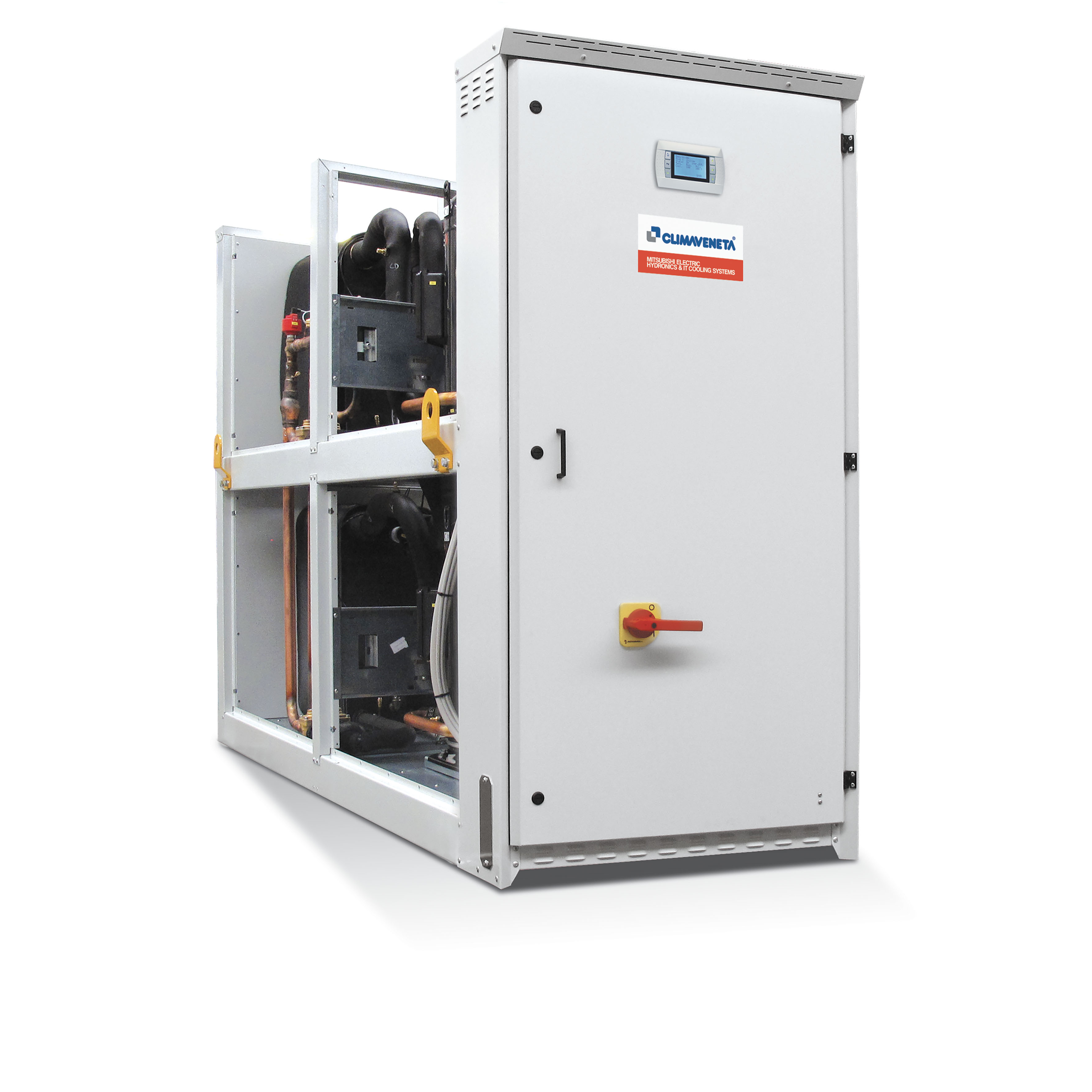

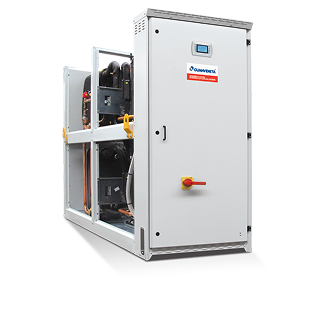

NX-WN 0122-1204

Water source Heat pump
Cooling Capacity:37.0kW to 395.0kW
Heating Capacity:42.0kW to 440.0kW
R410A Refrigerant (GWP 1923)
Flow temp range: -8°C to 20°C(Cooling) 24°C to 55 °C(Heating)

Water to water indoor unit for the production of chilled/hot water with hermetic rotary Scroll compressors, braze-welded plate-type exchanger, and electronic expansion valve. Base and frame in hot-galvanized shaped steel sheets with a suitable thickness. All parts polyester-powder painted to ensure total weather resistance, RAL 7035. The range includes the single-circuit two-compressor versions and the dual circuit four-compressor versions.
