NX-N-G06 0202-1204

NX-N-G06 0202-1204

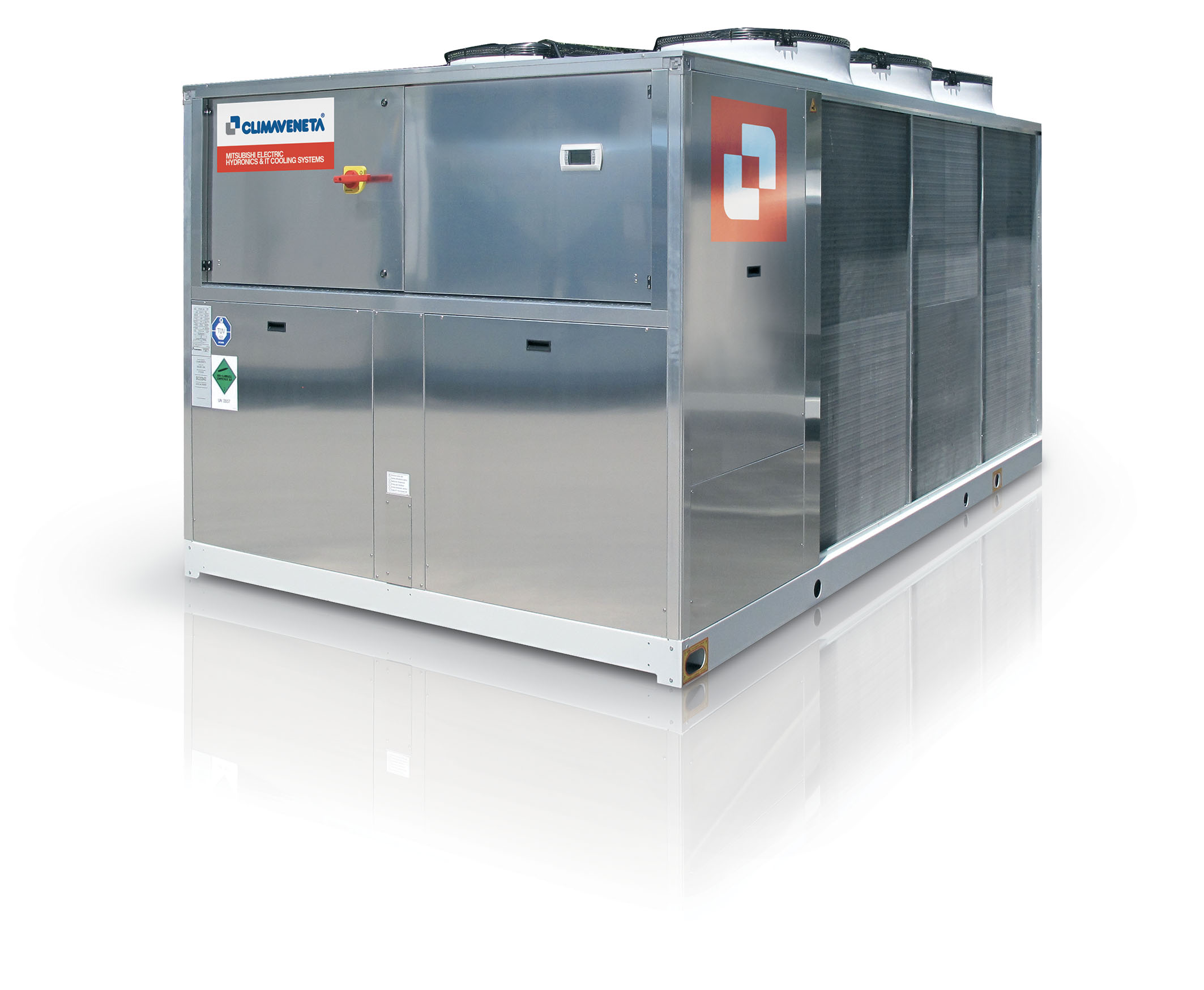

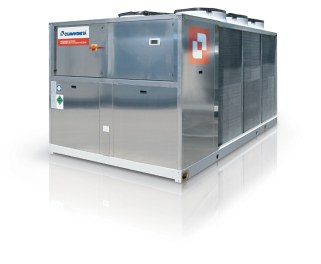

Air source heat pump chiller
Cooling Capacity:49.0kW to 306.0kW
Heating Capacity:53.0kW to 337.0kW
R454B Refrigerant (GWP 467)
Flow temp range: -8.0° to 15.0°C (Cooling) 24.0°C to 55°C (Heating)

Outdoor reversible unit for the production of chilled/hot water with hermetic rotary Scroll compressors, low-GWP and ozone-friendly refrigerant R454B, axial-flow fans, copper tubes aluminum fins air coils, shell and tubes heat exchanger or braze-welded plate-type exchanger, and thermostatic or electronic expansion valve, according to the model. External panels in pre-clad sheet steel and base in galvanised steel with paint finish. The range is composed of units equipped with four compressors in tandem configuration on two independent refrigerant circuits.

Downloads

Installation

  • SND NX-N-G06 0604P - 1204P Full load sound level.pdf -
  • SND NX-N-G06 0202P - 0812P Full load sound level.pdf -
