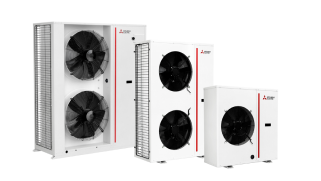

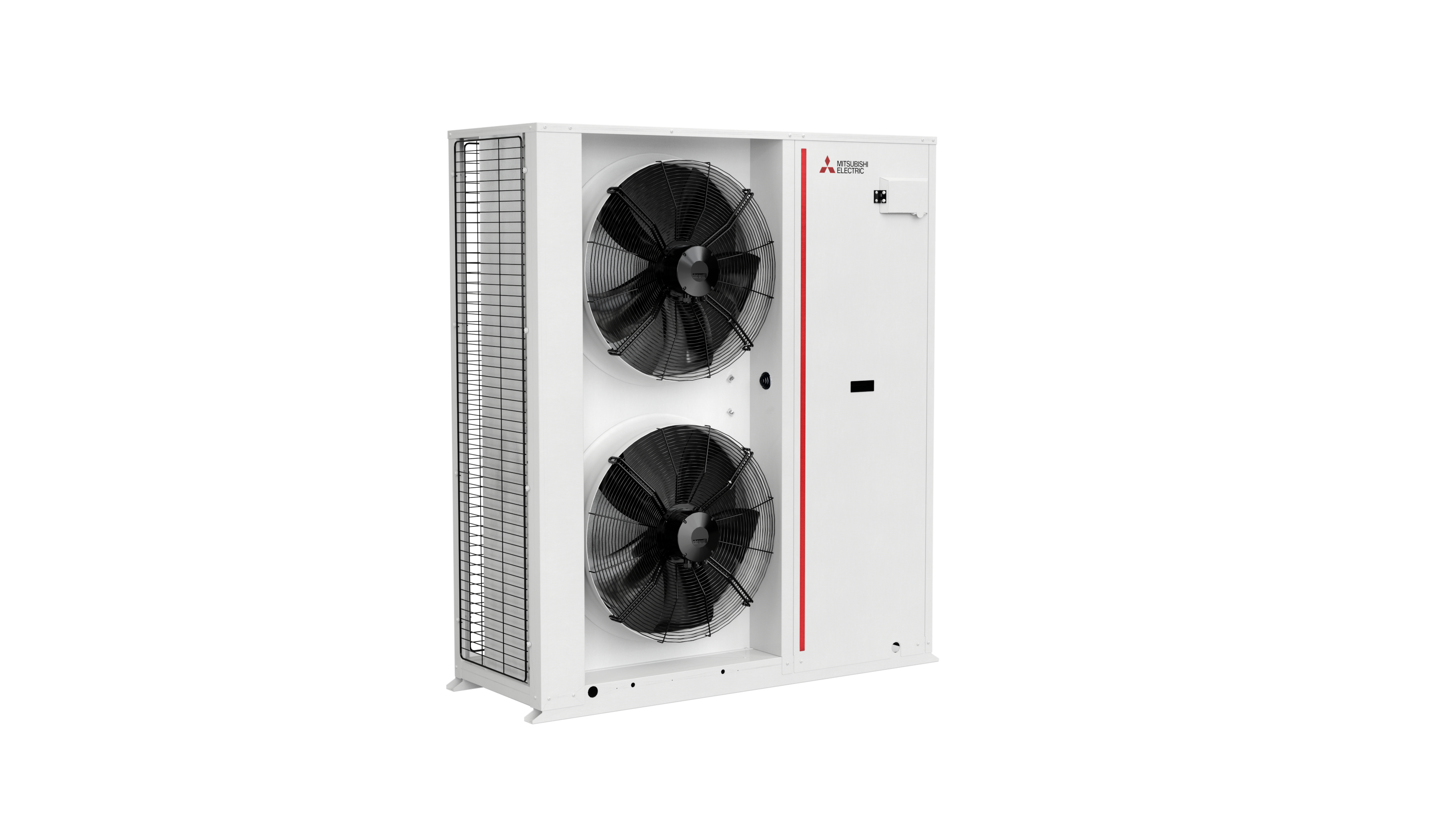

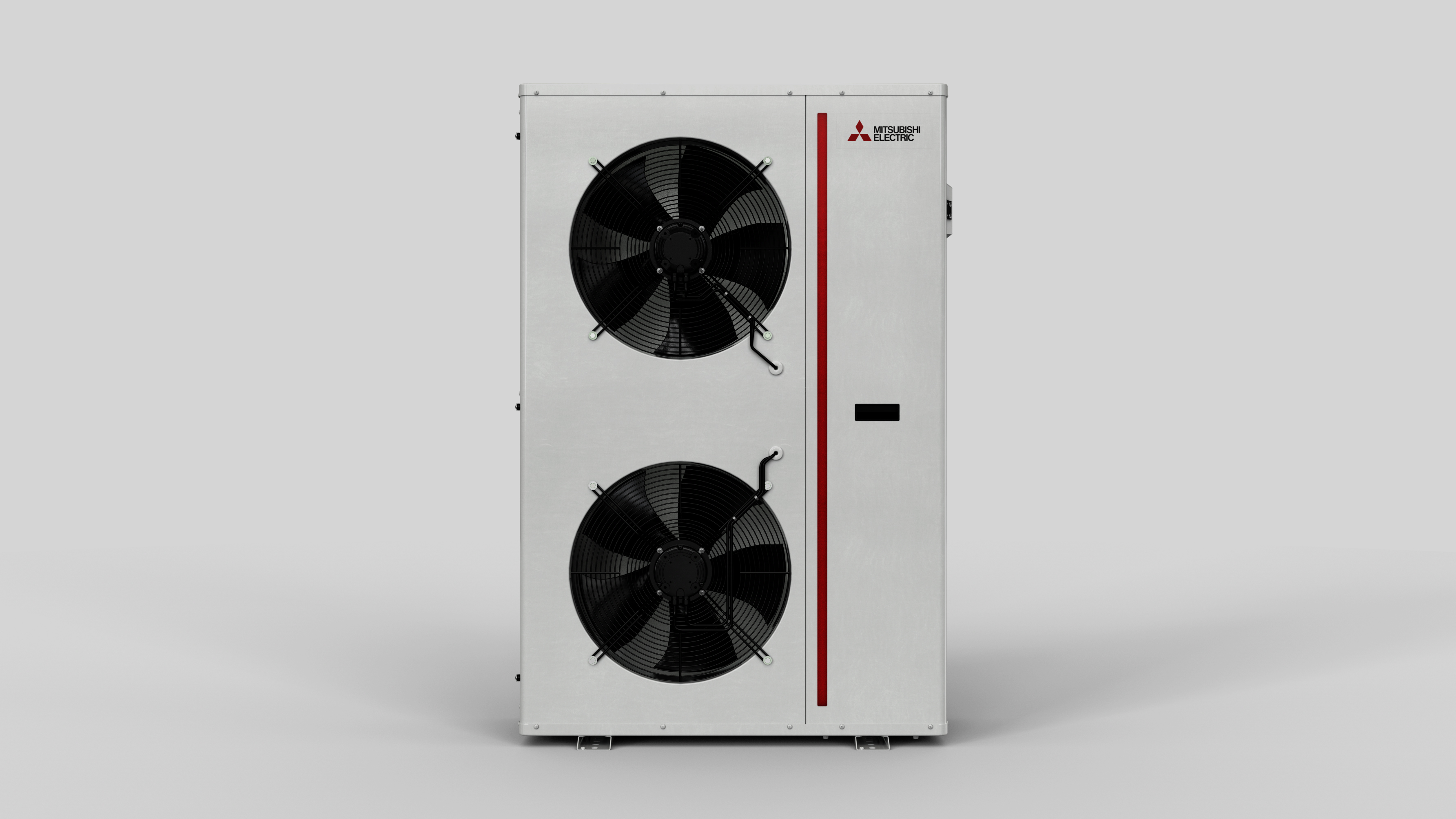

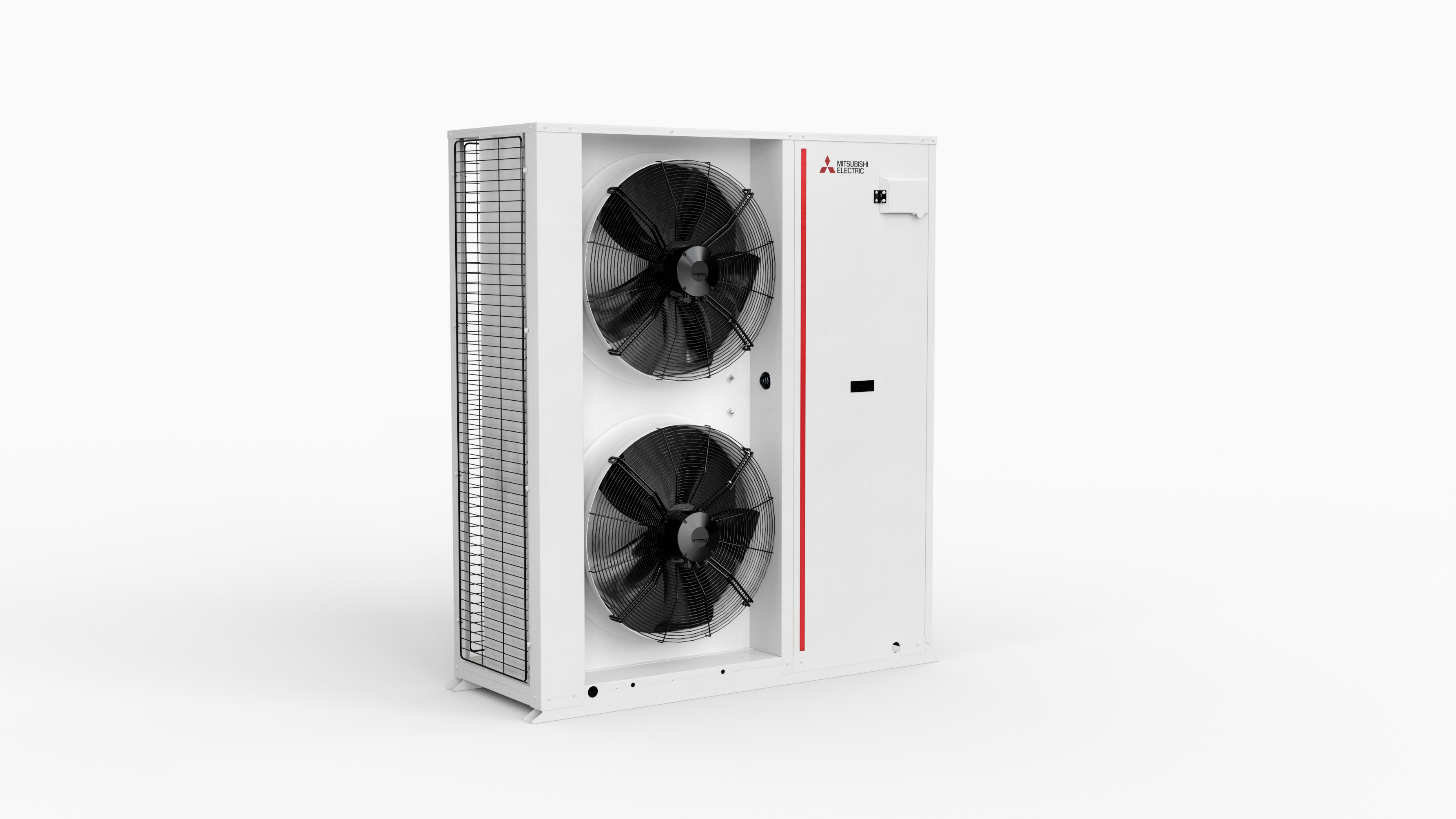

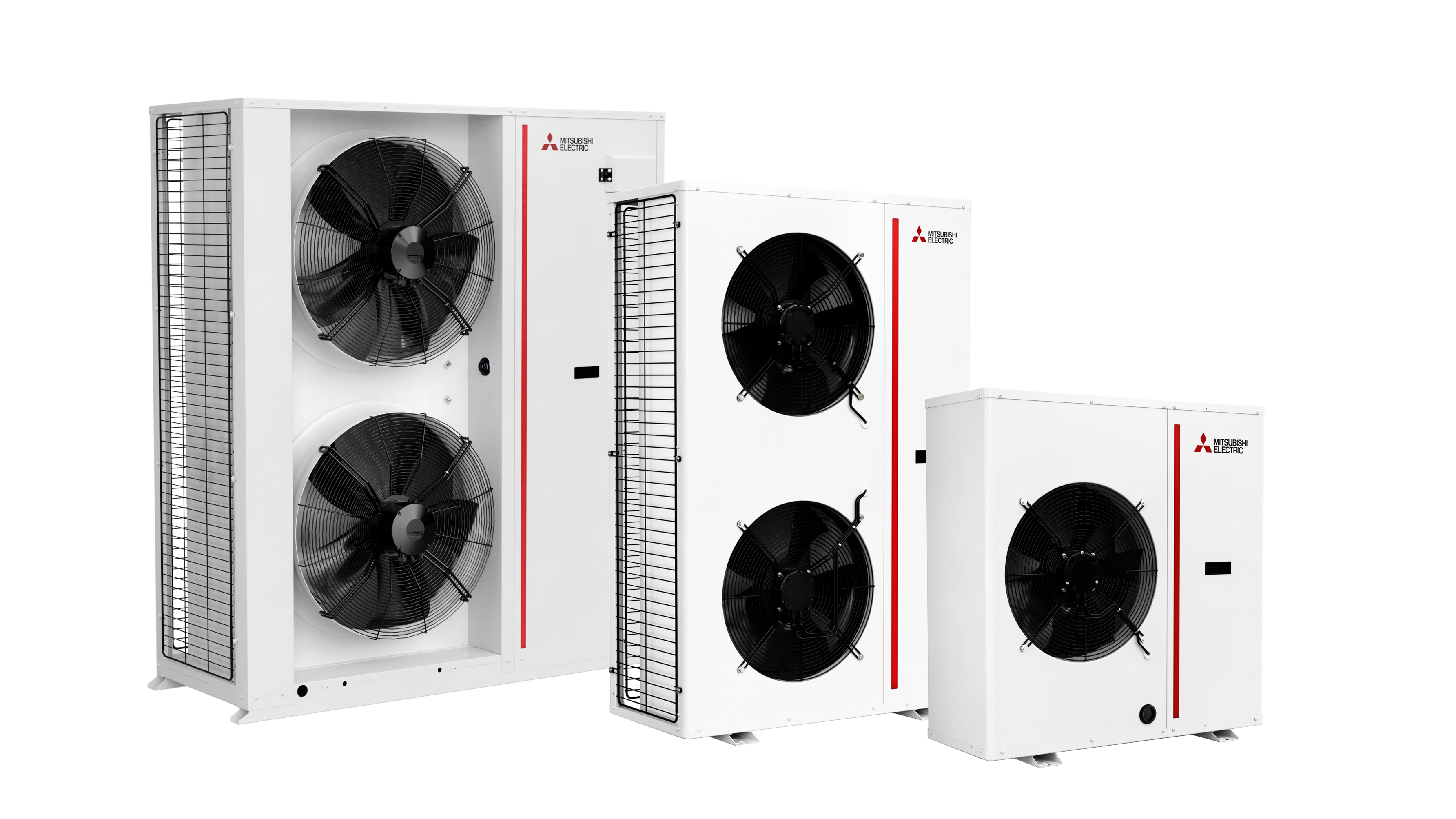

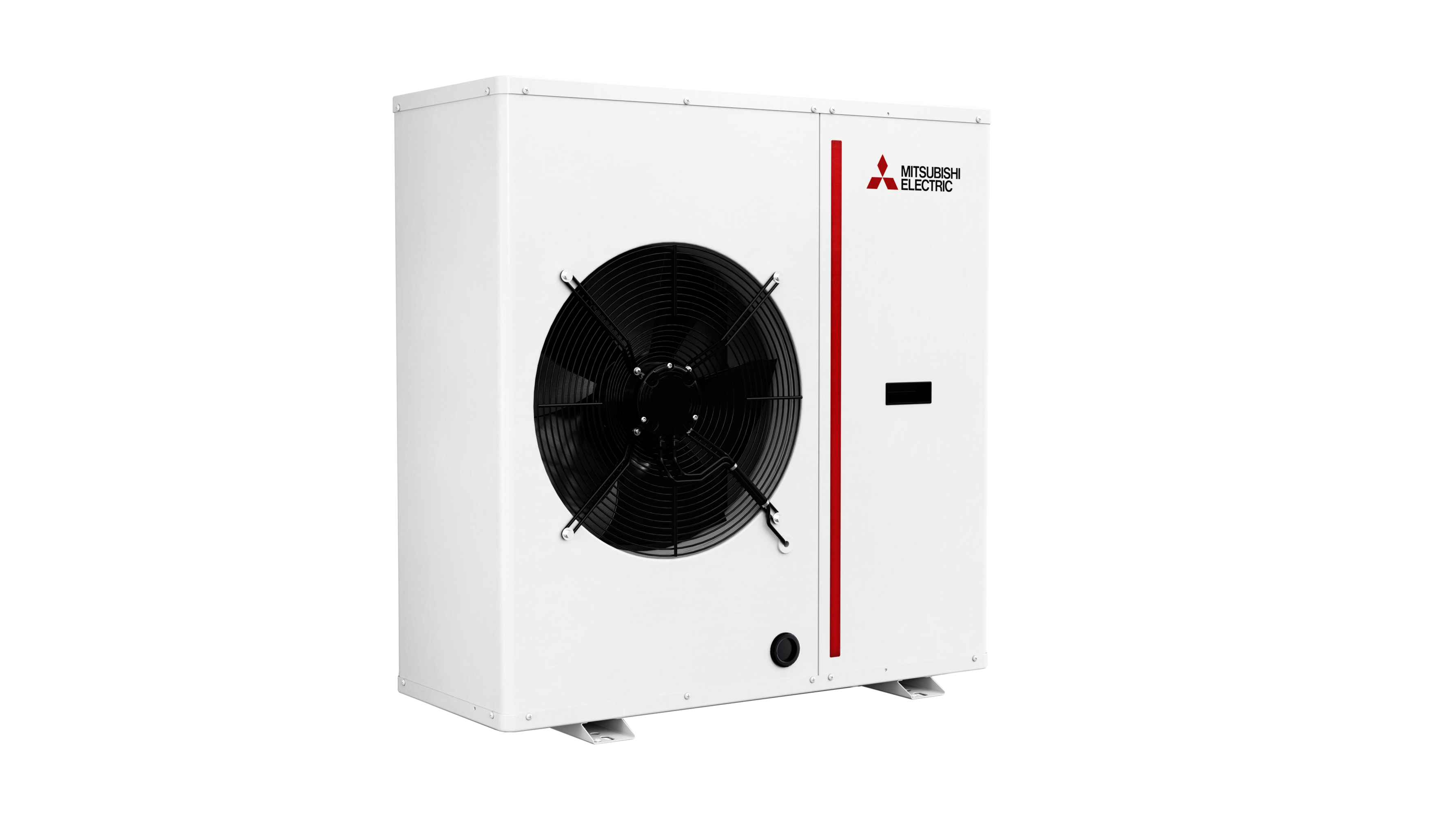

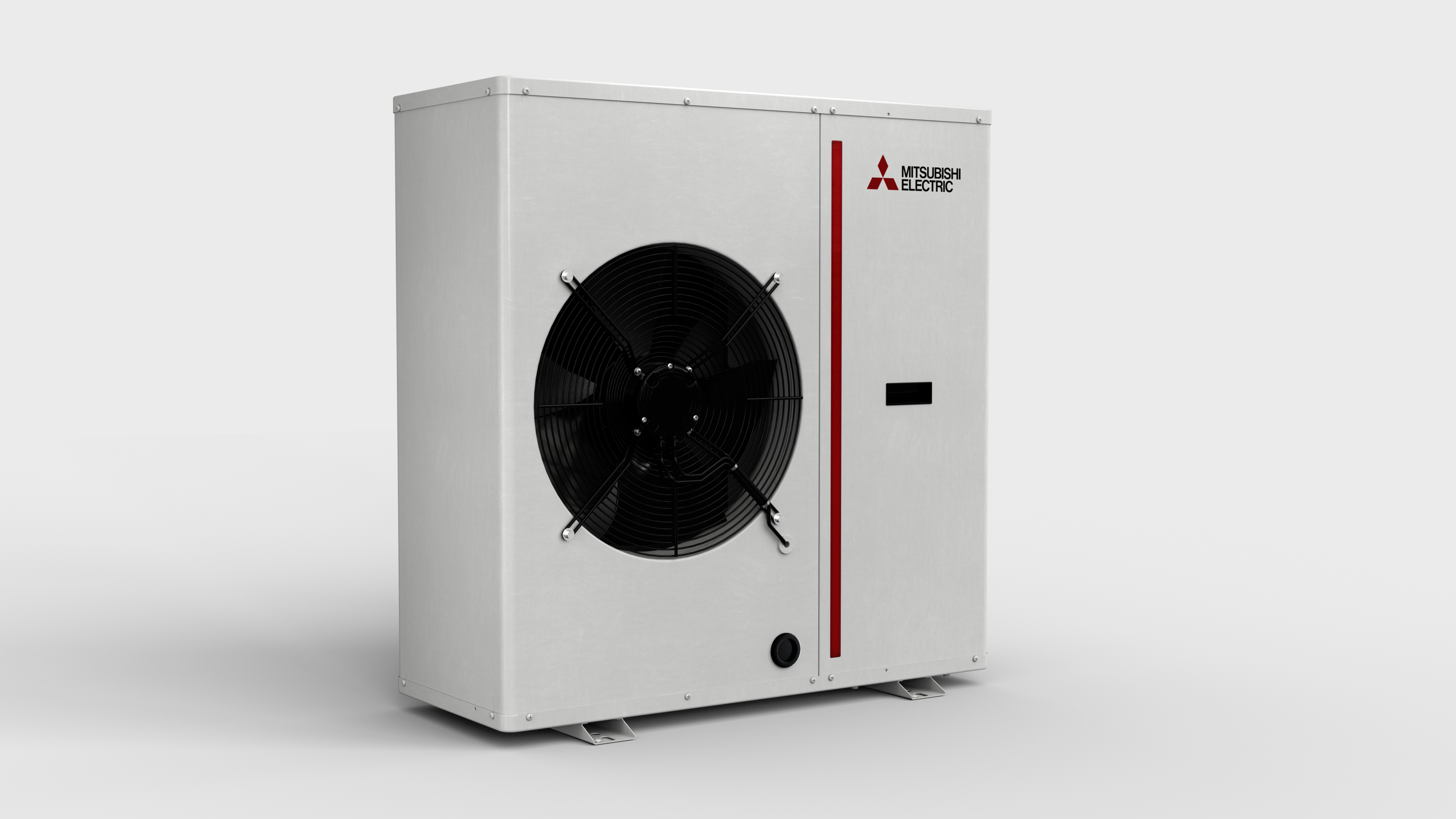

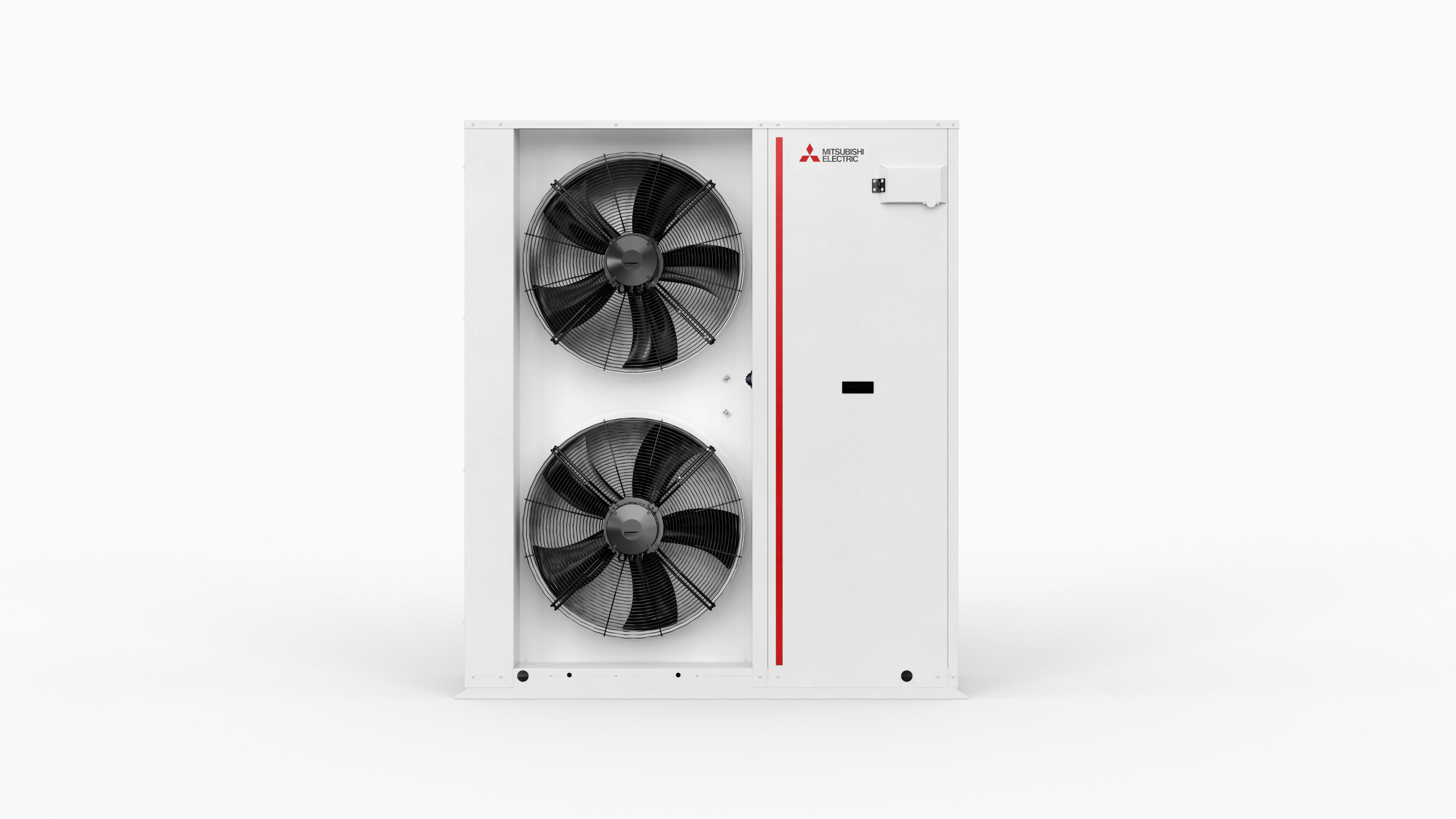

MEHP-iB-G07 07V-40Y

Air Source Heat pump for comfort and process
Cooling Capacity:6.0kw to 36.0kW
Heating Capacity:7.0kW to 40.0kW
Refrigerant: R32 (GWP 677)
Flow temp range: -8.0°C to 18.0°C (Cooling) 24.0°C to 60.0°C (Heating)

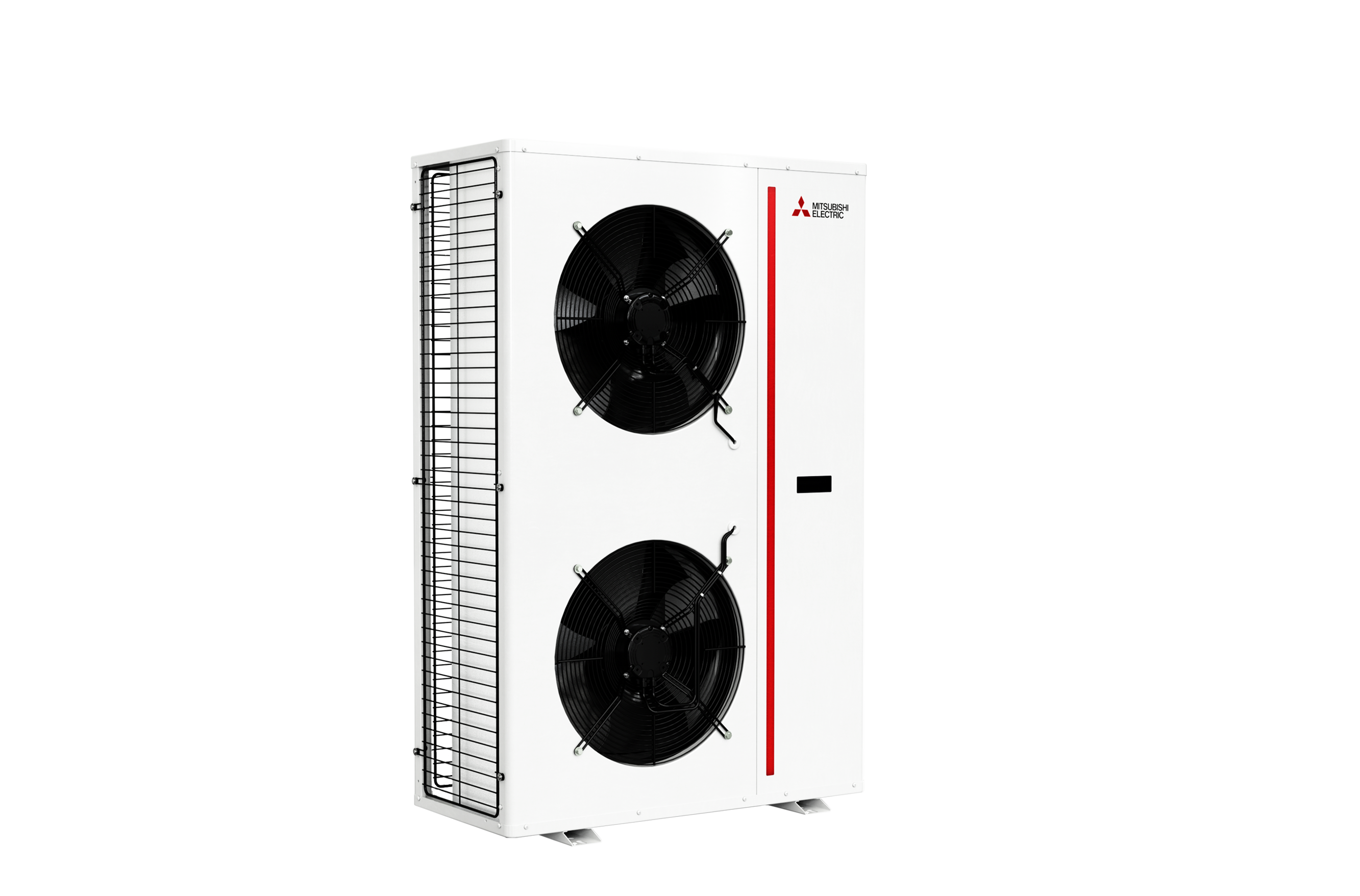

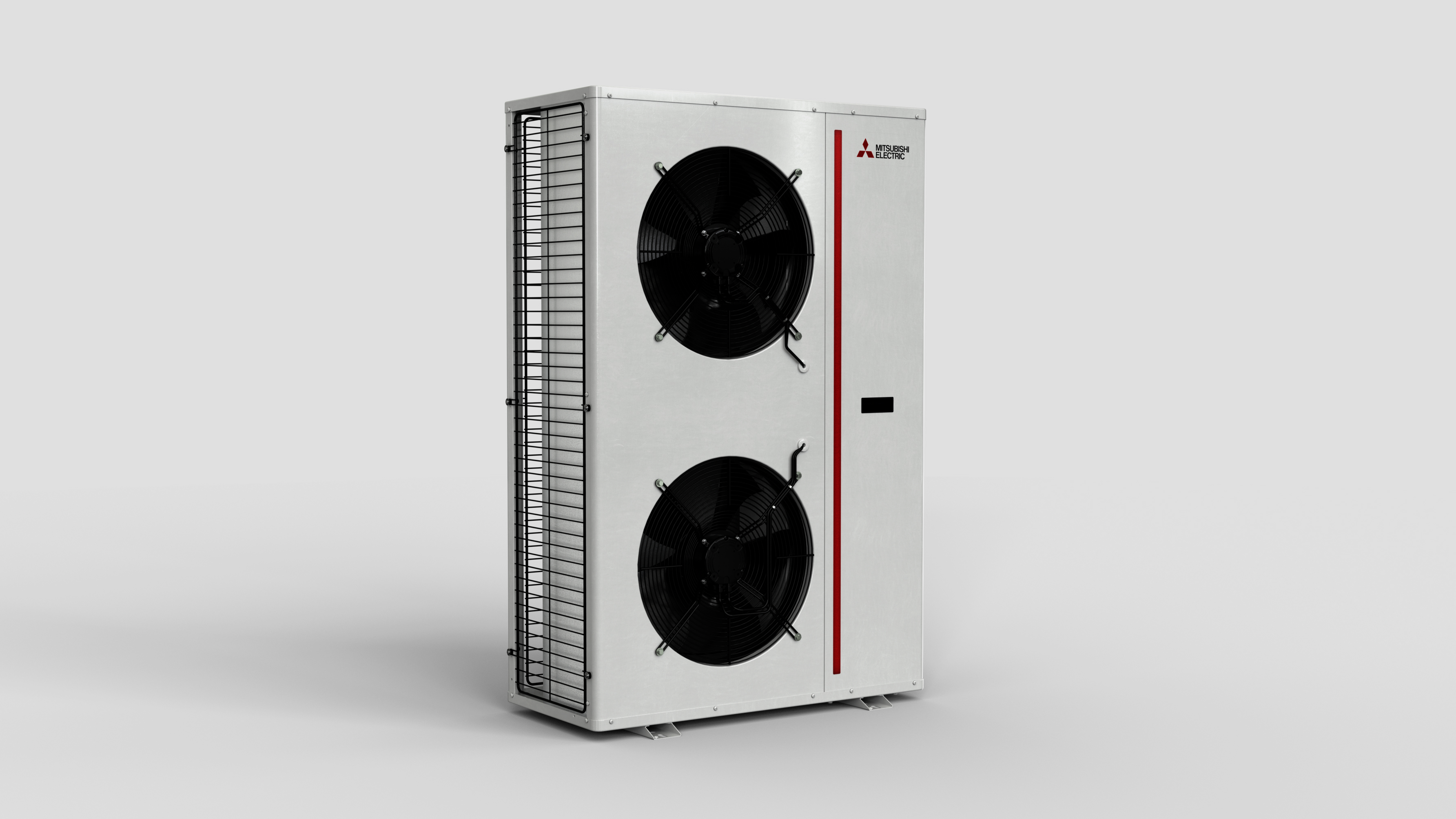

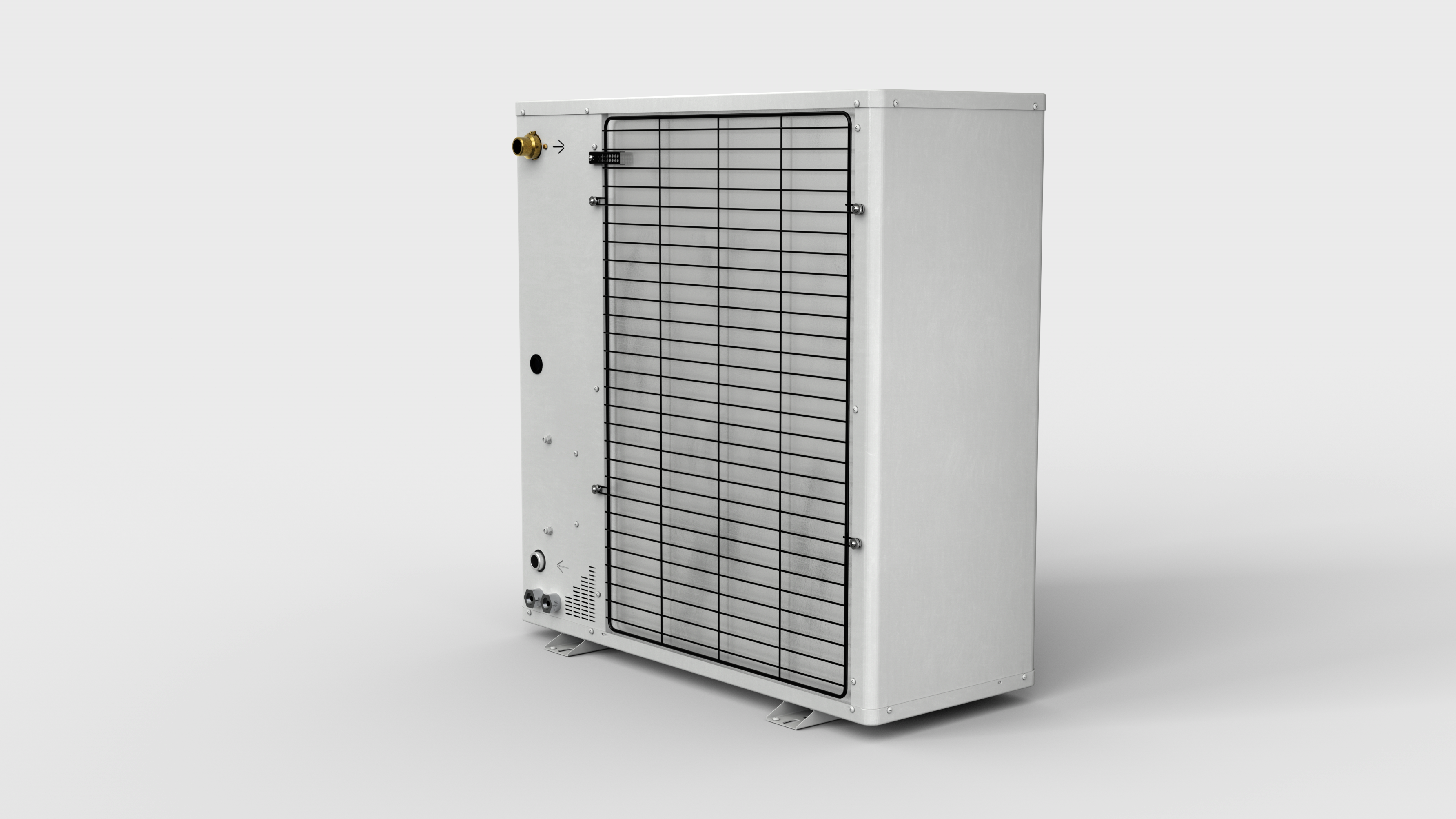

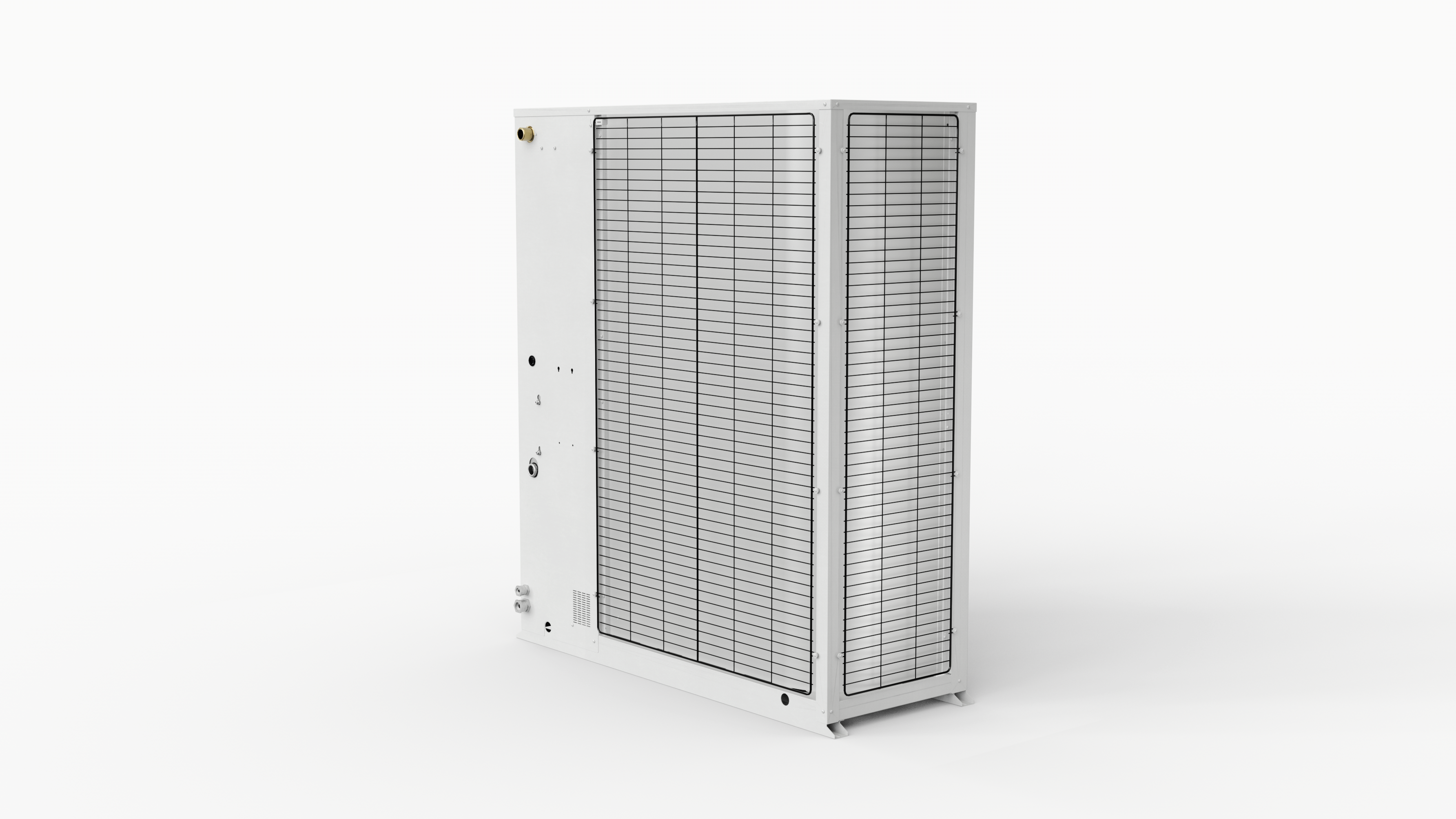

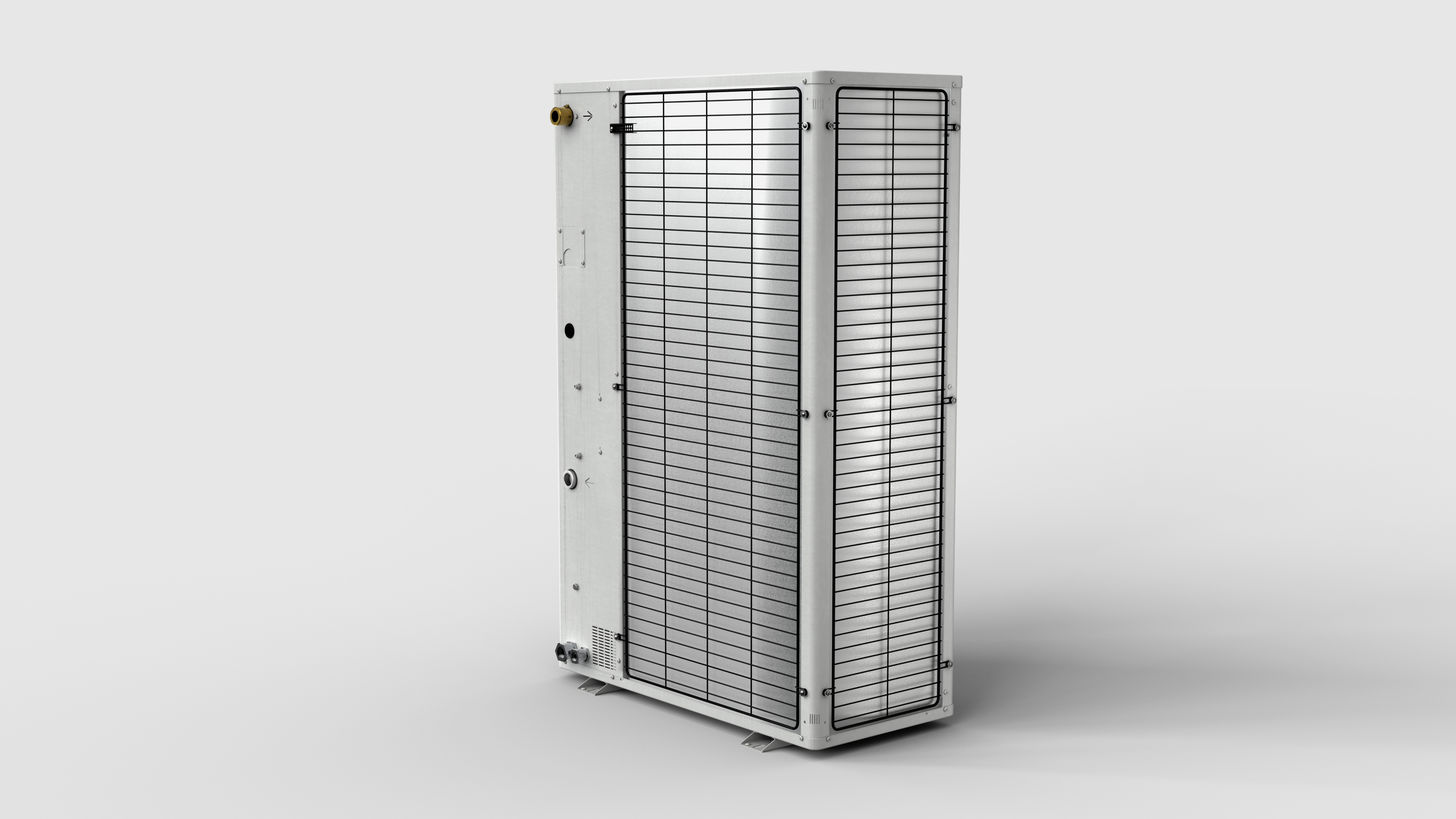

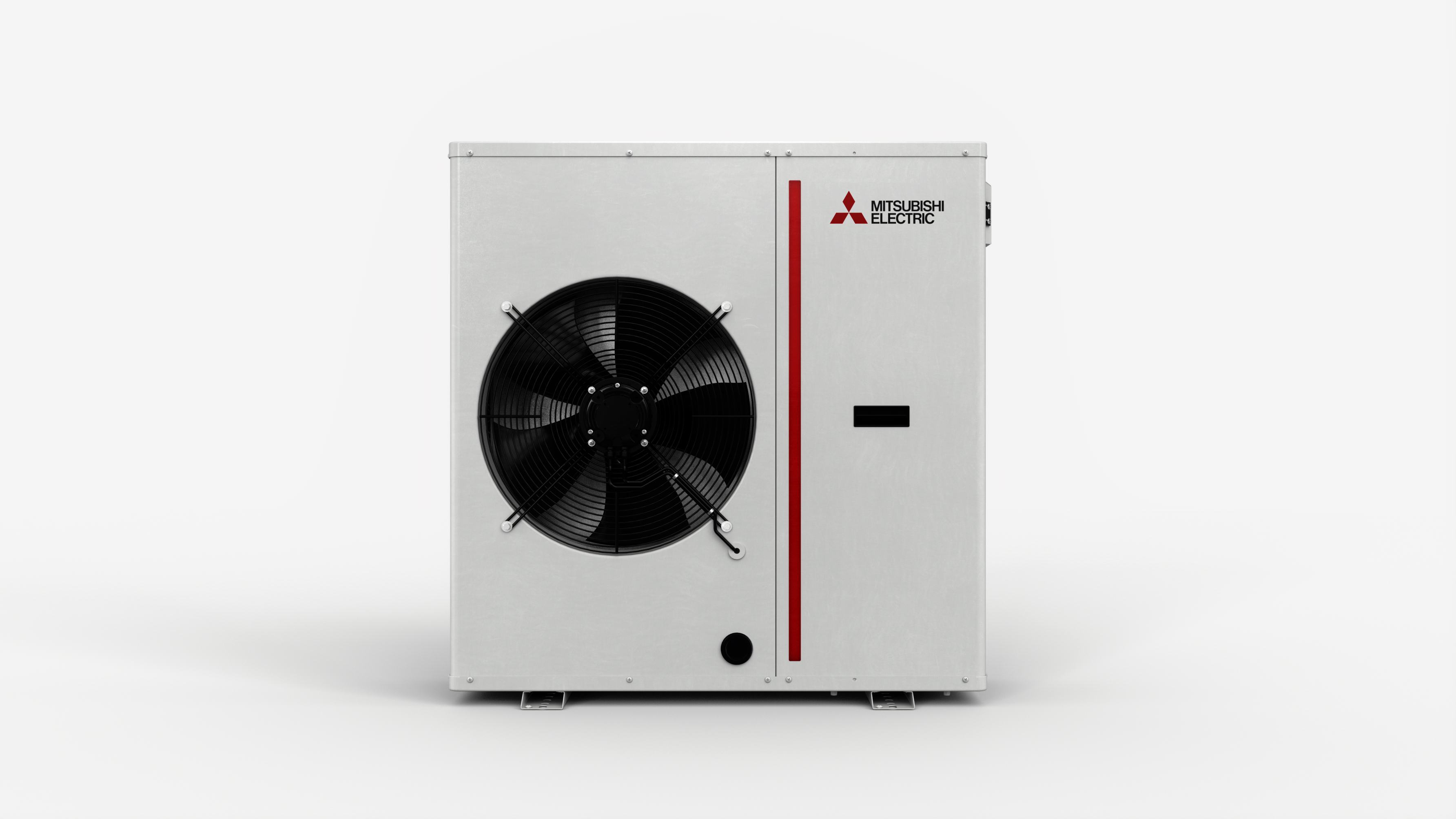

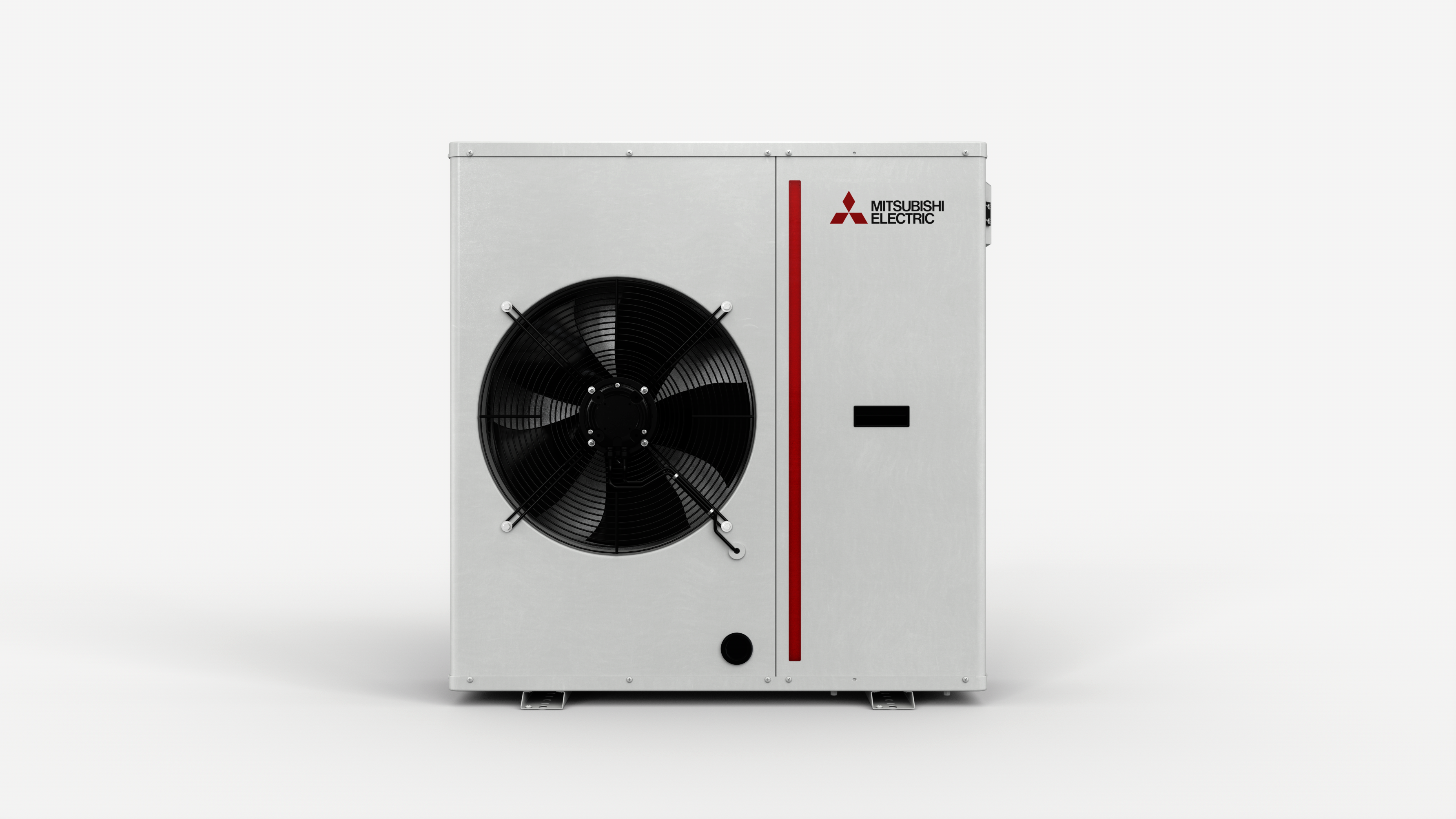

Outdoor unit for the production of hot/chilled water with variable speed (Inverter Driven) Twin rotary or Scroll compressors, optimized for R32 refrigerant in a single-circuit configuration, source side heat exchanger with copper tubes and aluminum fins, plate heat exchanger on user side, electronic expansion valve as standard and axial-flow variable speed fans with EC motor. Integrated hydronic module including variable flow pump with EC motor. Flexible and reliable unit; it easily adapts different thermal load conditions thanks to the precise temperature control together with the use of inverter technology. The high performance levels, both at full and partial load, is achieved thanks to the accurate unit design and to the use of variable speed (inverter) motor. The units provide heating, cooling, and indirect domestic hot water production.
