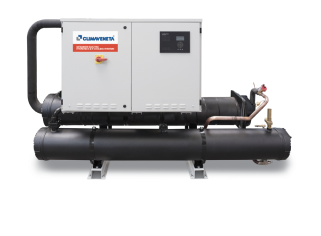

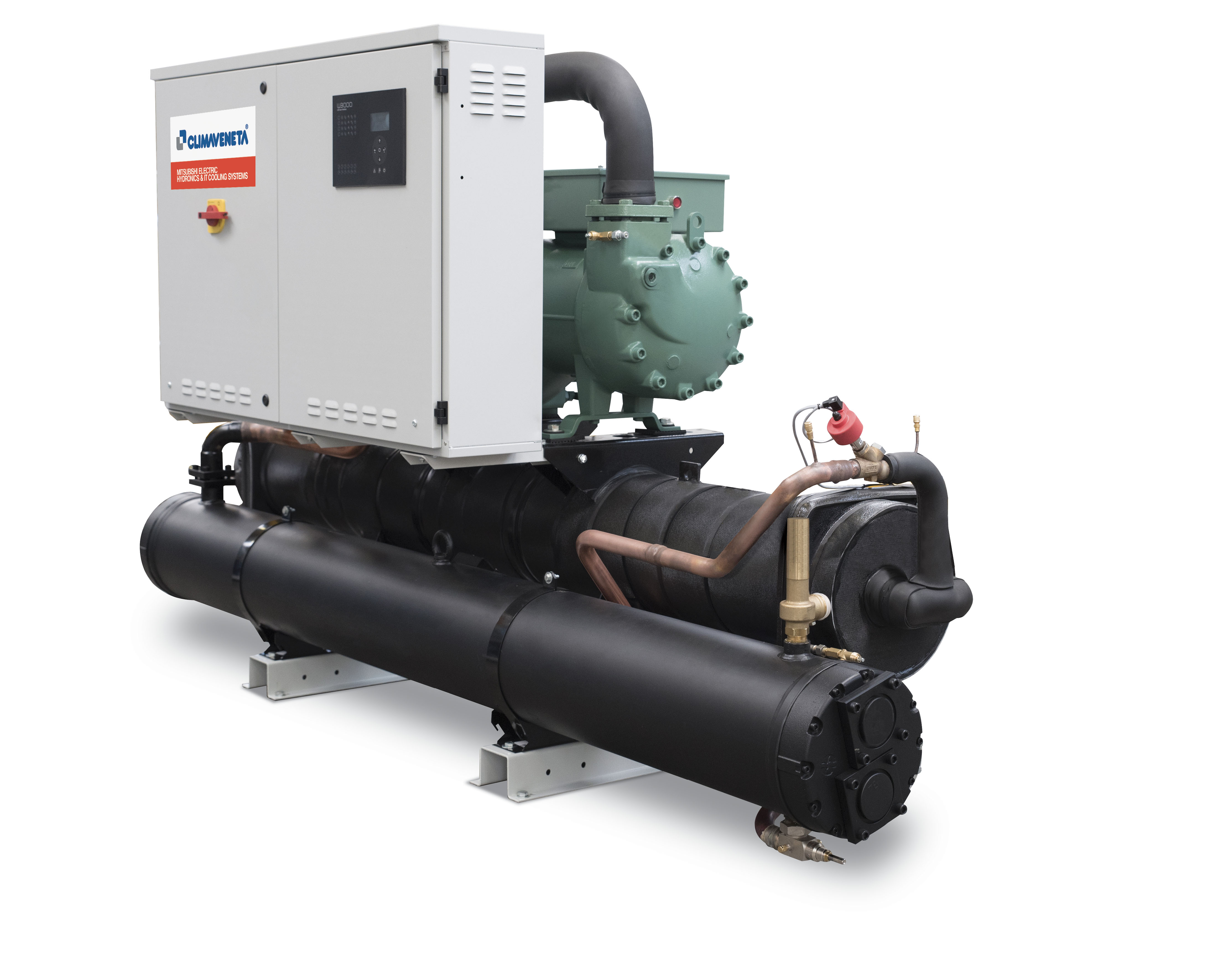

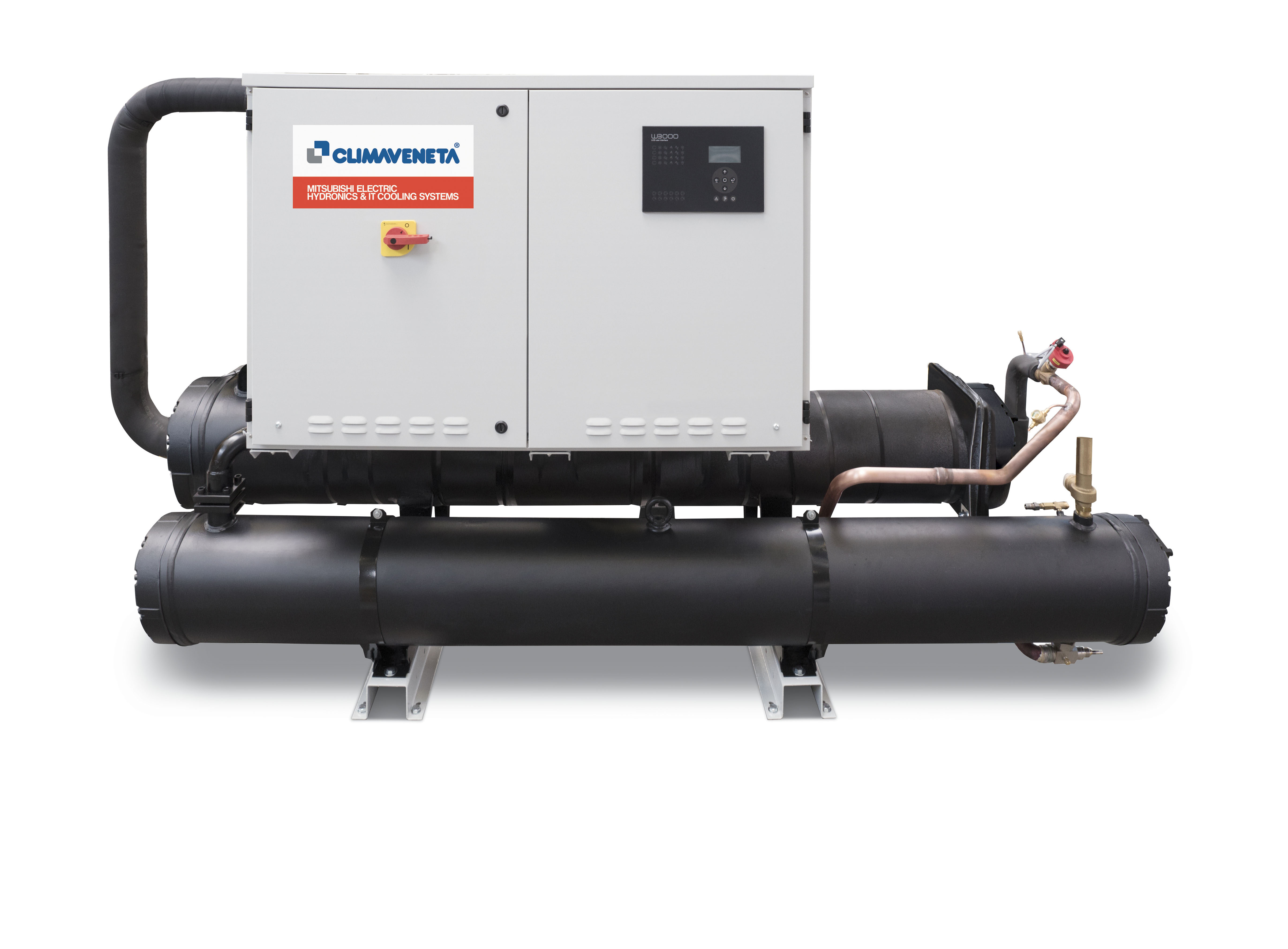

FX-W-G05 0551-1752

Water Source Chiller for comfort and process cooling
124.0kW - 401.0kW
Refrigerant: R513A (GWP 573)
Flow temp range: -8°C to 18°C

Indoor unit for the production of chilled water featuring semihermetic screw compressors optimized to operate with low compression ratio and R513A, shell and tubes evaporator designed by Mitsubishi Electric Hydronics & IT Cooling Systems S.p.A. and shell and tube condenser and electronic expansion valve. Base and supporting structure are made of polyester painted galvanized steel. Eurovent certification. The unit is extremely compact, thanks to the peculiar construction layout, without base frame and panels, and extremely flexible to easily adapt itself to different thermal load conditions thanks to the precise thermoregulation The high performance’s level is achieved thanks to the accurate sizing of all internal components.
