TECS2-G05 0211-1154

Air source Chiller
218kW - 1313kW
R513A Refrigerant (GWP 573)
Flow temp range: 5°C to 18°C

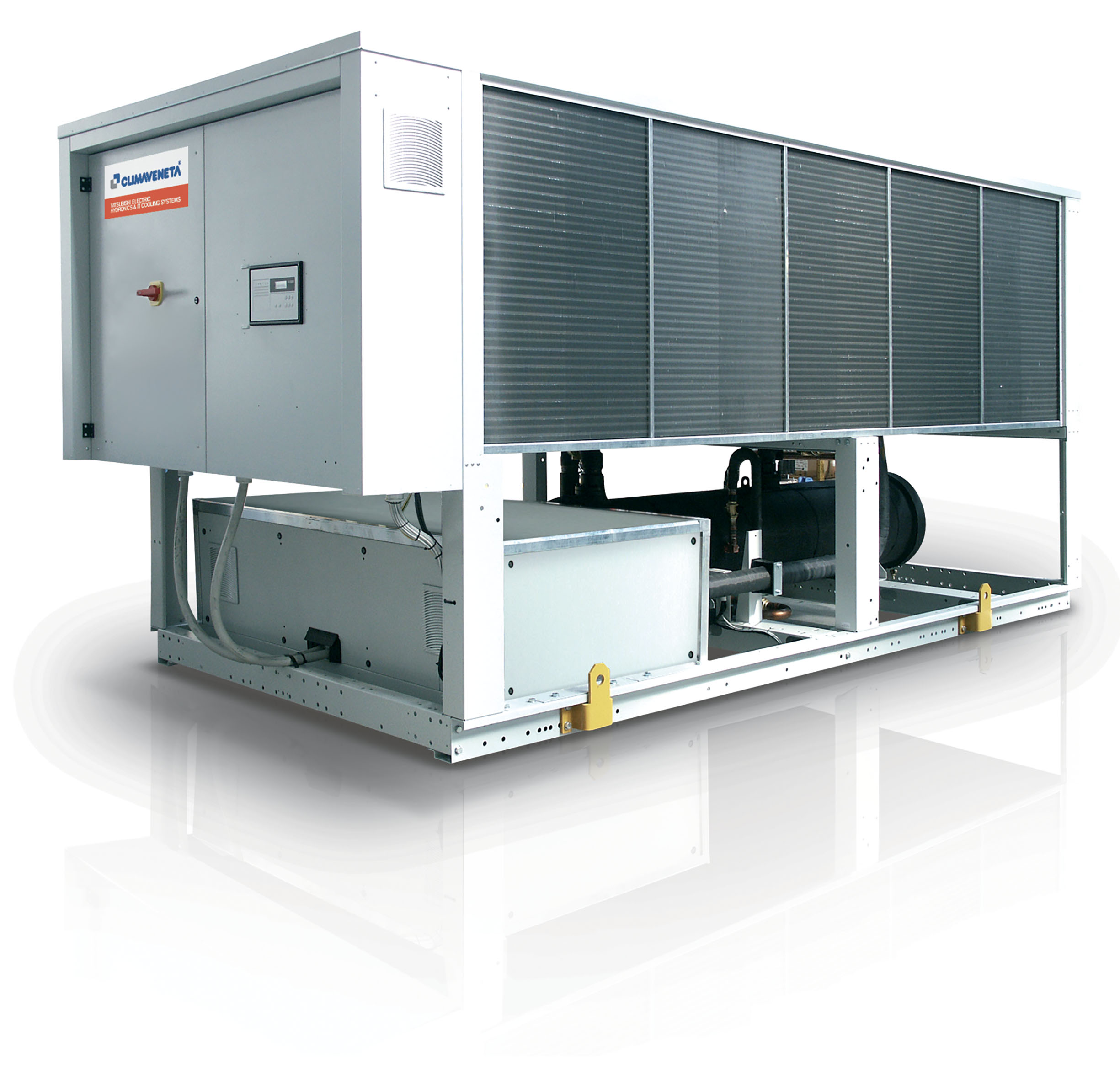

Outdoor unit for the production of chilled water featuring oil-free centrifugal compressor, with R513A, axial-flow fans, condensing coil with copper tubes and aluminium fins, shell and tube flooded evaporator and electronic regulation valve. Base and supporting structure and panels are made of galvanized epoxy powder coated steel with increased thickness. Flexible and reliable unit; it easily adapts itself to different thermal load conditions thanks to the precise thermoregulation together with the use of inverter technology. The compressor is radically innovative: magnetic bearings and digital rotor speed control allow partial load efficiency levels to be reached that were hither to impossible.
