PEFY-P VMS1(L)-E

Ceiling concealed type - Low static pressure type
A thin body 200 mm in height and a maximum external static pressure rating of 50 Pa provides significant flexibility of design and allows installation in narrow ceiling spaces. The lineup consists of models up to P63 with the same height.

Models

PEFY-P15VMS1-ER3.TH/PEFY-P15VMS1L-ER2.TH

1.7kW / 1.9kW

PEFY-P20VMS1-ER3.TH/PEFY-P20VMS1L-ER2.TH

2.2kW / 2.5kW

PEFY-P25VMS1-ER3.TH/PEFY-P25VMS1L-ER2.TH

2.8kW / 3.2kW

PEFY-P32VMS1-ER3.TH/PEFY-P32VMS1L-ER2.TH

3.6kW / 4.0kW

PEFY-P40VMS1-ER3.TH/PEFY-P40VMS1L-ER2.TH

4.5kW / 5.0kW

PEFY-P50VMS1-ER3.TH/PEFY-P50VMS1L-ER2.TH

5.6kW / 6.3kW

PEFY-P63VMS1-ER3.TH/PEFY-P63VMS1L-ER2.TH

7.1kW / 8.0kW

Note: Above capacity ratings are all nominal rated.

Features

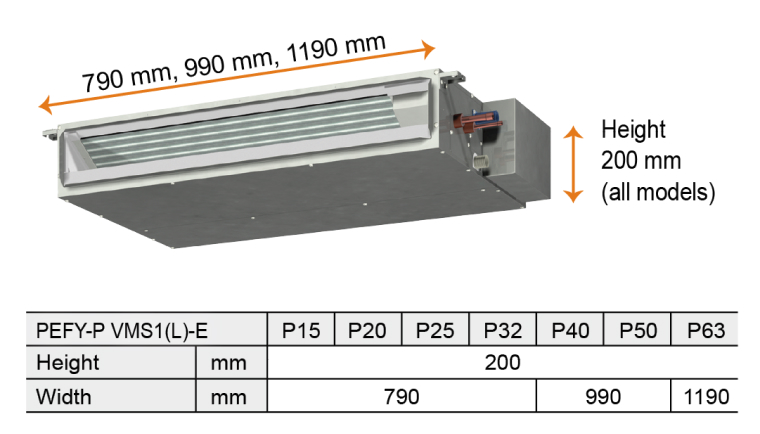

Compact design with a height of no more than 200 mm (all models) and widths of 790 mm (P15-P32).

The thin body with a height of no more than 200 mm (all models) allows installation in a ceiling with small cavity space.

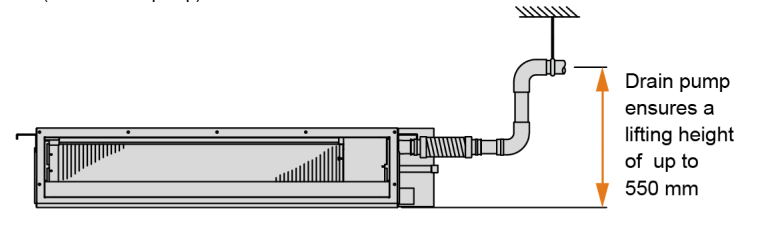

Optional drain pump

For PEFY-P VMS1, the drain pump is equipped as a standard feature and eliminates the need for a drain trap. It has a maximum lifting height of 550 mm. For PEFY-P VMS1L-E, the drain pump is sold separately.

*For places where low noise operation is especially required (i.e., hotels), VMS1L (without drain pump) is recommended.

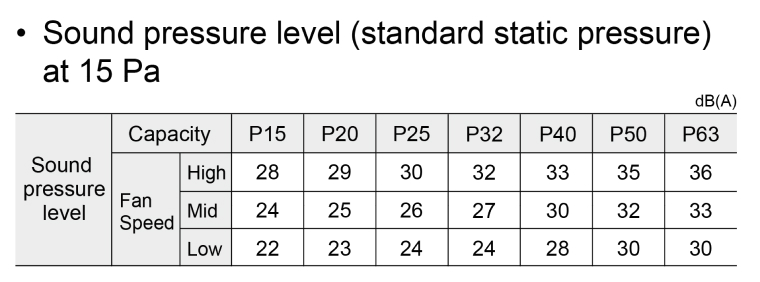

Low noise design

Owing to a centrifugal fan and coil, low noise operation is realized. It is best suited to places where quietness is required.

Demonstrates a maximum external static pressure of 50 Pa despite its compact design

External static pressure can be selected from 5, 15, 35 and 50 Pa (set to 15 Pa at the time of factory shipment).
