S-Series: PUMY

Cooling/heating changeover system with horizontal airflow for small offices and stores (Nominal 9.0 – 22.4kW cooling / 10.0 – 25.0kW heating).

Heating or cooling

The CITY MULTI S-Series (for small applications) makes use of a two-pipe refrigerant system, which allows for system changeover from cooling to heating, ensuring that a constant indoor climate is maintained in all zones. The compact outdoor unit utilizes R410A refrigerant and an inverter-driven compressor for effective energy use. With a wide line-up of indoor units connected to a flexible piping system, the CITY MULTI S Series can be configured to suit diverse applications. Thanks to the individual operation of up to 12 units* and a group change function, the CITY MULTI S-Series can flexibly accommodate layout changes in stores and offices.

*For P140 and P200 models

Outdoor Units

S-Series

1-Fan Type PUMY-SP VKMD2-A(-BS)/PUMY-SP YKMD2-A(-BS)

Nominal capacity

9.0 – 15.5kW / 10.0 – 16.5kW

2-Fan Type PUMY-P VKM5(-BS)/PUMY-P YKM4(-BS)R2

Nominal capacity

12.5 – 22.4kW / 14.0 – 25.0W

All City Multi outdoor units as standard come with Blue Fin treatment to protect the aluminium heat exchanger fins from urban environment pollutants.

“BS” coating can be applied to the outdoor units as an option for additional protection in sea salt environments.

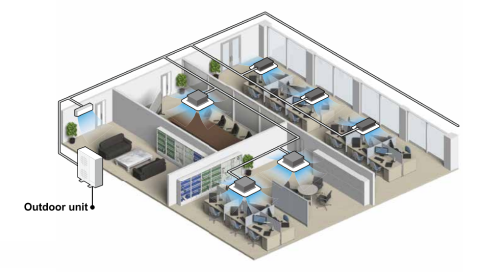

Installation

S-Series: PUMY
