PMFY-P VBM-E

1-way airflow type
Recommended for installation at the edges of a room. A lightweight body ensures excellent workability.

Models

PMFY-P20VBM-ER4

2.2kW / 2.5kW

PMFY-P25VBM-ER4

2.8kW / 3.2kW

PMFY-P32VBM-ER4

3.6kW / 4.0kW

PMFY-P40VBM-ER4

4.5kW / 5.0kW

Note: Above capacity ratings are all nominal rated.

Features

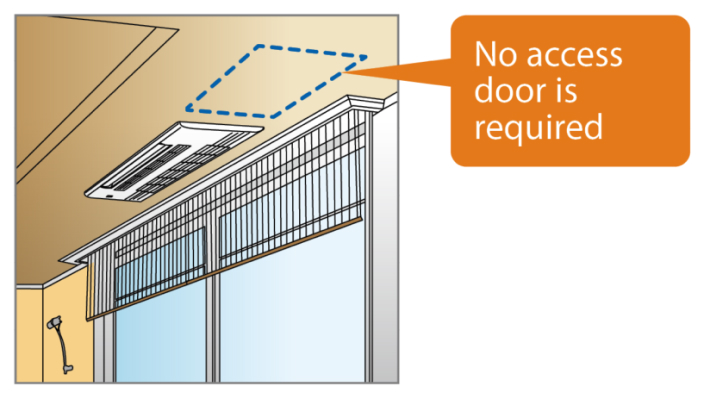

Ceiling mounted installation

Installing a 1-way airflow type unit in a room creates a more spacious feel that enhances room comfort. This overhead format is also an excellent solution when lighting equipment is installed at the center of the room and fixtures such as book shelves are mounted on wall surfaces.

Compact size for smooth installation and maintenance

The body size of the unit has been standardized for all models at 812 mm for easy installation. Body weight is only 14 kg for the main unit and 3 kg for the panel, making this unit one of the lightest in the industry.

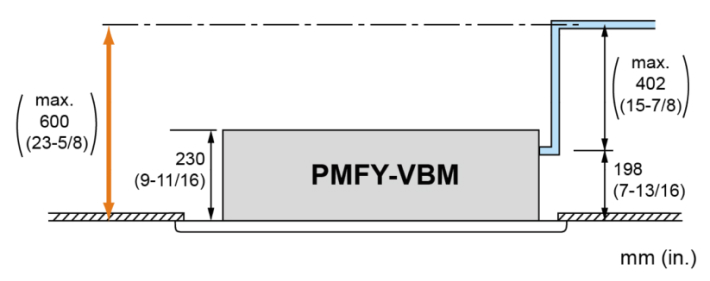

Drain pump

The drain can be positioned anywhere up to 600 mm (23-5/8 in.) from the ceiling surface.
