PLFY-P VFM-E

4-way airflow type
The compact size offers a perfect fit to grid system ceilings (600 mm × 600 mm) and provides 4-way airflows despite its size.

Models

PLFY-P15VFM-E1R1.TH

1.7kW / 1.9kW

PLFY-P20VFM-E1R1.TH

2.2kW / 2.5kW

PLFY-P25VFM-E1R1.TH

2.8kW / 3.2kW

PLFY-P32VFM-E1R1.TH

3.6kW / 4.0kW

PLFY-P40VFM-E1R1.TH

4.5kW / 5.0kW

PLFY-P50VFM-E1R1.TH

5.6kW / 6.3kW

Note: Above capacity ratings are all nominal rated.

Features

Beautiful square design

The square design matches 2 × 2 (600 mm × 600 mm) ceiling construction specifications. As such it can be seamlessly integrated to match the design of direct line lighting systems to creating a streamlined look and feel.

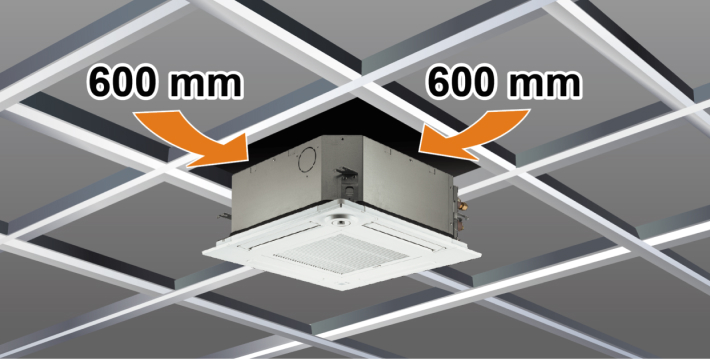

PLFY Sizing - 600x600mm

Above-ceiling height of 245 mm

The above-ceiling height of 245 mm is top class in the industry* and fits into narrow ceiling spaces.

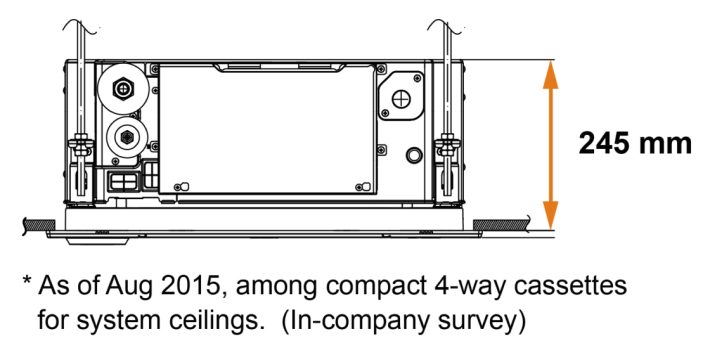

Diagram of PLFY Height - 245mm

Compact & light-weight design

The panel weighs 3 kg, and the main unit weighs 14 kg (P15, P20 and P25 models) or 15 kg (P32, P40 and P50 models). These weights are 5 kg lighter than the PLFY-VEM-E model, allowing easy suspension.

Horizontal airflow

Supply air is horizontally fed into the room to reduce the cold draft feeling. This airflow is ideal for offices and restaurants.

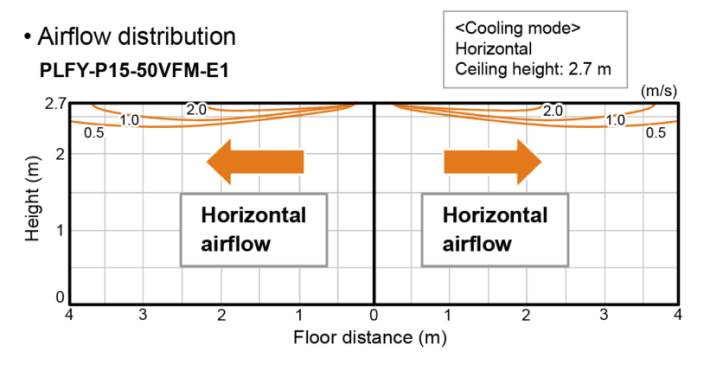

PLFY Airflow distribution chart PLFY Airflow distribution chart
